Agriculture Monitoring Automatic optional sensors Meteorological Station Weather Station

Product Overview

Description

General Instruction:

Green Founder ZS2 Automatic Meteorological Station strictly follows the WMO Meteorological monitoring standard to design and make the meteorological station, which can automatic monitor the following 20 meteorological parameters:ambient temperature, humidity, dew point temperature, wind speed, wind direction, barometric pressure, solar radiation, rainfall, ground temperature((including the ground surface temperature, shallow geothermal and deep geothermal)evaporation,soil humidity, carbon dioxide, sunshine hours, direct solar radiation, ultraviolet radiation, terrestrial radiation,net radiation, soil heat flux, soil water potential and leaf wetness. It has high stability, high accuracy, automatic features, meets the specialized meteorological observation requirements.

The Meteorological Station Technical Features

A. With RS232 communication interface, can be connected with the PC to download the data, real time read the monitoring data by PC,it also has the sole display, storage function.

B. With wireless communication function, can send the monitoring data to the control center by GSM network.

C.The TRM-ZS2 Software can work under Microsoft Windows System, real time display the parameters, upgrades the data every ten seconds, store the data per hour.

D.TRM-ZS2 automatic meteorological station adopts the high performance master CPU, has the large capacity data memory function can store hourly data for more than three months in a row, industrial standard design, portable vibration-proof structures, big LCD display screen, touch membrane keys. With power failure protection function, when AC power failure, and powered by the rechargeable battery, can be maintained for more than 72 hours.

E. Systems with a variety of power supply, AC, DC, with off-grid solar power system optional.

F. Can be customized according to the user needs to increase or decrease the observation elements.

G. Reliable three-proofing design, reach the IP65 level, comprehensive lightning protection and interference protection measures.

H. Working environment: temperature:-50~80℃,humidity:100%,wind-resistant grade:≤75m/s.

I. Support a variety of indoor and out displays.

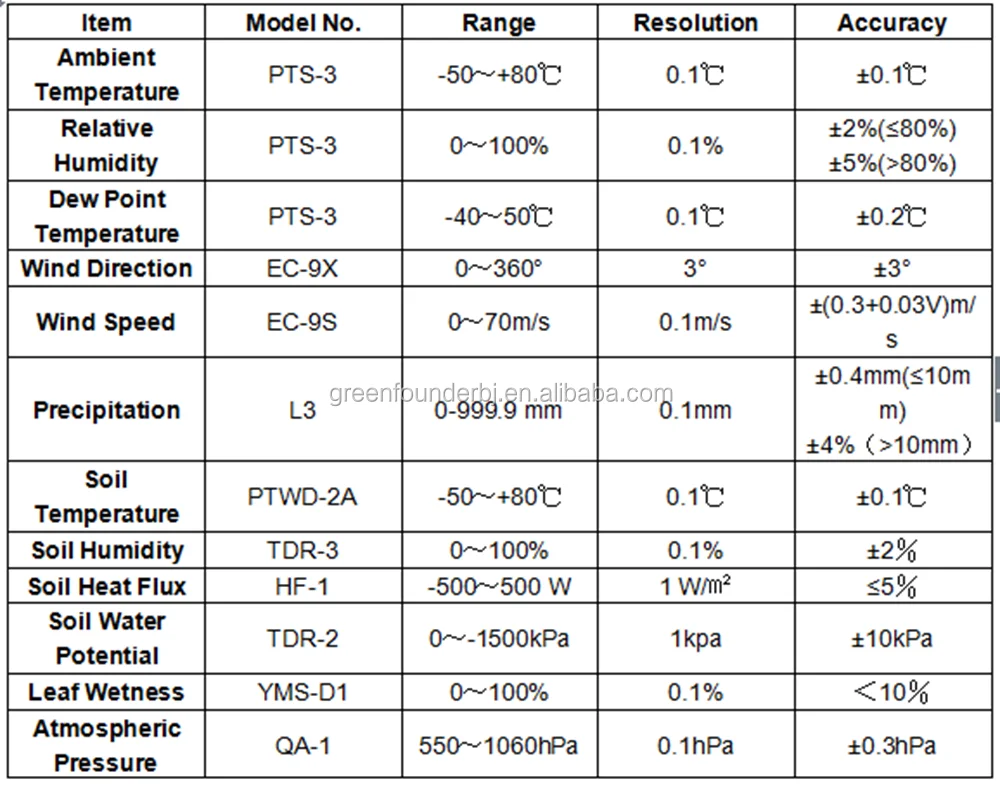

Main Technical Parameters



Application:

Colleges, research institutes,networking in meteorological air port, environmental monitoring,transportation, military, agriculture, forestry, hydrology,scale engineering,scientific teaching and etc.
