GWIEC China Export Single Phase JBK3 220V Ac Transformer Step Down Transformer
- Category: >>>
- Supplier: Yueqing Greenwich Imp& Exp Co. Ltd.
Share on (60574814065):
Product Overview
Description

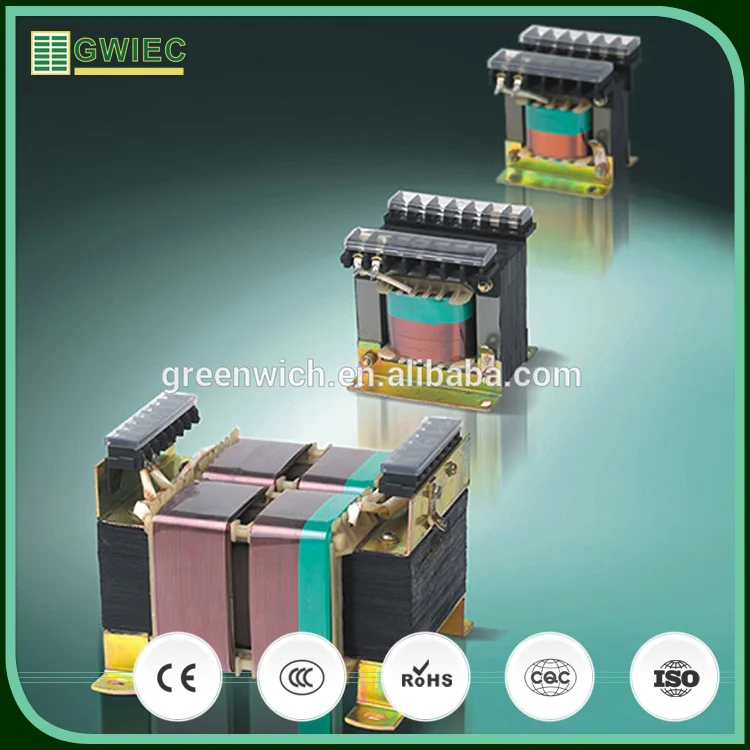

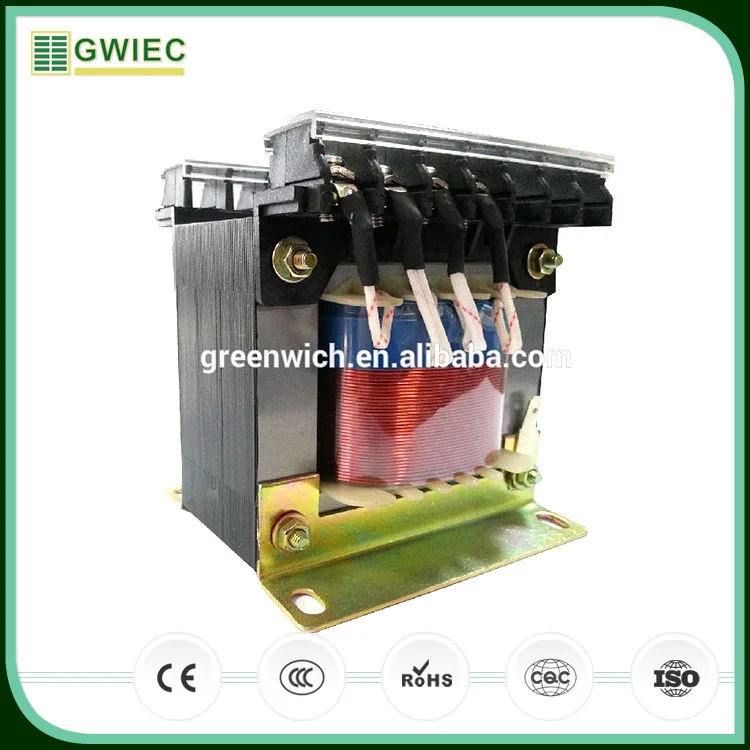

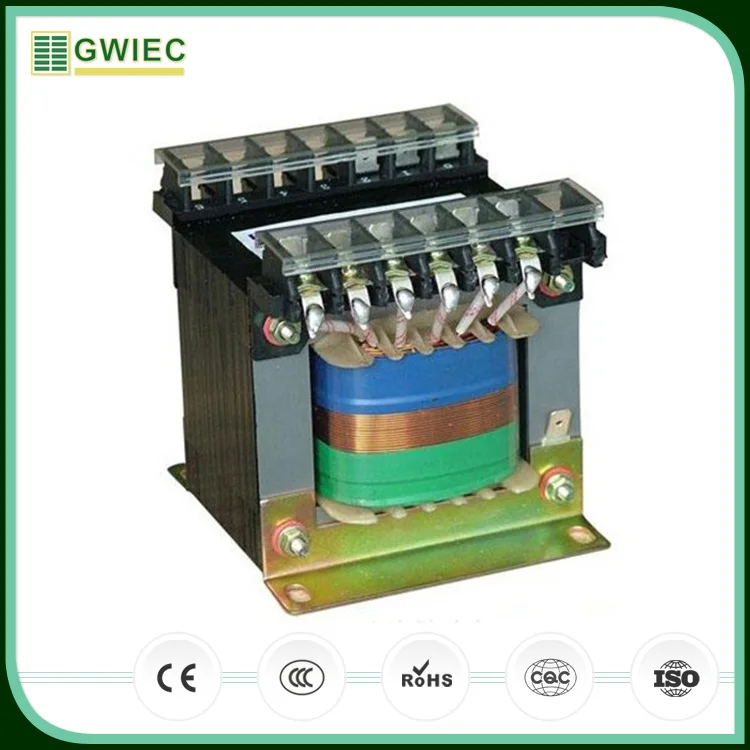

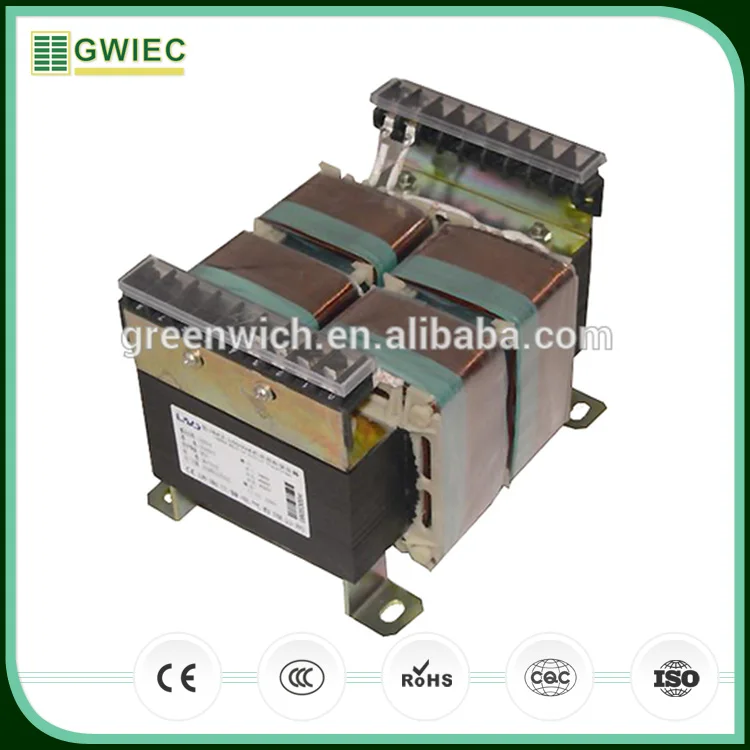

GWIEC China Export Single Phase JBK3 220V Ac Transformer Step Down Transformer
Product Description
Transformer Application:
- JBK3 series machine tool control transformer for AC-50-60HZ, output rated voltage not exceeding 220V, input rated voltage not exceeding 500V, as all walks of machinery and equipment, general electrical control and power and work lighting, signal lamp used.
- JBK3 series machine tool control transformer is a kind of new product by reference to sample of SIMENS Company, it accords with standards like VDE0550, IEC204-1, IEC439, GB5226, etc.
Transformer Specification:
| Type | Rated capacity (VA) | Uel rated input voltage (V) | Rated output voltage | ||
|---|---|---|---|---|---|
| Control | Illumination | Indication | |||
| JBK3-40 | 40 | 220±5% 380±5% | 110 (127) | 24 (36) | 6 (12) |
| JBK3-63 | 63 | ||||
| JBK3-100 | 100 | ||||
| JBK3-160 | 160 | ||||
| JBK3-250 | 250 | ||||
| JBK3-400 | 400 | ||||
| JBK3-630 | 630 | ||||
| JBK3-1000 | 1000 | Distribution of capacity for different winding may be according to the uses' request. | |||
| JBK3-1600 | 1600 | ||||
| JBK3-2500 | 2500 | ||||
Transformer Installation size:
| Type | Overall size(mm) | Hole distance for installation (mm) | Installation hole K or K x J(mm) | Fmax (mm) | |||
|---|---|---|---|---|---|---|---|
| Bmax | Dmax | Emax | A | C | |||
| JBK3-40,60 | 78 | 72 | 89 | 56±0.4 | 51±2 | 4.8 × 9 | 12 |
| JBK3-100 | 85 | 85 | 94 | 64±0.4 | 66±2 | 4.8 × 9 | 12 |
| JBK3-160 | 96 | 91 | 109 | 84±0.4 | 73±2 | 5.8 × 11 | 14 |
| JBK3-250 | 96 | 105 | 109 | 84±0.4 | 87±2 | 5.8 × 11 | 14 |
| JBK3-400 | 120 | 109 | 123 | 90±0.4 | 90±2 | 7 × 12 | 18 |
| JBK3-630 | 150 | 112 | 150 | 122±0.5 | 90±2 | 7 × 12 | 22 |
| JBK3-1000 | 160 | 195 | 151 | 126±2 | 152±2 | 7 × 12 | 18 |
| JBK3-1600 | 184 | 220 | 163 | 140±2 | 176±2 | 7 × 12 | 18 |
| JBK3-2500 | 200 | 250 | 171 | 172±2 | 200±2 | 7 × 12 | 18 |
Related Products
GWIEC is specialized in manufacturing in contactor,circuit breakers,thermal overload relays and magnetic starters,etc.
Company Information
GWIEC attaches great importance of Product Quality and Safety Production Process. Our company has passed ISO Certificates. Our products are listed by CQC, CE, RoHS certificates.
GWIEC will insist her belief "Quality is Brand"to bring "Better Quality, Better Service and Better Price"to customers, our goal is to maximize your profit and bring mutual success to both of us!
Certifications
GWIEC attaches great importance of Product Quality and Safety Production Process. Our company has passed ISO Certificates. Our products are listed by CQC, CE, RoHS certificates. we supply for global factories and distributors which are experienced in filed electric products and green energy. Just like Europe, South America, Russia, Asia etc.
OUR TEAM
FAQ
1.Could I put my own logo on it?
> Sure, customers' logo can be made by laser, engraved, embossed, transfer printing etc.
2.Should I pay extra for logo printing ?
> Normally usd 0.017/per color,according to the actual situation.
3.How about the quality ?
> Acquire the CE & SGS Certification.
> 100% QC in produce process and before package.
4.Could I buy 1pc sample first and small order ?
> Of course, support sample order and small order, especially for new customers under certain condition
5.How much for 1pc sample ?
>Some cheap ones may free for 1pcs but need to see the actual stock.
6.If I have my thoughts, do you have person to design according to my concept?
> Certainly,our design team is willing to do for you.
7.How long to make a sample?
> 2-5 days which depends on the samples' complexity.
8.Is the sample fee refundable or not?
> Sure, refundable once order confirmed.
With more than 15 years OEM experience, we can provide professional solutions for customers.
