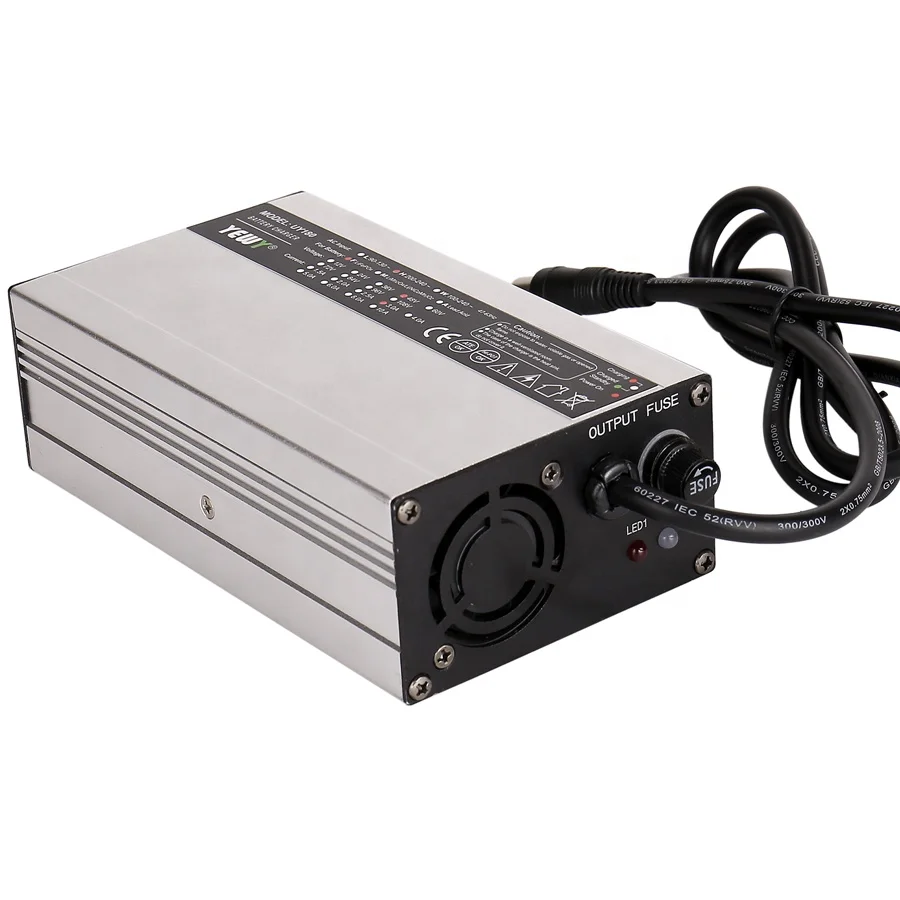

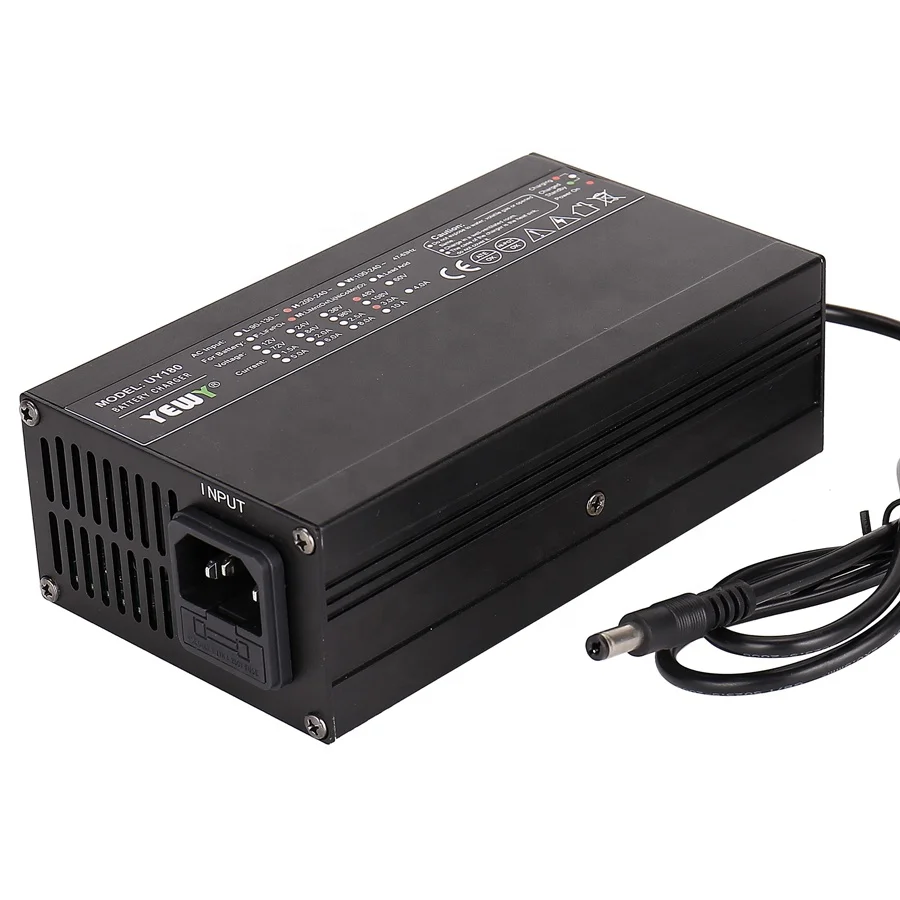

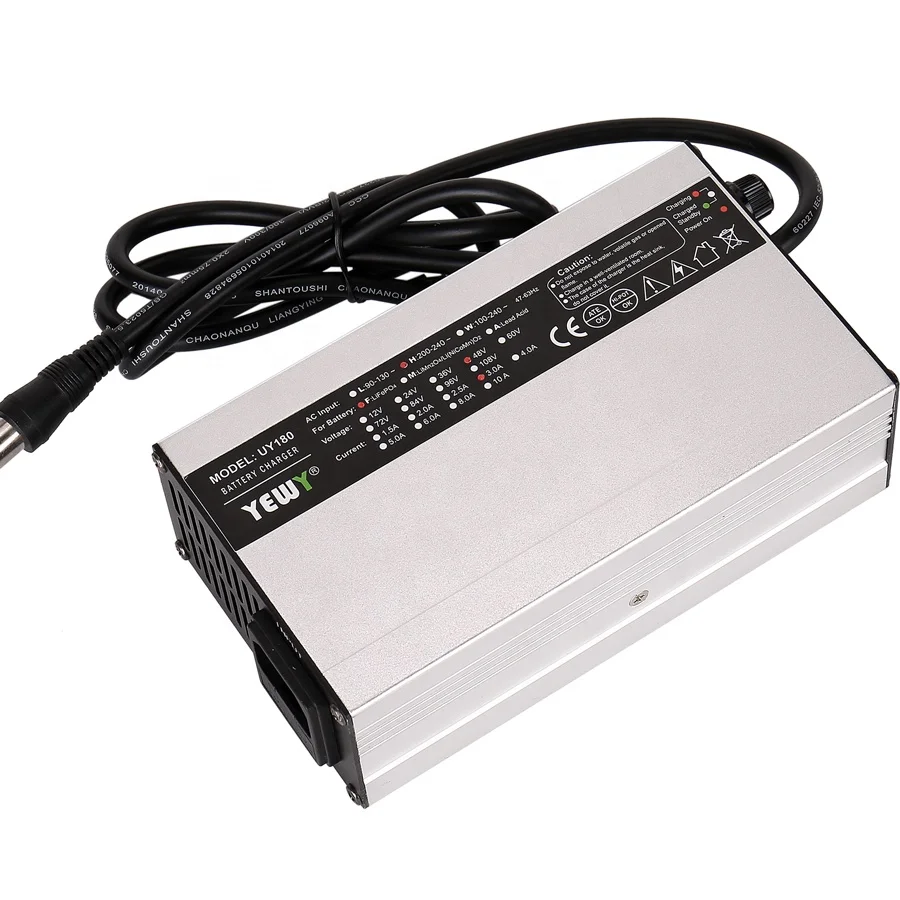

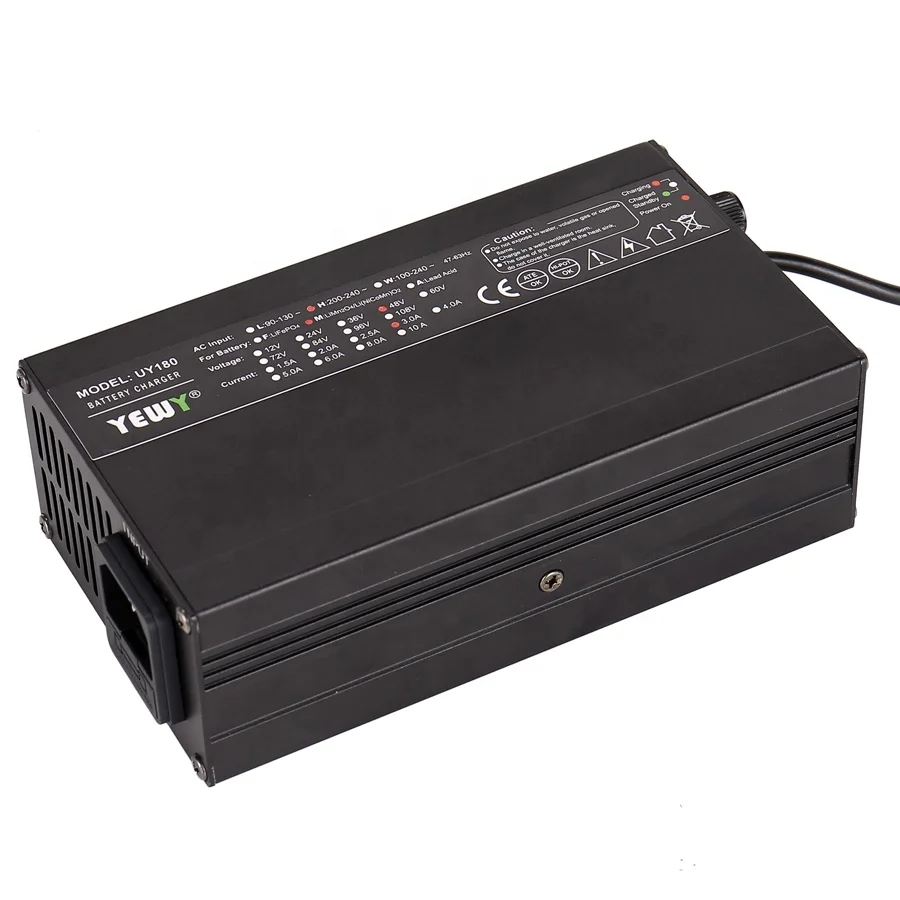

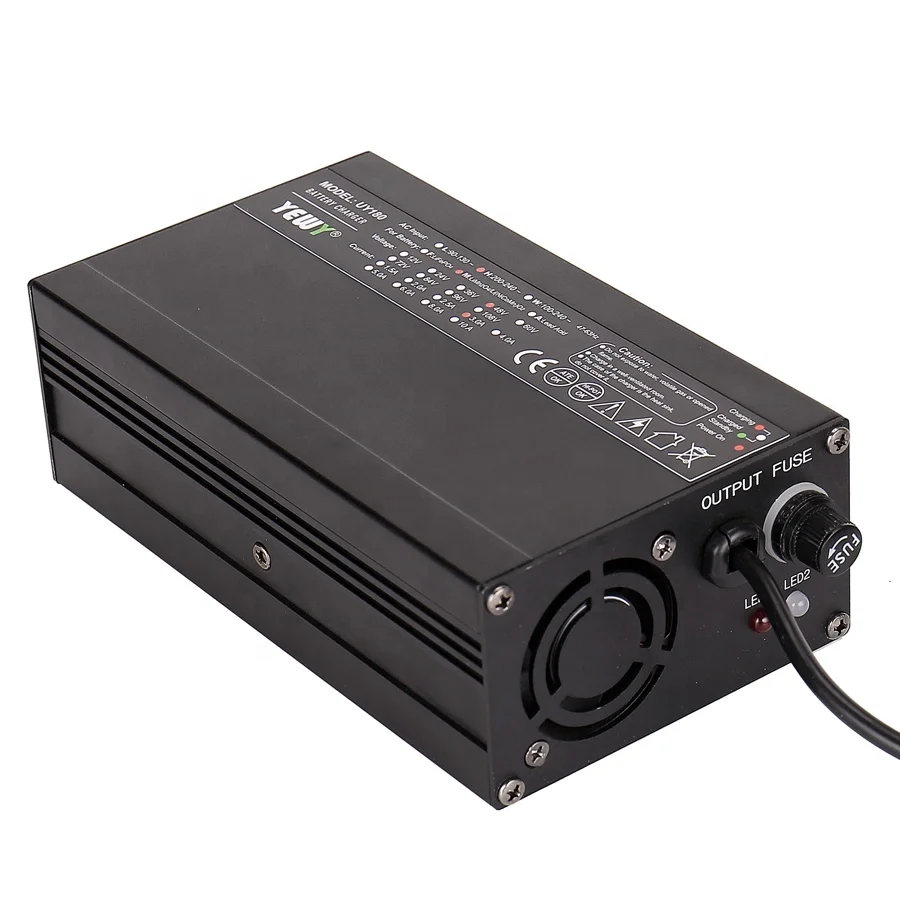

CE Certification UY180 Charger E bike Bicycle Scooter Wheelchair Battery Charger 48v 36v 24v 12v 3a 4a 5a 8a Electric 24 Months
CE Certification UY180 Charger E-bike Bicycle Scooter Wheelchair Battery Charger 48v 36v 24v 12v 3a 4a 5a 8a Electric 24 Months
CE Certification UY180 Charger E-bike Bicycle Scooter Wheelchair Battery Charger 48v 36v 24v 12v 3a 4a 5a 8a Electric 24 Months
CE Certification UY180 Charger E-bike Bicycle Scooter Wheelchair Battery Charger 48v 36v 24v 12v 3a 4a 5a 8a Electric 24 Months
CE Certification UY180 Charger E-bike Bicycle Scooter Wheelchair Battery Charger 48v 36v 24v 12v 3a 4a 5a 8a Electric 24 Months
CE Certification UY180 Charger E-bike Bicycle Scooter Wheelchair Battery Charger 48v 36v 24v 12v 3a 4a 5a 8a Electric 24 Months
CE Certification UY180 Charger E-bike Bicycle Scooter Wheelchair Battery Charger 48v 36v 24v 12v 3a 4a 5a 8a Electric 24 Months
CE Certification UY180 Charger E-bike Bicycle Scooter Wheelchair Battery Charger 48v 36v 24v 12v 3a 4a 5a 8a Electric 24 Months
CE Certification UY180 Charger E-bike Bicycle Scooter Wheelchair Battery Charger 48v 36v 24v 12v 3a 4a 5a 8a Electric 24 Months

CE Certification UY180 Charger E bike Bicycle Scooter Wheelchair Battery Charger 48v 36v 24v 12v 3a 4a 5a 8a Electric 24 Months

Share on (60574888476):


Price:$26.50 - $29.00

Quantity:


Product Overview

Description


UY180

Features
1.AC input: 100-120V / 200-240V AC, 47 to 63Hz
2.Output power:180W
3.DC output voltage: 12V/8A, 24V/5A, 36V/4A, 48V/3A, 60V/2.5A, 72V/2A
4.LED indicator light logo: red and green, double color instructions, red charging green finished or standby
5.Efficiency: >85%
6.MTBF: 30000 hours
7.Main export markets: Asia/Eastern Europe/Mid East/Africa/Australasia/North America/Central/South America/Western Europe

Work Conditions:
Ambient temperature: -20 - 40℃
RH: 5 - 95%
Max. altitude: 2000  meter
Cooling: UY series chargers use of forced air cooling system. Under dustless and ventilated conditions, the full load temperature rise not exceeding 40℃.

Storage conditions
Ambient temperature: -40 - 70℃
RH: 0 - 95%
Max. altitude: 20000 meters.

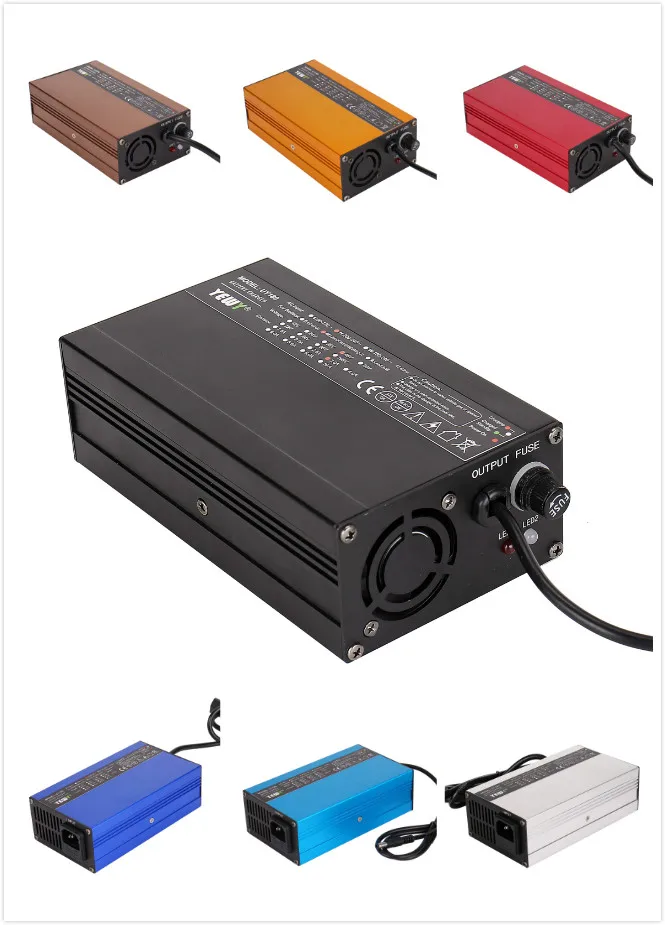

_meitu_0

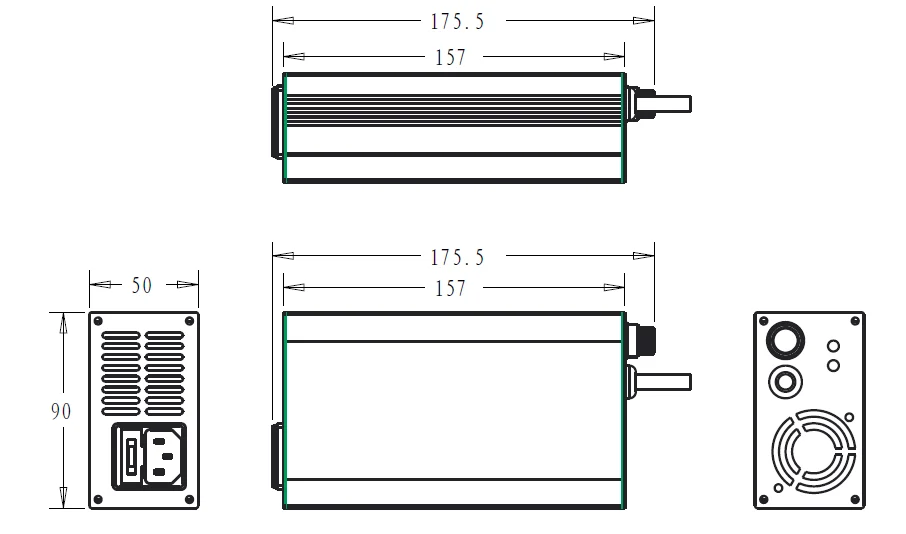

UY180 Parameter



SpecificationDC Voltage Charge currentLight Turing(A)
Lithium ionLifepo4Lead acid Lithuim ion/lifepo4Lead acid
12v 8a12.6V/16.8V14.6V14.7V8A8-10% 20-30%
24v 5a25.2V/ 29.4V/ 33.6V29.2V29.4V5A
36v 4a42V/ 46.2V43.8V44.14A
48v 3a50.4V/ 54.6V/ 58.8V58.4V58.8V3A8-10% 20-30%
60v 2.5a63V/ 67.2V/ 71.4V73V73.5V2.5A
72v 2a79.8V/ 84V87.6V88.2V2A





Any other chargers, pls contact Alina
