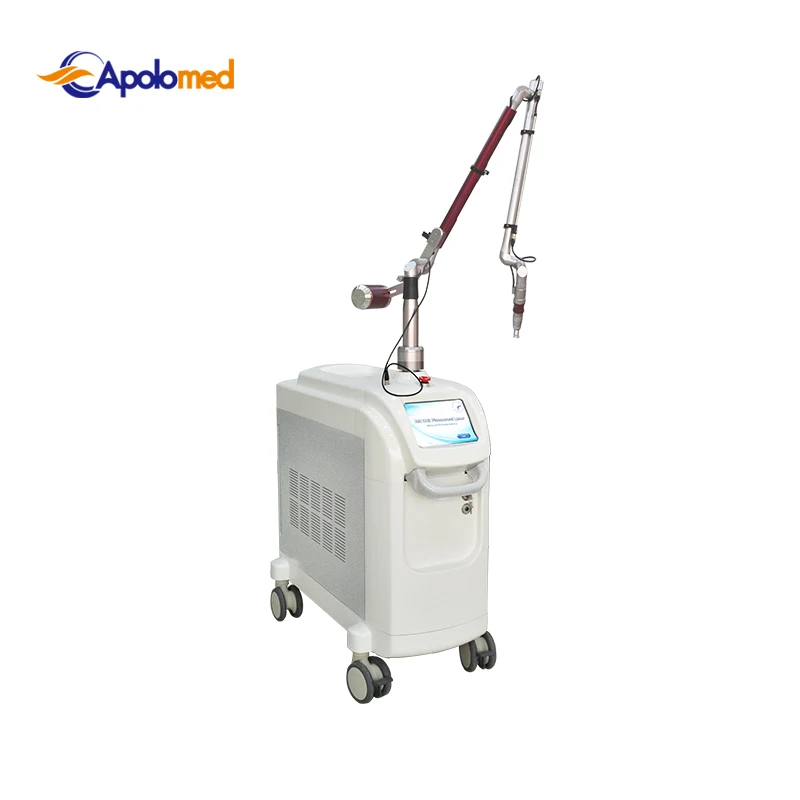

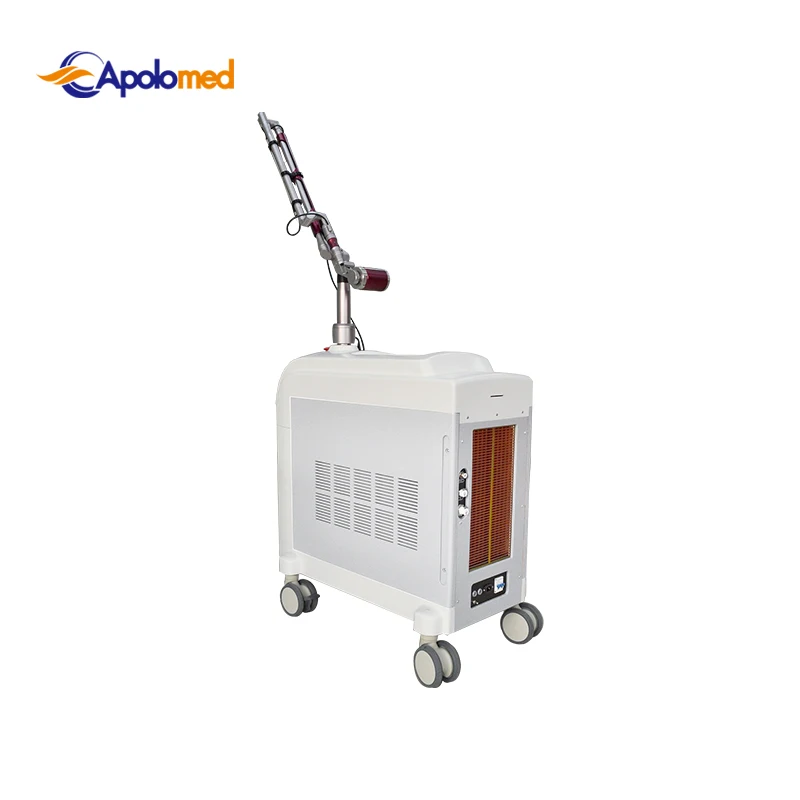

EO q switch 1064nm 532nm Nd Yag laser for tattoo removal vascular skin rejuvenation epidermal melasma treatment freckles
- Category: >>>
- Supplier: Shanghai Apolo Medical Technology Co. Ltd.
Share on (60575008262):
Product Overview
Description
EO q switch 1064nm 532nm Nd Yag laser for tattoo removal vascular skin rejuvenation epidermal melasma treatment freckles
Brief Introduction
- Factory direct sale HS-290 EO Q Switch pulsed Nd:YAG laser
- Max.2000mJ Q-Switch mode for yag laser tattoo removal treatment
- Max.2800mJ free running mode for yag laser skin rejuvenation

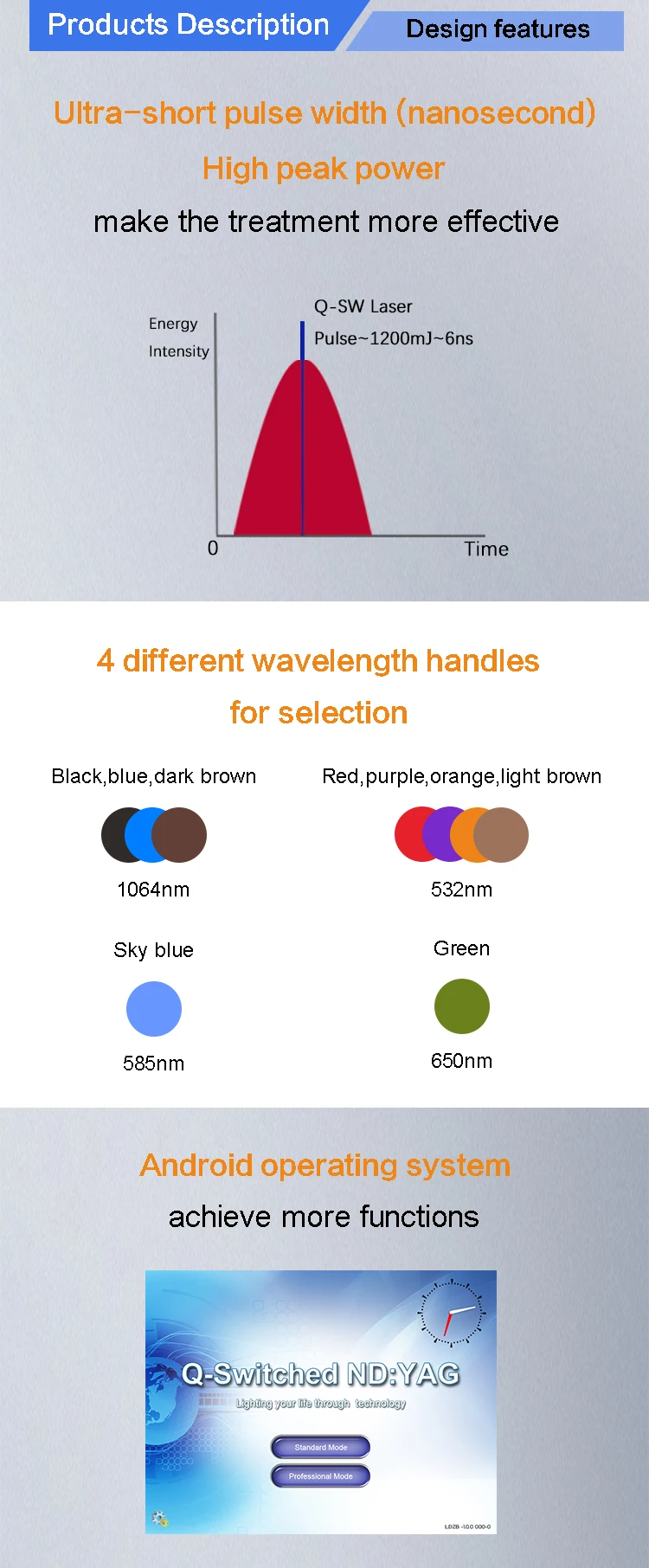

- Pulse width < 6ns
- Repetition rate max.10HZ
- Luxry 9.7" true color touch screen with multi-languages available
- IC card and USB function supported
Specification
EO Q-siwtch nd yag laser/1064nm yag laser for tattoo removal and skin rejuvenation
Laser Type | EO Q-switch Nd:YAG laser |
Wavelength | 1064/532/585/650nm |
Operate mode | Q-switched mode & SPT mode |
Beam profile | Flat-top mode |
Pulse width | ≤6ns (Q-switched mode) |
300us (SPT mode) | |
Pulse energy | Q-switched 1064 mode: Max. 2000mJ |
Q-switched 532 mode: Max. 800mJ | |
SPT mode (1064nm): Max. 2800mJ | |
Energy calibration | External & self-restoration |
Spot size | 2-10mm |
Repetition rate | Max. 10Hz (1064nm, 532nm, SPT mode) |
Optical delivery | Articulated arm |

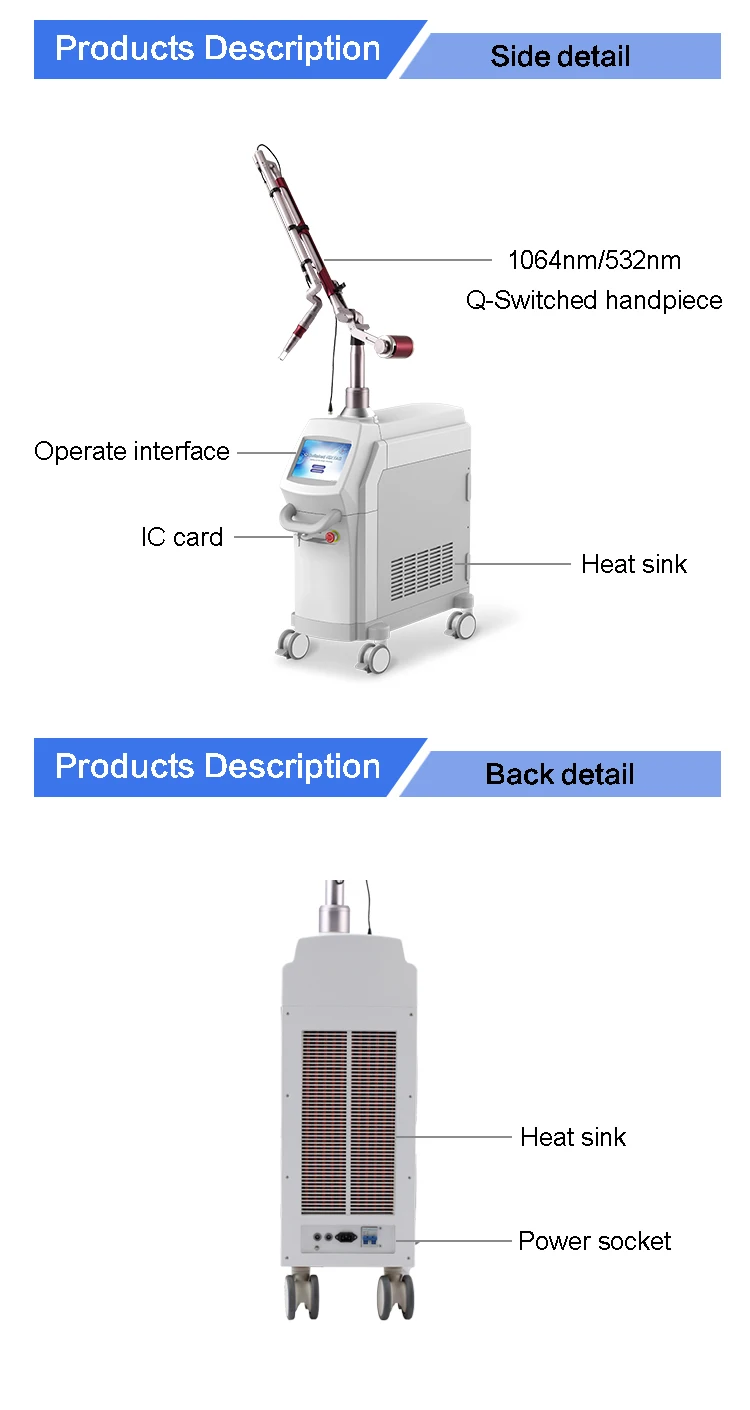

Operate interface | 9.7’’ true color touch screen |
Aiming beam | Diode 655nm (Red), brightness adjustable |
Cooling system | Advanced Air & Water cooling system |
Power supply | AC 100V or 230V, 50/60Hz |
Dimension | 86*40*88cm (L*W*H) |
Weight | 83Kgs |
Applications
Apolomed EO Q Switch Nd:YAG laser system, with the advanced pulsed Nd YAG laser technology, could make the skin selectively absorbing certain wavelength of laser and achevie curative effect. The pulsed nd yag laser HS-290 is widely used to:
- Melasma
- Tattoo removal
- Pigment removal
- Yag laser skin rejuvenation

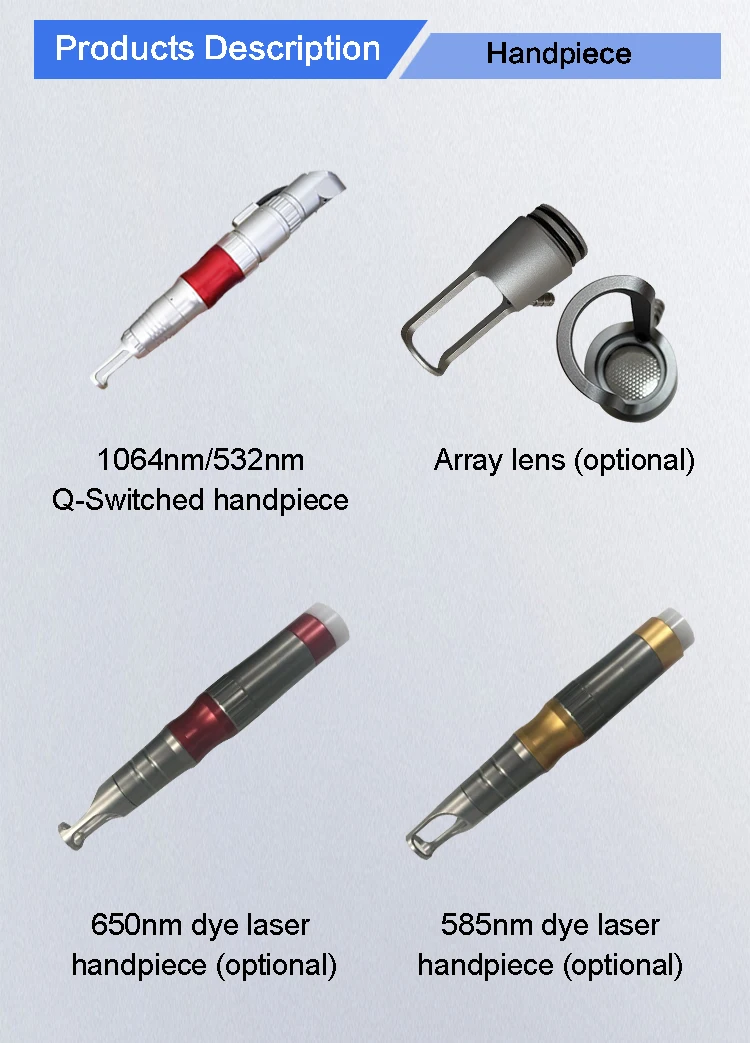

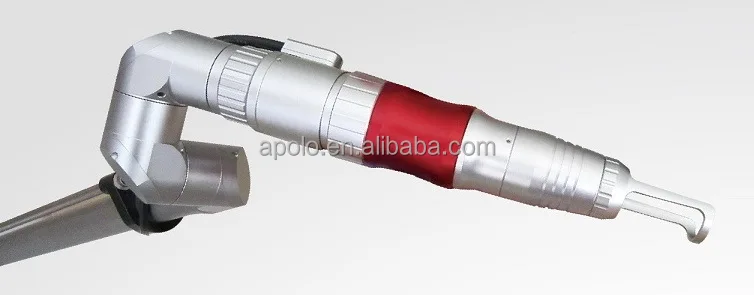

EO Q Switch Nd YAG laser handpiece with adjustable spot size:
laser beam applied on skin with top hat profile, improved uniform lader is competely and full absorbed by target tissue while leaving the surrounding normal tissue intact.

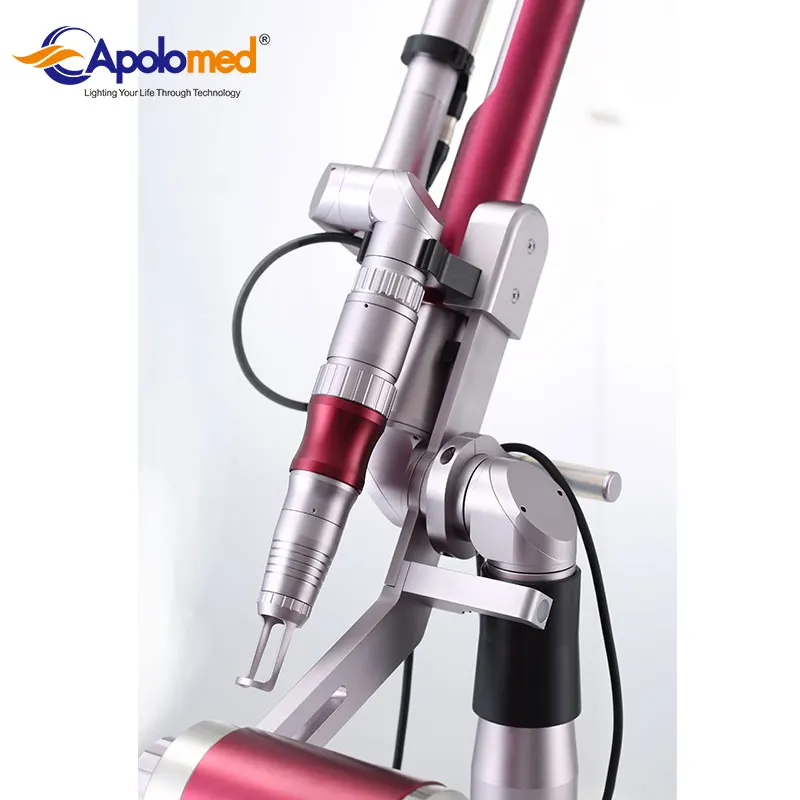

Korea imported 7 joints light guiding arm

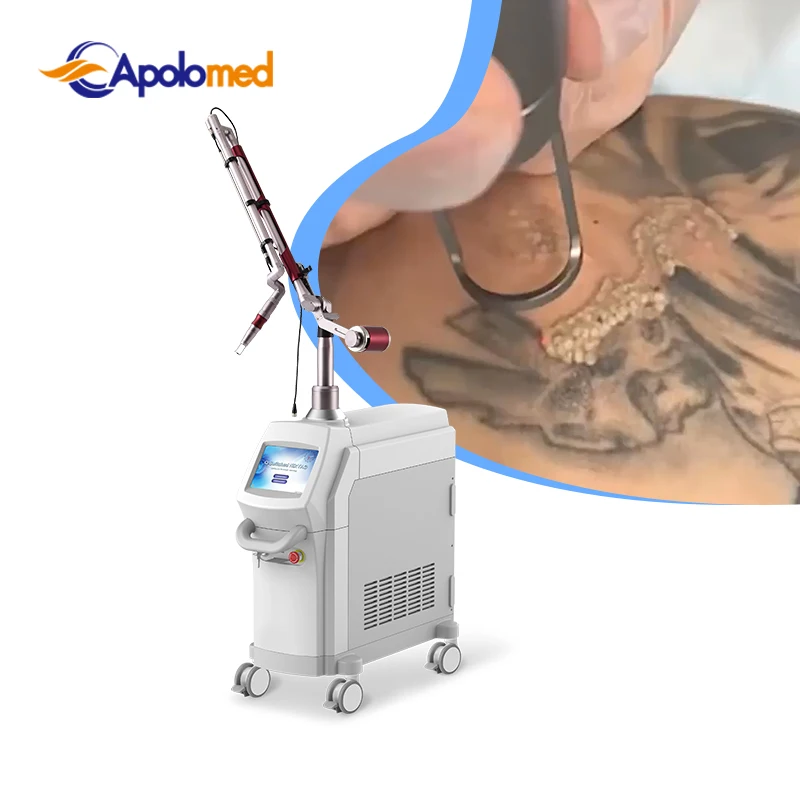

All colors tattoo removal
2800mj output energy
Company Information
Certification
Packaging & Shipping
Contact us
For more information about EO Q-siwtch nd yag laser for tattoo removal, pls contact us freely.
EO q switch Nd:Yag laser for tattoo removal vascular skin rejuvenation epidermal melasma treatment freckles
