Magnesium Oxide Panel Making Machine
- Category: >>>
- Supplier: Shandong Chuangxin Building Materials Complete Equipments Co. Ltd.
Share on (60575587304):
Product Overview
Description
Machines Making Magnesium Oxide Panel
Product Description
Product

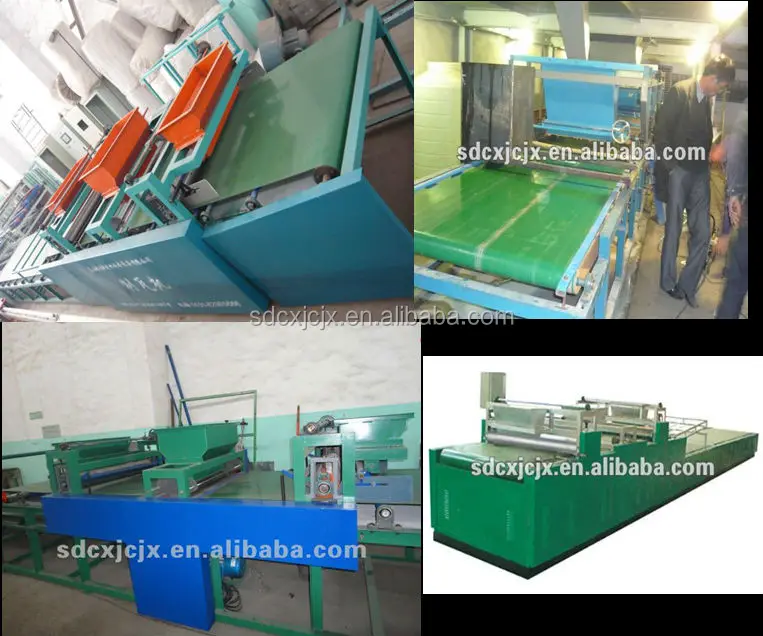

About this production line ,among which ,Glue spreading-overlaying-daying Machine and Glazing Machine are equipment which will give the advanced processing to the boarad .the above two machine s can overlay and glaze the magnesium oxide board or orinary wood board . The Glue spreading-overlaying-daying Machine can overlay wood-grain paper,PVC film .The Glazing Machine will glaze the overlaied board with wood-grain paper,and make the board with bright light or dull light .The above processing will replace former painting working processing .(because the wood-grain paper is not wearable and it has no gloss degree)
Technoloy features
There is not any requirement about high temperature and high pressure during production processing .the boarad will be formed at one time after roller-extruding under the conditions of normal temperation and normal pressure .this is a green environmental-protection project, because that there is no waste water ,waste materials and waste gas during its production processing .the finised board don’t need high temperature drying ,air-drying and watering ,and under the normal temperature ,they will dry well indoor .
Take 1200mm*2400mm*8mm mgo board an example in China
MGO BOARD CONSUMPTION COMPARABLE TABLE
Names of materials | Each dosage |
Magnesium | 2.978 yuan |
Magnesium chloride | 1.23 yuan |
Non-wovens | 0.85 yuan |
Glass cloth | 1.05 yuan |
Perlite | 0.62 yuan |
Sawdust | 0.647 yuan |
Structure principle and specification

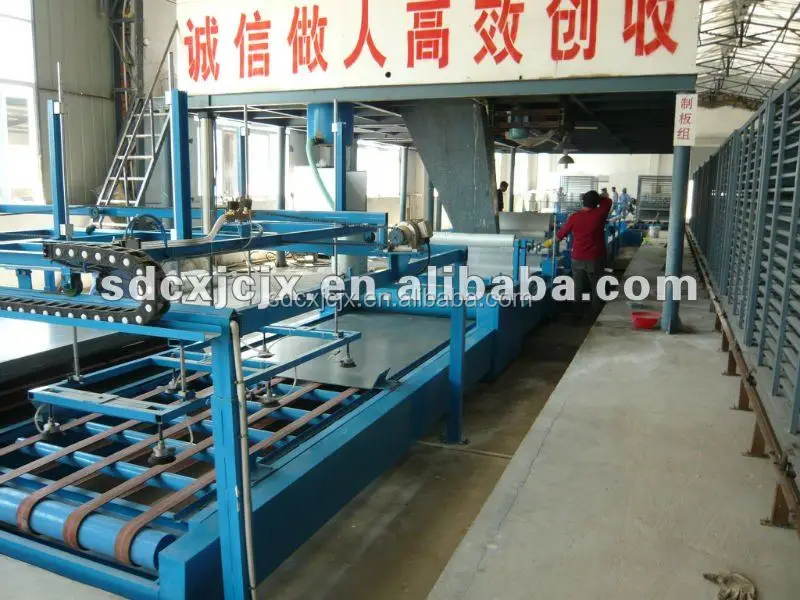

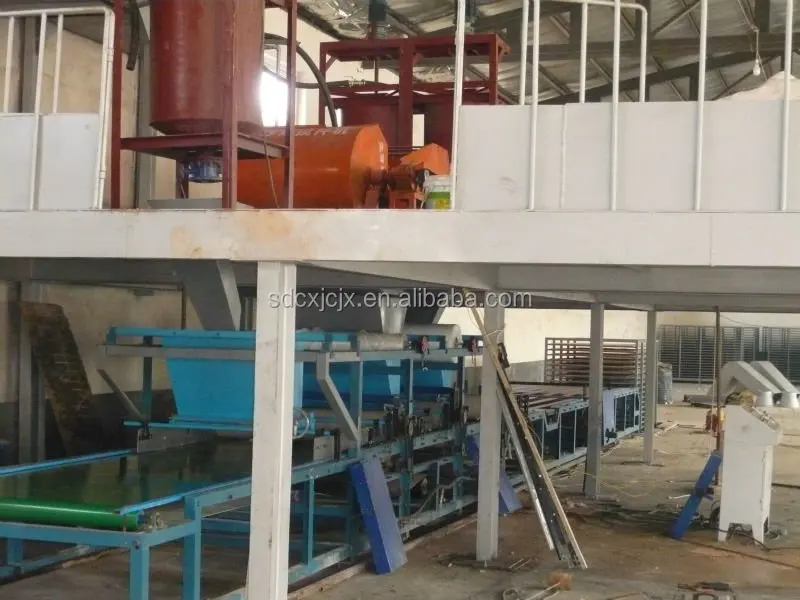

Production line for mgo board with fashionable design ,reasonable structure, stable running manufactures even thickness board in large production once through double ways roll-in technology .This production line is equipped with shaking device which can remove inside and outside air bubble .so our board is more compact .in addition,we use the no-woven cloth as the separating film to increase the toughness and the strength of the board .The machine can be adjusted arbitrarily ,and then produce the board with the thickness of 2-25mm,the biggest width of 1,300mm and unlimited length .so you can adjust the thickness of board at will.
EQUIPMENT CONTRIBUTION CONDITIONS
frequency | pressure | equipment | rooms | capacity |
50HZ | 380V | 1.7million M2 | 12M*80M/9M*40M | 10KW-15KW |
Company Information
Our Factory
Shandong Chuangxin Building Materials Machinery Co., Ltd., as a new and high technology enterprise registered at provincial industrial and commercial department and a modern group enterprise integrated with scientific research, processing and trade mainly focus on research, development and popularization of decorating technique, building materials technology and machinery. Its many patent products were sold throughout China and some were exported to Russia, Southeast Asia, Hong Kong and Taiwan. We have had rich assets and intellectual property rights after many years, and in July 2004, our products were awarded as many laurels such as State Key New Product by State Ministry of Science and Technology, Ministry of Commerce, General Administration of Quality Supervision, Inspection and Quarantine and State Environmental Protection Administration. With this company got much economic benefit and social benefit, so it enjoys high popularity and good credit in the society.
Advantages
after installation and commissioning, we will provide mgo board formula suitable with client’s
demand ,ensuring clients can producce qualified mgo board .additional,we will help local
experienced engineer to master the production process.
Low cost | Low labour and raw materials costs |
Long life | Up to 30 years |
Recycling use | Reused for more than 8 times |
Environment protection | Environment-friendly raw materials used |
Flexible layout | adjusted according to your requirement |
Our Services
1)Fully life-cycle value services
Our company provides mgo board production line design ,cost accounting,installation and operation,equipment maintenance and the whole life cycle techincal support
2)all-around thechnical service
We provide technical formula for clients,to help clients to occupy the leading position in the market.
3)complete data specification
Provide production line equipment technical data and instructions,and provide the mgo board production line formula.
4)quality commitment
The company regards product quality as the lives of enterprise,the main components and wearing parts are made of high quality wear-resistant materials and advanced processing technology,so that the equipment endurable and wear resisting ,wearing parts warranty for one year.
