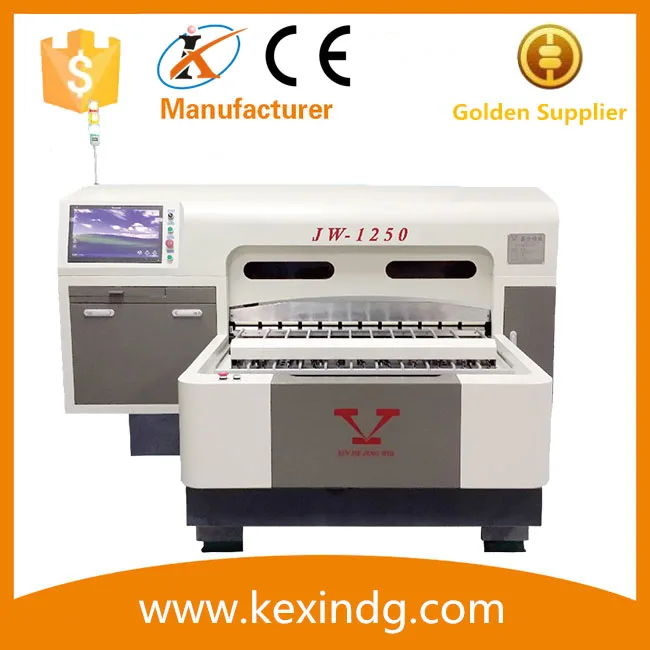

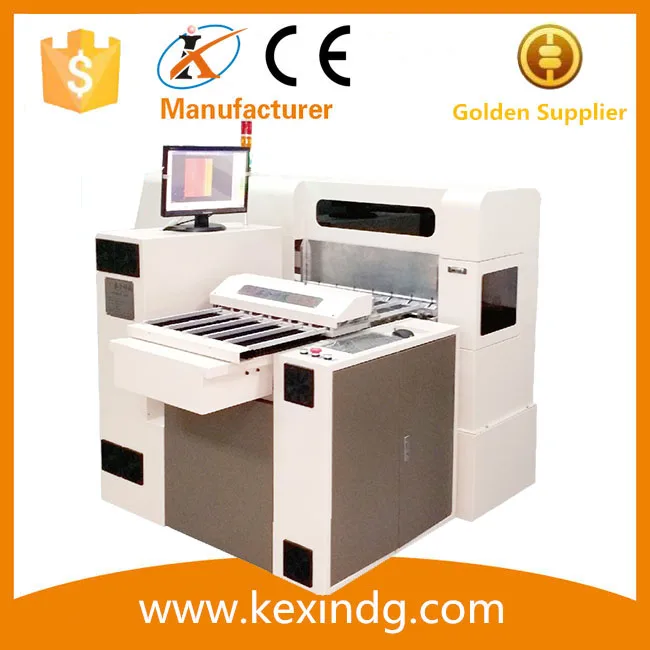

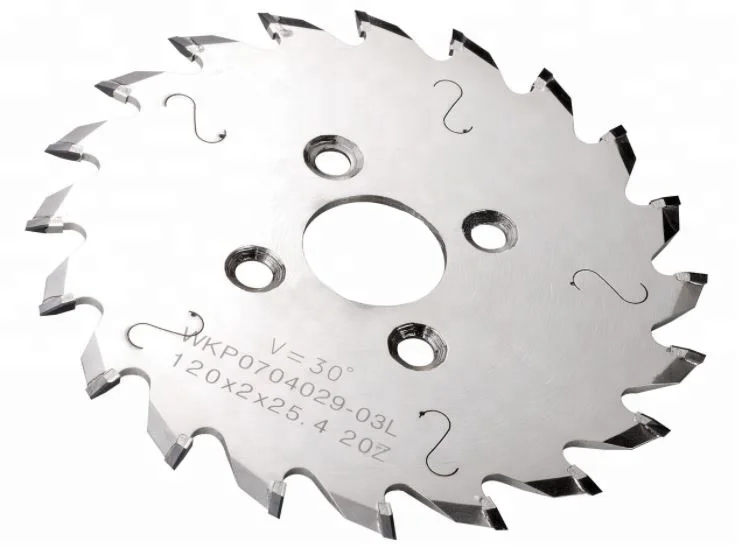

High Precision CNC PCB Machine V-Cut Machine V-groove Machine V-score Machine

Product Description




  • Equipment Name:  Print circuit board V-cutting Machine
  • Application: PCB V-cutting
Machine Parameters
Panel Maximun Size 1250mm×650mm
Panel Minimum Size105mm×105mm
Processing Speed0~50m/min (Adjustable)
Processing Thickness0.4mm~3.2mm
Processing PositionFrom begining to first cut can be up to 5.0mm
Processing SpacingSet up by parameters in system;
Fully closed-loop control, automatic calibration
Cutter jumping Frequency Set up by parameters in system; No limited
Procissing PrecisionResidual Thickness (X-axis Precision): ±0.05mm
Parallel: ±0.05mm
Spacing: ±0.05mm
Spinde Rotate Speed5000~8000RPM
Machine Dimension2400mm×2020mm×1540mm
Machine Weight3000KG
Power220V, 4KW, 50Hz
Pressure0.5MPa
Dust Absorption (Air)0.5MPa (5kg/cm²)




Electronic Control System Introduction
1, Push plate use Mitsubishi or Fuji servomotors.The precision is 3μ; Max speed 3,500 RPM, Max power: 400W.
2, Cutter shaft use Mitsubishi or Fuji servomotors. The precision is 3 μ;Max speed 3,500 RPM, Max power: 750W.
3,Up and down cutter use Mitsubishi or Fuji servomotors. The precision is 5 μ;Max speed 8,000 RPM, Max power 400W.
4, PLC Module controller use 6 shaft motion to control that could provide great stability.
Software Introduction
1, Panel data managed by PC.
2, Processing data transfer can be finished within 10 ".
3, Graphical UI in English.

4, Processing data can be saved in the system.







Other Features
1, Machine used Germany PIN workflow.
2, Cylinder flow can be adjusted separately.
3, Machine has seven independent cylinder clamping jaws.
4, Hole position PIN are made via sophisticated grinding. Size: 2.0~3.2mm
5, Clamping jaws can be used as cover PIN edge.
6, Auto strip the panel.















Packaging & Shipping

Price Term & Shipment

♦Trade Term: FOB Shenzhen USD by T/T in advance.

♦Discount is allowed against your quantity.

♦Sample can be sent out in 3 days.

♦OED/OEM is accepted.

♦Delivery will be carried out by Express or your requirement.

♦Lead Time: 2~7 days after payment.
