China car tow dolly trailer Titan car trailer Car carrier semi trailer for sale
- Category: >>>
- Supplier: Henan Perfect Handling Equipment Co. Ltd.
Share on (60575909252):
Product Overview
Description
China car tow dolly trailer Titan car trailer Car carrier semi trailer for sale
The Car Trailer is important equipment for modern logistic transportation, which is very effective and simple way to improve the production efficiency. The Car Trailer cart has several advantages, such as high bearing capacity, high efficiency, and lower cost. Usually one or more Car Trailer could be towed by one tractor. The Car Trailer is widely used in a lot of place, such as airports, sea ports, railway stations, factories and large warehouses, which will greatly improve the transportation efficiency and reduce the cost of forklift and labor.
Technical Parameters of Car Trailer
| Model | BWT-2t | BWT-5t | BWT-10t | BWT-20t | BWT-30t | BWT-45t | BWT-60t |
| Rated Load(t) | 2 | 5 | 10 | 20 | 30 | 45 | 60 |
| Table Size (mm) | 2000*1500 | 2500*1500 | 3000*2000 | 4000*2000 | 5000*2200 | 6000*2400 | 6000*2500 |
Height (mm) | 500 | 600 | 700 | 750 | 800 | 850 | 950 |
| Wheel Quantity | 4 | 4 | 8 | 8 | 12 | 12 | 12 |
| Tire Specification | 254*102 | 305*165 | 559*254 | 22*9-10 | 22*9-10 | 22*10-16 | 22*14-16 |
| Tire Material | Press-on solid tire | Press-on solid tire | Press-on solid tire | Press-on solid tire | Press-on solid tire | Press-on solid tire | Press-on solid tire |
| Frame Material | Q235 | Q235 | Q235 | Q235 | Q345 | Q345 | Q345 |
| Color | Customized | Customized | Customized | Customized | Customized | Customized | Customized |
| Speed(km/h) | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-15 | 0-10 |
Design Requirement Of Car Trailer
The load capacity, table size, color of the Car Trailer all can be customized.
1. The rated load capacity: we will design according to the needs of the tonnage;
2. Load-bearing area: according to the need to design the bearing width and length of the trailer plate;
3. Tire model: air core tire or solid tire. Air core tire walking speed is faster while the solid tire is wear-resisting, not punctured tyres;
4. You can choose other configuration as needed such as: double traction belt, guardrail, minivan, braking system, suspension system, awning, rope netting etc.

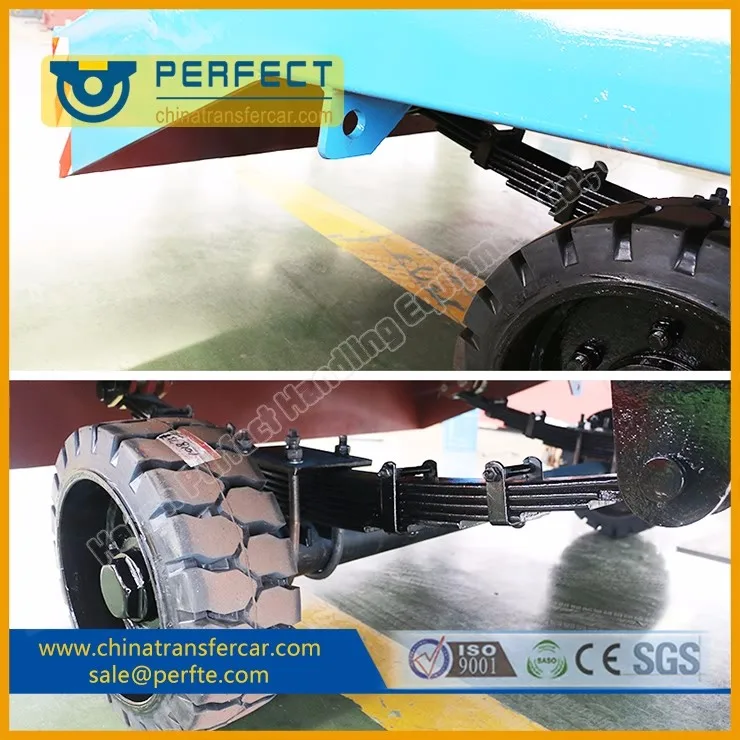

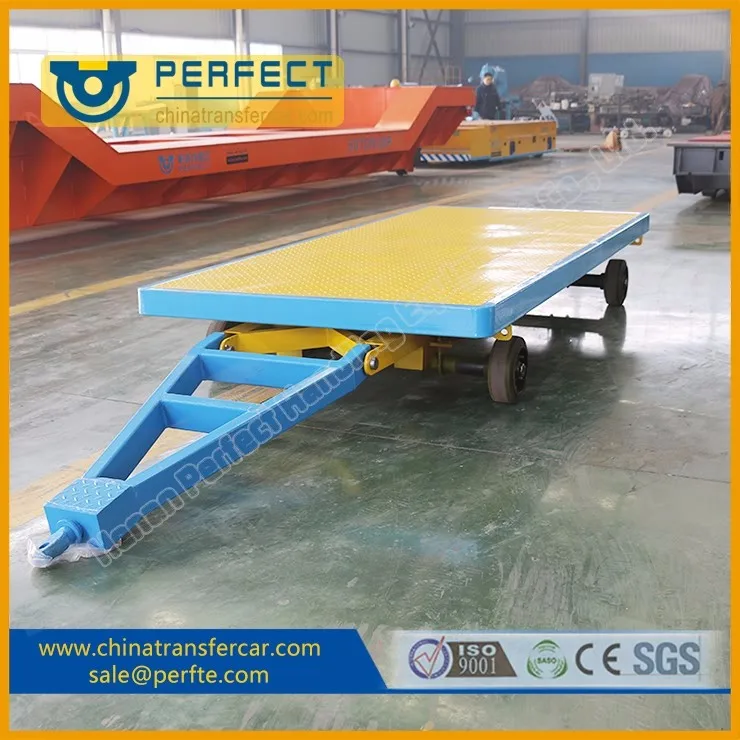

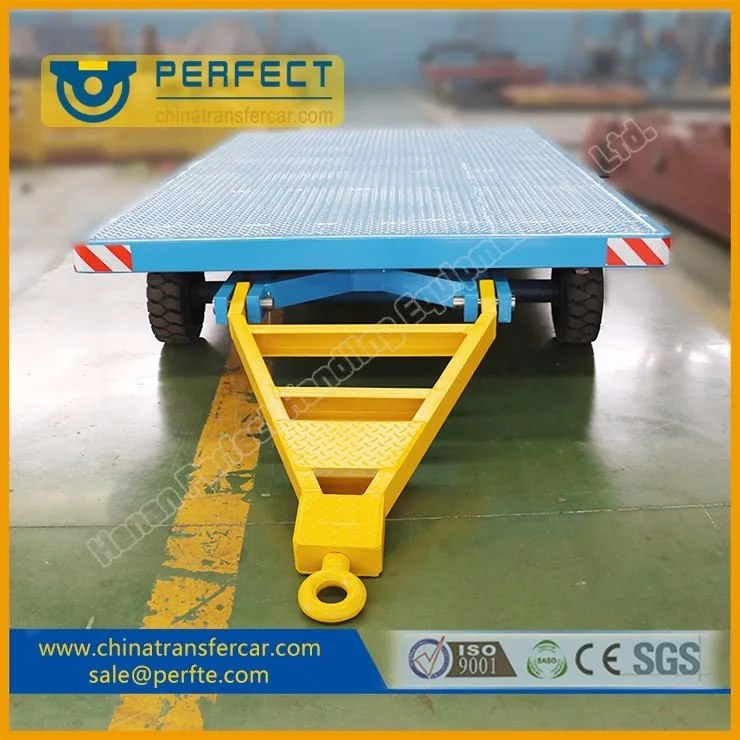

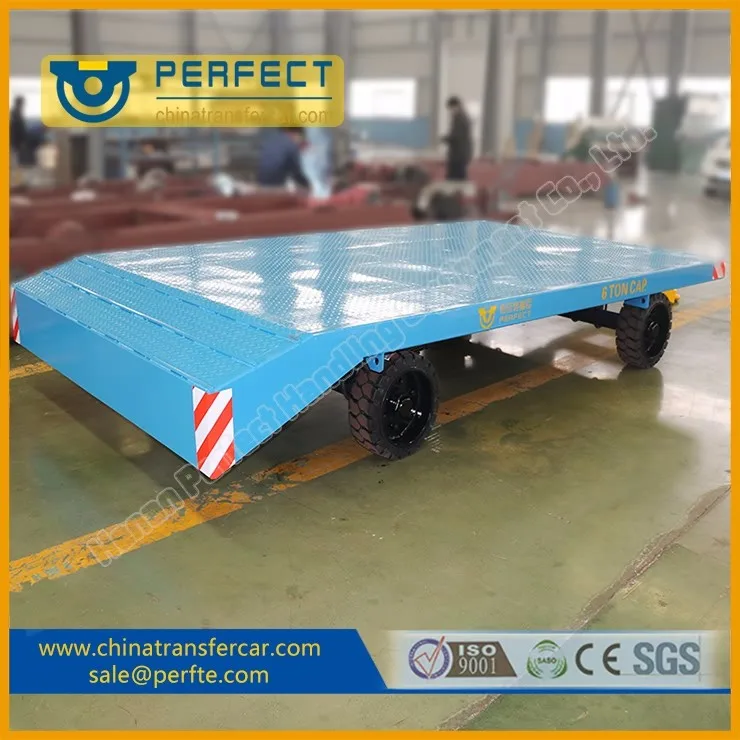

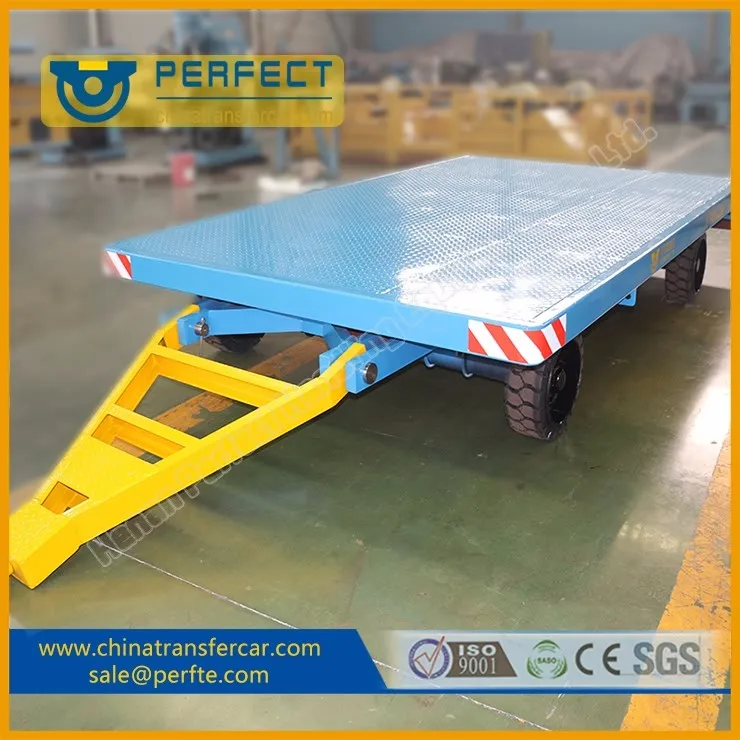

Detailed Image Of Car Trailer
Other Optional Functions for Car Trailer
- Pattern plate is available for the table;
- Four side of the industrial trailer could be installed guardrail or steel bar;
- For load capacity below 3 tons, parking brake is optional to prevent the trailer from moving.
Technology Process Of Car Trailer
Functions & Advantages Of Car Trailer
- The Car Trailer will apply pressed-on solid rubber tire, which makes the trailer with low height but heavy load capacity.
- The quantity of wheels is from 8-16, and service life of wheels will be over than 5 years, which is very safe, reliable and cost saving
- We will use heavy steel to build the structure of the trailer, which will have a service life at least 20 years
- Several Car Trailer could be towed together
- Running distance of Car Trailer is unlimited;
- The height of towing hook is adjustable to adapt different tractor, forklift. There are two springs on the towing device, which will protect the trailer and cargo when it is started or suddenly stopped.
- The turning device is large rotation support as the fifth wheel, which is usually used in excavating machinery and truck crane.
- Car Trailer applies balance beam for the wheels to make the trailer available on the uneven ground
- The frame of Car Trailer is made of steel beam, so the load ability of the trolley is strong and it is not easy to bend over and avoid the deformation, which extends the service time;
- Car Trailer applies balance beam for the wheels to make the trailer available on the uneven ground
- Car Trailer will be equipped with connector or pin to cooperate with the tractor or forklift.
Application Sites of Car Trailer
The Car Trailer is suitable for a lot of areas, such chemical industry, household appliances, ceramics, metal, machinery, logistics and other industries. And it is widely used for short distance transport of paper making, paint, metallurgy, mound machinery and other industries.
Certificate
- Our commitment: The load bearing safety factor of the Car Trailer is no less than 120%.
- Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
- 16 hours engineering service and 24 hours internet service for our customers.
- During the warranty period, if our Car Trailer can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
- Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
Related Products
Our Factory
Our factory is located in Xinxiang City, Henan province, where the Car Trailer are manufactured and assembled. Our plant is full service from the mechanical and control engineering to fabrication and machining, we could offer all of those. With the spirit of quality, durability, satisfaction, we have run our plant for over 15 years, and our products have gotten CE, SGS, ISO certificates. With the high quality machine, skilled workers and experience engineers, we will supply the best Car Trailer for you.
Q & A
1. Q: What term of payment do you accept?
A: For the first time we cooperate, we accept 50% T/T as depoist, 50% T/T before delivery. For the return customer, we could deal with 30% T/T as depoist, 70% T/T before delivery. Also, we accept L/C.
2. Q: What is your delivery time?
A: We will delivery the Car Trailer you ordered 45 days after we accept the prepayment.
3. Q: How do Car Trailer been shipped?
A: We export the Car Trailer by sea or train with full container, LCL or in Bulk.
4. Q: Do you have quality assurance for Car Trailer ?
A: Yes, we have one year of assurance.
