Mechanical Jacks Lifting 25 Ton 30 Ton 50 Ton Hydraulic Tank Jack
$600.00-1,000.00

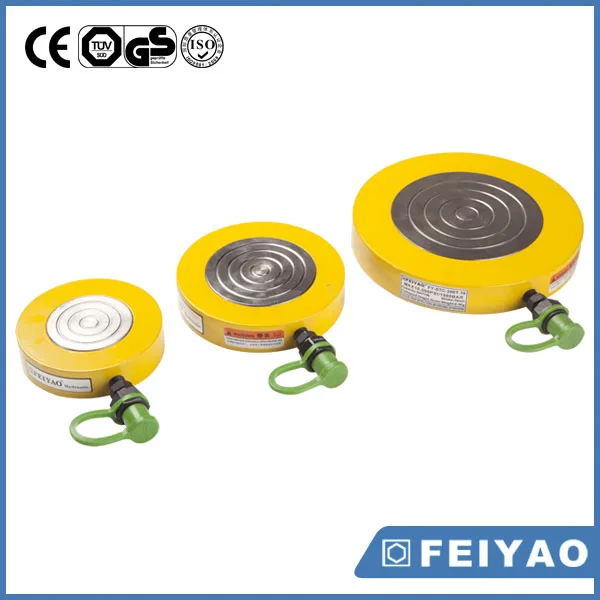

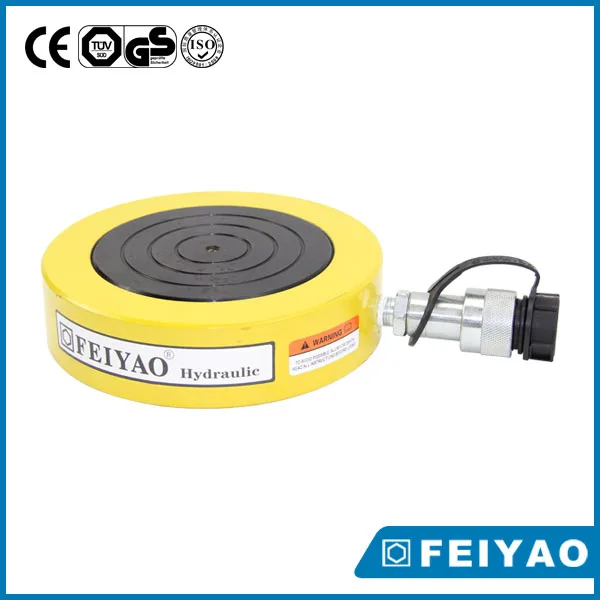

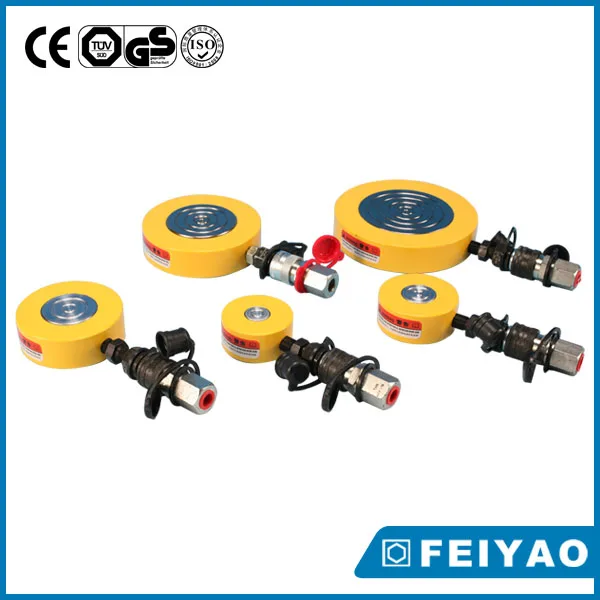

Hydraulic flat jack 25 ton hydraulic jack/cylinder/ram
- Category: >>>
- Supplier: Jiangsu Feiyao Machinery Manufacturing Co. Ltd.
Share on (60576073737):
Product Overview
Description
Specifications
1 lowest collapsed height
2 easy to carry
3 single acting ,load return
4 Working pressure of 70 ~ 150 mpa
Hydraulic flat jack 25 ton hydraulic jack/cylinder/ram
Features
♥ with the lowest collapsed height,apply to adjust in small gap .
♥ Light weight, small volume, super high pressure, high performance
♥single acting,load return
♥ hard chrome plated high quality steel plunger
♥ CR 400 coupler and dustcap included on all models
Application
our product can be used in fields of traffic ,railway ,sub railway ,ship building and construction.
Matters need attention
♥The piston shall not overstretch.
♥Cylinder must be in a stable place
Parameter information
| model | capacity tons (kn) | stroke (mm) |
Oil capacity (cm3) | collapsed height (mm) | extenging height (mm) | out diameter (mm) | bore (mm) | plunger diameter (mm) | weight (kg) |
| FY—STC—00510 | 5 | 10 | 3.46 | 30 | 40 | 60 | 21 | 21 | 12 |
| FY—STC— 01010 | 10 | 10 | 7.04 | 30 | 40 | 70 | 30 | 30 | 12 |
| FY—STC— 02510 | 25 | 10 | 17.35 | 30 | 40 | 90 | 47 | 47 | 11.5 |
| FY—STC— 05010 | 50 | 10 | 36.32 | 30 | 40 | 115 | 68 | 68 | 11.5 |
| FY—STC— 10010 | 100 | 10 | 69.4 | 30 | 40 | 144 | 94 | 94 | 11.5 |
| FY—STC—12010 | 120 | 10 | 78.54 | 30 | 40 | 160 | 100 | 100 | 11.5 |
| FY—STC— 15010 | 150 | 10 | 105.68 | 31 | 41 | 176 | 116 | 116 | 12.5 |
| FY—STC— 20010 | 200 | 10 | 136.58 | 32 | 42 | 204 | 132 | 132 | 13.5 |
Related Products
Company Introduction
Company Introduction
Established in 1978, Jiangsu Feiyao Machinery Manufacturing factory is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.
Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.
Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides,we have gained CE and ISO9001 certificates.
We warmly welcome all overseas customers to talk with us about business or other cooperations.
Any phone call, E-mali, Fax from you would be a beginning of happy cooperation.
IF YOU ARE LOOKING FOR SOME HYDRAULI JACKS BUT DO NOT HAVE WHOLE SPECS, PLEASE AT LEAST TELL US THREE FACTORS: 1. TONNAGE; 2. STROKE, 3. CLOSED HEIGHT. WE WILL RECOMMEND THE MOST SUITABLE TYPE FOR YOU.
Factory Show
Factory Show
Quality Control
Quality Control
Technical Support
Successful Project
Packaging & Shipping
 |  |
FAQ
Q1: How can contact sales?
A1: Please via email export1 at js-feiyao dot com or call: +86-183-5519-6676 for pre-sales.
Q2: How to make payment?
A2: Once orderconfirmed, we will prepare proforma invoice with our banking details.
Q3: How long does it take to process orders?
A3:It usually takes 10-14 business days to process most orders for no stock, if stock available, only take 2- 3 business days.
Q4: What is the packing method?
A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.
Q5: How to ship?
A5: Sea freight, Air freight or International express(DHL, FEDEX,UPS...) all are available.
Q6: What is the warranty?
A6: 12 months against B/L date.
