Mechanical Jacks Lifting 25 Ton 30 Ton 50 Ton Hydraulic Tank Jack
$600.00-1,000.00
Small electric jack 200 ton hydraulic ram/cylinder/jack
- Category: >>>
- Supplier: Jiangsu Feiyao Machinery Manufacturing Co. Ltd.
Share on (60576093709):
Product Overview
Description
Specifications
1 lowest collapsed height
2 easy to carry
3 single acting ,load return
4 Working pressure of 70 ~ 150 mpa

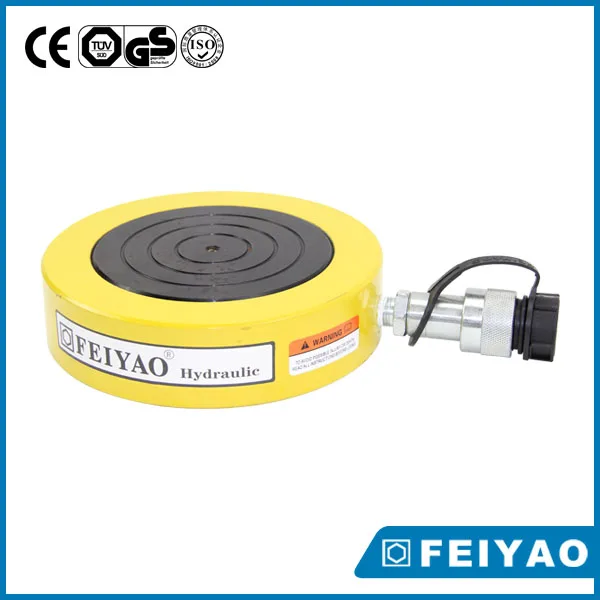

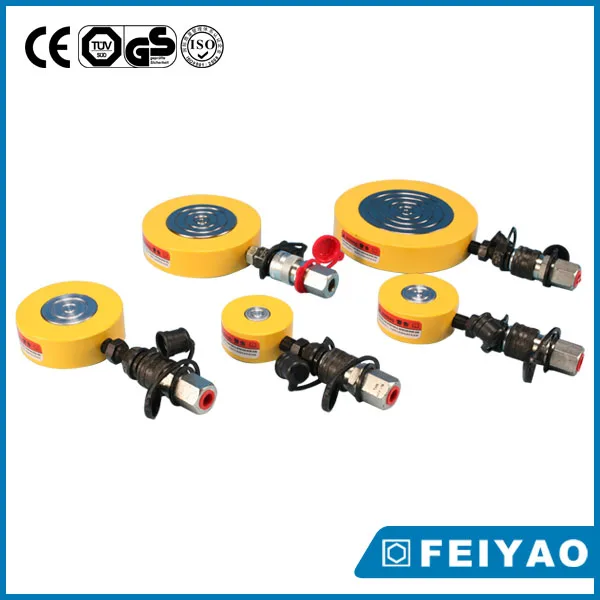

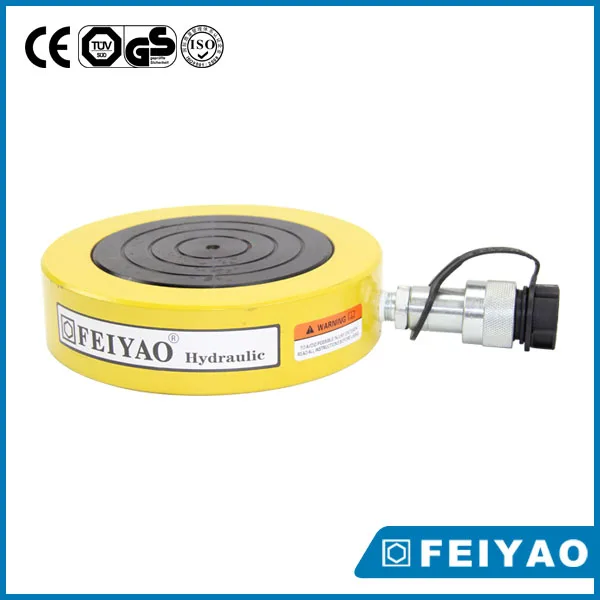

Small electric jack 200 ton hydraulic ram/cylinder/jack
Features
♥ with the lowest collapsed height,apply to adjust in small gap .
♥ Light weight, small volume, super high pressure, high performance
♥single acting,load return
♥ hard chrome plated high quality steel plunger
♥ CR 400 coupler and dustcap included on all models
Application
our product can be used in fields of traffic ,railway ,sub railway ,ship building and construction.
Matters need attention
♥The piston shall not overstretch.
♥Cylinder must be in a stable place
Parameter information
| model | capacity tons (kn) | stroke (mm) |
Oil capacity (cm3) | collapsed height (mm) | extenging height (mm) | out diameter (mm) | bore (mm) | plunger diameter (mm) | weight (kg) |
| FY—STC—00510 | 5 | 10 | 3.46 | 30 | 40 | 60 | 21 | 21 | 12 |
| FY—STC— 01010 | 10 | 10 | 7.04 | 30 | 40 | 70 | 30 | 30 | 12 |
| FY—STC— 02510 | 25 | 10 | 17.35 | 30 | 40 | 90 | 47 | 47 | 11.5 |
| FY—STC— 05010 | 50 | 10 | 36.32 | 30 | 40 | 115 | 68 | 68 | 11.5 |
| FY—STC— 10010 | 100 | 10 | 69.4 | 30 | 40 | 144 | 94 | 94 | 11.5 |
| FY—STC—12010 | 120 | 10 | 78.54 | 30 | 40 | 160 | 100 | 100 | 11.5 |
| FY—STC— 15010 | 150 | 10 | 105.68 | 31 | 41 | 176 | 116 | 116 | 12.5 |
| FY—STC— 20010 | 200 | 10 | 136.58 | 32 | 42 | 204 | 132 | 132 | 13.5 |
Related Products
Company Introduction
Company Introduction
Established in 1978, Jiangsu Feiyao Machinery Manufacturing factory is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.
Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.
Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides,we have gained CE and ISO9001 certificates.
We warmly welcome all overseas customers to talk with us about business or other cooperations.
Any phone call, E-mali, Fax from you would be a beginning of happy cooperation.
IF YOU ARE LOOKING FOR SOME HYDRAULI JACKS BUT DO NOT HAVE WHOLE SPECS, PLEASE AT LEAST TELL US THREE FACTORS: 1. TONNAGE; 2. STROKE, 3. CLOSED HEIGHT. WE WILL RECOMMEND THE MOST SUITABLE TYPE FOR YOU.
