Product Description

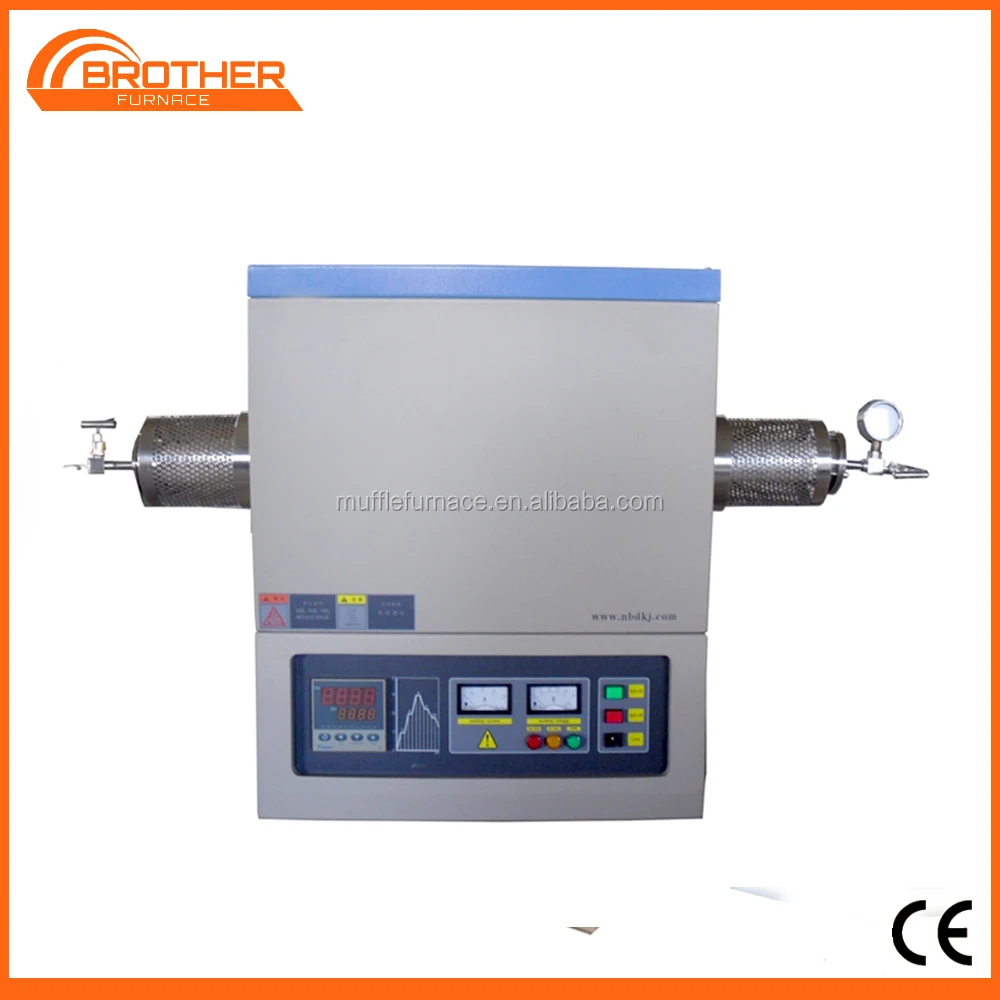

Brother Furnace: XD-1400T  1400C Lab Electric mini CVD Equipment

1. Max working temperature: 1400C
2. Vacuum: 10 Pa     110 or 220V single phase .

3. Excellent temperature uniformity.

4. 30 Segment Easy Use PID Programmable Temperature Controller, allow to control heating rates, dwells ( time holds) and cooling rates.

5. One Year Limited Warranty on All Electronic Parts.


6. Quality SiC heating elements ensure the longest heating element life, best heat radiation properties and minimum distortion of heating elements at high temperature.

7. All models use Ceramic fiber board lining to ensure energy efficiency

8. Safety feature includes a safety interlock system to shut off power when furnace door open

Details

For laboratory, safety, efficiency and high success rate are very important, which are exactly what our 1200c mini cvd equipment offers you.

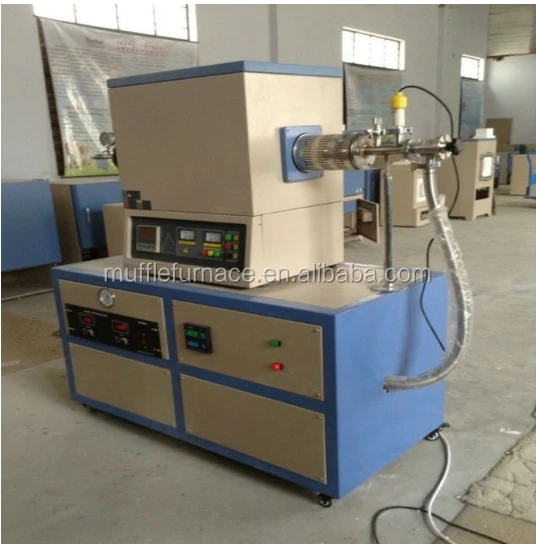

CVD system for cvd equipment:

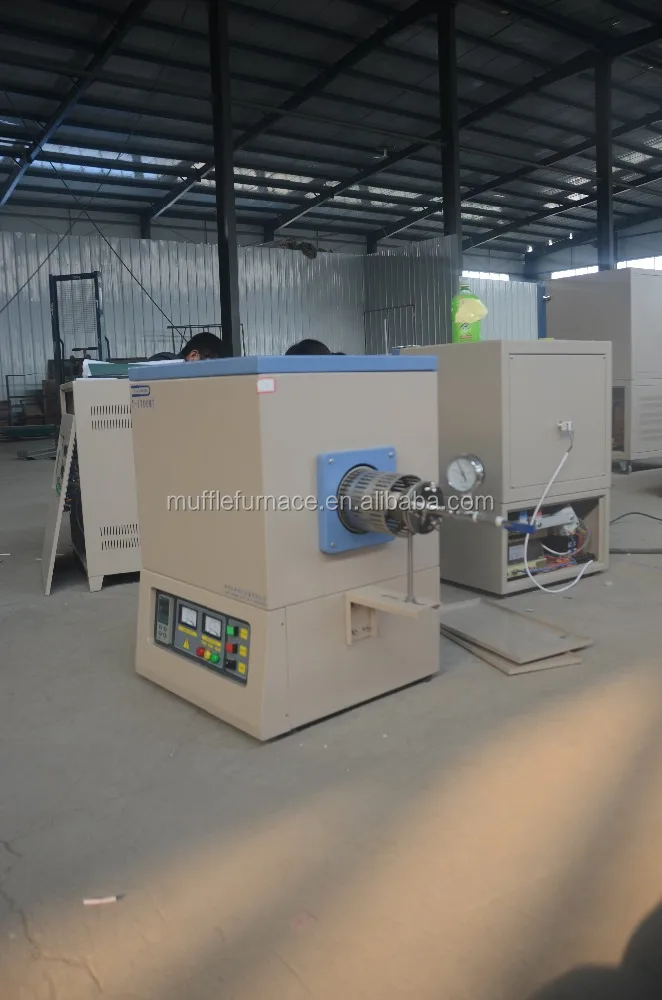

CVD system of vacuum tube furnace:

\t
Technical Specifications of 1200C lab electric mini equipment
\t
Chamber size
\t
Dia40x300mm
\t
Max. temperature
\t
1400 C (<2hour)
\t
Working temperature
\t
1300 C
\t
Temperature controlling
\t
● PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor.
\t
● 30 programmable segments for precise control of heating rate, cooling rate and dwell time.
\t
● Built in PID Auto-Tune function with overheating & broken thermocouple broken protection.
\t
● Over temperature protection and alarm allows for operation without attendant.
\t
Temperature accuracy
\t
±1C
\t
Temperature Uniformity
\t
±5C over 120mm @ 1300C
\t
±3C over 80mm @ 1300C
\t
Heating rate
\t
0-15C /min
\t
Thermocouple
\t
S type with 99.7% purity Alumina tube
\t
Heating element
\t
Quality SiC heating element
\t
Vacuum
\t
10 Pa
\t
Furnace Chamber
\t
Two layers of ceramic fiber insulation materials
\t
● First layer: 1700°C ceramic fiber board.
\t
● Second layer: 1430°C ceramic fiber board.
\t
● Third layer: 1260°C ceramic fiber board.
\t
Furnace structure
\t
Double layer steel casing with dual cooling fan, surface temperature below 60C
\t

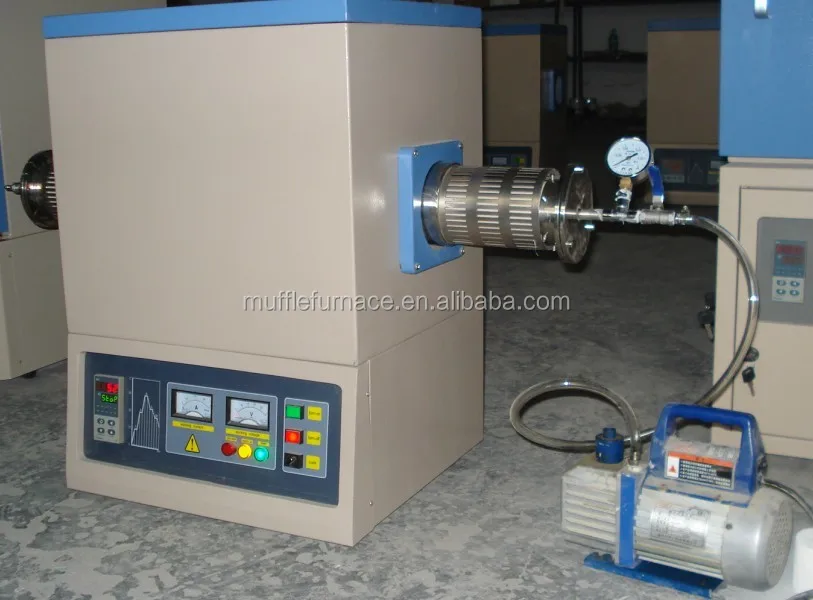

Vacuum system
\t
● Double stage rotary vane vacuum pump with magnetic valve to prevent the oil absorbed to tube.
\t
● Self-expansion type double silicon ring flange, 304 stainless steel HCP.
\t
● Needle valve + Mechanical vacuum gauge + Discharge valve
\t
Working voltage
\t
220V, 50HZ
\t
Rated power
\t
1.5KW
\t
Stander chamber size (mm)
\t
40x300      60x300      80x300      100x300    120x300    150x300
40x450      60x450      80x450      100x450    120x450    150x450
Packing & Delivery

Strong packing ensures shipment safety of 1400C lab electric equipment

Our Company

More than heat!!! Brother Furnace focuses on quality and service for more than 10 years!


Brother furnace is an international leading manufacturer of high quality furnaces. We manufacture low and high temperature laboratory and production furnaces, equipment furnace, muffle furnace, dental furnace, Bottom loading furnace, Crucible furnace, Atmosphere furnace, Vacuum furnace, Drying oven and high temperature heating element (SiC heating element, MoSi2 heating element). All custom designed to meet your thermal requirements.

Learn more about Brother Furnace:

Interested in Brother Furnace 1400C Lab Electric Mini CVD equipment, send your inquiry Now for a Discount!!!

FAQ

What is your delivery time for mini CVD equipment?
For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days; Other customized sizes the delivery time is from 15 days to 30 days according to different products request.

What is your advantage?
We are a manufacturer in China. So we can control the cost well.
We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.
We supply good service after sale, you can be assured about that.

How many years have you been in this field?
We have been manufacturing in this fields more than 10 years
