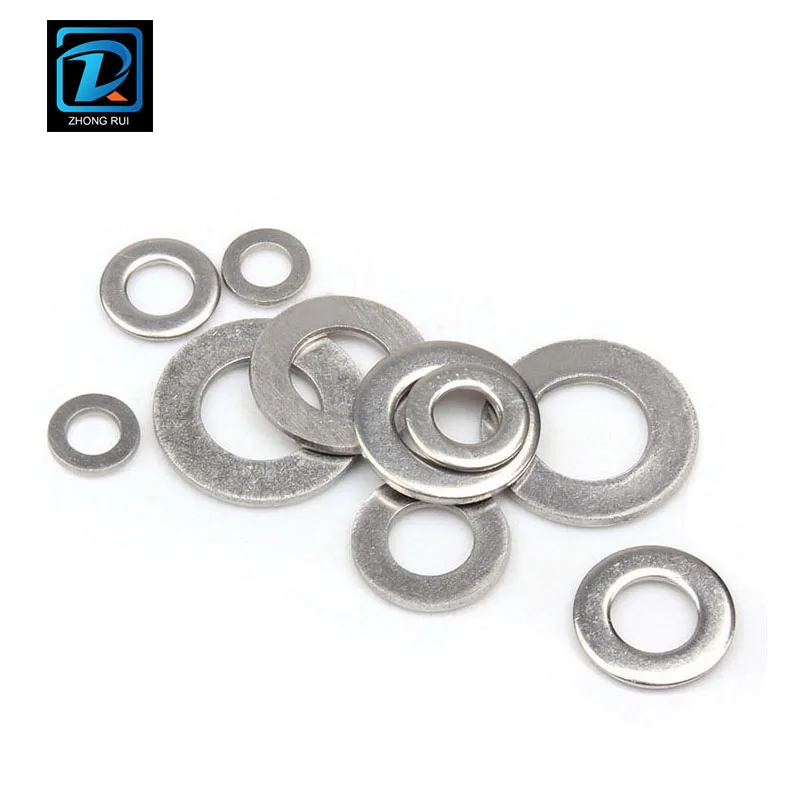

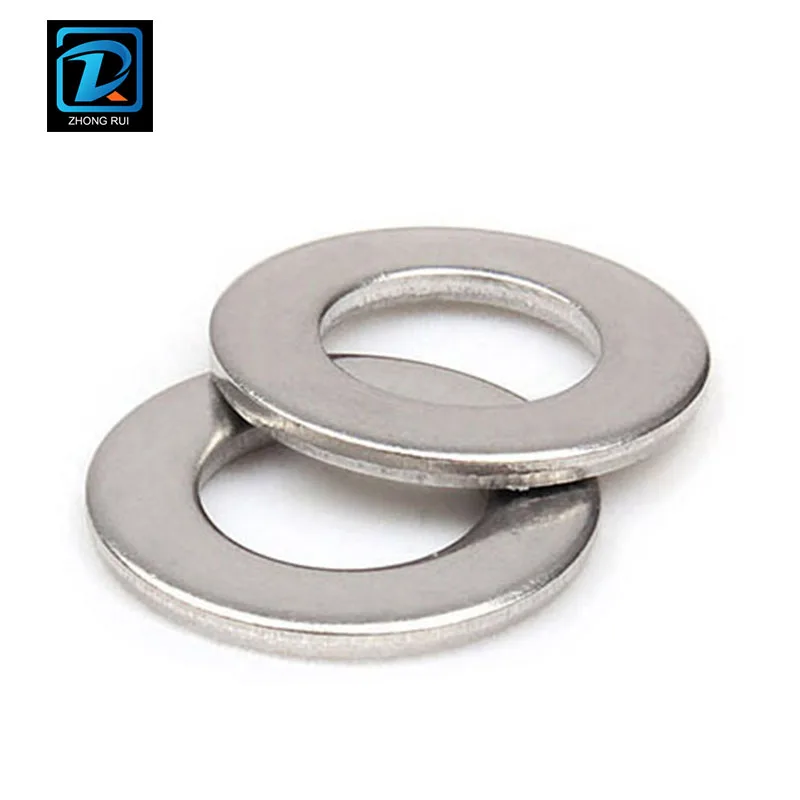

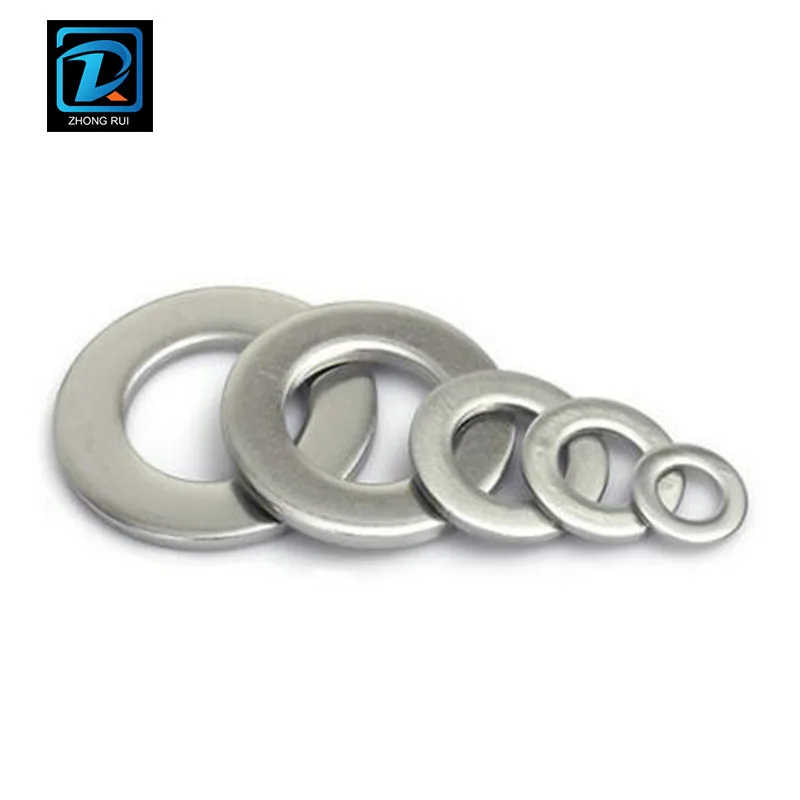

DIN125 Stainless Steel 304 Flat Gasket

DIN125 Stainless Steel 304 Flat Gasket

Category: Gaskets >>>
Supplier: Xinghua Zhongrui Stainless Steel Co. Ltd.

Price:

Quantity:

Product Overview

Description

Product Name	DIN125 Stainless Steel 304 Flat Gasket
Material	Stainless Steel 304
Size	M1.6-160
Surface	Bright
Packaging Details	Cartons + Plywood cases Also can be packed as clients' requirements.
Delivery	Within 15 days
OEM/ODM	Available
Sample	Available, 3-5 days after receiving payment

DIMENSION OF DIN125 FLAT WASHER
D	d (mm)		dc (mm)		h (mm)
D	min	max	min	max	standard	min	max
M1.6	1.7	1.84	3.7	4	0.3	0.25	0.35
M1.7	1.8	1.94	4.2	4.5	0.3	0.25	0.35
M2	2.2	2.34	4.7	5	0.3	0.25	0.35
M2.3	2.5	2.64	5.7	6	0.5	0.45	0.55
M2.5	2.7	2.84	5.7	6	0.5	0.45	0.55
M2.6	2.8	2.94	6.64	7	0.5	0.45	0.55
M3	3.2	3.38	6.64	7	0.5	0.45	0.55
M3.5	3.7	3.88	7.64	8	0.5	0.45	0.55
M4	4.3	4.48	8.64	9	0.8	0.7	0.9
M5	5.3	5.48	9.64	10	1	0.9	1.1
M6	6.4	6.62	11.57	12	1.6	1.4	1.8
M7	7.4	7.62	13.57	14	1.6	1.4	1.8
M8	8.4	8.62	15.57	16	1.6	1.4	1.8
M10	10.5	10.77	19.48	20	2	1.8	2.2
M12	13	13.27	23.48	24	2.5	2.3	2.7
M14	15	15.27	27.48	28	2.5	2.3	2.7
M16	17	17.27	29.48	30	3	2.7	3.3
M18	19	19.33	33.38	34	3	2.7	3.3
M20	21	21.33	36.38	37	3	2.7	3.3
M22	23	23.33	38.38	39	3	2.7	3.3
M24	25	25.33	43.38	44	4	3.7	4.3
M26	27	27.33	49.38	50	4	3.7	4.3
M27	28	28.33	49.38	50	4	3.7	4.3
M28	29	29.33	49.38	50	4	3.7	4.3
M30	31	31.39	55.26	56	4	3.7	4.3
M32	33	33.62	58.8	60	5	4.4	5.6
M35	36	36.62	64.8	66	5	4.4	5.6
M36	37	37.62	64.8	66	5	4.4	5.6
M39	40	40.62	70.8	72	6	5.4	6.6
M48	50	50.62	90.6	92	8	7	9
M50	52	52.74	90.6	92	8	7	9
M52	54	54.74	96.6	98	8	7	9
M55	57	57.74	103.6	105	9	8	10
M58	60	60.74	108.6	110	9	8	10
M60	62	62.74	108.6	110	9	8	10
M68	70	70.74	116.6	120	10	9	11
M76	78	78.74	133.4	135	10	9	11
M80	82	82.87	138.4	140	12	10.8	13.2
M85	87	87.87	143.4	145	12	10.8	13.2
M90	93	93.87	158.4	160	12	10.8	13.2
M95	98	98.87	163.4	165	12	10.8	13.2
M100	104	104.87	173.4	175	14	12.8	15.2
M110	114	114.87	183.2	185	14	12.8	15.2
M115	119	119.87	188.2	200	14	12.8	15.2
M120	124	125	208.2	210	16	14.8	17.2
M125	129	130	218.2	220	16	14.8	17.2
M130	134	135	218.2	220	16	14.8	17.2
M135	139	140	228.2	230	16	14.8	17.2
M140	144	145	238.2	240	18	16.8	19.2

COMPARISON SHEET FOR STAINLESS STEEL MATERIAL (CHEMICAL COMPOSITION)

STAINLESS STEEL FASTENER

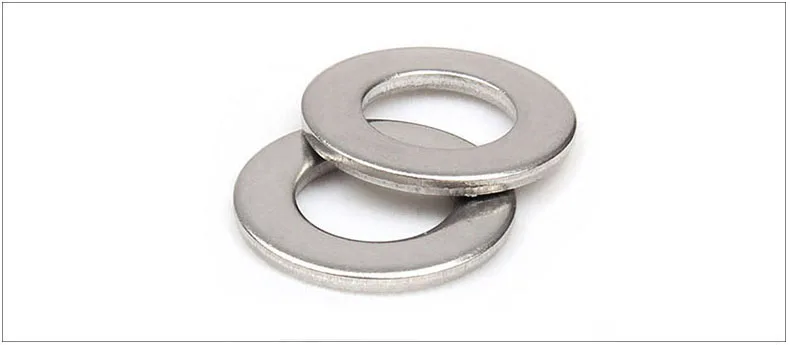

PLAIN WASHER

Our company is a manufacturer, with 9 years experience

in producing stainless steel fasteners.

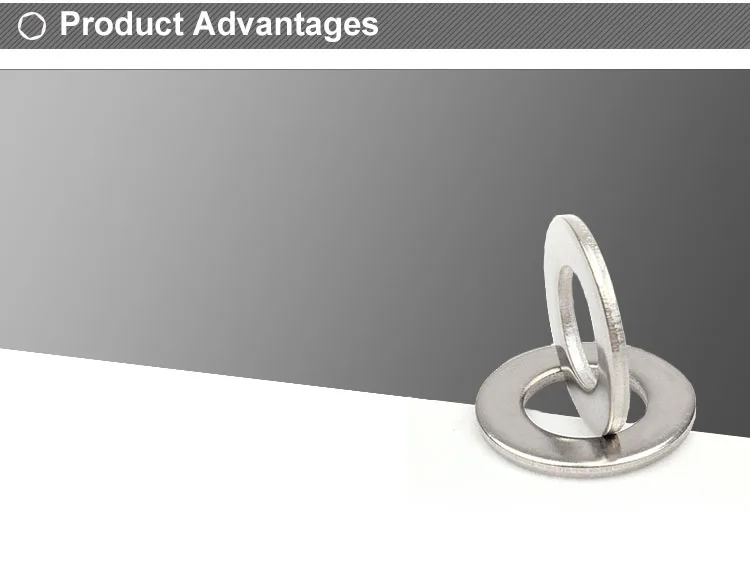

BEAUTIFUL

The bright surface of stainless steel can maintain

10-20 years.

DURABLE

Stainless steel is a kind of sturdy material with

good anti-corrosive and anti-rust properties.

NO POLLUTION

Stainless steel does not release toxic substance,

it’s really environmental and nontoxic.

Material

Source

Quality

Assurance

Stock

Available

High quality raw materials

purchased from well-known

factory such as BAOSTEEL

and TISCO.

High quality raw material=

high quality products. Our

products can strictly meet the

relevant standards.

We have a dedicated team

in charge of quality

inspection. Each product

should be tested by them

before delivery.

As a veteran manufacturer,

we have sold our products

to many foreign countries in

the past years . We have

large quantity of stocks ,so

that clients can receive their

goods as soon as possible.

Drawing

Screw

heading

Thread

rolling

Nut

heading

Polishing

Thread

tapping

Clean the

passivation

Inspection

BY SEA

BY AIR

BY EXPRESS(DHL)

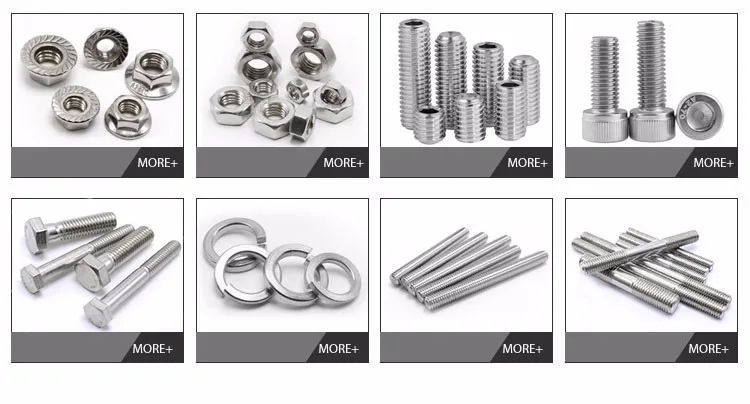

Flange nut

Nut

Socket Set Screw

Socket head cap bolt

Hex bolt

Spring washer

Threaded rod

Stud bolt
