Product Overview

Description

EUG-150S210DT I50W Inventronics LED Driver 150W IP67 150mA/1050/140-2100/245-3500/385-5600mA CC 0-10V Dimmable LED Power Supply

220Vac CC LED Driver         26-320W CC LED Driver     Potentiometer AOC CC        Dip-switch AOC CC              Waterproof CV

220V 0-10V PWM Timer        220V 110V Dimmable          7 Years Warranty IP67         300W+ High Power CC        DALI LED Driver

  10 Years Guarantee         380Vac+ High Voltage Input  UFO Round Shape CC       Internal Use CC Dimmable  Programmer SPD





Features:

• High Efficiency (Up to 93.5%)
• Full Power at Wide Output Current Range (Constant Power)
• 0-5V/0-10V/PWM/Timer Dimmable
• Input surge protection: 6 kV line-line, 10 kV line-earth
• All-Around Protection: OVP, SCP, OTP

• Waterproof (IP67) and U* Dry / Damp/ Wet Location (In Wet Locations Must Be Built-in)
• Class 2 & SELV Output
• TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location
• U* Type TL (Temperature Limited)



Description:

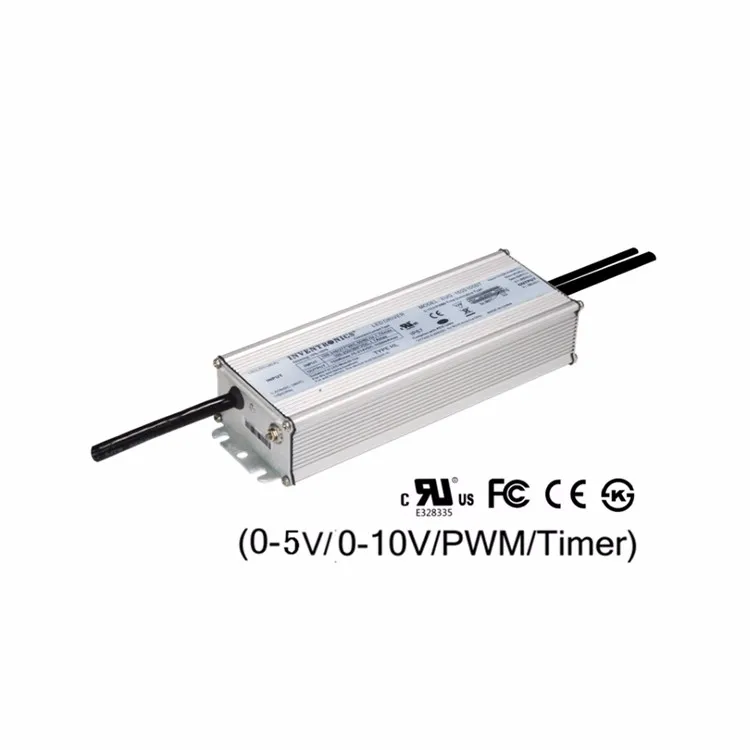

        The EUG-150SxxxDT series is a 150W, constant-current, programmable LED driver that operates from 90-305 Vac input with excellent power factor. It is created for high bay, tunnel and roadway lights. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.

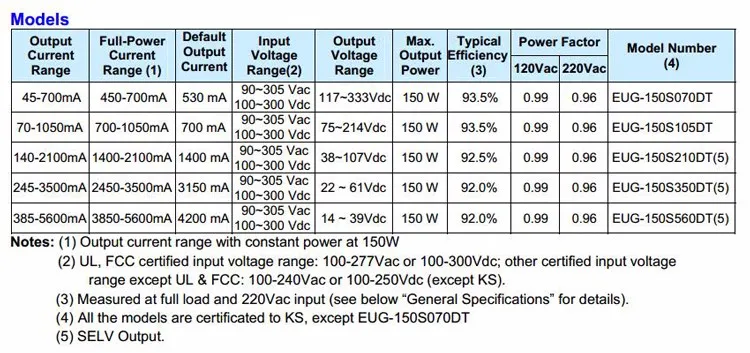

Adjustable Output Current Range	Full-Power Current Range (1)	Default Output Current	Input Voltage Range (2)	Output Voltage Range	Max Output Power	Typical Efficiency (3)	Power Factor		Model Number
							120Vac	220Vac
45mA-700mA	450mA-700mA	530mA	90-305Vac 100-300Vdc	117-333Vdc	150W	93.5%	0.99	0.96	EUG-150S070DT
70mA-1050mA	700mA-1050mA	700mA		75-214Vdc		93.5%			EUG-150S105DT
140mA-2100mA	1400mA-2100mA	1400mA		38-107Vdc		92.5%			EUG-150S210DT(5)
245mA-3500mA	2450mA-3500mA	3150mA		22-61Vdc		92%			EUG-150S350DT(5)

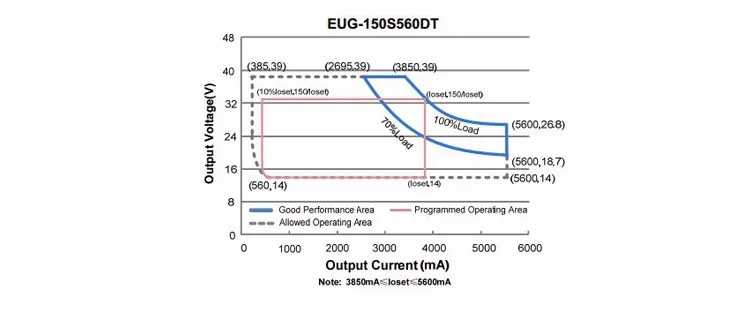

385-5600mA	3850-5600mA	4200mA		14-39Vdc		92%			EUG-150S560DT(5)





See What Other Customers Say About Chela's Service:





(For more details, please contact Chela Chen for the datasheet.)
