Product Overview
Description
Product Description
The shading net is used on the outside or inside shading system of the greenhouse, black net outside and white net inside, normally, which can be usually driven by the A-type rack-pinion structure, having great cooling and shading effect and being partly available to resist the snow or hailstones.

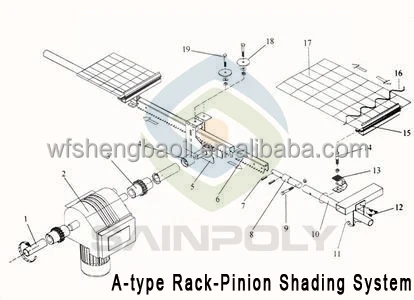

As the pictures show above, the 17 is the shading net (shading screen).

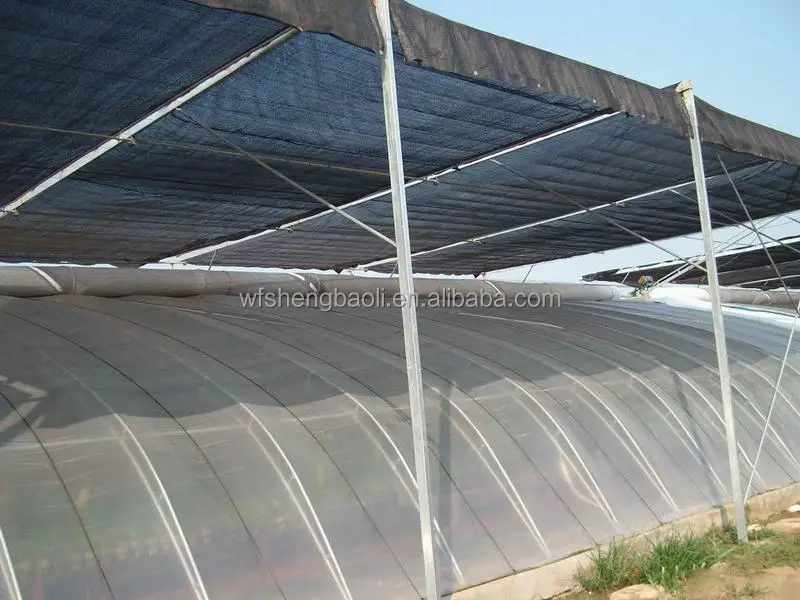

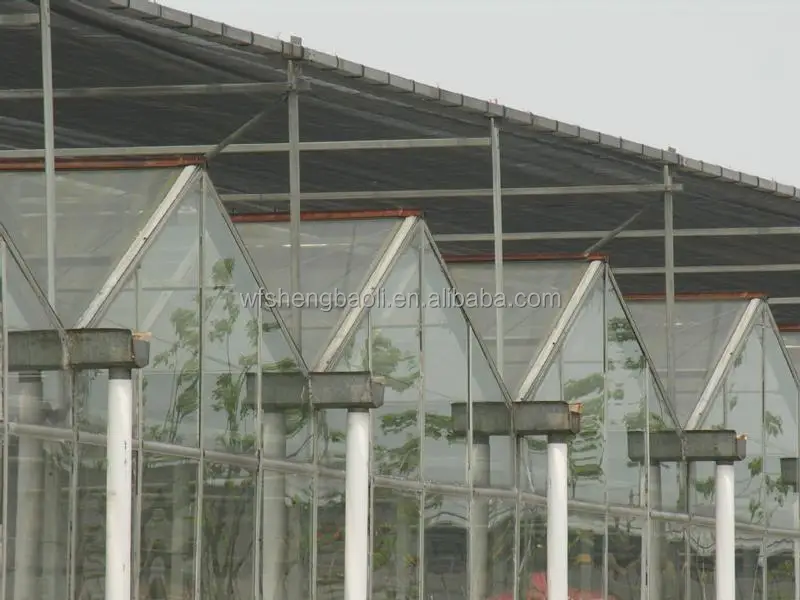

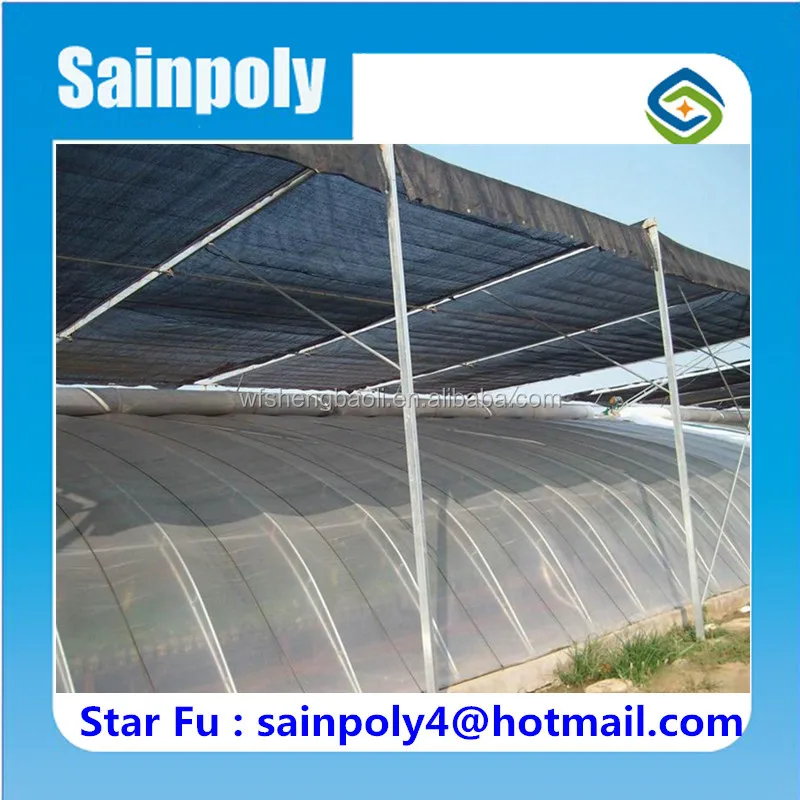

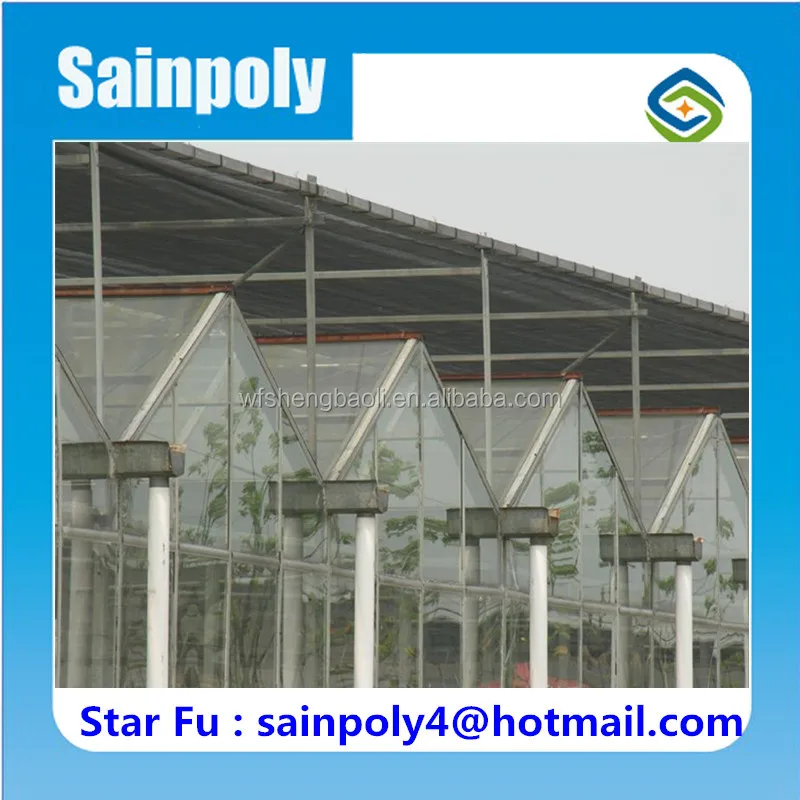

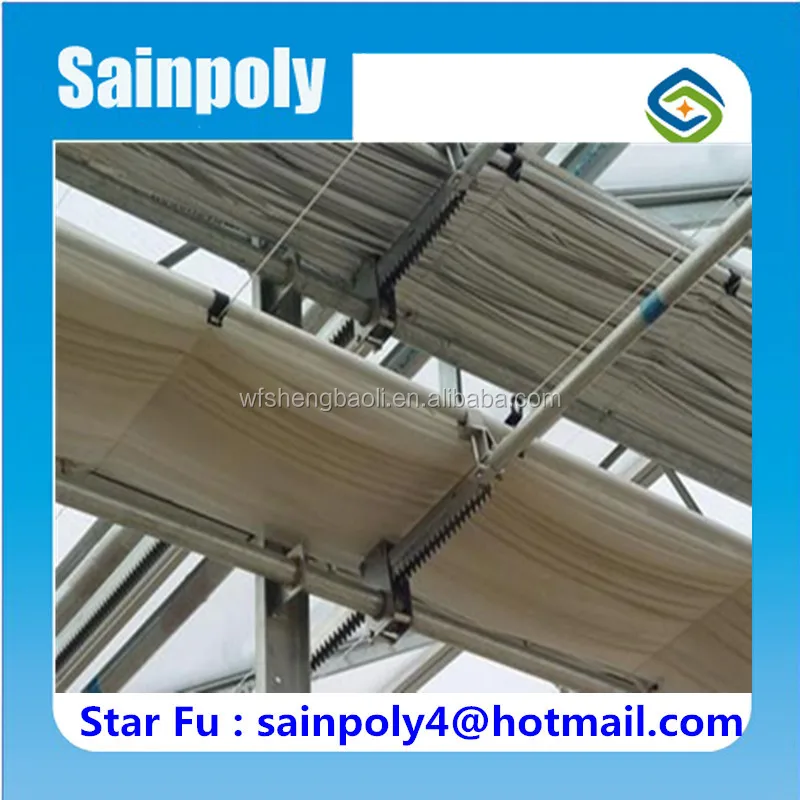

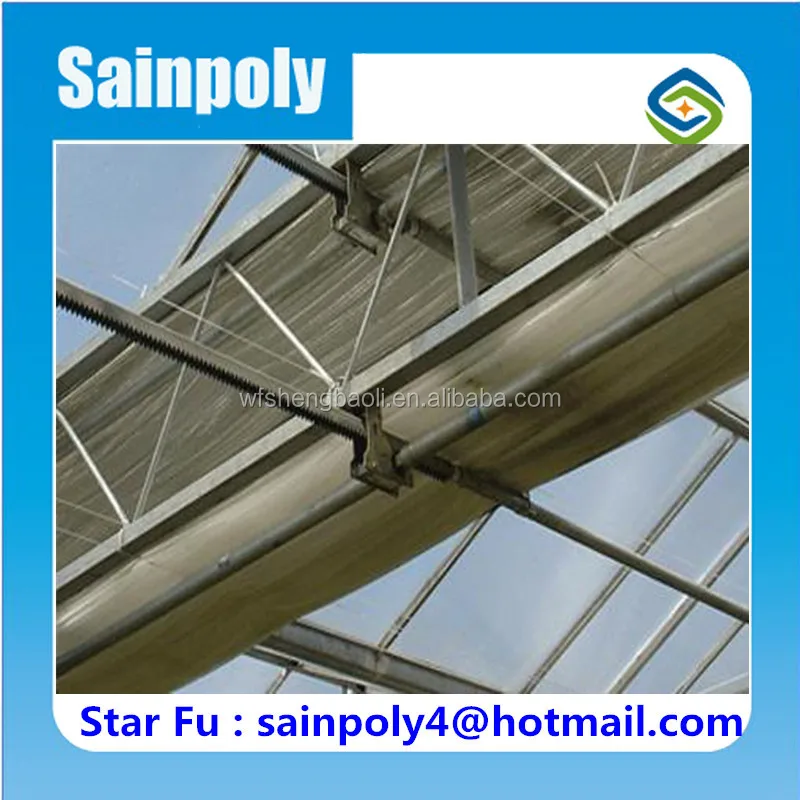

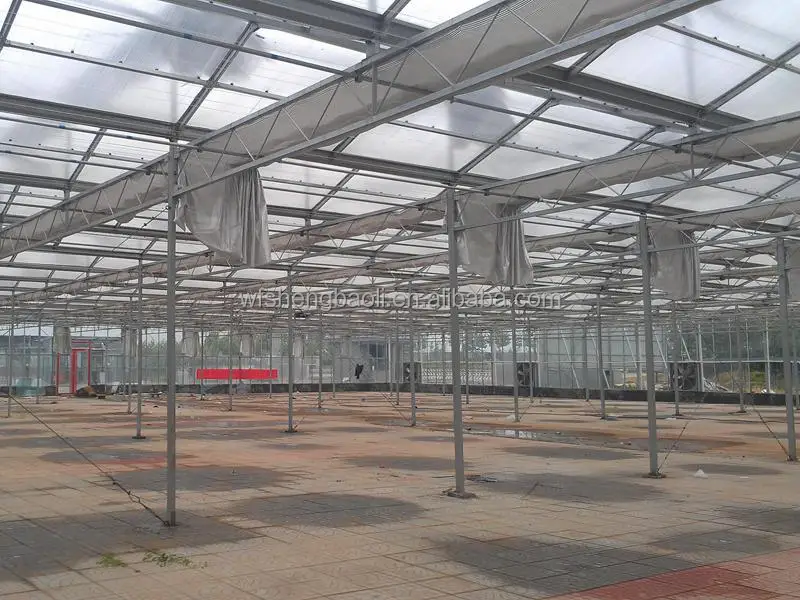

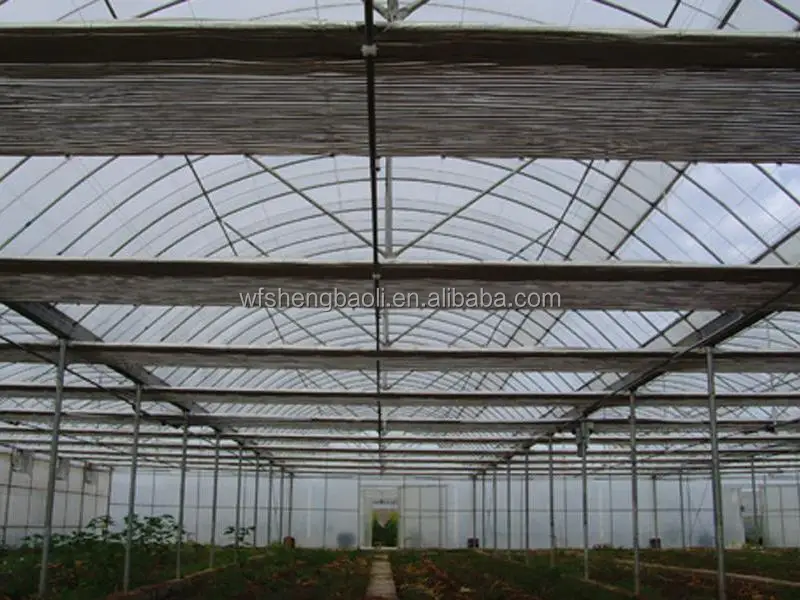

Here are some project cases for the shading net.
System configuration
①Ventilation System(Open the window)
The ventilation systems in our company consist of Roof Ventilation Systems and Side Ventilation Systems according to the difference of the installation position. The Roof Ventilation Systems include the Roof Track-Cross Ventilation System and Roof Row-Rack Ventilation System. The Side Ventilation System refers to the side Cooling-Pad Ventilation System. Moreover, we also supply the Roof or Side Plastic-Film Reeling Ventilation System (Manual or Electric).
Side Cooling-Pad Ventilation System
Main Accessories: gear motor, pinion for row-rack ventilation system, hollow rack, shaft-bearing plate, rack-window connector,etc.
②Shading System
The Shading system can keep out redundant sunshine, preventing the plants from being burned in the greenhouse. And it can regulate the heat or reduce the cost for the operations.

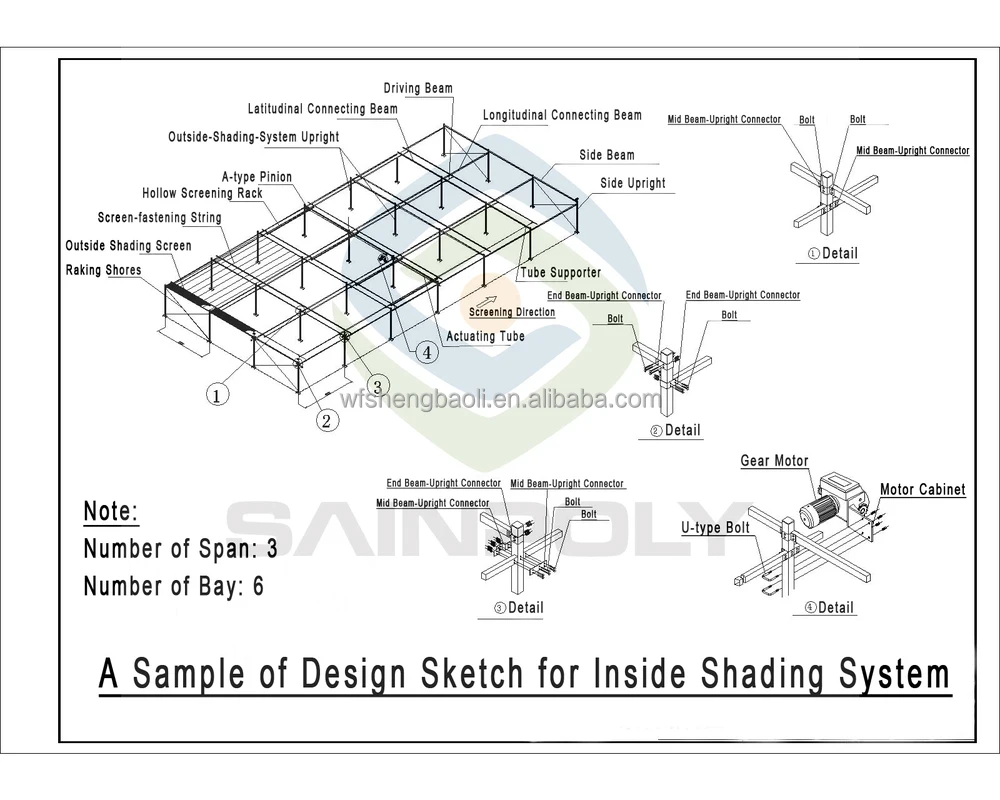

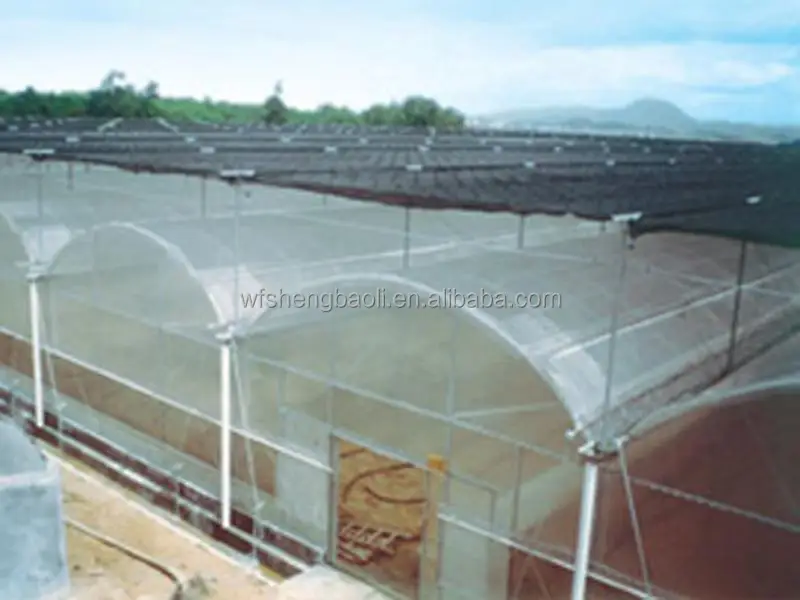

Outside Shading System is fixed above the frame of greenhouse, supported by the uprights and beams. Outside shading net is made by black and round-wire materials and fastened by black polyester strings.
Outside Shading System is fixed above the frame of greenhouse, supported by the uprights and beams. Outside shading net is made by black and round-wire materials and fastened by black polyester strings.
③Cooling System
Our company is specialized at the products of cooling pads and fans, usually used cooperatively. The cooling pads are installed on one side of the greenhouse, the exhaust fans, the other. (The air-circulating fans are installed in the greenhouse.) The exhaust fans eject the air from the greenhouse (The air-circulating fans promote the circulation of the air in the greenhouse), negative pressure formed in the greenhouse. The air enters the greenhouse through the cooling pads, resulting in the effects of cooling, moistening and air-dedusting.
Cooling principle
Heavy-Hammer Type Exhaust Fan
A) The frame, structured by thick galvanized steel sheet which is has strong anti-corrosion property, is made by the CNC bending machine, CNC shearing machine and the technology of CNC punch processing.
B) The frame has strong hardness and great toughness, which can be in service for long time.
C) The automatic belt regulator is equipped to preventing the belt from falling off, not necessary to regulate manually during the service period of belt.
D) The blades, driven by the belt through the motor, are shaped by reasonable style and angle, punched and twisted to be framed, passing the test of dynamic balance and the test of static balance, ensuring the strong blasts of air through them and the low noise that is caused.
E) The louver, made by aluminum alloy or galvanized steel, has the special switching structure, pneumatic type, ensuring itself turn on and off perfectly and functioning as the role of wind-proof, rain-proof and dust-proof.
Air-Circulating Fan
A) The motor has the great performance of rain-proof, wind-proof and dust-proof, passing the destructive test of 360 hours. It works in low noise and can be in service for long time.
The shell is designed by the principle of air collector, advanced energy-saving technology, and thermally protecting auto-system.
B) The blade is punched by the light aluminum materials, large tilting angel, great blast capacity and low noise.
C) The accessories are made by the superior thin steel sheet, light and beautiful, easy to install.
D) The blast capacity can be optimized and designed by CAD, ensuring the air circulation and uniformizing the temperature, humidity, and the concentration of CO2.
E) You can choose the different frame, made by stainless steel or painted steel.
Cooling Pad
④Heating System
Heating System of Greenhouse refers to a set of suitable heating facilities chosen to meet the heating demands, consisting of heating source, heat-radiating facilities, heat-transmitting facilities. The main accessories include furnace, transmission pipeline, circulating water, radiator and sorts of controlling or regulating valves, etc.
Irrigation System
Hydroponics System
Hydroponic System of greenhouse applies the hydroponics, which refers to the means of cultivation that is equipped with the base materials, not natural soil, when plants are in seed-breeding period and that is fixed with nutrient solutions for irrigation after they are settled, preventing the diseases due to the soil frequently used and the physiological barriers because of the salt accumulation of it and meeting the needs of plants with minerals, water, air and other conditions. The base materials can be recycled, and the hydroponics is characterized with water-saving, fertilizer-saving, labor-saving as well as great harvest and superior quality, etc.
Control System
Control System of greenhouse is a kind of environmental automatic control system that is designed for the agricultural greenhouse, agriculture environmental control and weather observation, able to measure a lot of agricultural factors such as direction and speed of wind, temperature and humidity of air or soil, air pressure, rainfall, solar radiant quantity and ultraviolet intensity, etc. It can control the facilities of ventilation system, shading system, cooling system, illumination supplement, irrigation and fertilization, adjusting the inner environment of the greenhouse to the most suitable conditions.
