Product Overview

Description

China Nanjing Underwater Cutting Double-screw Extruder twin screw extruder

Brief introduction:underwater cutting double-screw extruder twin screw extruder consists of parallel twin-screw extruder, water tank, blower and cutter. The gearbox is high torque design, implement smooth operation, low noise.



Model	Diameter (mm)	L/D	RPM (r/min)	Power (Kw)	Torque (N.m)	T/N	Capacity (Kg/h)
SJSL-20	20	32-44	600	5.5	30	4.8	6.5-15
SJSL-36	36	32-48	600	15	115	4.2	30-75
SJSL-51A	51	32-52	500	45	405	5.1	100-200
SJSL-51B	51	32-52	600	55	415	5.2	150-25
SJSL-63A	63	32-62	400	55	620	4.4	160-250
			500	75	675	4.8	200-300
SJSL-63B	63	32-64	600	90	675	4.8	225-375
			800	110	620	4.4	300-500
SJSL-75A	72	32-64	400	90	1015	4.7	225-350
			500	110	1005	4.6	300-550
SJSL-75B	72	32-64	600	132	990	4.6	400-650
			800	160	900	4.2	480-800
SJSL-92A	92	32-64	400	250	2815	5.9	650-1050
			500		2250	4.7	750-1250
SJSL-92B	92	32-64	600	280	2365	5.0	900-1500
			800		2250	4.7	1200-2000
SJSL-135A	135	32-48	400	315	6190	4.6	1500-2500
SJSL-135B	135	32-48	500	400	6750	5.1	200-3500

China Nanjing Underwater Cutting Double-screw Extruder twin screw extruder



Application for underwater cutting double-screw extruder twin screw extruder

1.    Fiber reinforcement and modification: filling glass fiber or carbon fiber for: PP, PA, PBT,

       ABS, AS, POM, PPS, PET, etc.

2.    Ploymer compounding: PC+ABS, PA+ABS,CPE+ABS,PP+EPDM,PA+EPDM,

       PA+SBS, etc.

3.   Filling modified: Filling CaCO3,Talc,Titanium, carbon black for PVC PE,PP, EVA etc.

4.   Cable material: cable sheath, cable insulation compounds, crosslinking compounds,

      optical fiber protection compounds, cable coating material, thermal contraction material,

      etc.

5.   Dedicated material: PPR pipe compounds, PE crosslinking tube material, cigarettes

      filter tip material, acetate fiber material, etc.

6.   High Concentration Color Masterbatch: PE,ABS,PS,EVA,PET,PP + color +

      additives, etc.

7.   Flaming Retardants: PVC, PP, PA, ABS, EVA, PBT + flame retardants, etc.

8.   Special Functional Masterbatch: double protection masterbatch, antistatic masterbatch,

      anti-bacteria masterbatch, thermal insulation masterbatch, hypothermia material, etc.

9.   The degradable masterbatch: PP, PE, PS + starch+ additives, etc.

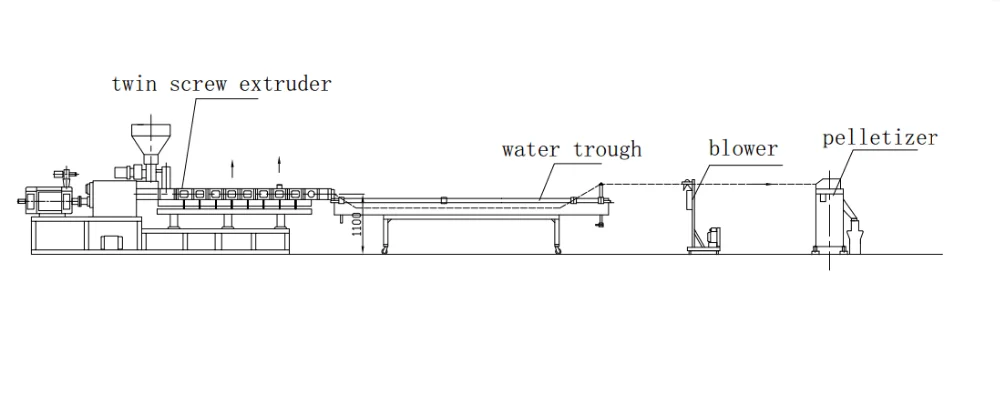

FLOW DIAGRAM of underwater cutting double-screw extruder twin screw extruder

From left to right: Feeding (material) →melting/compounding inside the extruder →come out of die →cooling in the water trough →blowing →cutting into granule

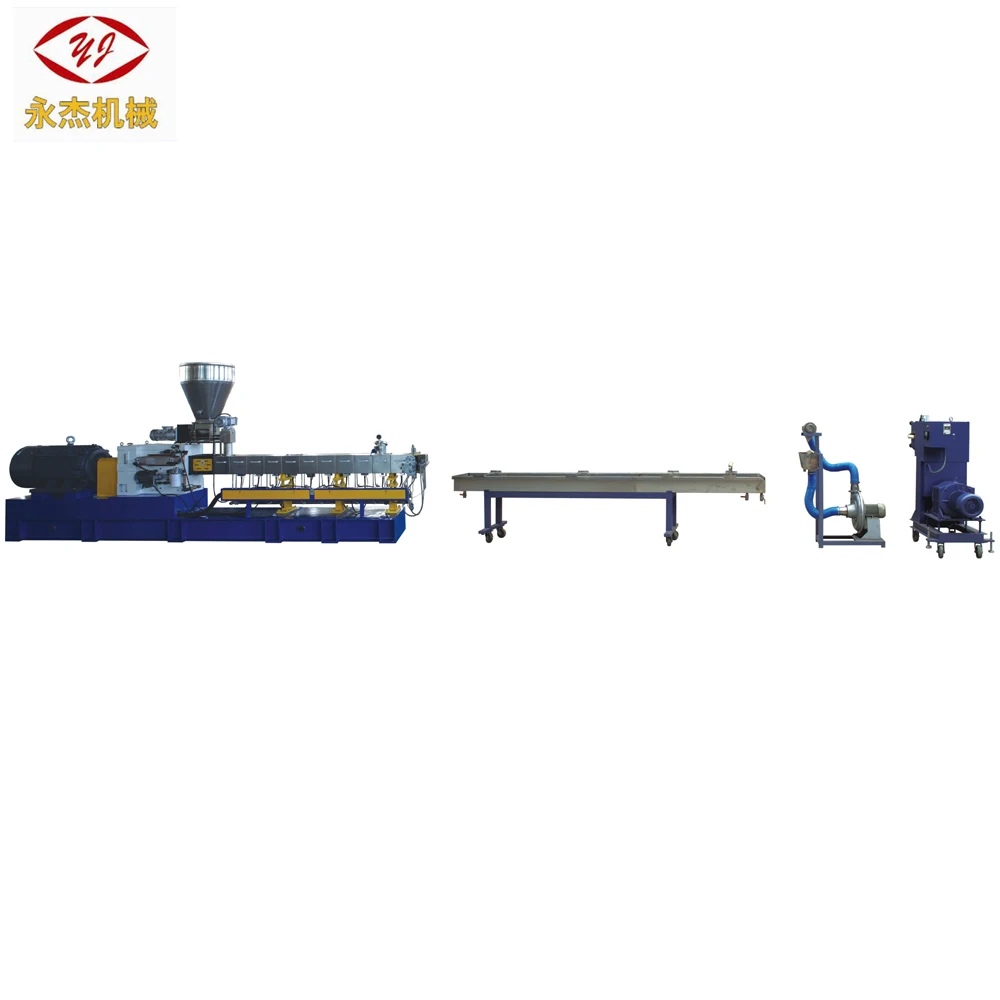

COMPLETE LINE of underwater cutting double-screw extruder twin screw extruder

Siemens Bader motor, ABB inverter, Siemens, etc. brand electrical components. The screw and screw elements material of twin screw is W6Mo5Cr4V2; L/D and cutting system depends on your recipe. Hydraulic automatic screen changer, high torque gearbox.

EXTRUDER

65D SIZE

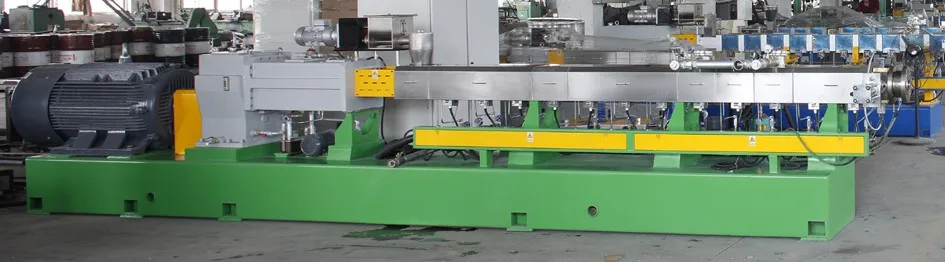

75D SIZE

20 SIZE MACHINE FOR LAB

SUB-MACHINE



 Other product





    Pelletizing in the water line                     Air-cooling strand pelletizing line

    Watering Hot-face pelletizing line                       Water-cooling stand pelletizing line



FAQ



1. Are you a factory or trading company?



     Both.



2. Where is your factory located? How can I visit there?



   Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.



   (1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;



   (2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.

3. What's your advantages?

   (1) Excellent quality control



   (2) First-class service



   (3) Professional Tech. and R&D team



   (4) Quick manufacturing time



   (5) Quite competitive price

4. How long is the delivery time?



    Under normal conditions, products are delivered within 35 days.



5. How can I know the stauts of my order?



    We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.



6. How long is the warranty?



    We can offer one-year warranty for the whole machine.
