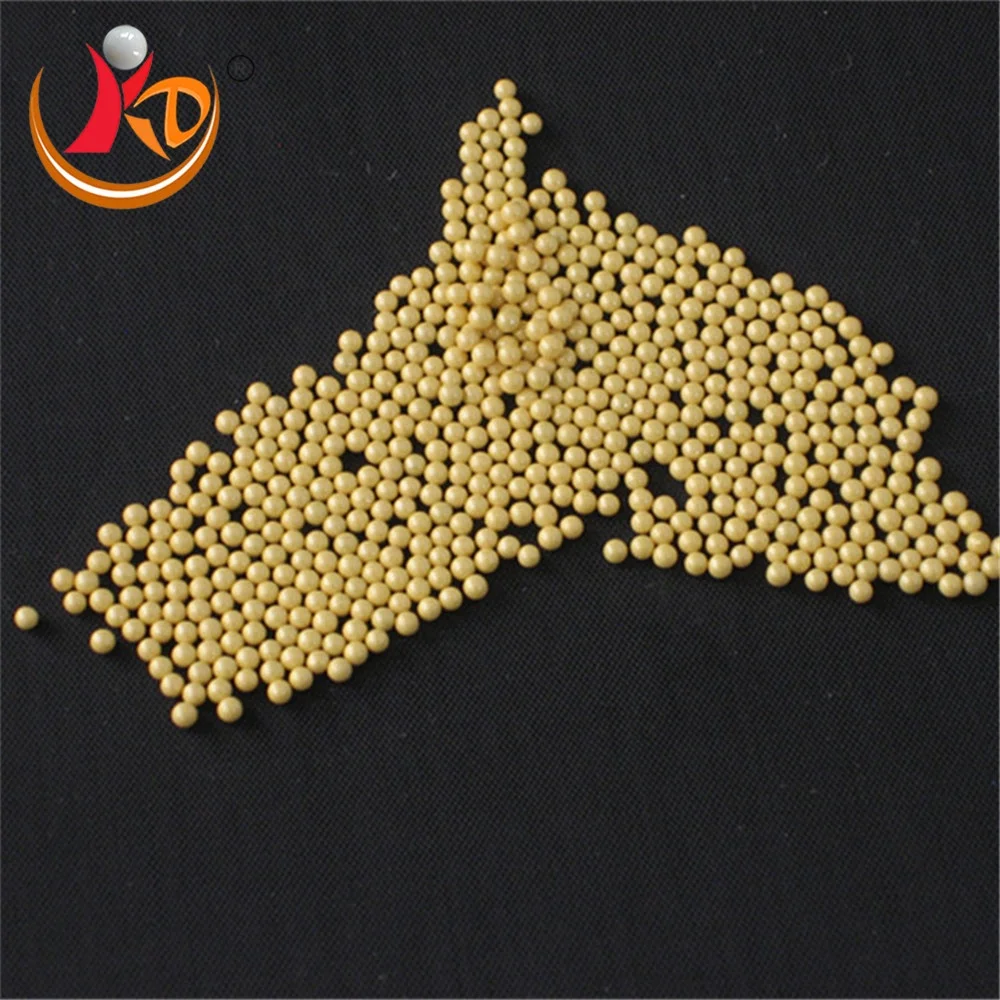

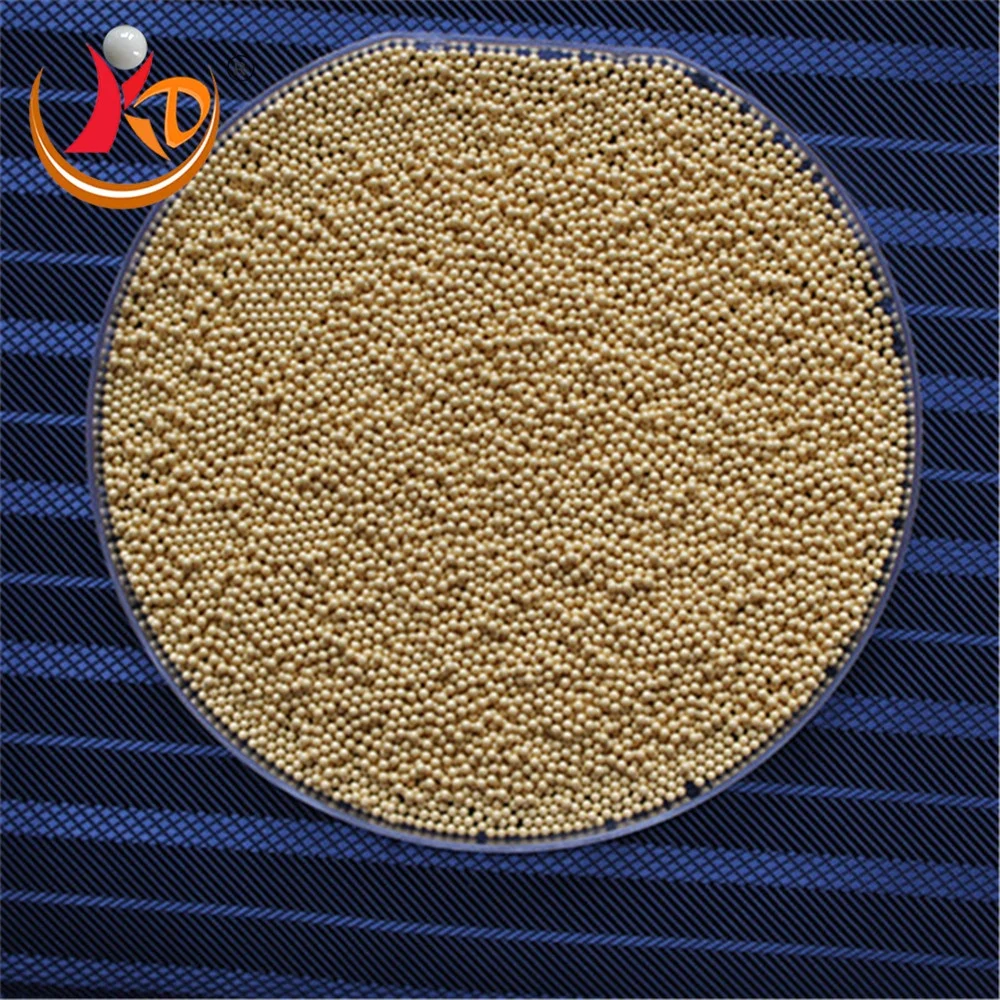

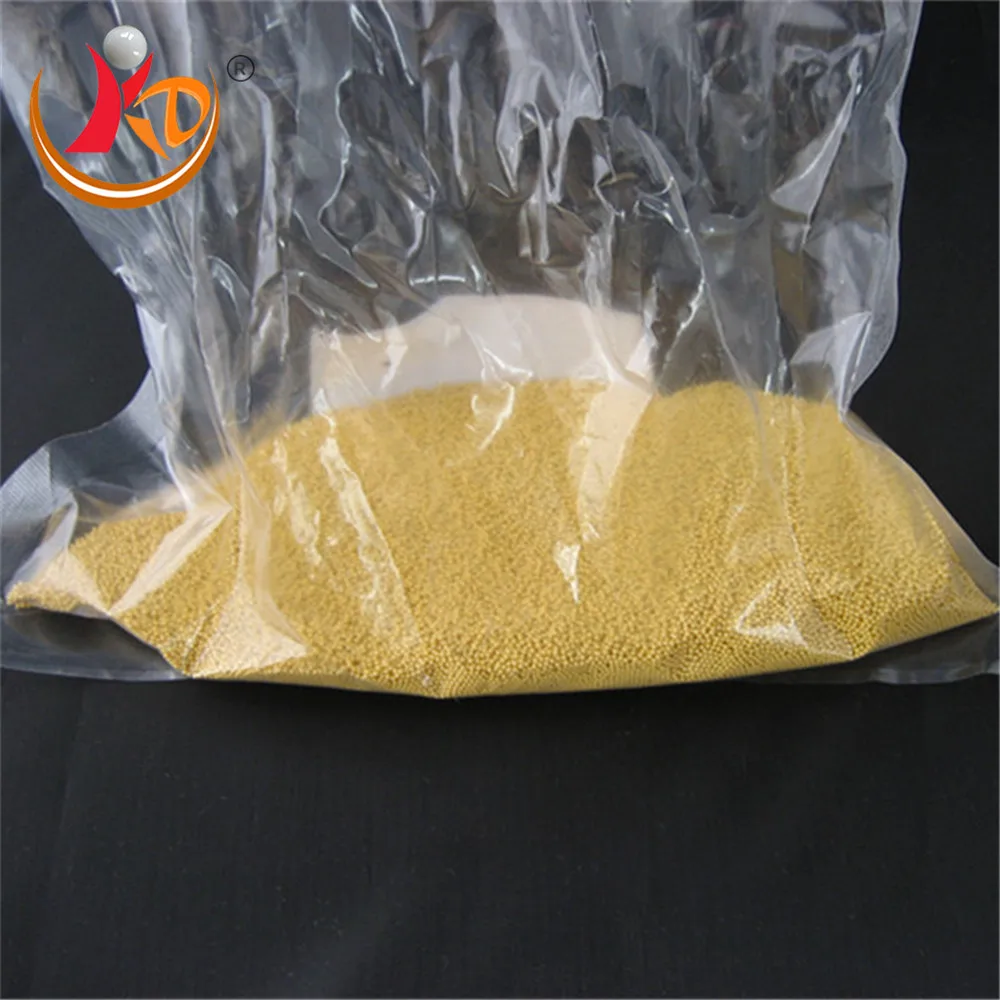

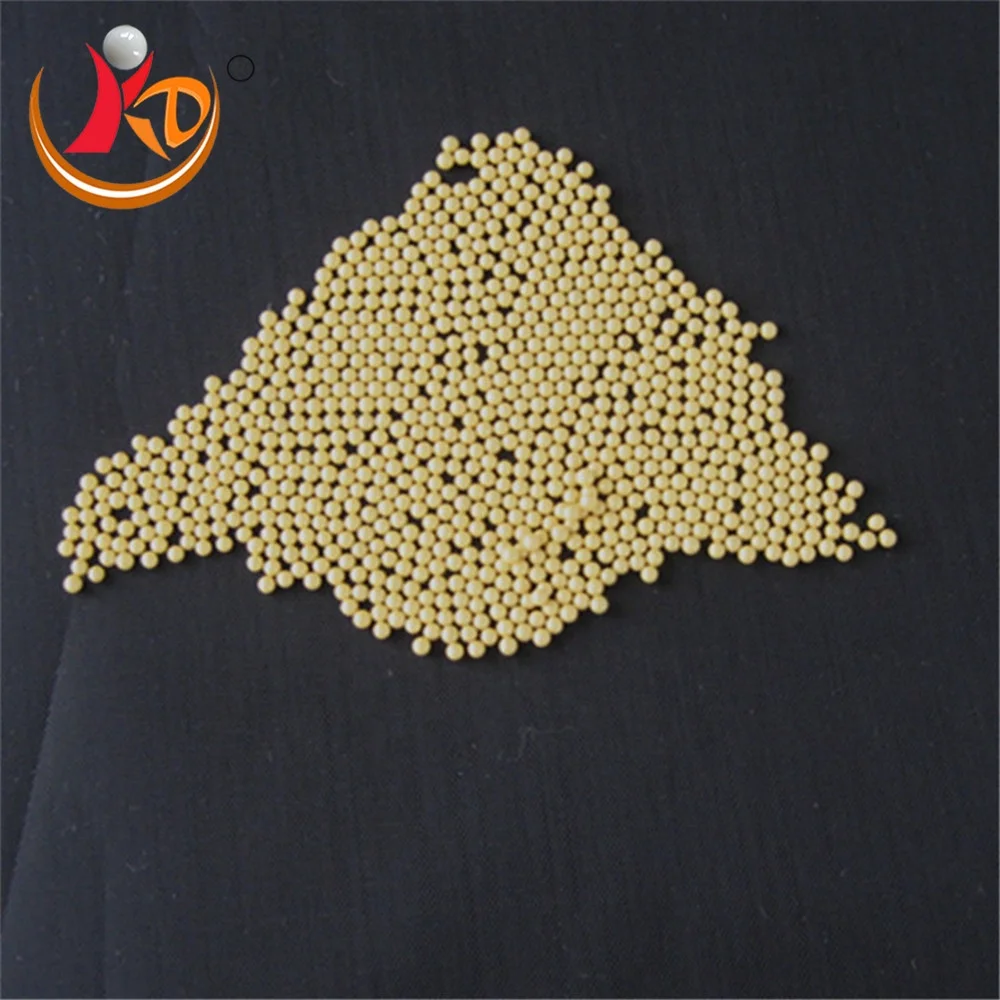

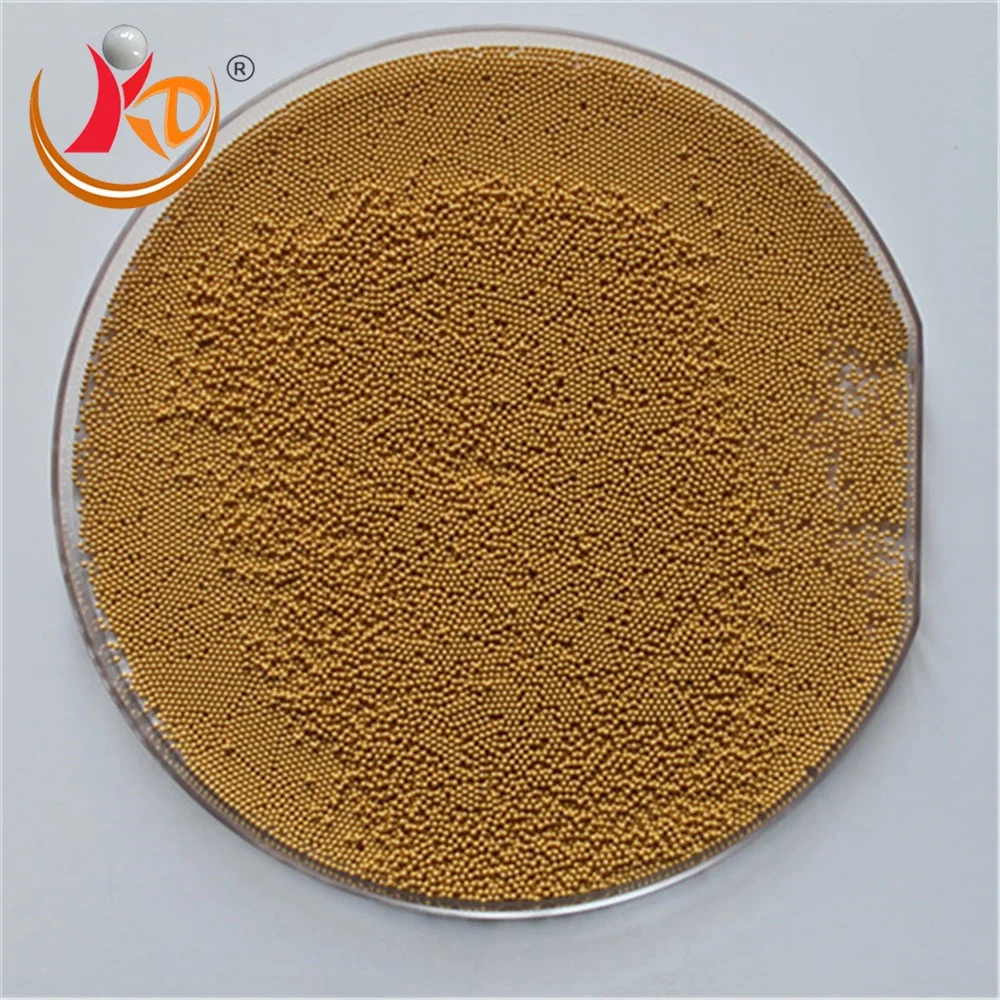

Yellow Cerium Oxide Zirconia Grinding Ball
- Category: >>>
- Supplier: Hunan Kingda Ceramic Materials Co. Ltd.
Share on (60576874157):
Product Overview
Description
Ce-TZP zirconium ball Used in flour mill machines
Product Description
Composition | wt% | ZrO2 :18~80% |
Packed Density | Kg/L | 3.8(Φ7mm) |
Specific Density | g/cm3 | 5.95~6.0 |
Hardness(HV) | GPa | >9 |
Elastic modulus | GPa | 200 |
Thermal Conductivity | W/m.K | 3 |
Crushing Load | Kn | >2.0KN(φ2mm) |
Fracture Toughness | MPam1-2 | 8.5 |

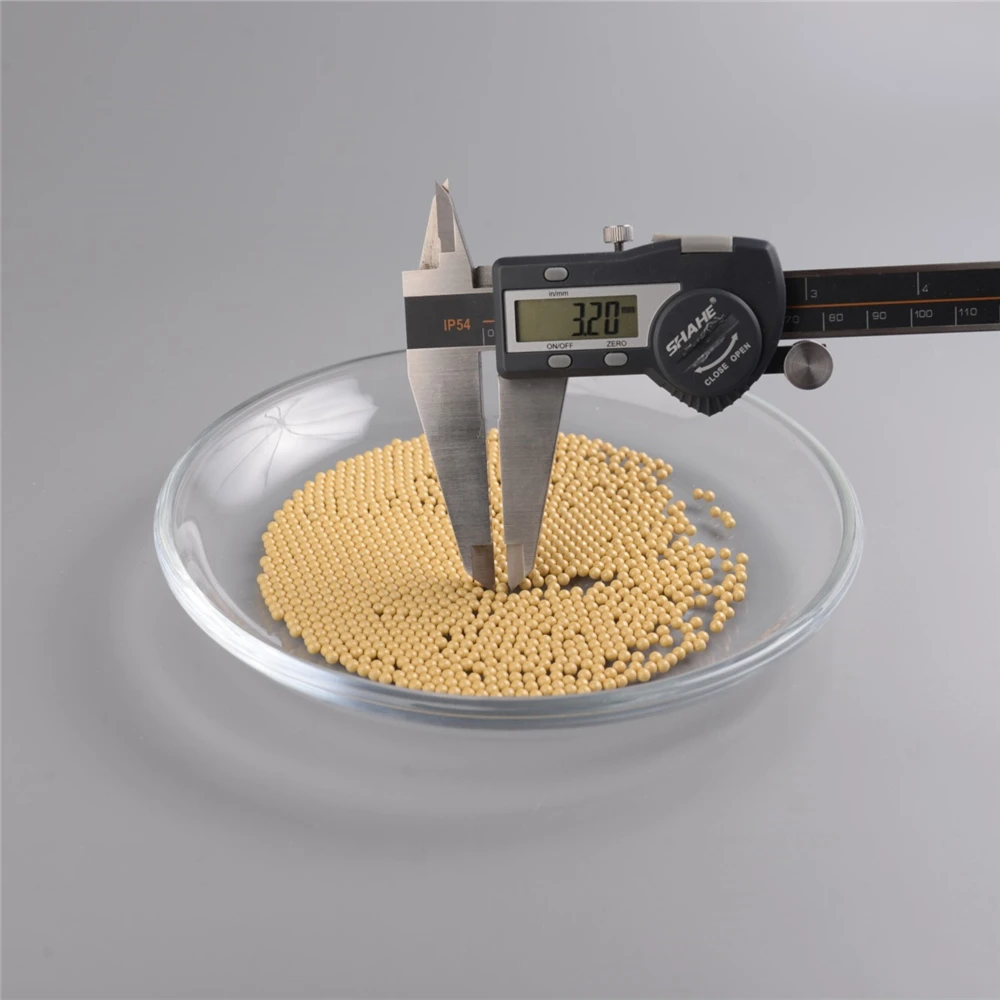

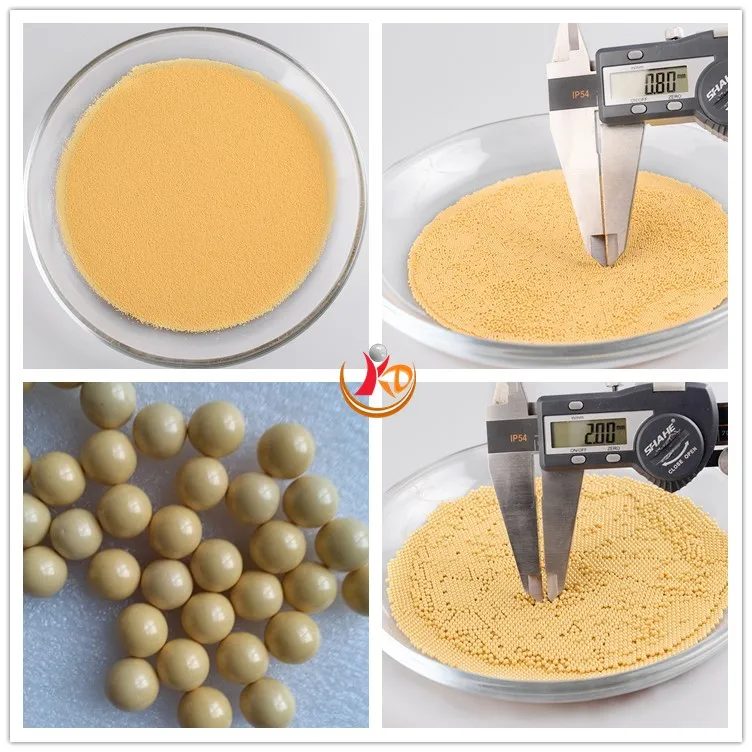

regular size (φ) | mm | 0.3-0.5,0.4-0.6,0.6-0.8,0.8-1.0,1.2.3.6.8.10.20.etc |
Thermal expansion | 10x10 -6 / °C(20-400) | 9.0 |
Features:
A. Long lifespan: 30 times longer life than glass beads, 6 times than zirconium silicate beads.
B.High efficiency: around 6 times higher than glass beads; 2 times than zirconium silicate beads.
C. Excellent wear resistance and fracture toughness is especially suited for high-solid-phase high viscosity, high hardness of the paste for grinding and dispersing of pure; good match at the same
time high input energy and the high shear machine sanding.
Application Fields:
1. Painting,Ink,Coating
2. Ceramic Inks & Electronic Paste
3. Refractory materials,Magnetic materials
Dye,Pigment,Textile,Printing
4. Cosmetics & Medicine,Agrochemical
5. Mine industry(Gold, Silver, Nickel, Zinc and Lead,etc.)
1. Horizontal Bead Mill
2. Vertical Bead Mill (Sand Mill)
3. Vertical Attrition Mill
4. High Speed Ultra Fine Sand Mill
5. Basket Mill
6. Horizontal Pin Mill
7. Nano Mill
8. Ball Mill
9. Planetary mill

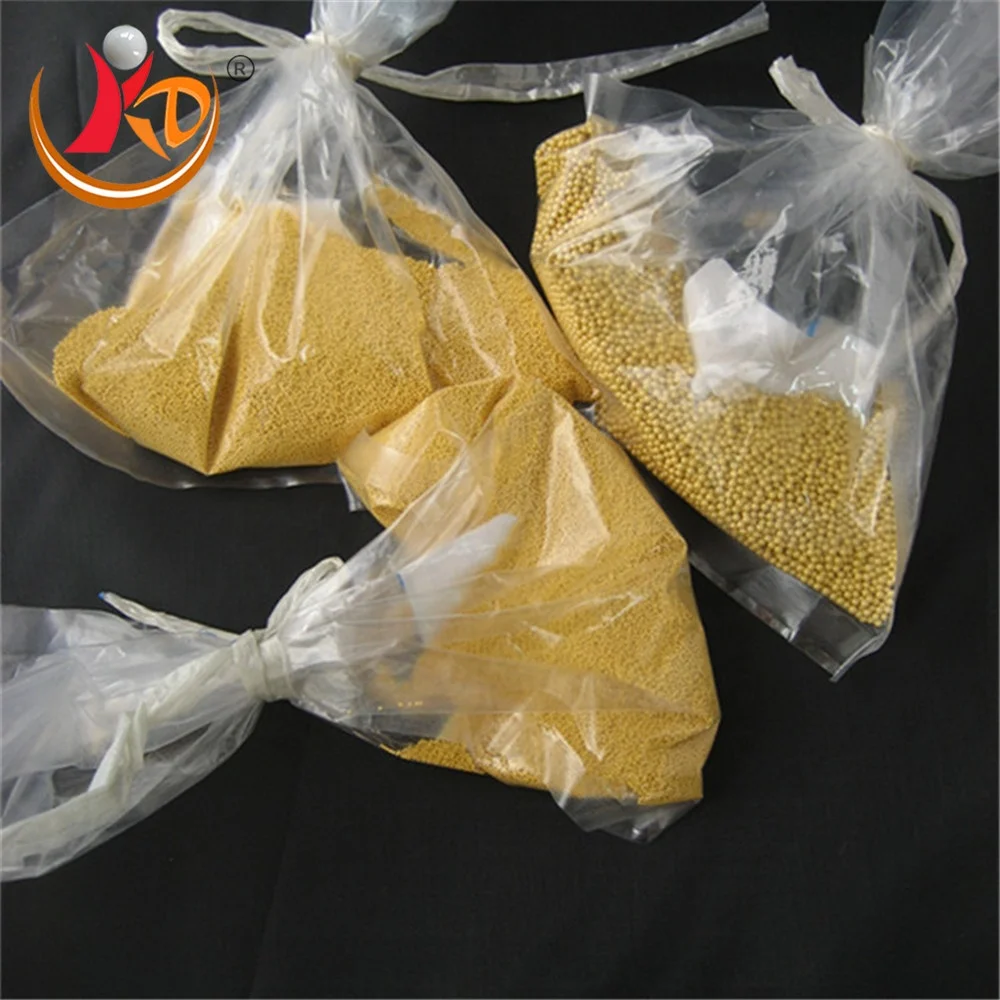

Packaging & Shipping
