Product Overview

Description


Product Description

There has 6 model bow thruster has been R&D by Wuhan Greenbay Marine Technology Co., Ltd by many years, input power covered from 3KW to 75KW. Our products has been successful sale to all over China and the world.

advantage
1. compact structure ,convenient installation and maintenance
2. lower cost, shorter production period
3. high efficiency and good flexibility
4. good performance and long life service time

Application: Container vessels, tankers, bulk carriers and dry cargo vessels, speed boat,etc.

\t

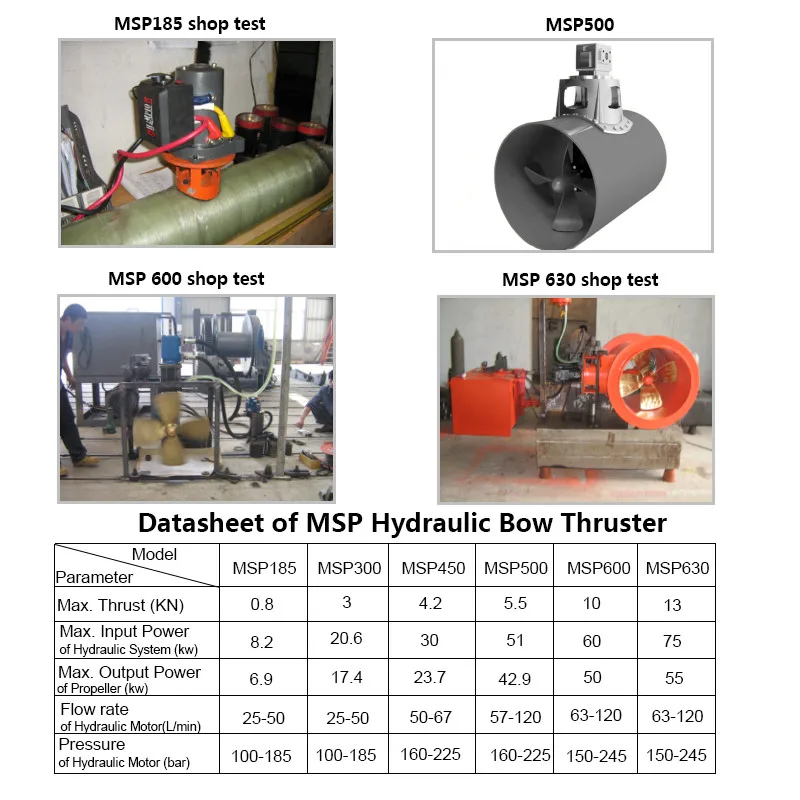

Parameter/Modle
\t
MSP185
\t
MSP300
\t
MSP450
\t
MSP500
\t
MSP600
\t
MSP630
\t
Max. Thrust (KN)
\t
0.8
\t
3
\t
4.2
\t
5.5
\t
10
\t
13
\t
Max. Input Power of Hydraulic System (kw
\t
8.2
\t
20.6
\t
30
\t
51
\t
60
\t
75
\t
Max. Output Power of Propeller (kw)
\t
6.9
\t
17.4
\t
23.7
\t
42.9
\t
50
\t
55
\t
Flow rate of Hydraulic Motor(L/min)

\t
25-50
\t
25-50
\t
50-67
\t
57-120
\t
63-120
\t
63-120

\t
Pressure of Hydraulic Motor (bar)
\t
100-185
\t
100-185
\t
160-225
\t
160-225
\t
150-245
\t
150-245
Detailed Images
\t\t\t\t\t\t\t\t\tFactory view \t\t\t\t\t\t\t
External Exchange
Certifications

In past years ,we have acquired iso ,Ship manufacturing license and many cerifications .

Qualification

In last years we have acquire 3 patent of invention and 9  patent for utility models ,1 industrial design patents.the patents list as the sheet below .

\t
Patent number
\t
Application
authorization  data
\t
Patent name
\t
type
\t
201520301913.70
\t
2015.5.11
\t
Adjustable half submerged propeller propulsion system
\t
utility model
\t
201310072385.8
\t
2015.05.06
\t
underwater power pack
\t
\t
201520006974.00
\t
2014.12
\t
A plane dropped lifeboat
\t
utility model
\t
201420713314.10
\t
2014.11.25
\t
A portable remote control water cleaning vessel
\t
patent for invention
\t
ZL 2014 2 0401907.4
\t
2014.7.15
\t
Hybrid electric remote control vessel
\t
utility model
\t
ZL 2013 2 0099711.X
\t
2013.3.5
\t
An underwater power plant control bottle sealing device
\t
utility model
\t
ZL 2013 2 0406704.X
\t
2013.7.10
\t
Small unmanned automatic lifeboat
\t
utility model
\t
ZL 2012 2 0630348.5
\t
2012.11.26
\t
A hybrid underwater robots
\t
utility model
\t
ZL 2012 2 0630289.1
\t
2012.11.26
\t
Small unmanned automatic survey vessel
\t
patent for invention
\t
ZL 2012 2 0174027.9
\t
2012.4.23
\t
The surface of Marine propeller propulsion system
\t
utility model
\t
ZL 2010 3 0210915.8
\t
2010.6.13
\t
Surface propeller propulsion
\t
patent for invention
\t
ZL 2006 1 0096445.X
\t
2006.9.27
\t
Marine air pipe head
\t
patent for invention
\t
\t
\t
\t
Packing & Delivery

Packaging detail:
Pallet, wooden case, paper box etc or as customers' requirements.
Shipping detail:
Ocean transport, air transport,  Express etc or as customers' requirements.


some packing as the pictures below
