Product Overview

Description

Product Description

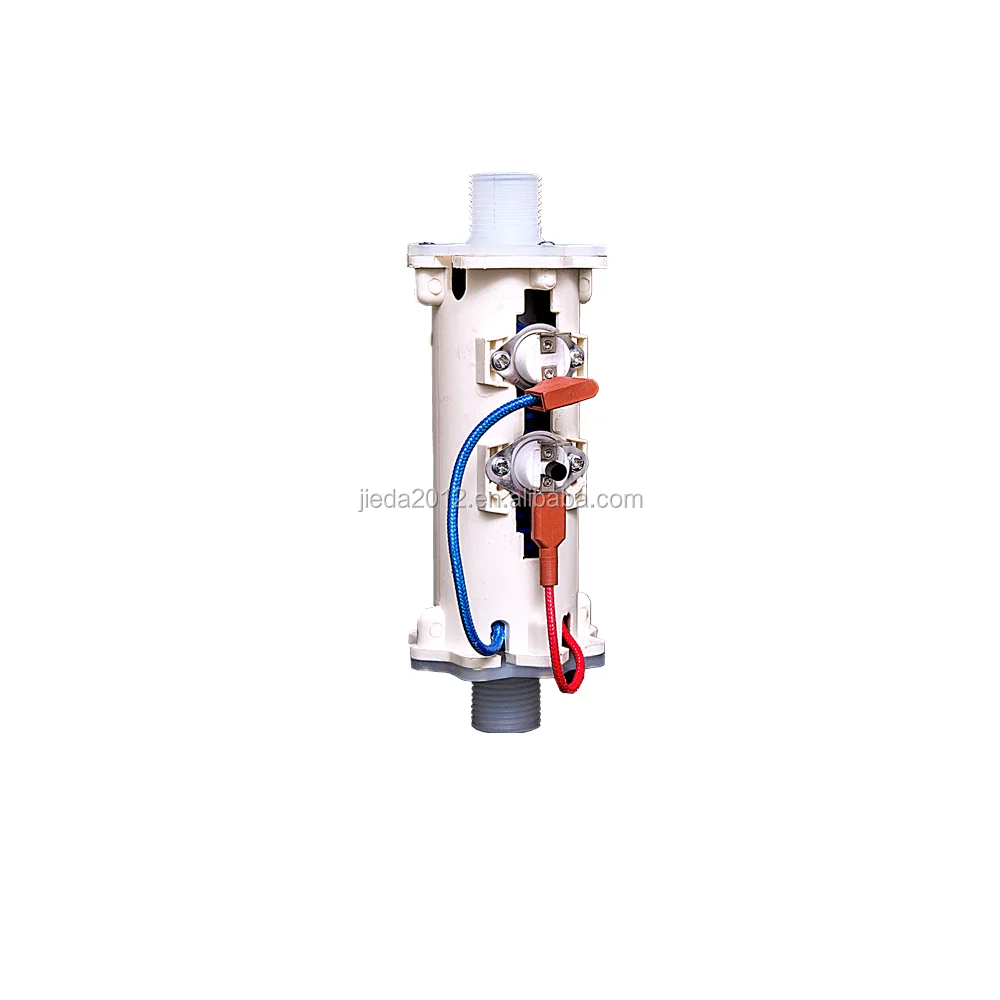

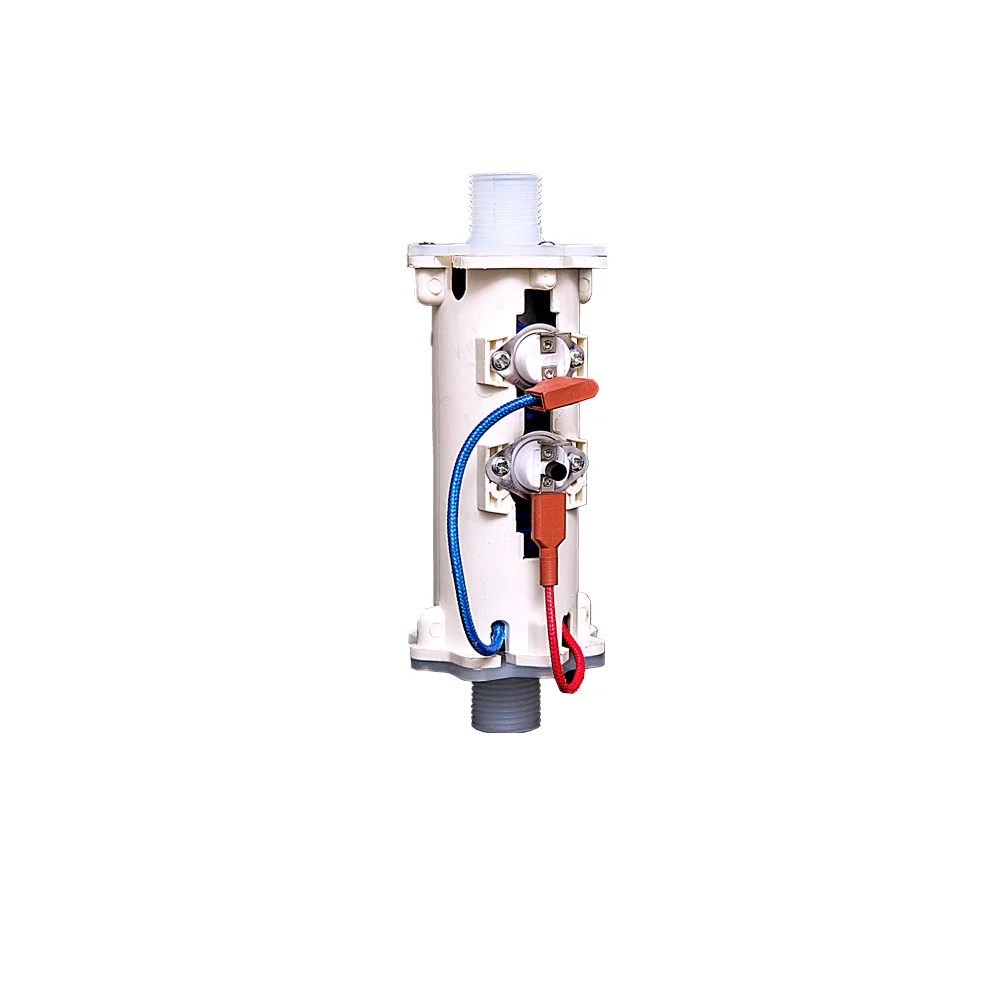

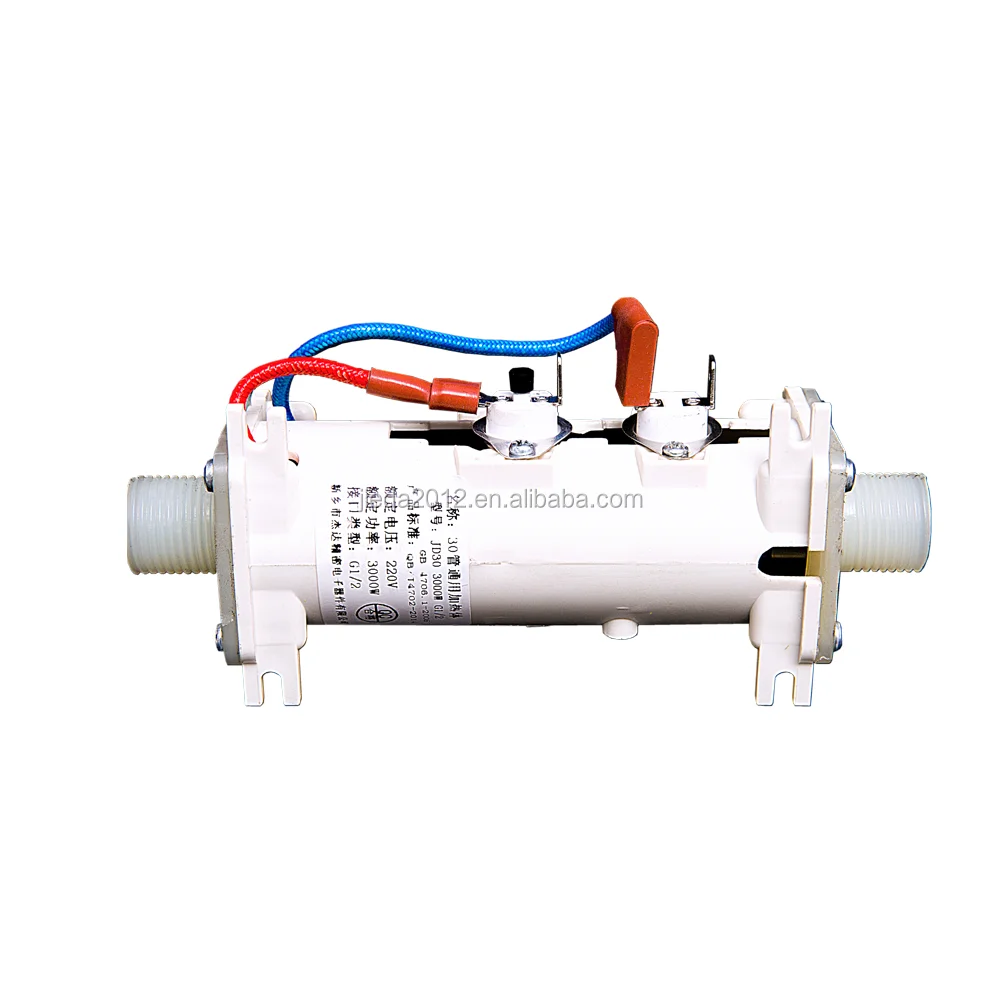

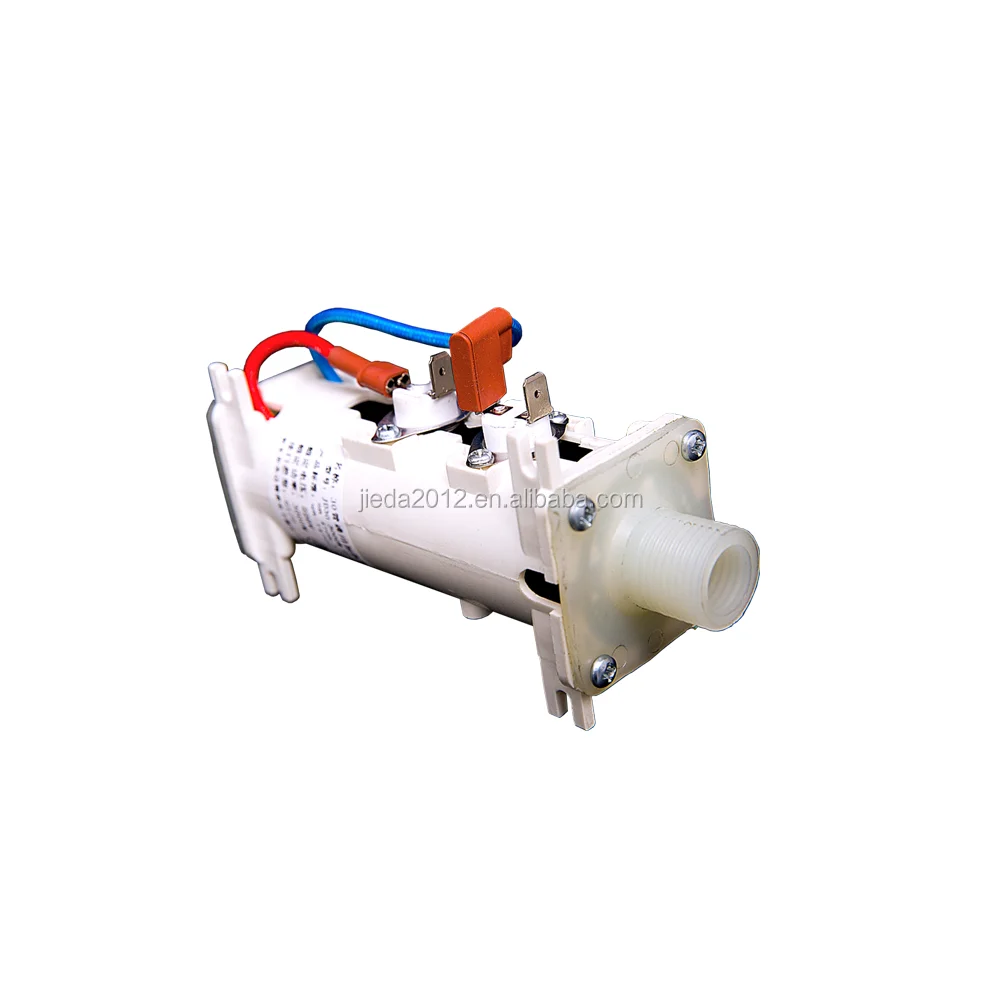

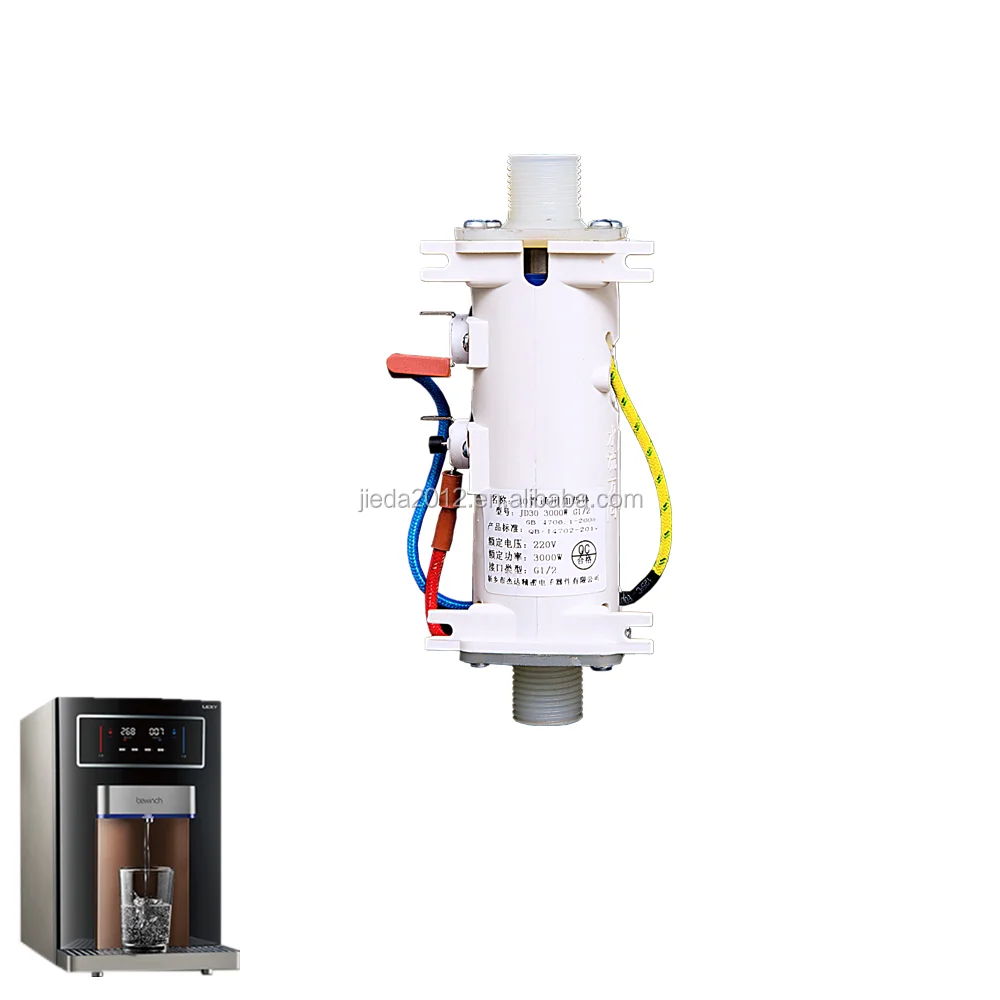

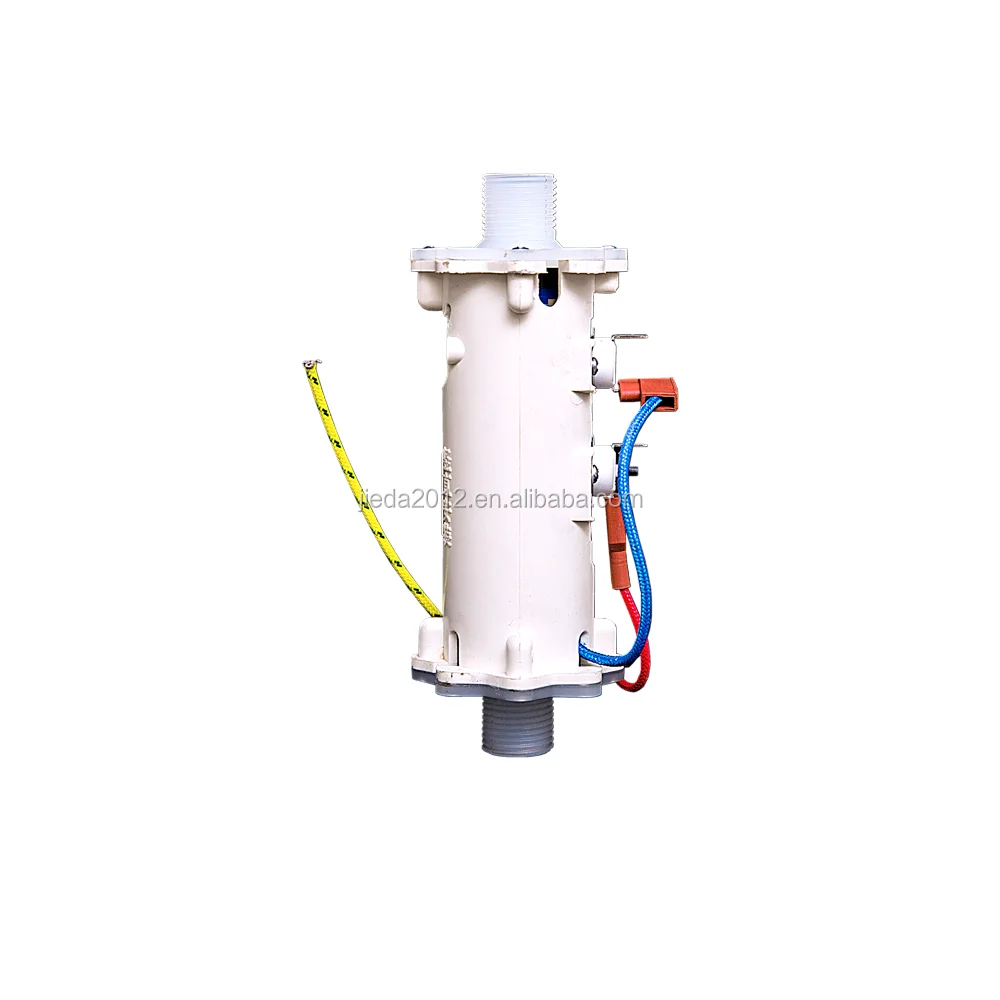

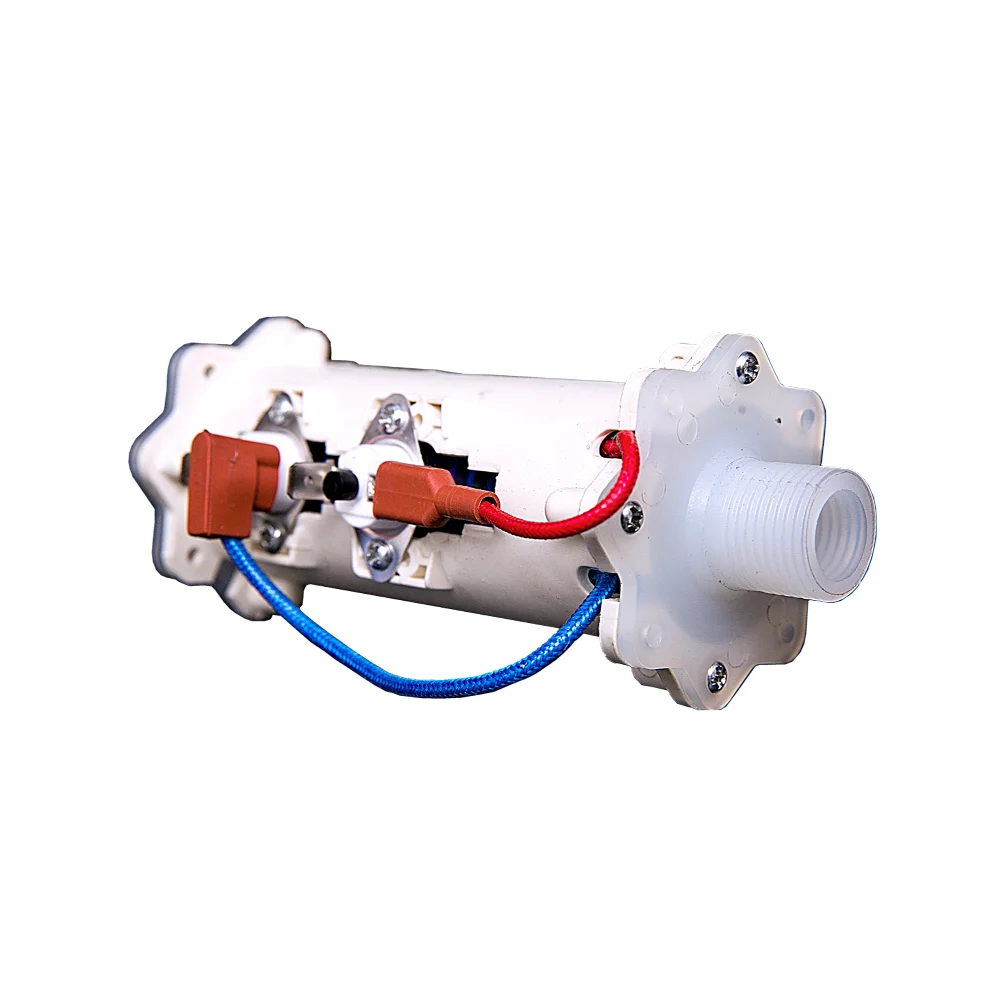

3kw instant heating element for water purifiers
3kw instant heating element for water purifiers 3kw instant heating element for water purifiers 3kw instant heating element for water purifiers 3kw instant heating element for water purifiers 3kw instant heating element for water purifiers

Electric Hot Water Heater Heating Element is advanced in Thermal Transfer,Temperature Response.

With its simple tubular structure, it can heat water flow inside the tube. Electric Circuit printed on tube surface, to heating the water flow inside.

For applications where space is limited, this simple profile heater offers high thermal power density and fast response times to heat up or cool down (due to low thermal mass).

This electric heating element can be matched with thermostats (automatic reset and/or manual reset) & circuit control board.
Thermostat can directly access heating power supply circuit to control it connection or disconnection.
Circuit Control Board can adjust the outlet water in multiple temperature levels.
Outside Dimension
161mm*60mm*46mm
Heat Density
＞60W/cm²
Ramp-Up Rate
80℃-150℃/s
Thermal Efficiency
＞98%
Heating Power
3KW
Service Life
＞10,000 hours
Rated Voltage
220v
Certificate
CQC, RoHS
Dielectric Strength
1,500V/5mA/60s
Power Deviation
-10% - +5%
Leakage Current
≤0.25mA
Insulation Resistance
≥200MΩ
Type
PA66+ glass fibre, temperature resistance≥250℃
Snap Action Thermostat
16A, installed close to the heating tube’s heating circuit
Shield Thermistor
PTC
Grounding Type
Spot-Weld
Water Inlet & Outlet
Φ20.95mm
Heating Tube Dimention
Φ30mm*110mm
Main Features
1. Electric Circuit printed on stainless steel tube surface, to heating the water flow inside. 5 isolation layers sintered on the surface.
2. Large heat transfer area on tube surface; Ramp up and Cool down quickly; High utilization rate up to 93% or above.
3. Fast temperature response, power density is as high as 60W/cm² and heating circuit’s temperature raising rate exceeds 80℃/s.
4. Simple structure, compact profile, various applications

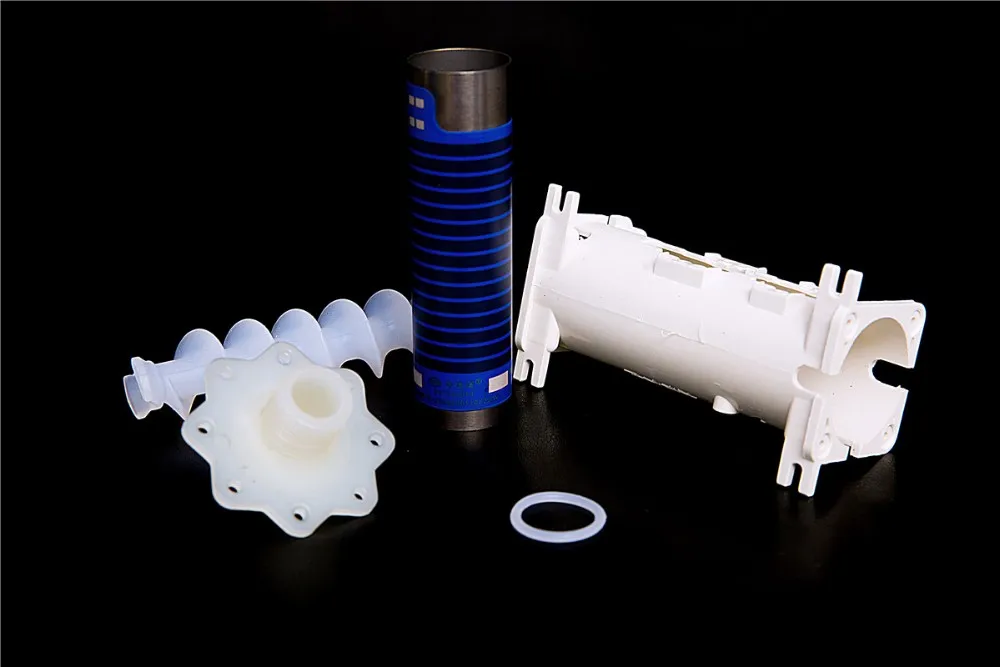

Thick Film Tube Structure

First Layer: Anti-oxidation layer (insulation, anti-rust)
Second-Sixth Layers: 5 isolation layers with high quality materials, and sintered 5 times.
Seventh Layer: Palladium-silver heating film (Quickly Heating, High Heat Utilization, Saving Power)
Eighth Layer: Silver conductor
Ninth Layer: Coating high quality isolation glazes in high temperature (protect surface and isolation)
8 times sintering in high temperature

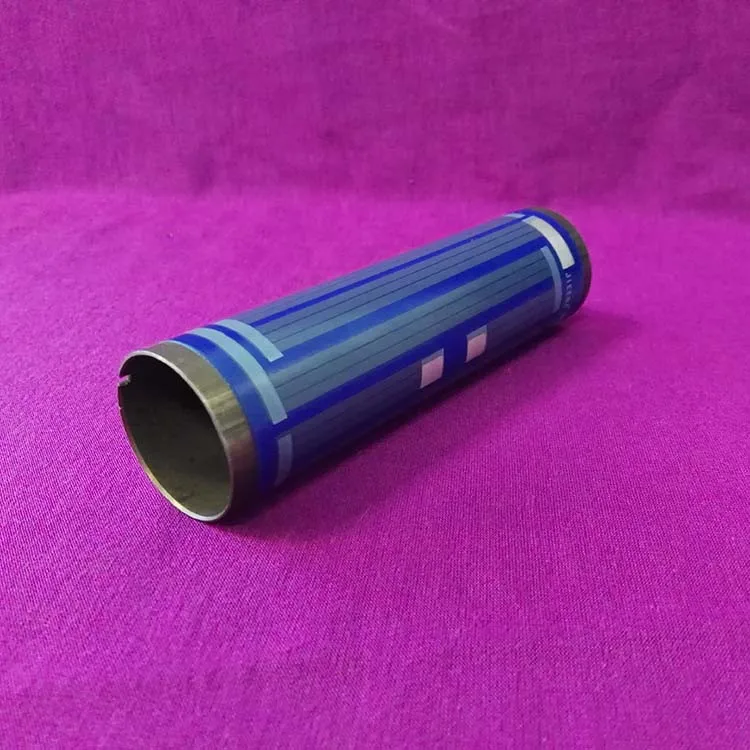

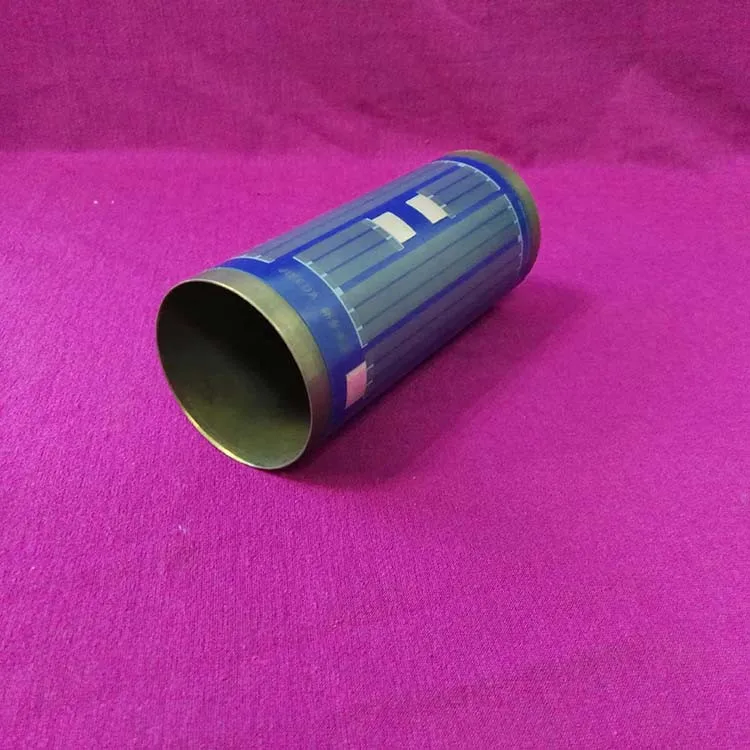

Thick Film Stainless Steel Tube

1). Electric Circuit printed on tube surface, to heating the water flow inside.
2). Compact size, high heat utilization
3). Available Power 2.2KW
4). SUS430 Stainless Steel
