shale shaker absorbed advanced tech at home and abroad ,complete series shale shaker can meet customers’ variable demand. Clients feedback proved the advantages of this kind of shale shaker: high G-force, wide screen area, compressed structure, cost-effective, etc.
No
Designation
Shale Shake
Product parameter
1
Vibration mode
linear type
Motor power
1.94kwx2
Adjustable G force
≤ 8 G
Vibiation Amplitude
4.4~6.34mm
Deck angle range
-1°~5
Recommend Capacity
≤140m³/H
Screen Qty
4 ps
Screen Size: L×W
585×1165mm
Starting mode
Magnetic start
The total weight
1638Kg
Dimension: L×W×H(mm)
2761×1998×1428mm
Product uses
and feature
1
Intensity vibration is as high as 8G,and can adjust,can effective dry drilling cuttings
2
Electric screen box Angle adjustment, convenient and reliable, and the mechanical Angle adjustment for standby
3
Screen box sealed patent design, good sealing effect, long service life, and easy to replace
4
Screen box at the bottom of stainless steel materials, corrosion resistance and greatly improve the service life
5

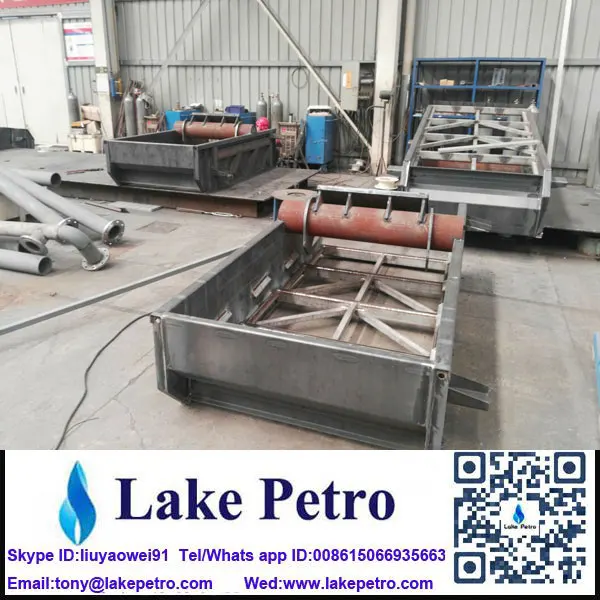

Screen box overall heat treatment, which can meet high vibration intensity work long hours.
Main Prooerties

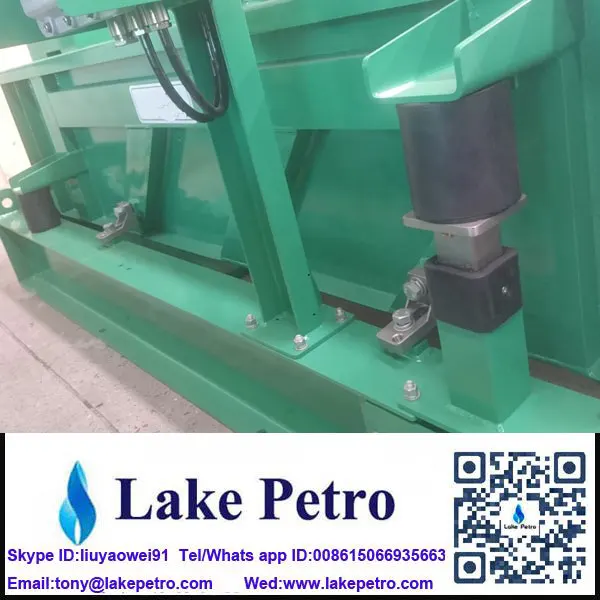

Patent shale shaker deck angle adjustable while working, mechanical deck angle adjustment with reliable performance.
Patent tighten rubber sealing for shale shaker deck and screen, long life and easy replacement.
Shale shaker bottom deck made from Stainless Steel for long service life.
Heat treatment on complete shale shaker deck for High G force operation.

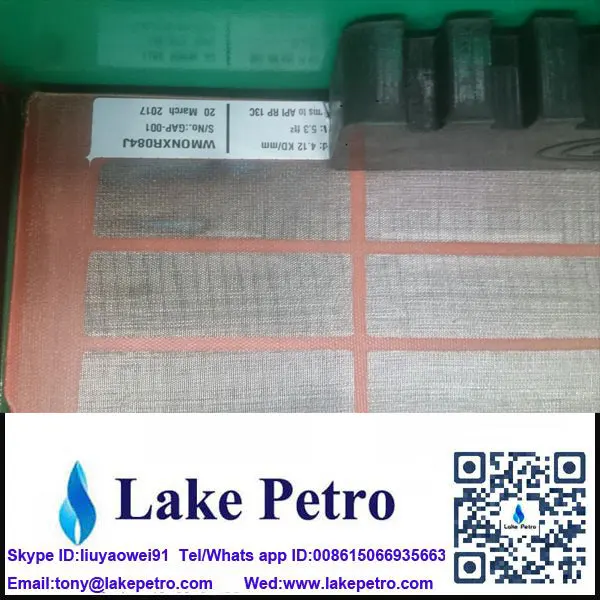

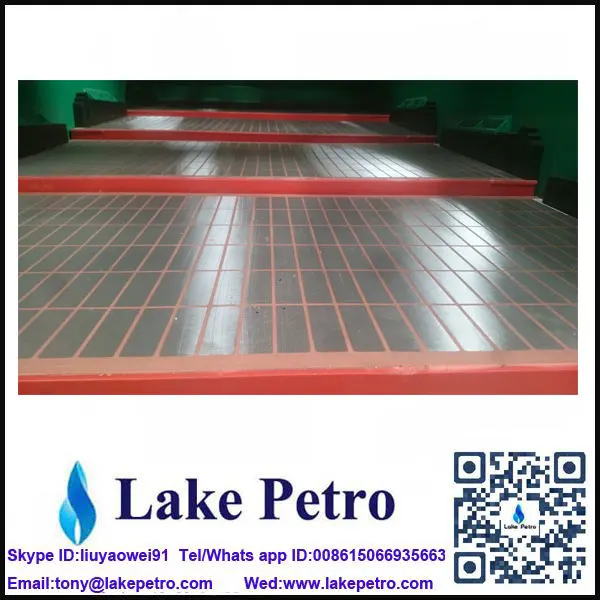

Pretensioned shale shaker screen for fast screen replacement
Famous Brand Vibration Motors : IEC Ex, ATEX and UL Certified
Electrical components: SIEMENS, Schneider Brand

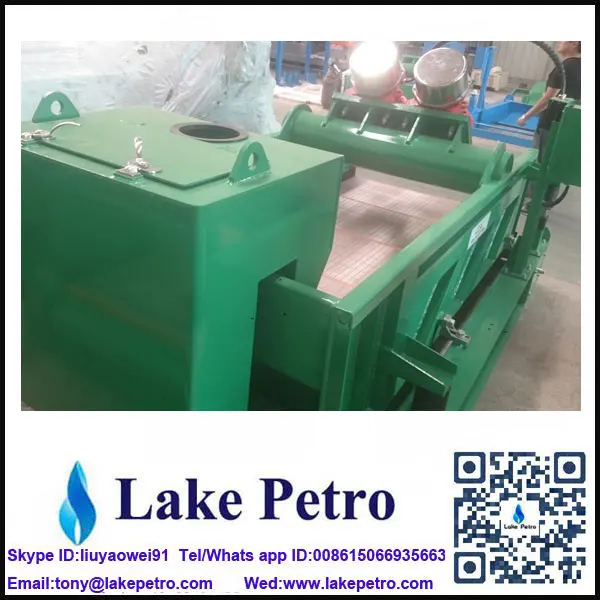

Flexible feeding type including Weir Feed, Top Feed, and Hopper Feed for different applications.

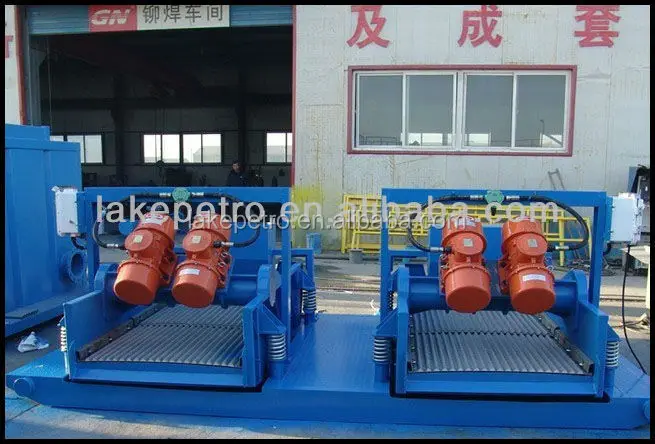

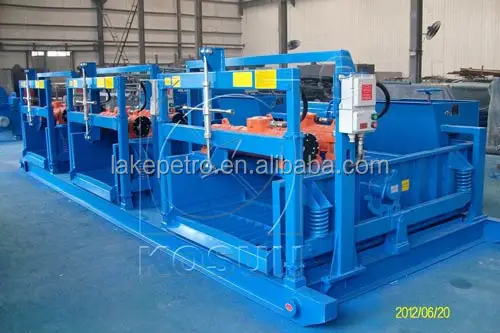

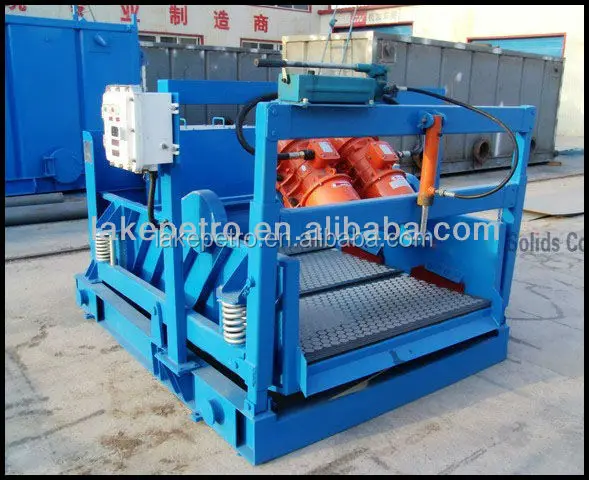

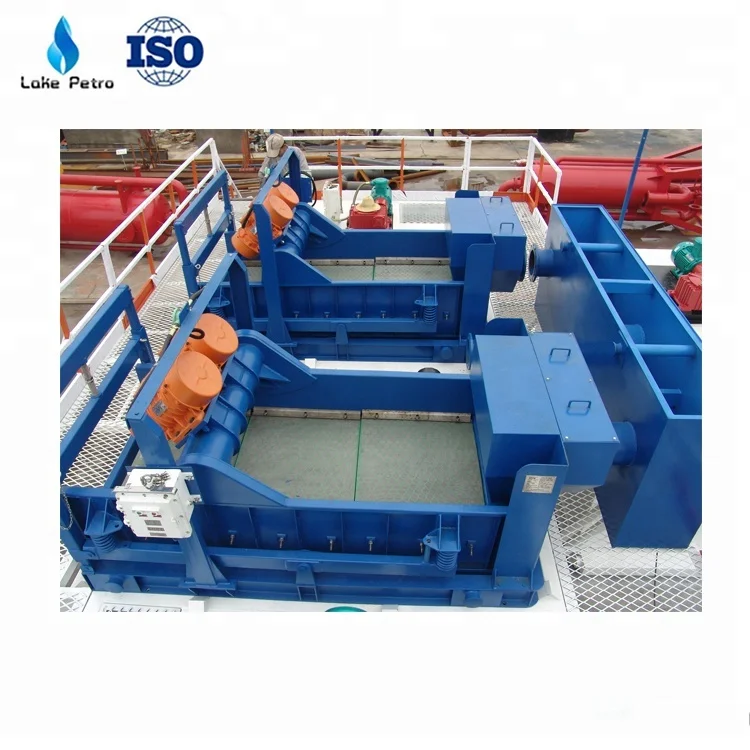

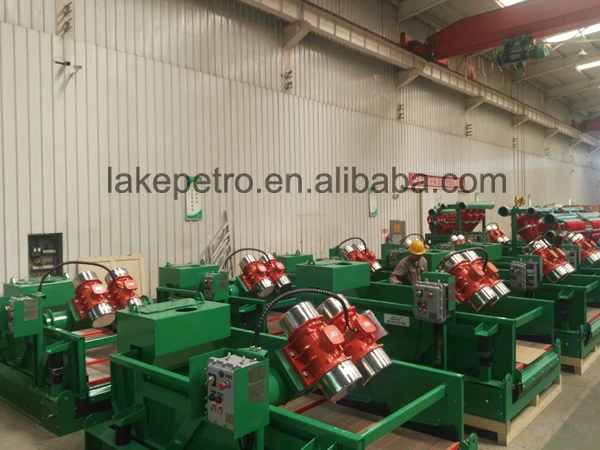

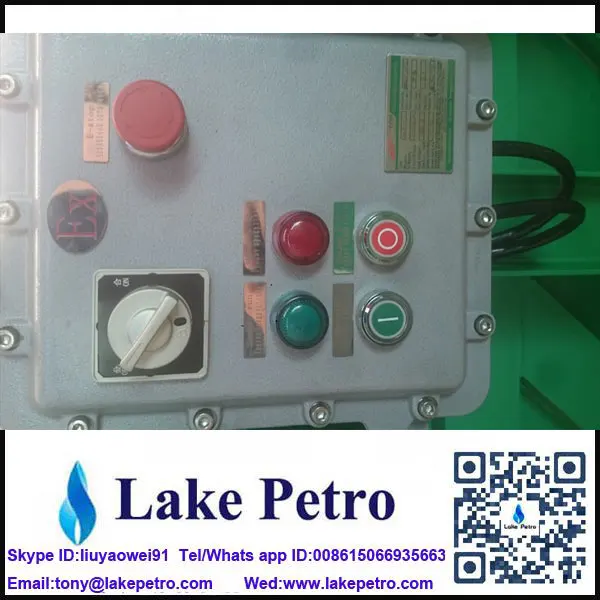

Product pictures:

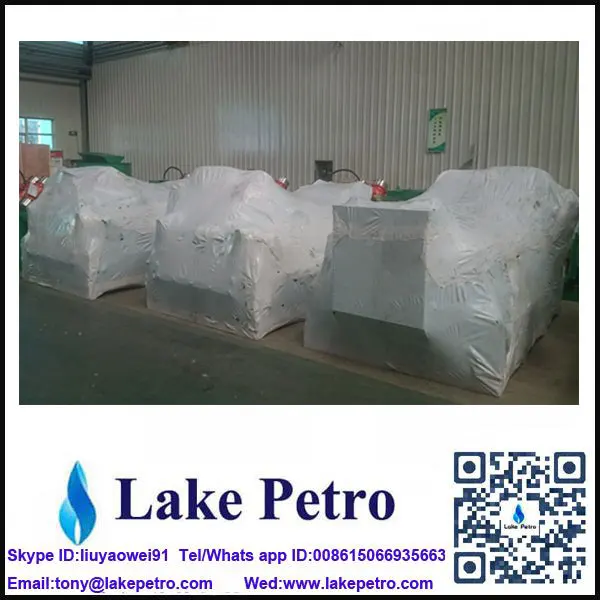

Packaging & Shipping
