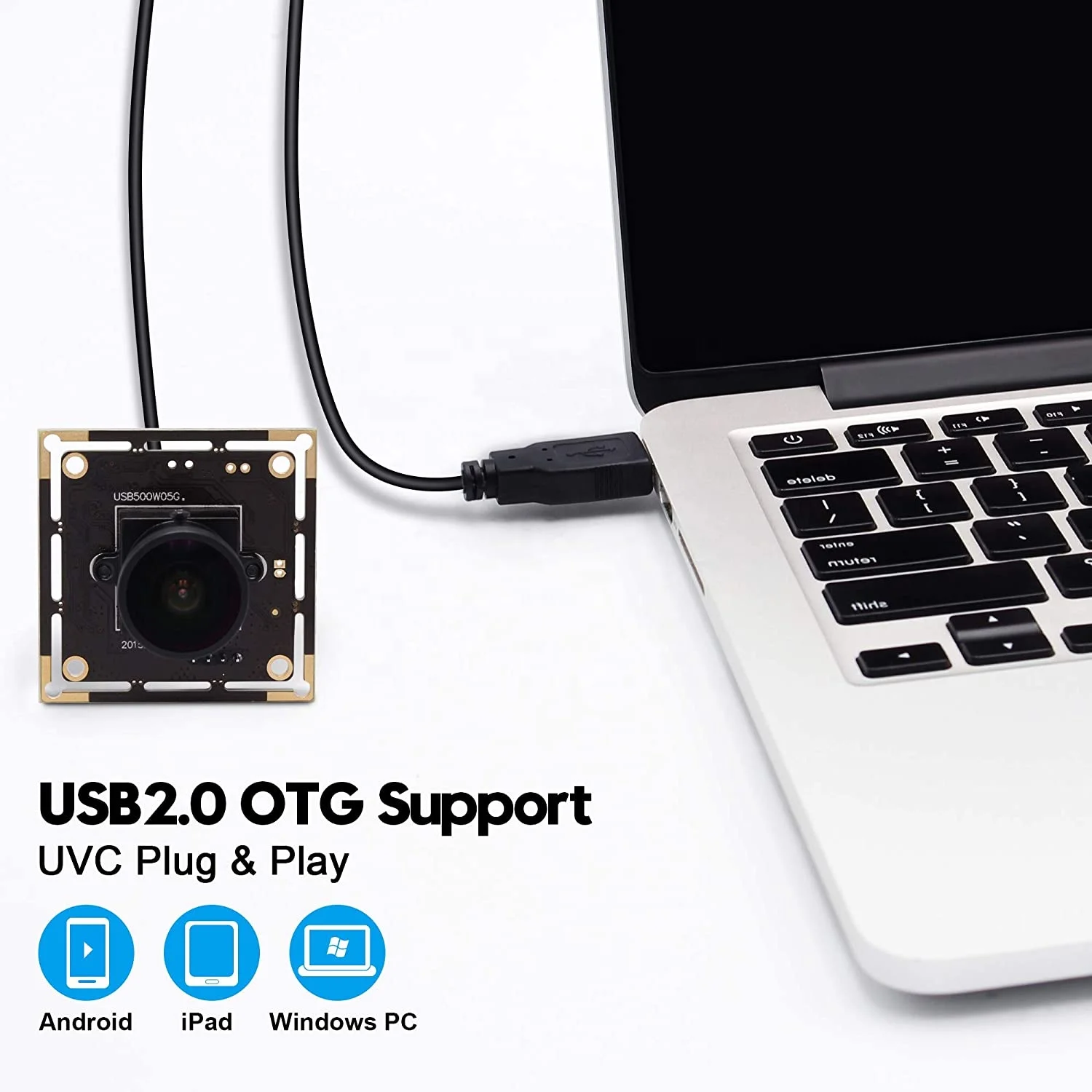

ELP 5 megapixel Aptina MI5100 cmos sensor free driver 5MP usb camera module with wide angle 170 fisheye lens
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd
Share on (60577300570):
Product Overview
Description
ELP 5 megapixel Aptina MI5100 cmos sensor free driver 5MP usb camera module with wide angle 170 fisheye lens
Product Description
Features:

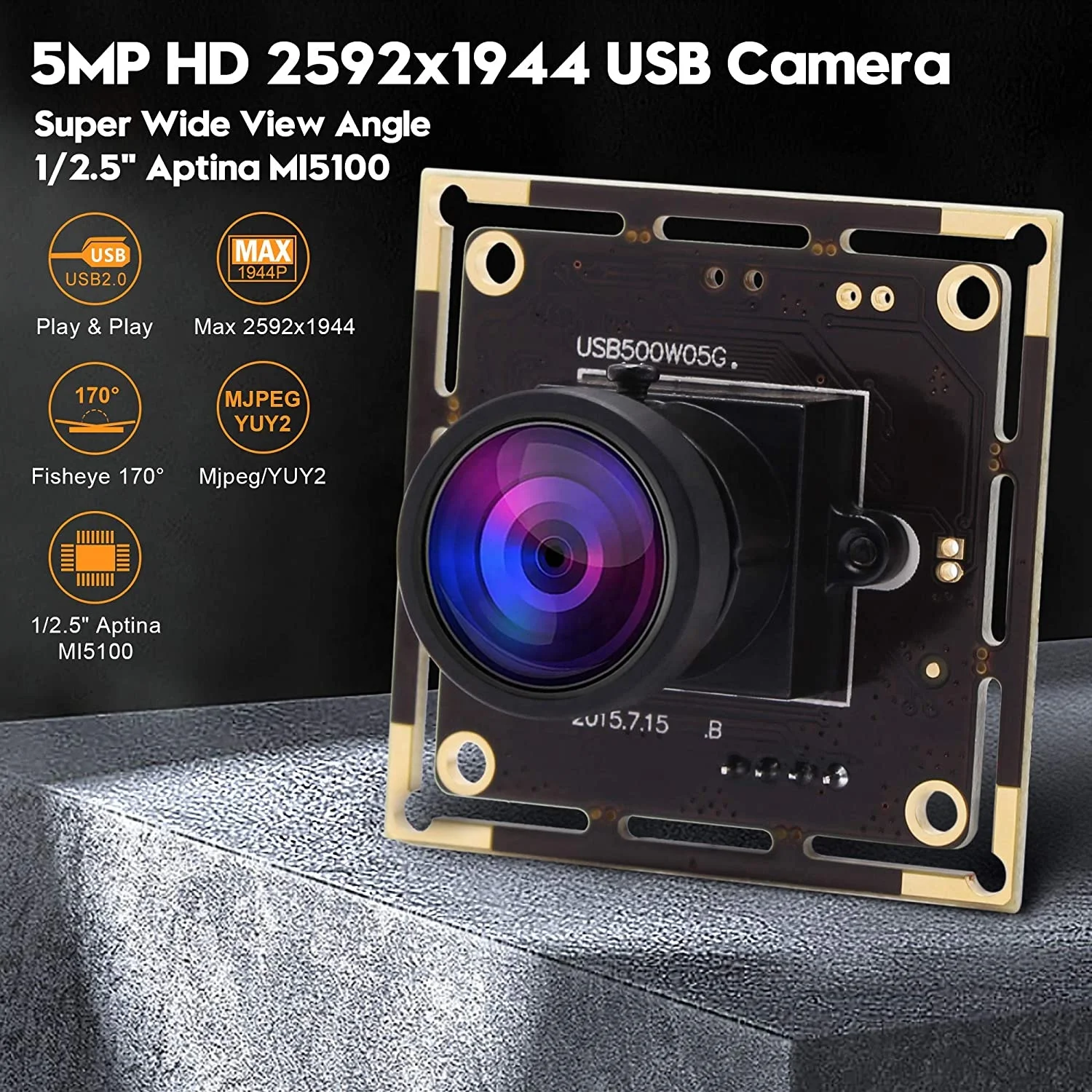

* 5MP Aptina Sensor Mini USB Camera
* 1/2.5” Aptina MI5100 CMOS sensor for high quality image

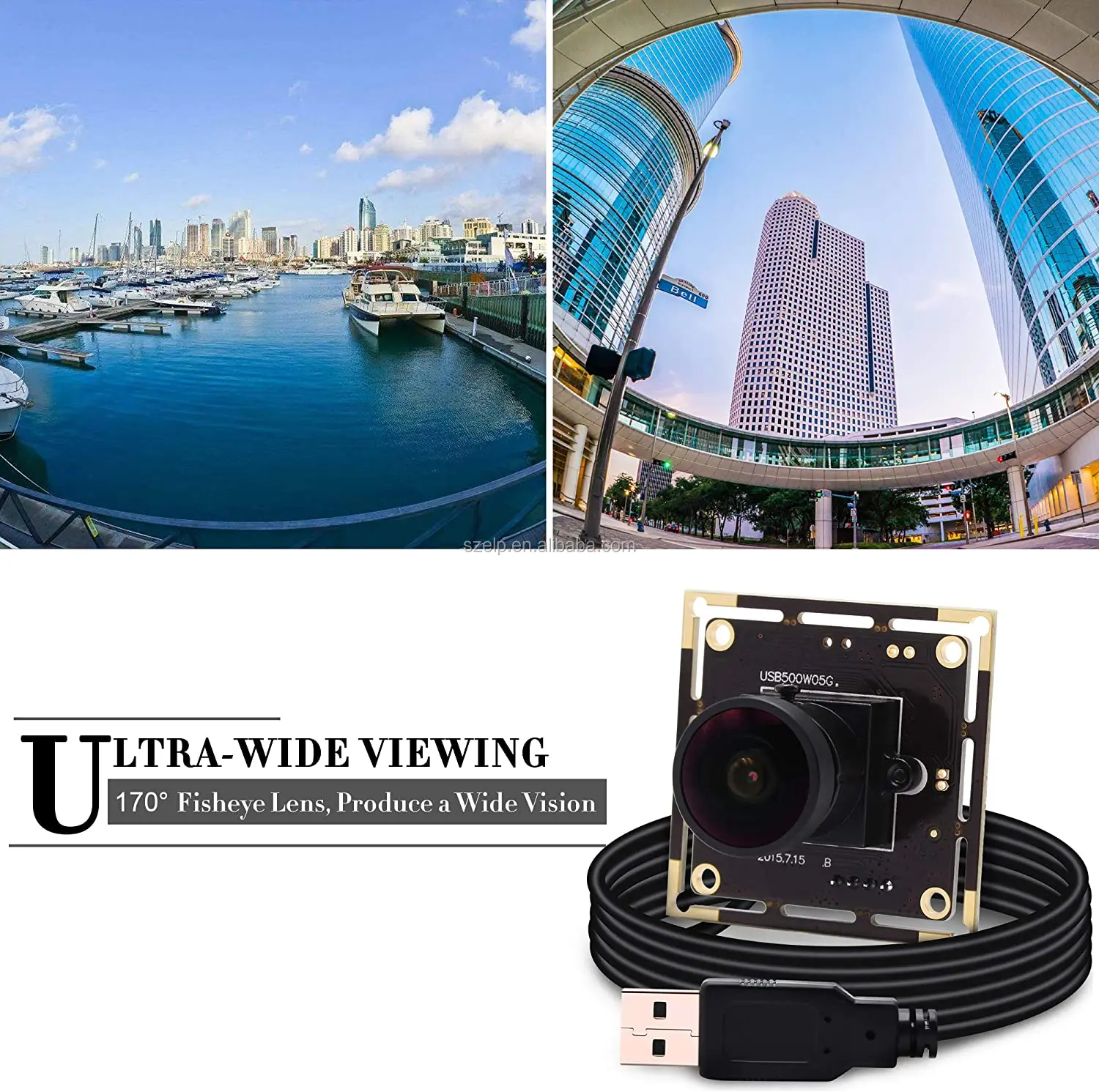

* With HD 170 degree fisheye M12 lens
* With 10pcs IR LED board for night vision
* Metal mini box camera housing for embedded application
* MJPEG/YUY2 dual video format optional
* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface
* Low power consumption - ideal for portable equipment.
* UVC compliant - support Windows, Linux, Android system with UVC
* Support USB2.0 OTG Protocol - Can be external camera for mobile phone, Tablet and other device which support OTG
* Application: Scanner, 3D printer, Simple surveillance, Robot, ATM, Kiosk etc.
Specification:
| Model | ELP-USB500W05G-L170 |
| Sensor | Aptina MI5100 |
| Lens Size | 1/2.5 inch(4:3) |
| Pixel Size | 2.2um |
| image area | 5.7mm x 4.28mm |
| Max. Resolution | 2592(H) X 1944(V) |
| Compression format | MJPEG / YUV2(YUYV) |
| Resolution & frame | 2592x1944 @ 15fps MJPEG / 2048x1536 @ 15fps MJPEG 1600x1200 @ 15fps MJPEG / 1280x1024 @ 15fps MJPEG 1920x1080 @ 30fps MJPEG / 1280x720 @ 30fps MJPEG 800x600 @ 30fps MJPEG / 640x480 @ 30fps MJPEG |
| S/N Ratio | 38dB |
| Dynamic Range | 70dB |
| Sensitivity | 1.4V/lux-sec@550nm |
| Mini illumination | 0. 1lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port type | USB2.0 High Speed |
| Free Drive Protocol | USB Video Class(UVC) |
| Support OTG Protocol | USB2.0 OTG |
| AEC | Support |
| AEB | Support |
| AGC | Support |
| Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure |
| Lens Parameter | 170 Degree fisheye lens |
| LED board control interface | Support 2P-1.25mm socket |
| LED board power connector | Support 2P-2.0mm socket |
| Power supply | USB BUS POWER 4P-2.0mm socket |
| Operating Voltage | DC5V |
| Working current | 150mA~200mA |
| Working temperature | -10~70℃ |
| Storage temperature | -20~85℃ |
| Board size /Weight | 38X38mm(Compatible 32X32mm)/ about 30g |
| Cable | Standard 1M / 2M,3M,5M optional |
| Operating system request | WinXP/Vista/Win7/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |

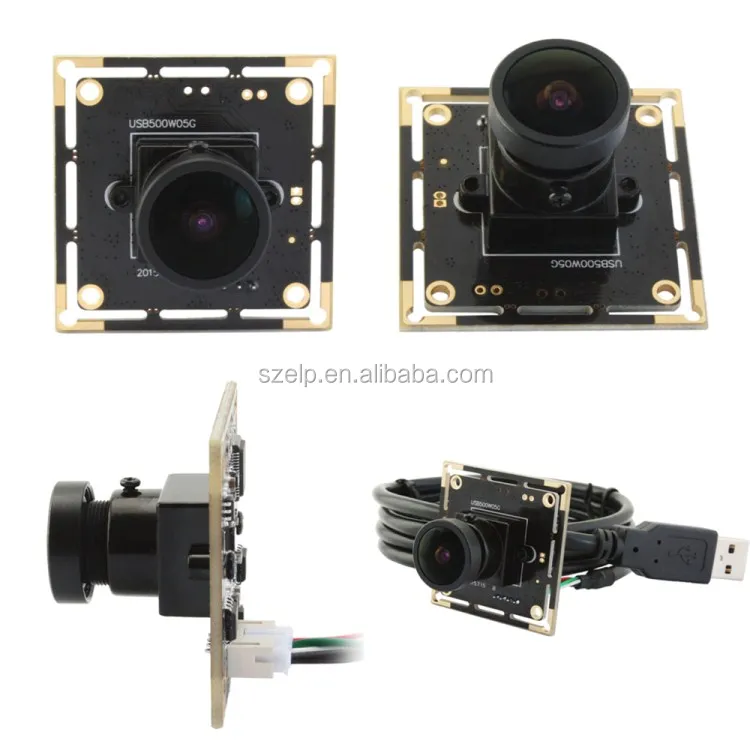

Pictures:
Effect Shows:
Company Information
FAQ
♦Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module for more than 12 years
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
♦What operating system your cameras support?
Android, Windows and Linux System
♦What certificate your products have?
CE, FCC, partial have RoHS and UL
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
