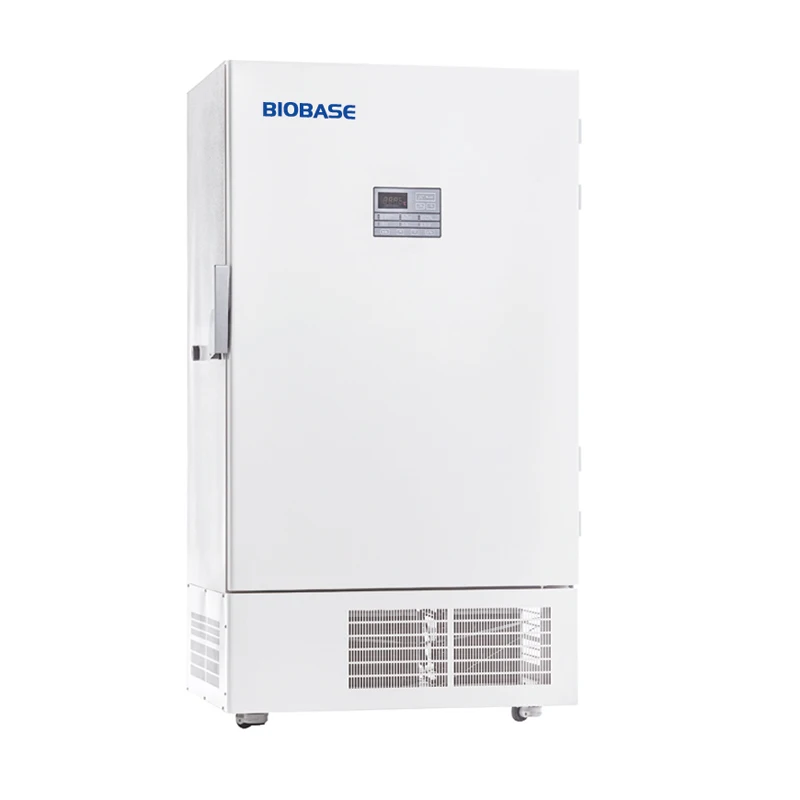

BIOBASE 86 Degree Ultra Low Temperature Single Door Medical Freezer

Model

BDF-86V100

BDF-86V388

BDF-86V540

External Size

(W*D*H)mm

1000*720*793

840*940*1999

840*918*1984

Internal Size

(W*D*H)mm

450*450*500

500*600*1240

Upper:695*600*588

Down:695*600*588

Capacity

100L

388L

540L

 Type

Vertical

Temp.Range

-10- -86℃

Temp. Accuracy

0.1 ℃

Control System

Microprocessor control& Large Screen LED Display

Alarm

Audio and visual alarm for :

High and low temperature, System failure, Door ajar,

Power failure, Low battery,Filter blocking

Refrigeration Type

Direct refrigeration

Refrigerant

Mixture refrigerant, composed of R134a,R404a; R23,R410A, N2, CFC free

Compressor

1set

1set

2sets

Condenser&Evaporator

Made of copper

Construction

Structure

Unibody design, two-time foaming technology,

100~155mm foaming insulation, with VIP+

Internal

Material

SUS304

External Material

Cold-rolled steel coated with anti-bacteria powder

Door

Front opening lockable door with full height handle,

with vacuum release port

Caster

4 casters

Chamber with inner door

2

4

4

Shelves

1 pcs

3 pcs

3pcs

Test Port

1,φ40mm

1,φ40mm

1,φ40mm

Consumption

800w

1800w

1800w

Power Supply

220V±10%,50/60HZ

Standard Accessory

Temperature printer, record 7 days data,

72 hours battery backup for printer and controller display

Optional Accessory

Back-up system

CO2 Back-up system

Storage racks

and boxes

3 racks: 4*3

3 racks: 3*3

63 boxes

9 racks: 5*4

3 racks: 4*4

228 boxes

8racks: 5*5

8 racks: 4*5

360 boxes

Package Size

(W*D*H)mm

1220*890*1010

990*1100*2230

990*1100&2230

Gross Weight

140kg

350kg

360kg
