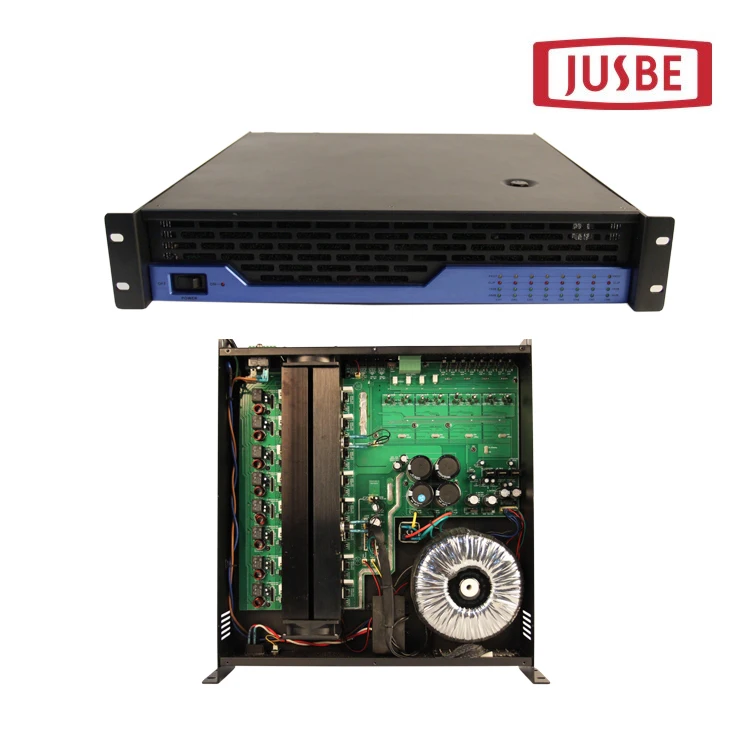

Jusbe professional audio sound system DH 3 stereo ahuja amplifier
- Category: >>>
- Supplier: Guangzhou Jusbe Electronic Technology Co. Ltd.
Share on (60577498597):
Product Overview
Description
Product Description

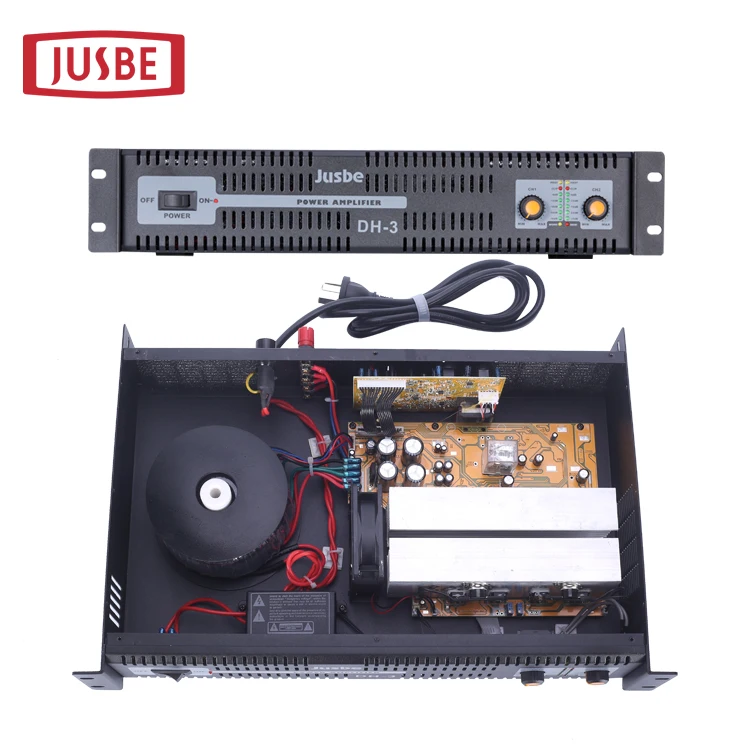

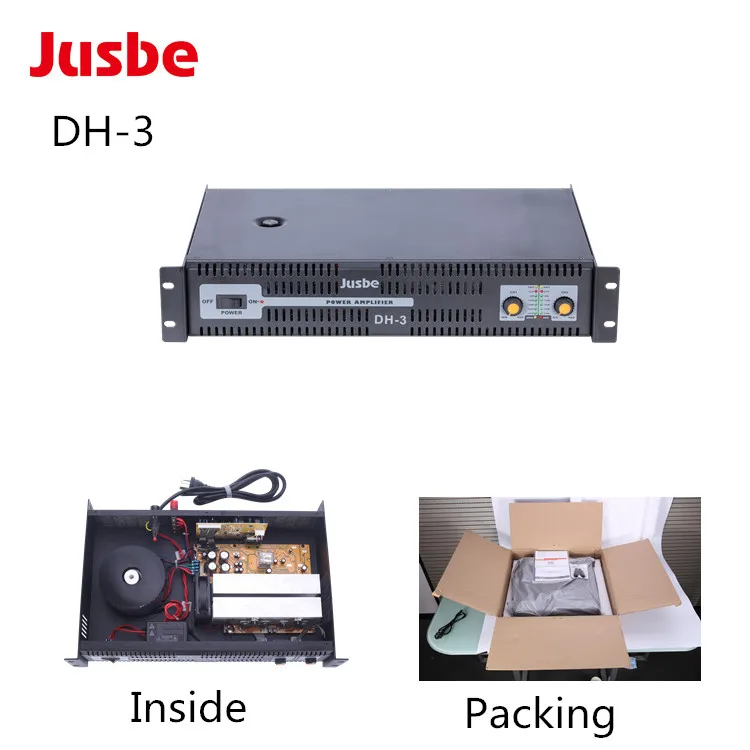

DH-3 stereo power amplifier 5.1 surround sound system amplifier
| Product Name | Factory price dj pa sound audio power amplifier professional amplifier | ||||
Item No. | CH250 | CH300 | CH400 | CH600 | DH-3 |
8Ω Stereo Power: | 250w*2 | 350w*2 | 450w*2 | 600w*2 | 120w*2 |
| 4Ω Stereo Power | 400w*2 | 550w*2 | 700w*2 | 900w*2 | 160w*2 |
| 8Ω Bridging Power | 750w | 1050w | 1350w | 1800w | 280w |
| 4Ω Bridging Power | 1000w | 1400w | 1800w | 2400w | |
| Cooling Method | wind cooling | ||||
| Channel Resolution(within 1 KHz) | >60dB | ||||
| Frequency Response | 20Hz-20KHz/ +0/ -0.5dB | 20Hz-20KHz/ ±0.5dB | |||
| THD | <0.025%@8Ω1KHz | <0.05%@8Ω1KHz | |||
| SNR | >100dB | >105dB | |||
| Input Sensitivity | 0.775V | ||||
| Conversion Rate | >20V/μs | ||||
| CMRR | >70dB | ||||
| Input Impedance | Balanced 20KΩ; Unbalanced 10KΩ | ||||
| Impedance Coefficient | 200@1KHz/8Ω | ||||
| Protection | Peak limit; overload; DC; short circuit; overheating; SS | ||||
| Control | Front panel: power switch/ channel1&channel 2 volume control Back panel: pattern/ Sensitivity/ earthing switch | ||||
| Input interface | 3 pin XLR | ||||
| Output interface | Binding post & Speak-on NL4*2 pin1 + /2 + POS (plus/minus 4 cores security socket) | ||||
| Amplifier Circuit | class H | ||||
| Main Fuse | 10A | ||||
| Power Supply | 220V/50Hz | ||||

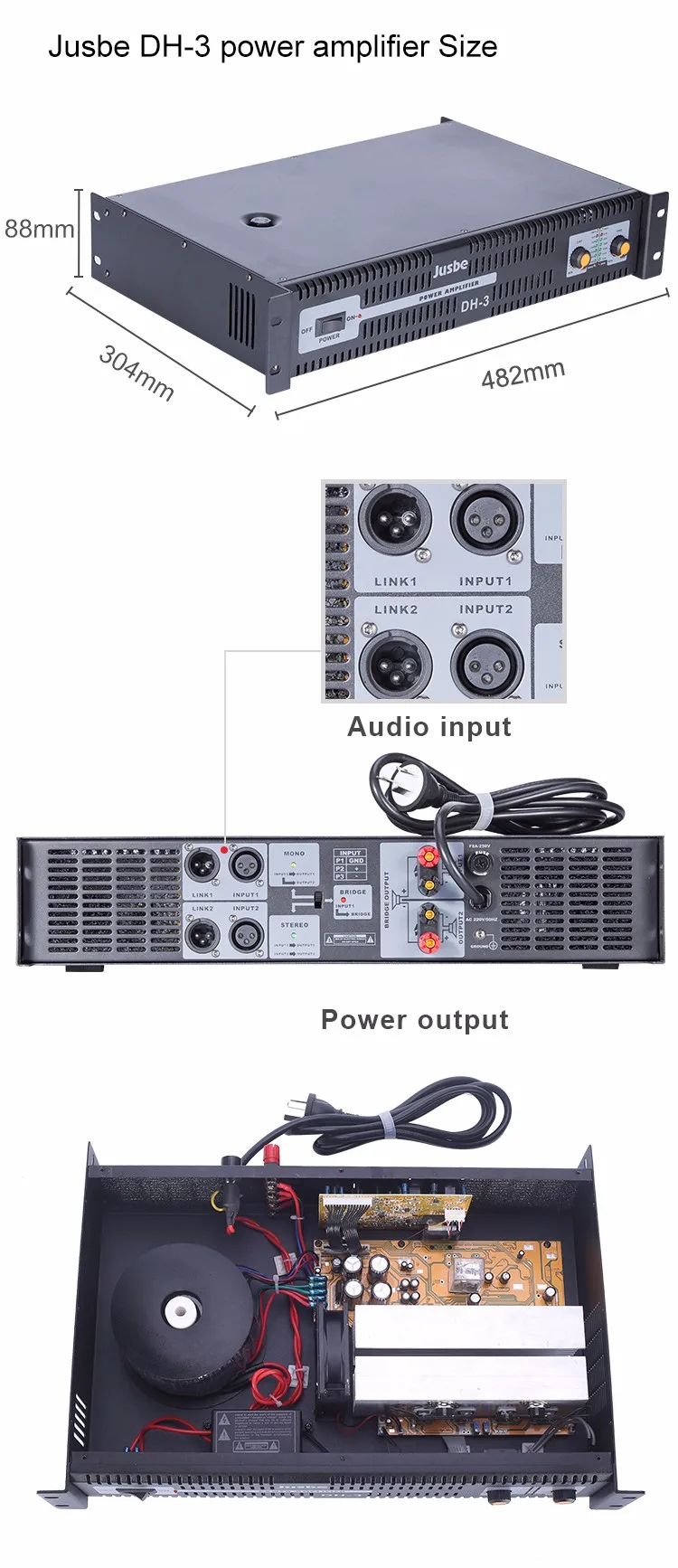

| Product Size(mm/set) | 510*483*88 | 482*304*88 | |||
| Net Weight | 10KG | 11KG | 12KG | 15KG | 18KG |
Company Information

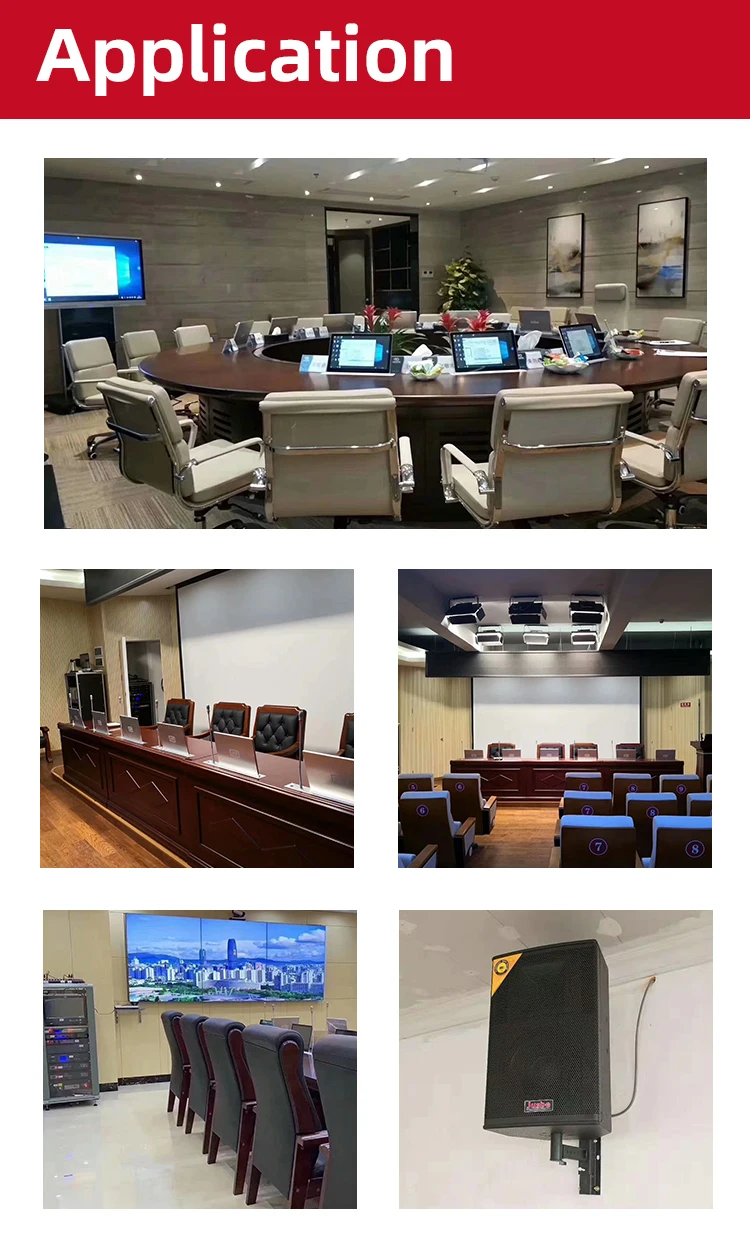

China Jusbe Electronic Technology Co. Ltd. Is a leading manufacturer, exporter and supply chain service provider on professional audio system including amplifier, speakers, microphone, line array series, peripheral equipment, mixer, etc.. The products widely used in teaching, conference, KTV, auditorium, stadium and other amplification occasions.
