Торговая гарантия KOOEN, лидер продаж, машина для переработки пластиковых бутылок с минеральной водой
- Category: Recycle Washing Line >>>
- Supplier: Zhangjiagang Kooen Machinery Co. Ltd.
Share on (60577543838):
Product Overview
Description
Waste Plastic PET bottle washing and recycling machine line
Estimated Plant Parameters: | ||||||||||
Model | CAPACITY (kg/h) | POWER CONSUMPTION (kw) | WATER CONSUMPTION (ton/h) | Manpower | HUMIDITY CONTENT | |||||
MT-300 | 300kg/hour | 150kw | 3ton/h | 4 | <1% | |||||
MT-500 | 500kg/hour | 230kw | 4-5ton/h | 4 | <1% | |||||
MT-1000 | 1000kg/hour | 270kw | 6-7ton/h | 5-6 | <1% | |||||
MT-2000 | 2000kg/hour | 370kw | 8ton/h | 5-6 | <1% | |||||
MT-3000 | 3000kg/hour | 420kw | 10ton/h | 7 | <1% | |||||
Working Flow:
Belt conveyor → Bale opener machine → Belt conveyor → Pre-washer (trommel) →Belt conveyor → Mechanical label remover → Manual separating table → Metal detector →Belt conveyor → Crusher *2→ Screw conveyor*2 → Floating washer →Screw conveyor → Hot washer chamber *2 →Screw conveyor*2 → High speed friction machine → Screw conveyor → Floating washer → Screw conveyor →Floating washer → Screw conveyor → Horizontal dewatering machine → Drying pipe system → Zig zag air classification system → Storage hopper → Control cabinet

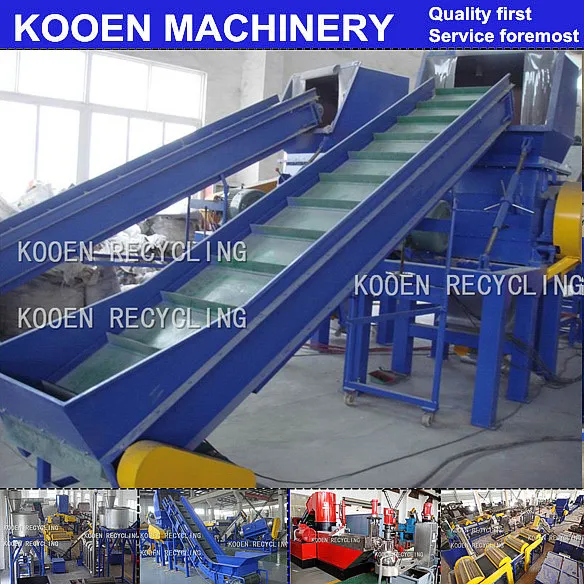

Belt conveyor
Control method: frequency control
Bale opener machine
Stirring motor: 7.5kw*2
Trommel (pre washer)
Dimension(L*W):5000*1500mm; Material of barrel: Perforated plate, galvanized treatment
Mechanical Label remover machine
Motor Power:11/22/37KW; Blade material: Tungsten steel, removable. Removing labels from bottles, label remove rate reach 99%
Manual separating table
Dimension (L*W*H): 8000*1000*1200mm

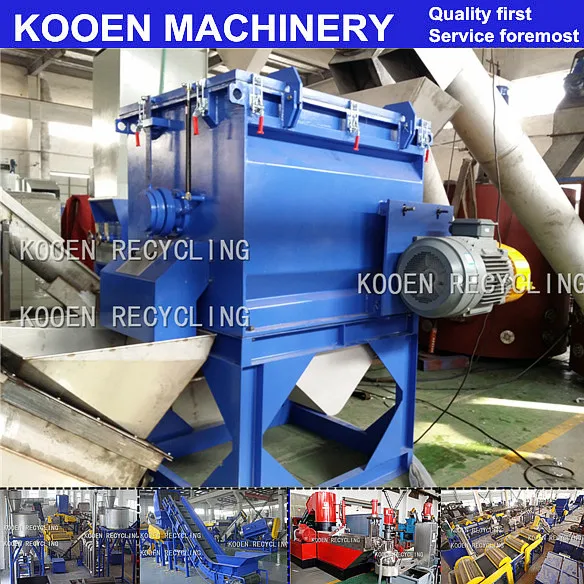

Crusher
Motor power: 37/55/90kw
Fix knives quantity: 4 pc
Moving knives quantity: 10 pc
Knife material: SKD-11(from Japan)
crushing with water
Fix knives quantity: 4 pc
Moving knives quantity: 10 pc
Knife material: SKD-11(from Japan)
crushing with water

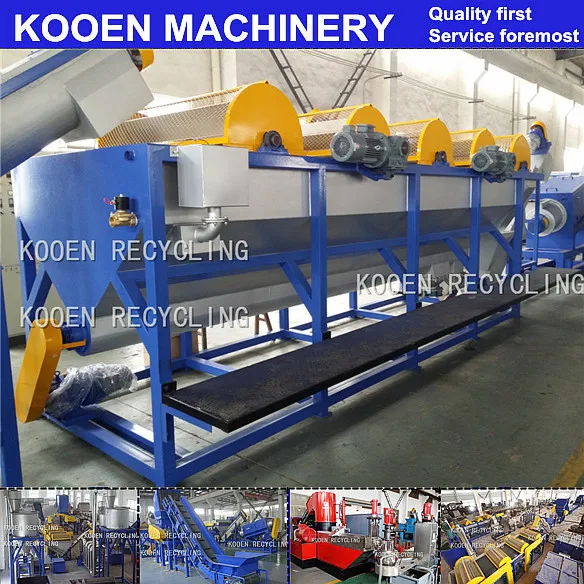

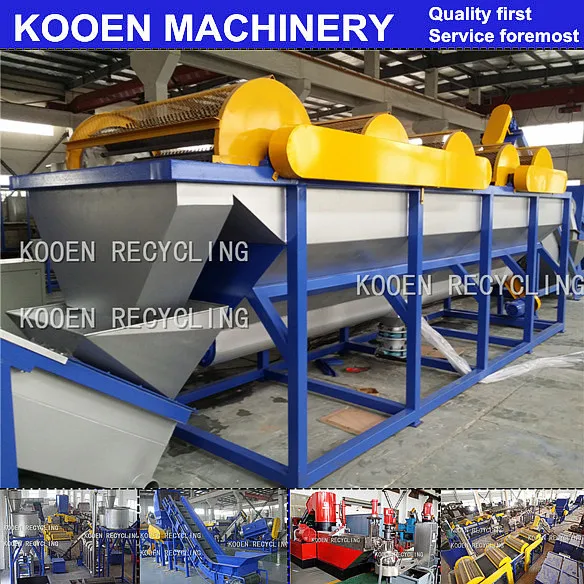

Floating washer
Dimension(L*W): 4500*1500mm
Made of SUS304 stainless steel
Made of SUS304 stainless steel
Hot washing chamber
Diameter of the barrel: 1800/2200mm,
Heating type: Electric heating /Steam heating for option
Heating type: Electric heating /Steam heating for option
High speed friction machine
Motor power: 22/37/45Kw
Rotation speed 1200rpm
Main shaft through dynamic balance treatment.
Rotation speed 1200rpm
Main shaft through dynamic balance treatment.
Floating washer tank (the second one )
imension(L*W): 4500*1500mm
Made of SUS304 stainless steel
Made of SUS304 stainless steel
Floating washer tank (the third one )
Dimension(L*W): 4500*1500mm
Made of SUS304 stainless steel
Made of SUS304 stainless steel

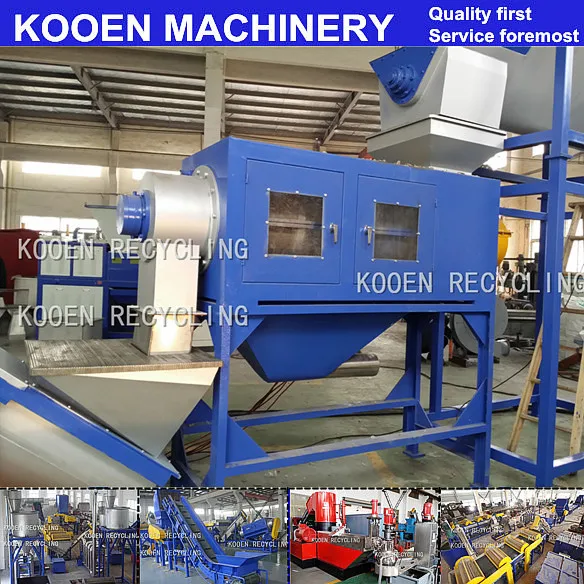

Horizontal dewatering machine
Motor power: 22/37/45kw
Rotation speed reach 1500rpm
Main shaft through dynamic balance treatment Get rid of water
Rotation speed reach 1500rpm
Main shaft through dynamic balance treatment Get rid of water
Drying pipe system
Heating power: 36kw
Made of stainless steel
Made of stainless steel
Zig zag air classify system
Remove the labels and small dirty at last step
Storage hopper
Volume: 3m3, made of stainless steel
Control cabinet
France Schneider contactor/ Japan Omron temperature controller/ ABB invertor
Final Products (PET Flakes) Quality Reference: | ||||||
NO. | DESCRIPTION | AA level (ppm) | A level (ppm) | |||
1 | PVC content | ≤25 | ≤100 | |||
2 | PE/PP color flake/metal and other impurity content | ≤75 | ≤100 | |||
3 | Total impurity | ≤100 | ≤150 | |||
1. Final products has good quality. When process PET bottles, final products humidity below 1%.
2. The machine with high efficiency, working stable, large capacity etc.
3. Parts which contact material use SUS304, thickness more than 3mm, ensure long service life time.
4. World famous brand components applied on the production line
5. The whole production line with CE certification, ISO9001 certification .

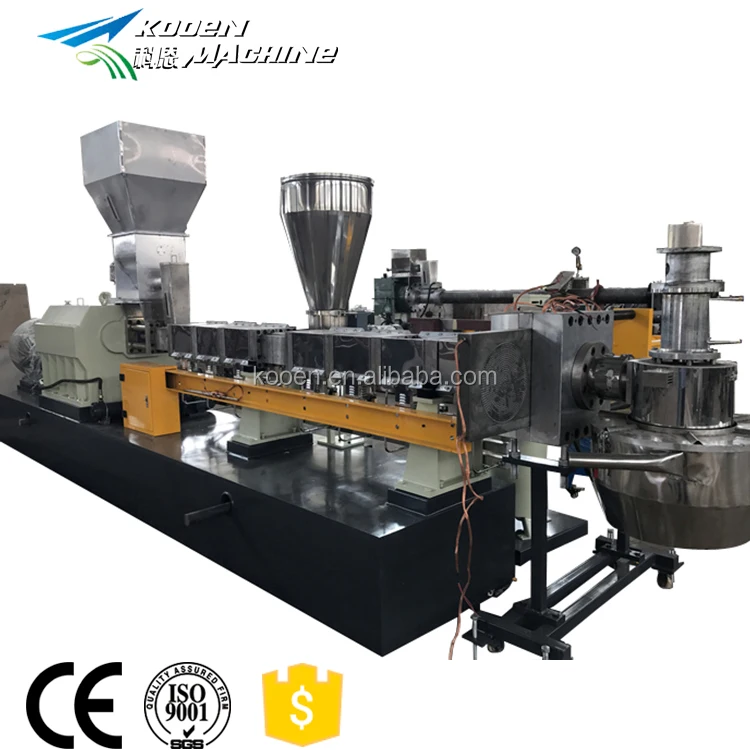

TSSK series Parallel twin screw PET pelletizing machine
Model | TSSK-50 | TSSK-65 | TSSK-75 | TSSK-92 |
Screw Dia. | 50.5 | 62.4 | 71.2 | 91 |
L/D | 32-48 | 32-48 | 32-48 | 32-48 |
Output (kg/hr) | 80 | 150 | 300 | 500 |
Description:
1.This line use TSSK series parallel twin screw extruder ,suitble for producing PET granules from clean PETflakes .It is composed by SHJ parallel twin screw extruder ,die ,hydraulic screen exchanger ,cooling flume ,air dryer ,cutter,silo ,and could also apply to other material like PP,PE,PA,ABS ect.
2.The screw has vacuum exhaust system to vent the moisture,and the die equipped hydraulic screen exchangerto filter the impurity.
1.This line use TSSK series parallel twin screw extruder ,suitble for producing PET granules from clean PETflakes .It is composed by SHJ parallel twin screw extruder ,die ,hydraulic screen exchanger ,cooling flume ,air dryer ,cutter,silo ,and could also apply to other material like PP,PE,PA,ABS ect.
2.The screw has vacuum exhaust system to vent the moisture,and the die equipped hydraulic screen exchangerto filter the impurity.
PET granule making machine / PET granulating machineis mainly used for the compounding,
filling, reinforcing, pelletizing and modification of PET granules
Main components of TSSK series Granulating line for pet bottle /Pelletizing Machine:
1. Counting feeder
2. TSSK series parallel twin screw extruder
3. Vacuum system
4. Double station hydraulic change net
5. Water cooling tank
6. Wind dryer
7. Cutter
8. Control cabinet
1. Counting feeder
2. TSSK series parallel twin screw extruder
3. Vacuum system
4. Double station hydraulic change net
5. Water cooling tank
6. Wind dryer
7. Cutter
8. Control cabinet
