High Accuracy Video System/Vision Measuring Machine
- Category: >>>
- Supplier: Dongguan Kuaijie Measuring Tool & Instrument Co. Ltd.
Share on (60577549892):
Product Overview
Description
Product Description

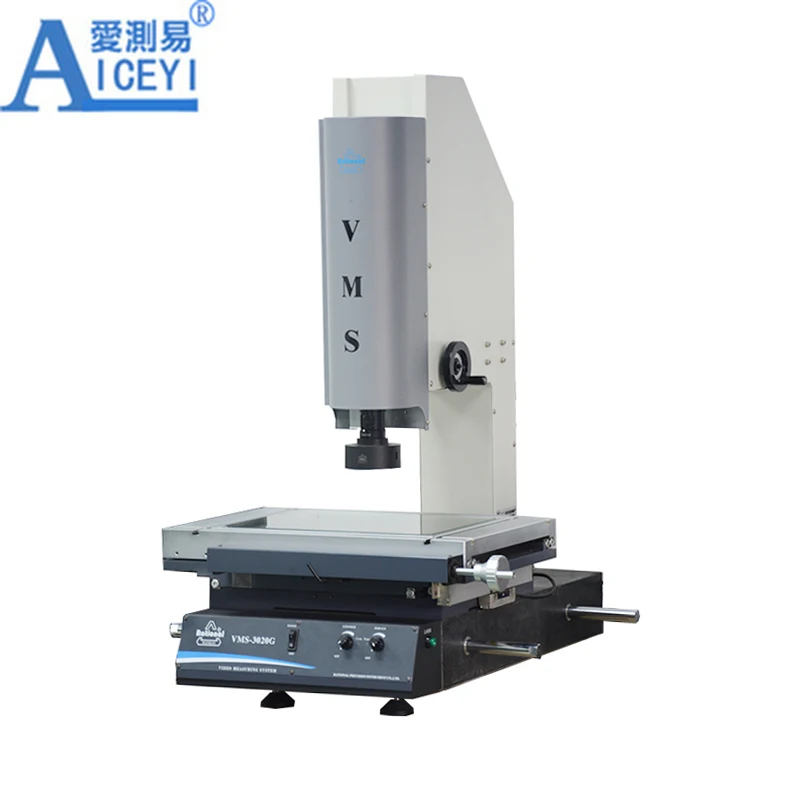

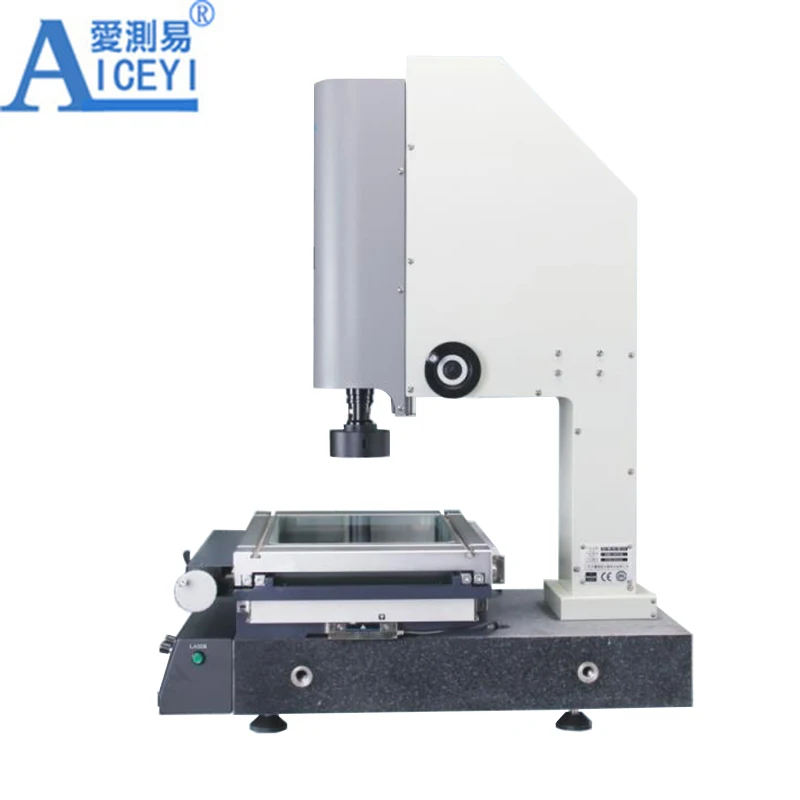

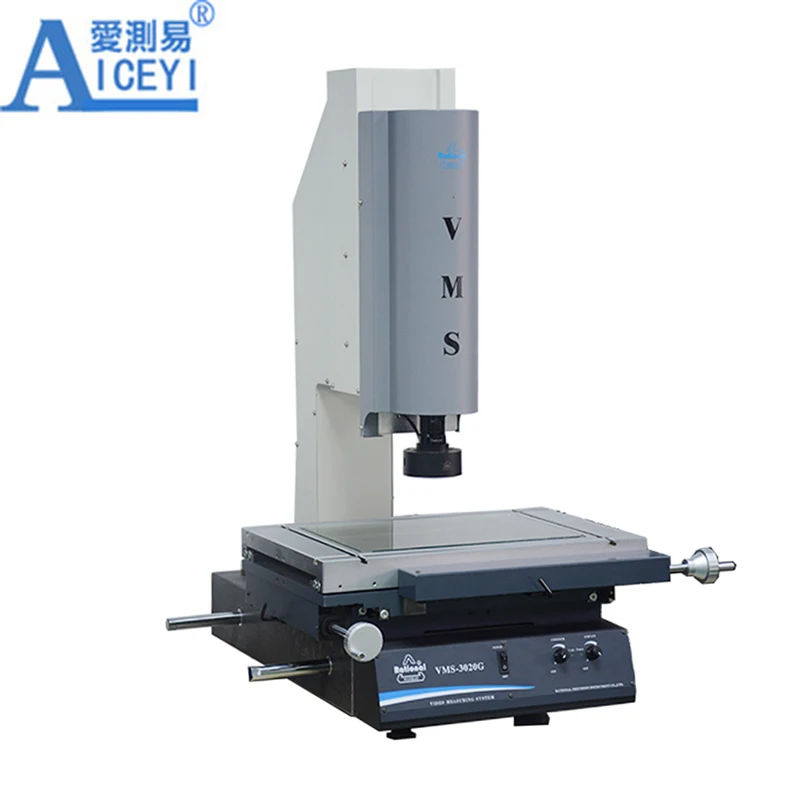

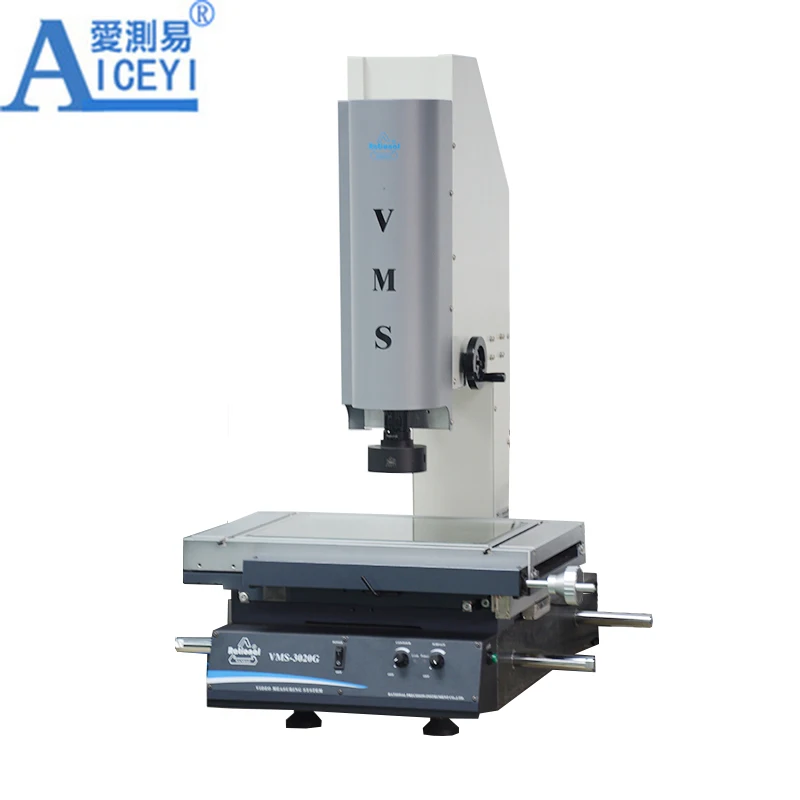

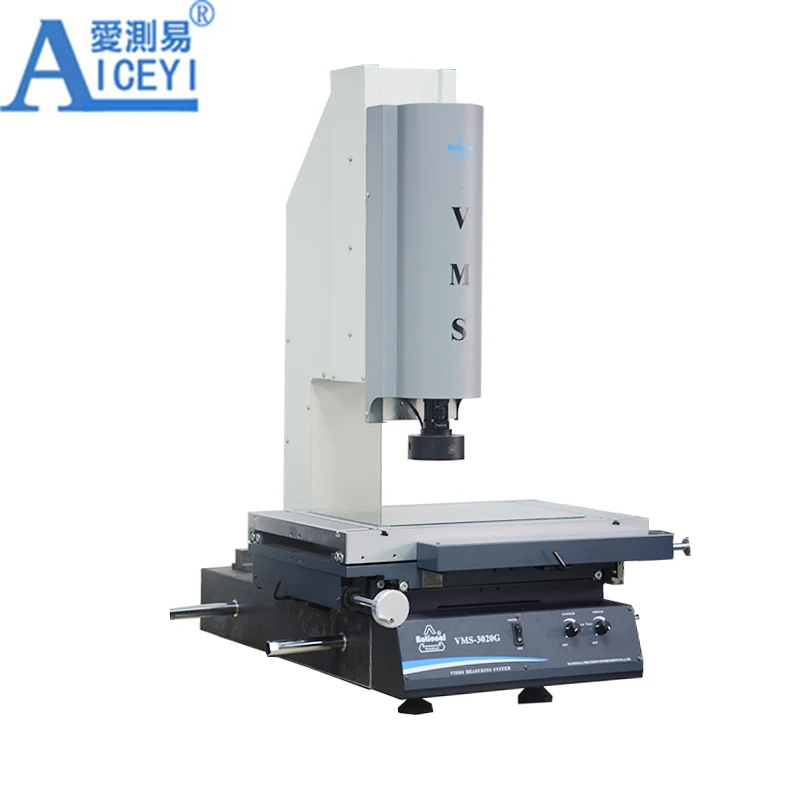

High Accuracy Video System/Vision Measuring Machine
Applied mainly for 2D measurement and can support some specific 3D measurement as necessary, telectronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.
Specifications:
Model | VMS-3020G | |||||
Working table | Metal table size (mm) | 500*330 | ||||
Glass table size (mm) | 350*250 | |||||
Travel (mm) | 300*200 | |||||
Linear scale resolution | 0.5μm | |||||
Indication error | E1XY=(2.5+L/100)μm (L is the length of the measured object. Unit: mm) | |||||
Dimension (mm) | 970X670X940 | |||||
Weight (kg) | 140 | |||||
Z-axis travel (mm) | 200mm (Can be customized to 300mm) | |||||
Accessories | 1X lens tube (Standard) | 0.5X lens tube (Optional) | Working distance (mm) | |||
Zoom lens | 0.7-4.5X | 0.7-4.5X | ||||
Additional lens | Magnification | Field of view (mm) | Magnification | Field of view (mm) | ||
0.5X (Optional) | 13.3X-85.5X | 16.2-2.6 | 6.65X-42.7X | 32.4-5.2 | 175 | |
1X (Standard) | 26.6X-171X | 8.1-1.3 | 13.3X-85.5X | 16.2-2.6 | 92 | |
2X (Optional) | 53.2X-342X | 4-0.7 | 26.6X-171X | 8.1-1.3 | 36 | |
Brand PC (Standard), joystick (Standard) | ||||||
Power supply: AC 100-240V 50/60Hz. Power: 50W (excluding PC) | ||||||
Features
1. Varieties of lighting solutions to meet various or specific requirements of customers.
2. Effectively support data processing, data display, data input, and data output
3. Linear scales supports the resolution of 0.5um
4. Detects the measured workpiece’s specific location by laser indicator, which is convenient to position and operate.
5. Foot-switch is matched with measuring software, which makes operation easier.
