WTL Quartz Piezoelectric Crystals 3225 SMD Oscillator 26MHz Crystal Quartz
- Category: >>>
- Supplier: WTL International Limited
Share on (60577580955):
Product Overview
Description
Quartz Piezoelectric Crystals 3225 SMD Oscillator 26MHz Crystal Quartz
WTL----Win-win To Long
WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.
Website: www.wtlcrystals.com
SEAM SEALED CERAMIC 3.2 X 2.5mm SMD
ELECTRICAL SPECIFICATIONS
Product Attributes | |
P/N | WTL1.00171ZX |
| Series | TX3 |
| Size / Dimension | 3.2x2.5 mm |
Frequency | 26.000MHz |
Load Capacitance(CL) | 10pF |
Frequency Tolerance (at 25°C) | ± 10ppm |
Frequency Stability Over Operating | ± 10ppm |
Operating Temperature Range | -20°C--+70°C |
Operating Mode | Fundamental |
Package / Case | 4-SMD, No Lead |

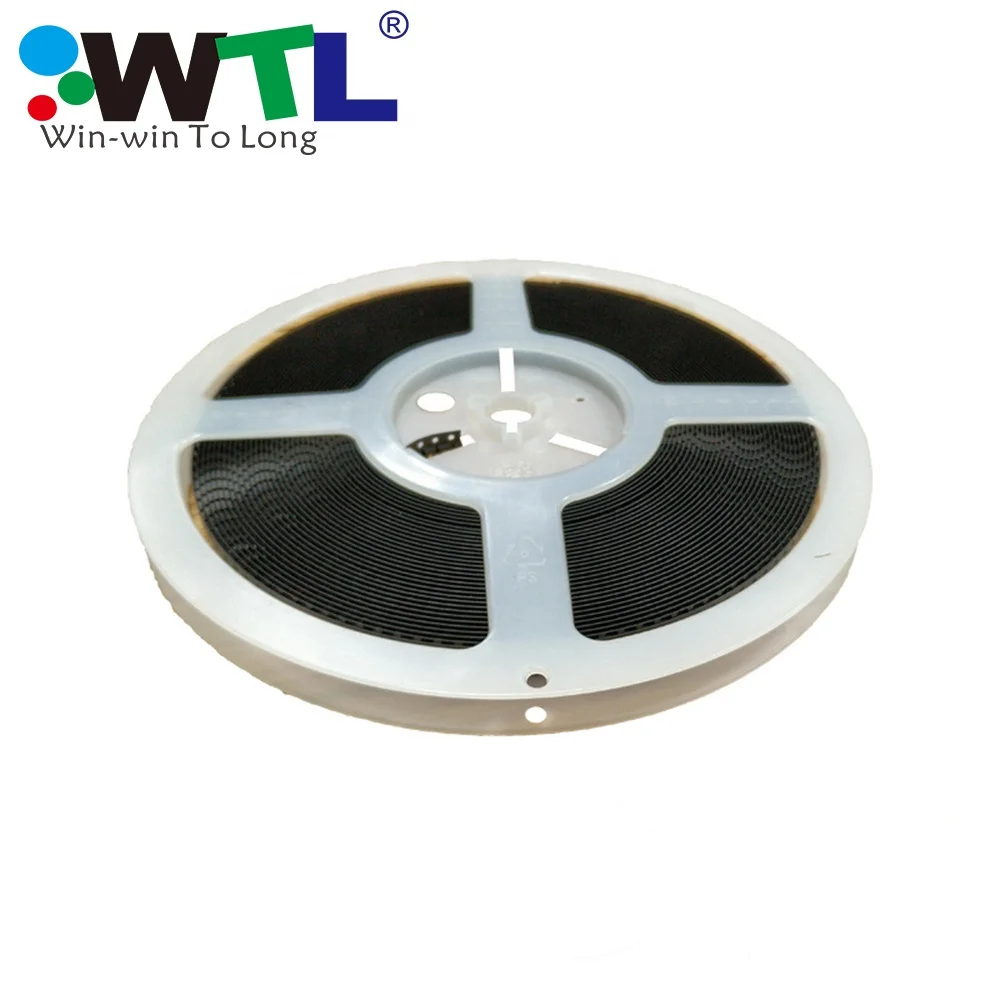

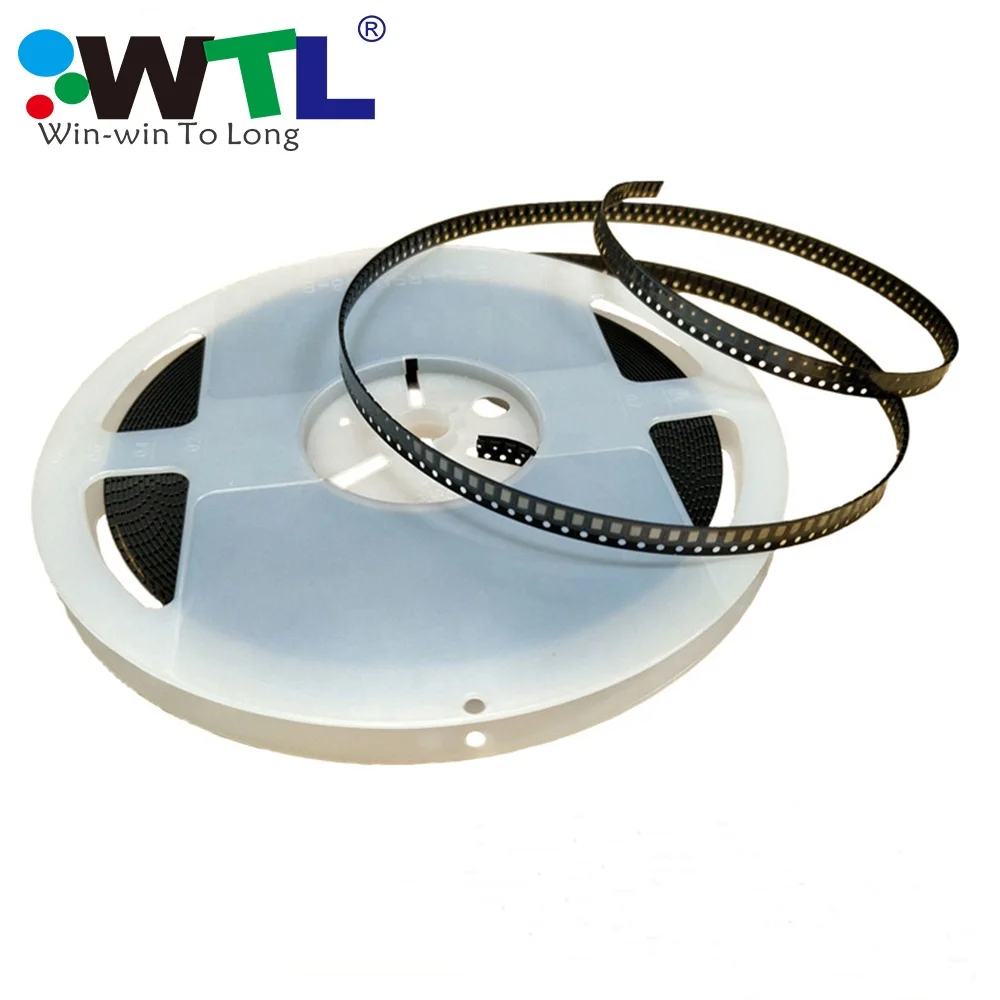

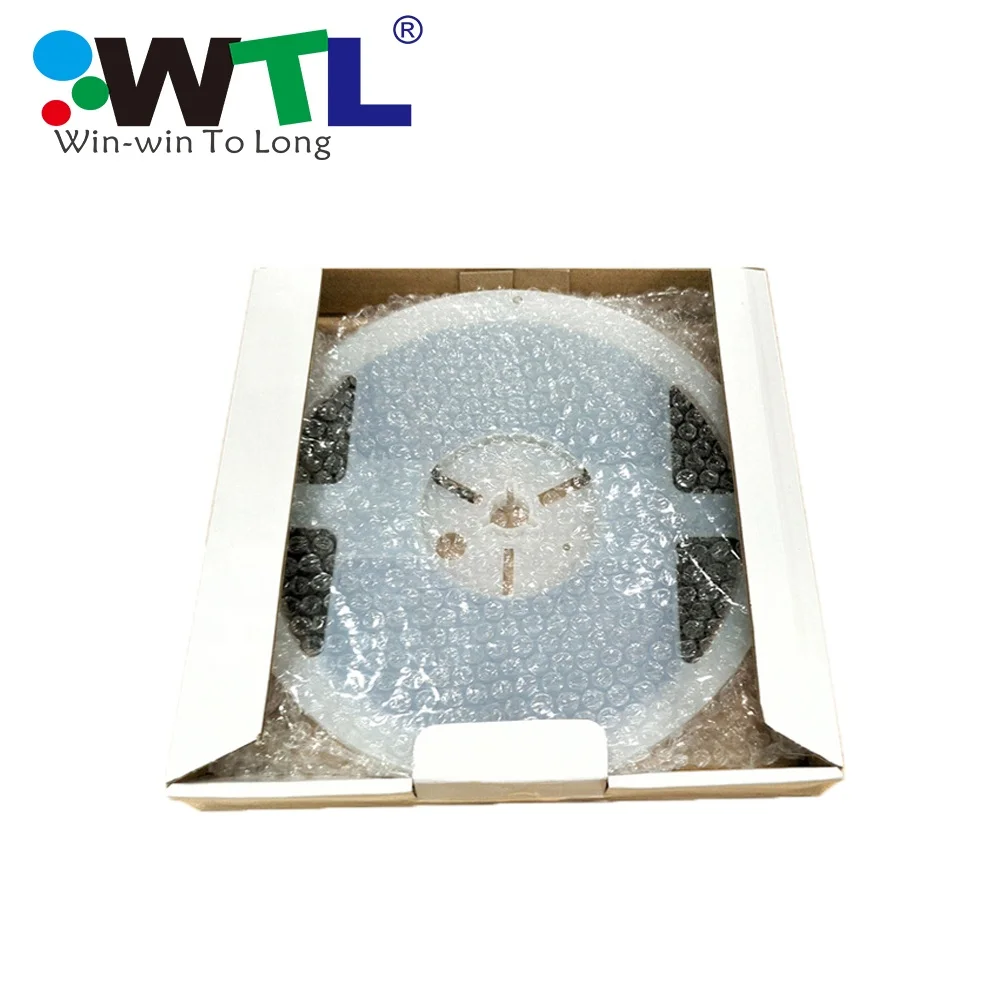

Packaging | Tape & Reel (TR) |
Storage Temperature Range | -55 °C to + 125 °C |
Shunt Capacitance (C0) | 5.0 pF Max |
Driver Level | 10µW |

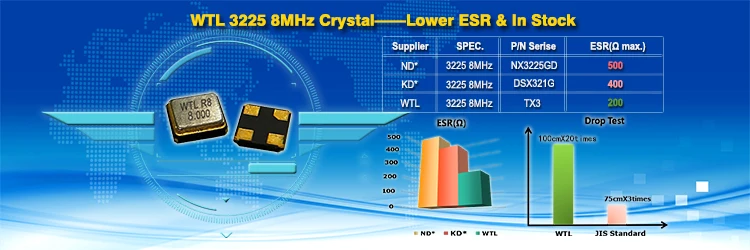

Equivalent Series Resistance ESR | 60Ω Max |
Aging @25°C 1st year (Max) | ± 3ppm/year |
Shock Resistance | Drop test of 3 times on 2mm stainless plate from 75cm height |
1.19 Years Experience
2.PCB VS Crystal Matching Test for Free
3.FAE Support
4.Certification: ISO9001, ISO14001, RoHS
5.Provide A Full Set of Reliability Lab
6.Door to Door Service
7.Global 180 Days Return
8.Over 72 Countries and Regions, 27 Distributors
9.Custom-made Frequencies Due to we have our own Wafer Production Line

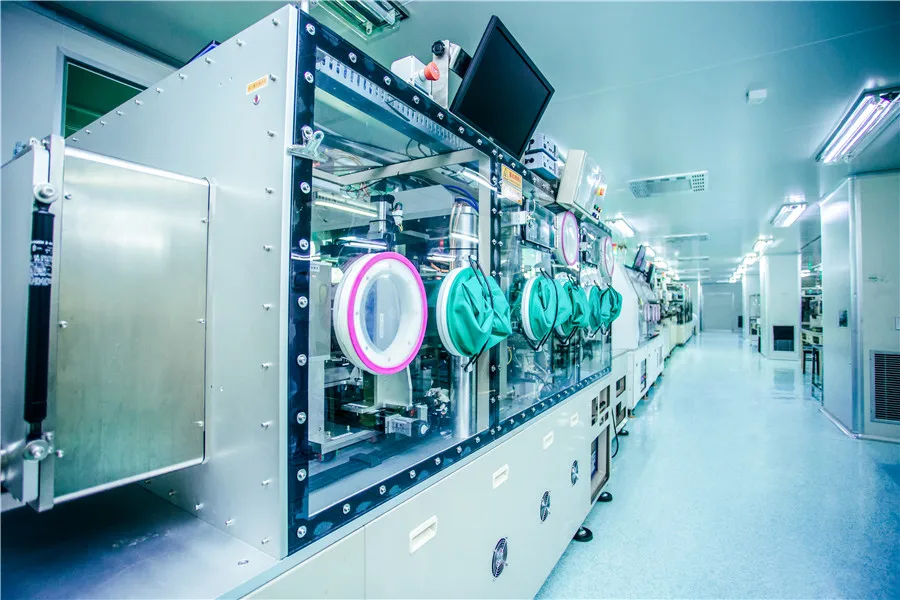

Our factory has a history of 19 years and it is located on Tongling City, Anhui Province, China. It covers an area of 6000 square meters. It has over 200 workers, Include Production, QA, QC, Warehouse, R&D, Technical, IQC. Welcome to Our Factory!
FAQ
1.What is the general lead-time of the products?
| Product | Lead Time |
| HC49 Series | 1-2 weeks |
| SMD Crystal | 1-4 weeks |
| DIP Oscillator | 1-2 weeks |
| SMD Oscillator | 1-3 weeks |
| TCXO | 2-8 weeks |
| Watch Crystal | 1-2 weeks |
2.Since the lead-time is set, what about samples?
Usually the samples are needed the same lead time. By the way, we can offer each customer 10-20PCS samples free of charge.
3.What basic information to provide when ordering a crystal?
Generally we request the customer to provide the center frequency, type of cutting angle(AT/BT), holder or package type, resistance(ESR), frequency tolerance, frequency stability, load capacitance, operating temperature, drive power, aging, etc, Customer can also specify other specific spec or requirement, if any, when placing orders.
4.What is the WTL main material?
| Type | Vendor |
| Crystal Bar | South Urals,Russia- Crystal Factory, TF |
| Base | SMI/NTK/KYOCERA(JP) |
| IC | NPC- Japan |
| Top Cover | Hua Nu Dike/Yoshikawa Corporation (JP) |
| Conductive Glue | Three Bond – (JP) |
5. We need the part urgently, can you deliver it within 1 week? 3 weeks is too long for us.
As you know, according to normal process for this part, it really need such time for production, we have to make sure every part is strictly controlled under the requirements, if we push the workers to make it in a hurry, I cannot promise you the products quality. We have arrange best delivery time for you, pls be patient with the process.
