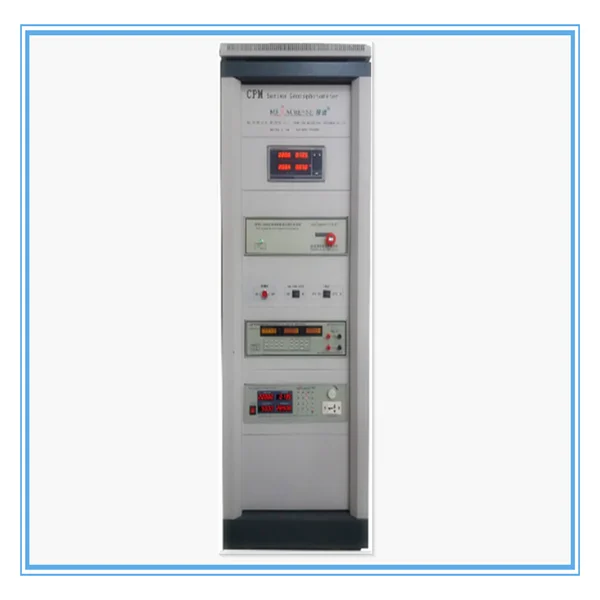

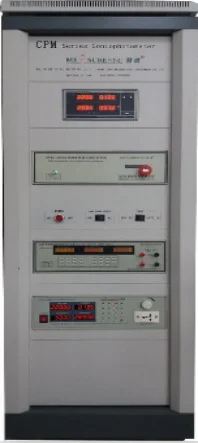

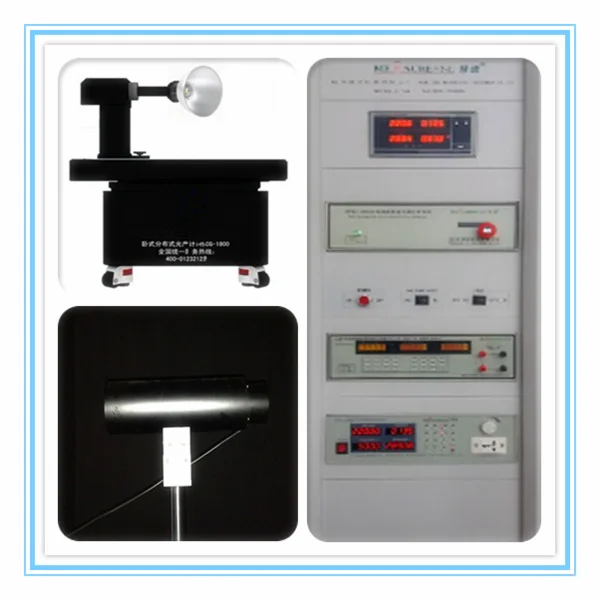

CPM1800 can be applied to measure optical parameters for various kinds of LED street lights,luminaries indoor or outdoor.In detail,it can measure spatial intensity distribution curve, cross section spatial intensity distribution curve, isolux distribution curve, luminance limitation curve,area luminous flux,luminaries efficiency, glare class, total luminous flux,effective luminous flux,utilization factor,etc. Test data format meets international standard, can be output in IESNAL format and directly used in international illuminant design software.
1)Characteristic
Meet CIE , IESNA standard international test requirements

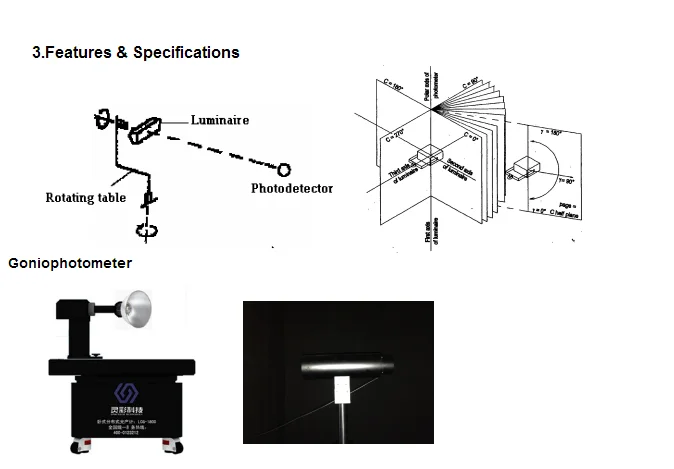

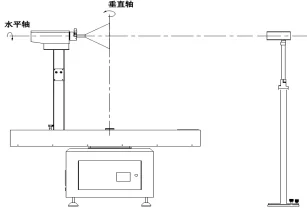

By rotating luminaries to fulfill measurement method such as C-γ
Precise transmission and running smoothly

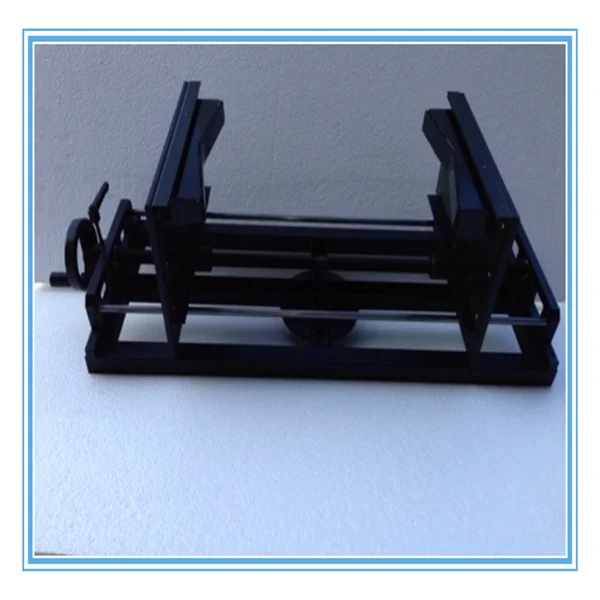

With professional test jigs for grille light,spot light and street light (Optional)
With accurate, constant temperature and high sensitivity photometer detector, standard fine V(λ)correction
With RS-232 standard interface and English/Chinese Windows operation system
2)Holders for Tested Luminaires:
All Kinds of Lamp Holder (E40 Lamp Base)
Luminaire Holder for Tube lighting : 1400 ~ 400mm
Luminaire Holder for Flood Lighting: 400 (H) X 400 (W) X 400 (D)mm, 10kg;
Luminaire Holder for Road Lighting: 1360 (H) X 700 (W) X 400 (D) mm, 20kg
