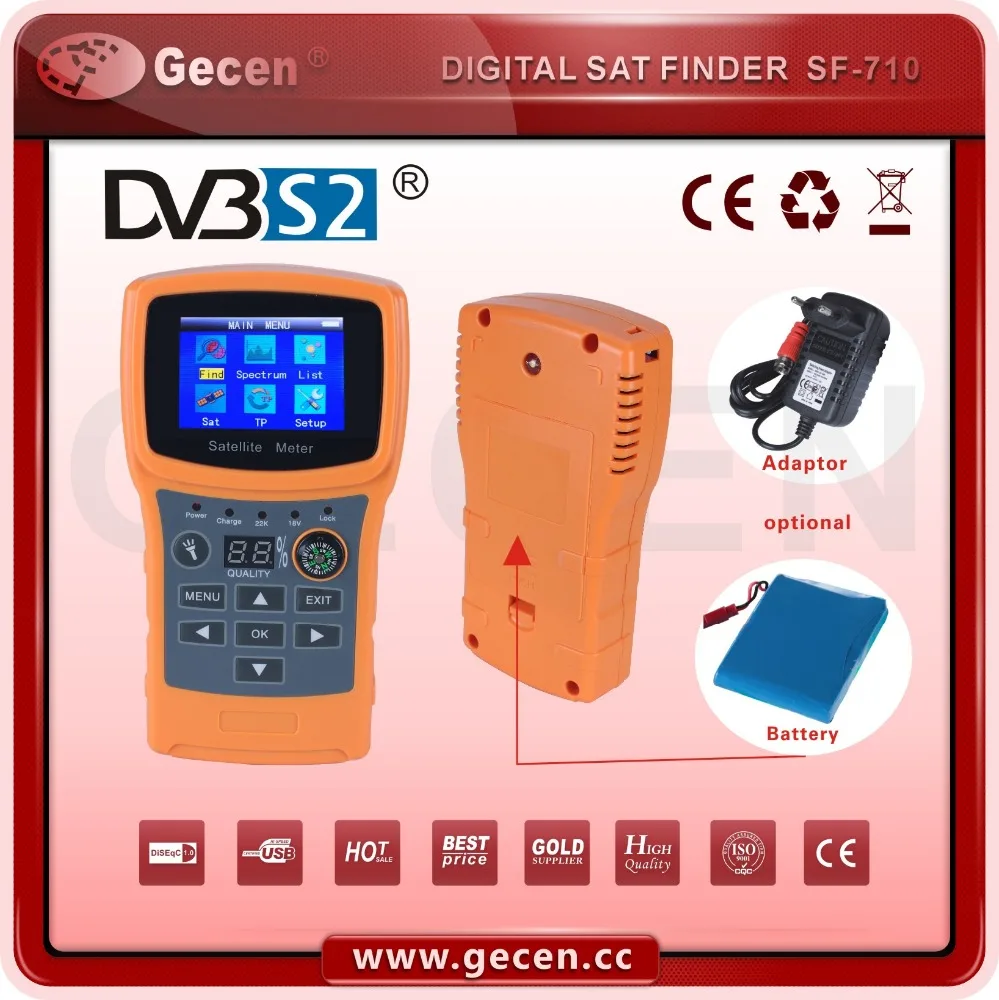

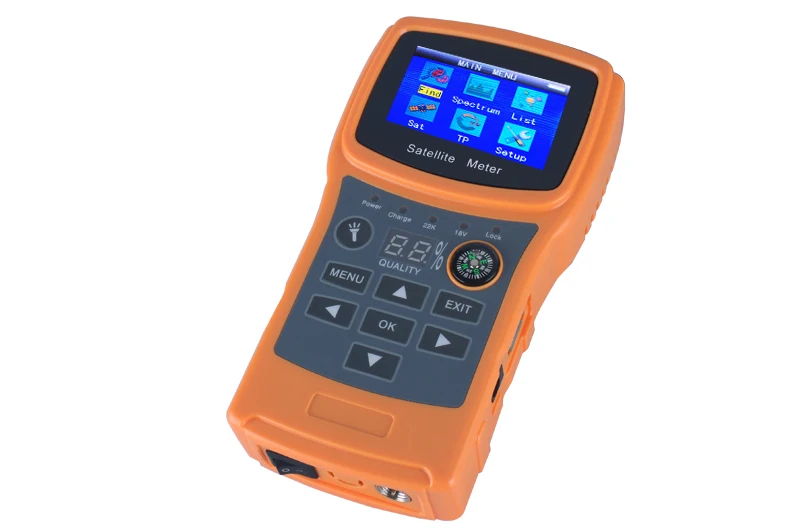

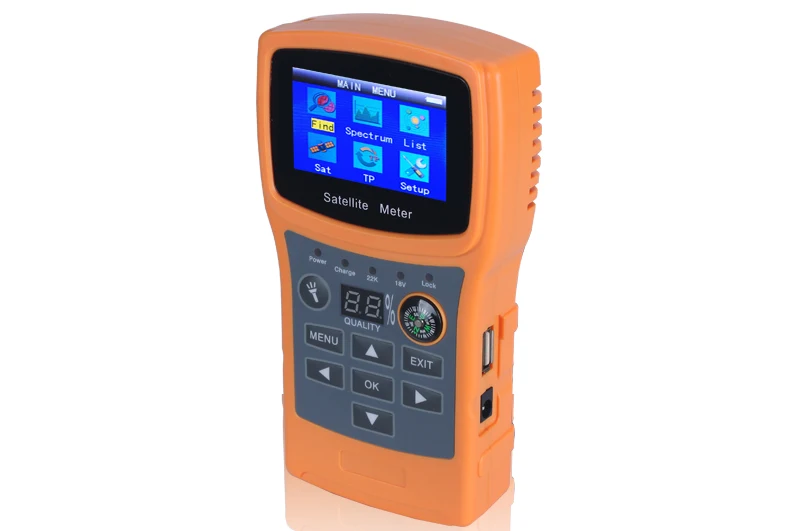

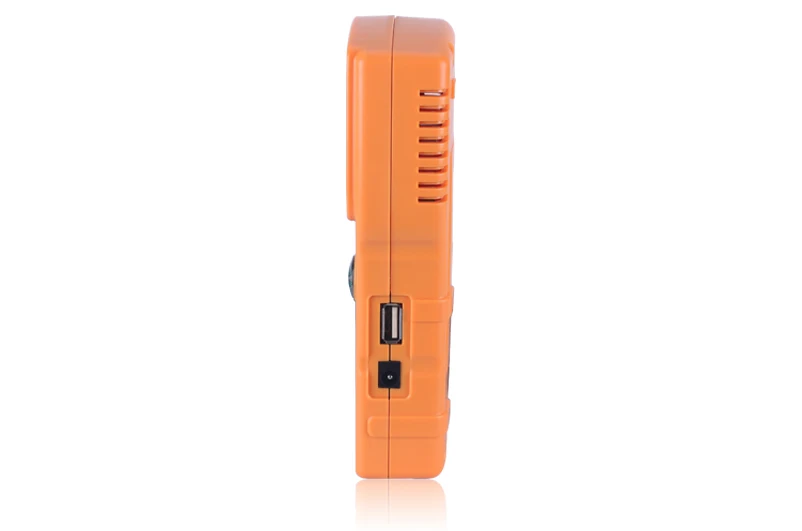

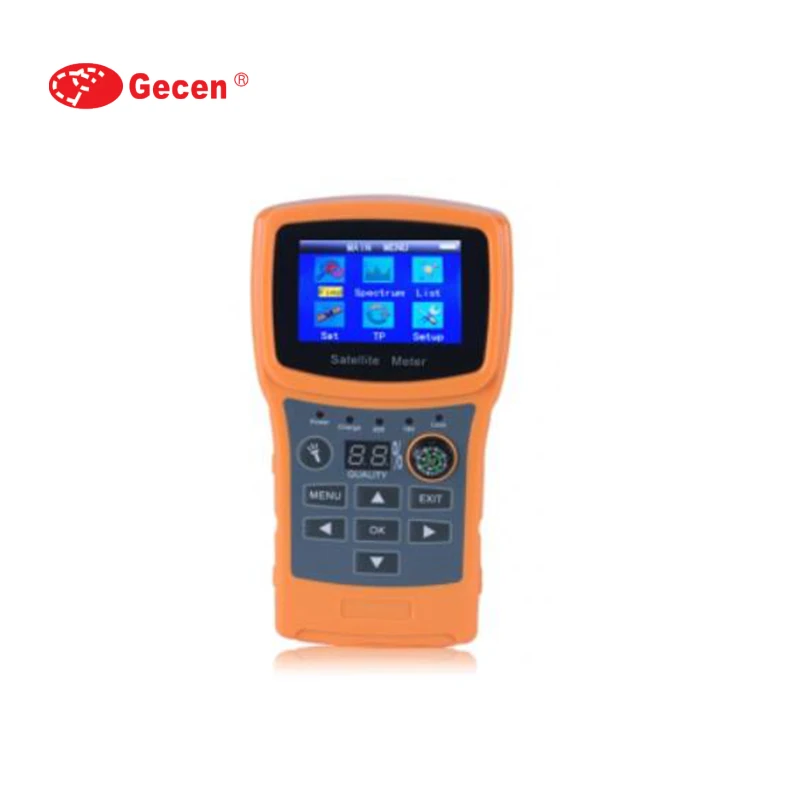

SF 710 hot selling DVB S2 digital satellite finder
- Category: Satellite TV Receiver >>>
- Supplier: Zhuhai Gecen Technology Co. Ltd.
Share on (60577628470):
Product Overview
Description
Product Description
Features:
※ Support DVB-S, DVB-S2
※ Support Spectrum Function
※ Support 0/22KHz., DISEqC1.0 , UASLS
※ Support Unicable LNB
※ Build in highlight LED light
※ Show the Signal Quality on Nixie Tube
※ Build in buzzer
※ Support to check the power cable automatically
※ Support to reset to defaults
※ LCD Screen shows signal strength quality, Power, MER,
TP Type, FEC, BER, etc.
※ The unit of Signal power support dbm, dbuv
※ USB 2.0 for software update, backup satellite parameters
※ Support Spectrum Function
※ Support 0/22KHz., DISEqC1.0 , UASLS
※ Support Unicable LNB
※ Build in highlight LED light
※ Show the Signal Quality on Nixie Tube
※ Build in buzzer
※ Support to check the power cable automatically
※ Support to reset to defaults
※ LCD Screen shows signal strength quality, Power, MER,
TP Type, FEC, BER, etc.
※ The unit of Signal power support dbm, dbuv
※ USB 2.0 for software update, backup satellite parameters
Item | Specification | ||
Input signal | Frequency range | 950~2150MHz | |
Signal Level | -65 ~ -25dBm | ||
Impedance | 75Ω | ||
Signal processing | Symbol rate | 1Msps~60Msps | |
Demodulation | DVB-S: QPSK | ||
DVB-S2: 8PSK,16APSK,32APSK | |||
22KHz Tone | Supported | ||
DiSEqC1.0 | Supported | ||
USALS | Supported | ||
Power supply | Switching Power input | AC110~240V 50Hz/60Hz | |
Switching Power output | 12V DC 2000mA | ||
Others | Connector | F type | |
USB port | Supported | ||
Operation temperature | -10℃ ~ +50℃ | ||
