High Speed Automatic Screw Counting Packing Machine For Metal Part Packing For DIY Store Made In China
Working Video Link
Product Description
Main Features
*Computer control and English-Chinese touch screen for easy operation without stopping the unit.
*Intelligent PID temperature controller for easy adjustment and good application to various laminated film and paper.
*Packaging diversification, such as back-seal bag, side gusseted bag, linked bag, hole punched bag etc.
*Full automation from bag making, measuring, filling, sealing, counting and date printing.
*Intelligent PID temperature controller for easy adjustment and good application to various laminated film and paper.
*Packaging diversification, such as back-seal bag, side gusseted bag, linked bag, hole punched bag etc.
*Full automation from bag making, measuring, filling, sealing, counting and date printing.
| ITEM | DS-320LS |
| Filling Range | 1-10 units |
| Packing Speed | 30-80 bags/min |
| Bag Length | 50-180mm |
| Bag Width | 40-110mm |
| Film Width | Max.320mm |
| Film Roll Diameter | Max.300mm |
| Power | 220V, 50/60HZ, 1.2KVA |
| Machine Size | L)1200* W)680* H)1650mm |
| Optional Device | Date Coder / Air-filling Device / Punching Device |
| Machine Packing | Wooden Box |

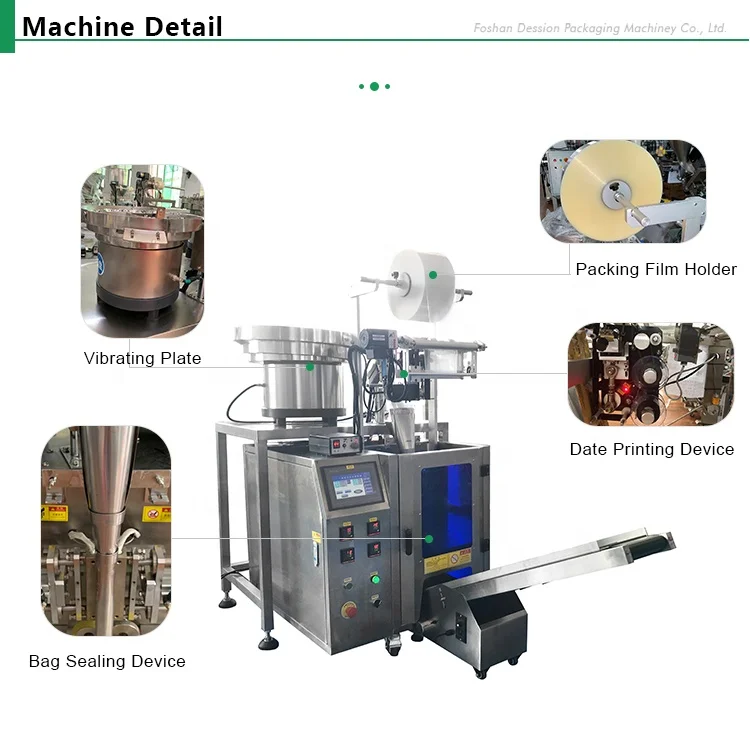

Detailed Images
1.Stainless steel surrounds the part where contact to the material. The machine is accordant with the European CE standard.

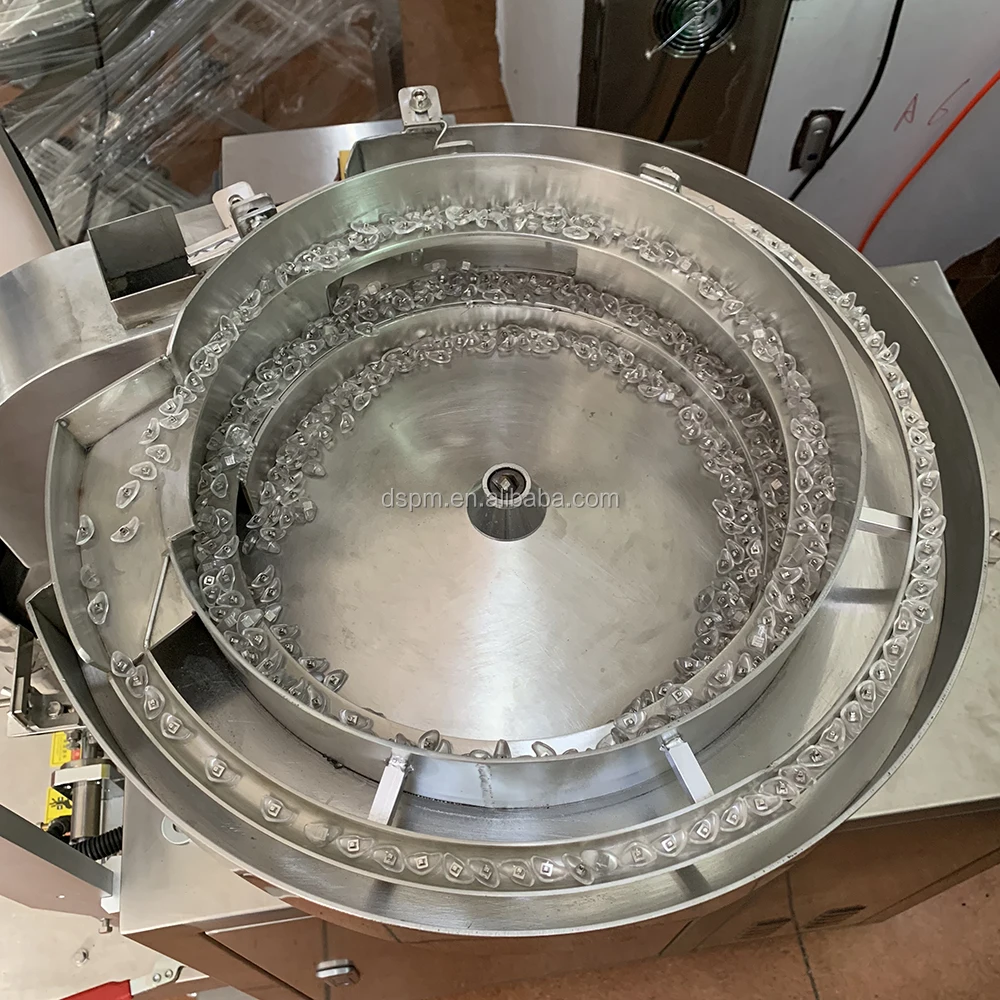

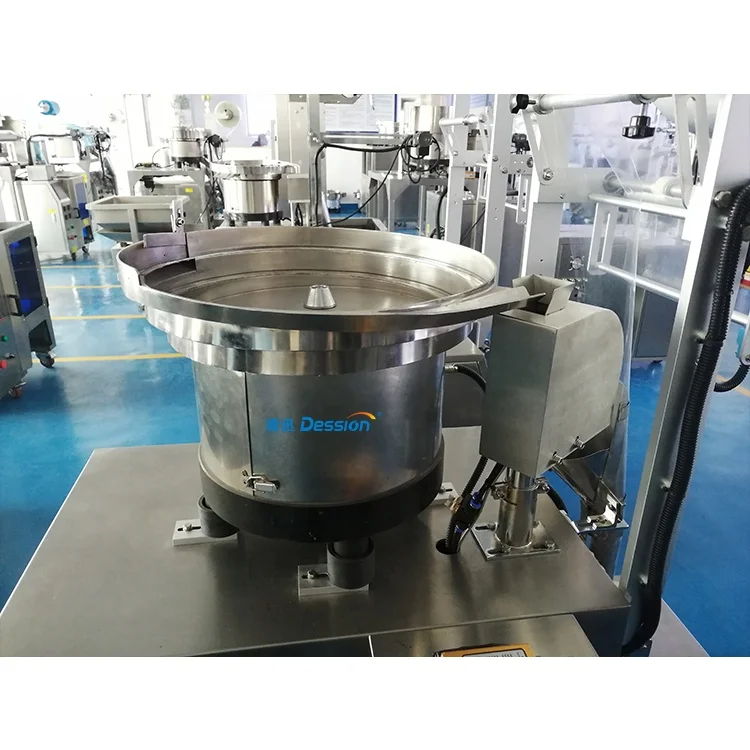

2.Tailor Made vibrating plate and accurate counting system suitable for different nuts, bolts, screw and other items packaging simultaneously.
3.Advanced and accurate bag making system enables the error of bag ≤0.5mm.
4.High-sensitivity photoelectric eye color tracing, digital input of cutting, sealing and position with extra accuracy.
5.Packing speed and bag length can be set through the touching screen without any part change.
6.Advanced PLC control system and automatic alarming function for safer and convenient usage of machines.
7.Automatic output and packing speed setting and displaying function.
8.Counting, bag-making, filling, sealing, cutting, heating, date/lot printing can be achieved automatically.
9.Vibrating plate can be customized according to the requirements of different material. Single or multi plates are available.
Application
- For hardware components e.g. screw, nuts, bolts, etc.
- Various bag types are available, e.g. pouch, back-sealing bag, 3 or 4 sides sealing bag, linking bags,etc.
Packaging & Shipping
Payment: 30% deposit in advance, 70% balance before shipment by T/T.
Delivery time: 20-25 days after receiving 30% deposit.
Optional Devices
1. Punching device
2. Tear notch device
3. Linking bag control device
4. Air filling device
5. Nitrogen inflation device
6. Code printer
7. Material gathering hopper
Company Information
Since 2005, Dession has been the leading manufacturer of packaging machinery, including pillow type packing machine,vertical packaging machine, automatic feeding line, flowing packing machine and other supporting facilities.
During the last 10 years, Dession has more than 30 partners all over the world.
Our packing machines have been shipped to various countries and areas, such
as America, Brazil, Russia, British, Germany, India, Thailand, Malaysia, Vietnam
and so on.
Contact us
For more information, please contact us by email or instant messages. Any email or message will be answered within 12 hrs.
