Fire fighting equipment SCBA, Air respirator

Product Overview

Description

Product Name

Fire fighting equipment SCBA



Model

RHZKF6.8/30





Fire fighting equipment SCBA application

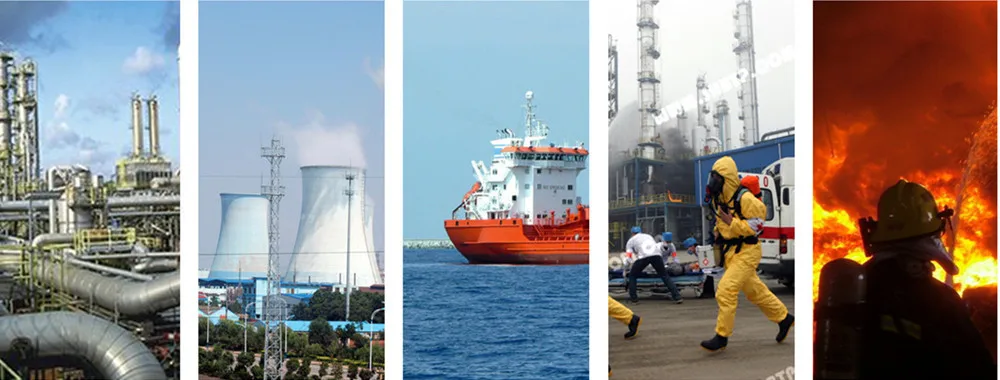

• Self contained breathing apparatus is widely used in fire-fighting, petroleum and petrochemical, metallurgy and chemical industry, mining and other hypoxia containated arears, fire scine, rescue measures and maintanence work.
• Self contained breathing apparatus prevents users from toxia gases, toxia particles and vapor, less than 17% oxygen environment, smoke caused by fire and other harsh work envirment.



Fire fighting equipment SCBA Parameters



Fire fighting equipment SCBA
Brand	FENAN	SCBA Model	RHZKF6.8/30
Cylinder Volume	6.8L	Alarming Pressure	55±5 Bar
Rated Working Pressure	300 Bar	Alarming Volume	≥ 90dB
Inhalation Resistance	≤ 5 Bar	Rated Service Time	About 90mins/man
Exhalation Resistance	≤ 10 Bar	Working Temperature	-30°c~60°c



Fire fighting equipment SCBA Components

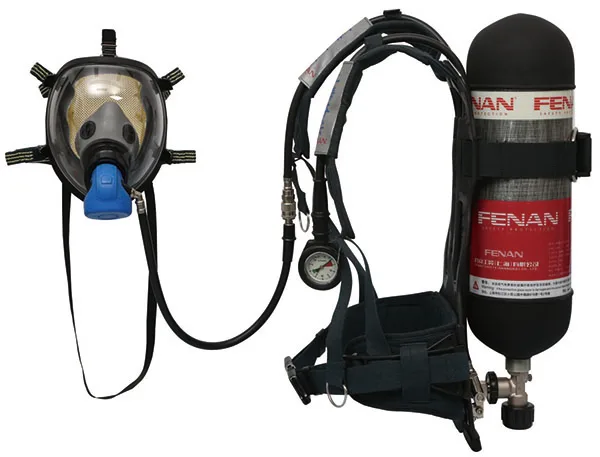

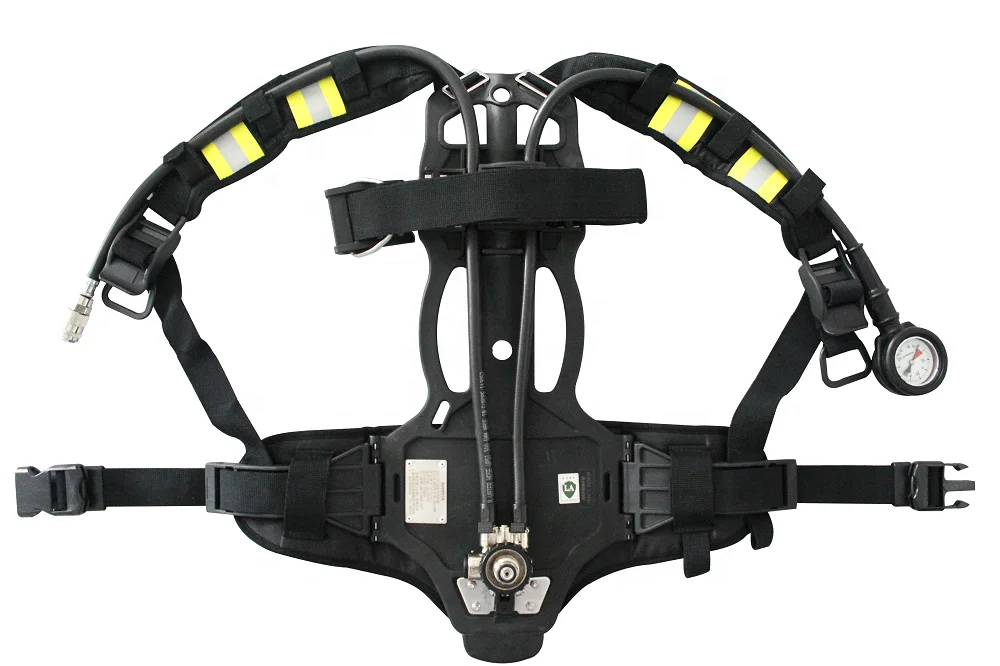

Self contained breathing apparatus is composed of  carbon-fiber cylinder, cylinder valve, reducer, medium-pressure tube, fast joint, demand valve, full face mask, high-pressure tube, alarming device, pressure gauge and back pack.

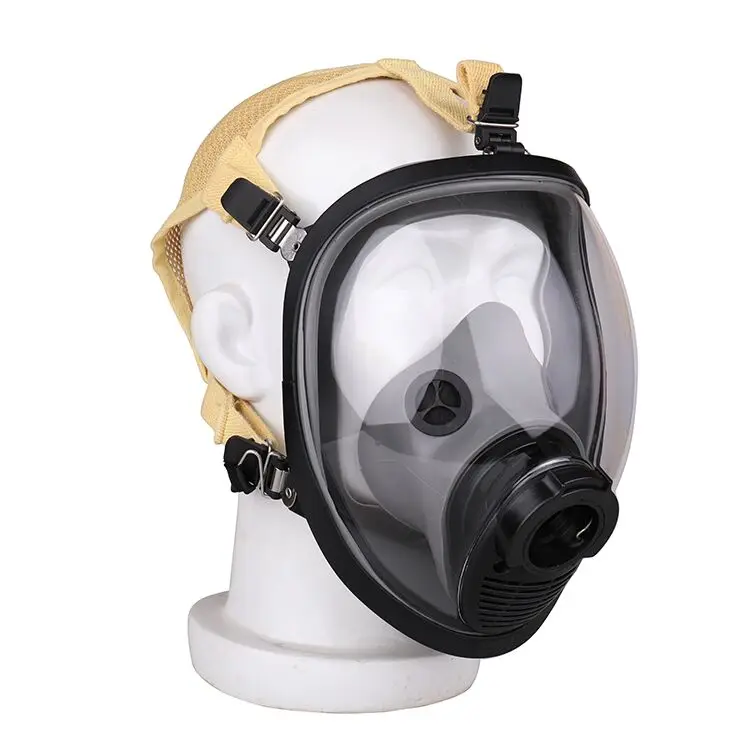

1,Full Face Mask

• Made of silicone
• Permanent double anti-fogging
• Wide field of vision
• Scratch and abrasion resistant lens
• Kevlar head net

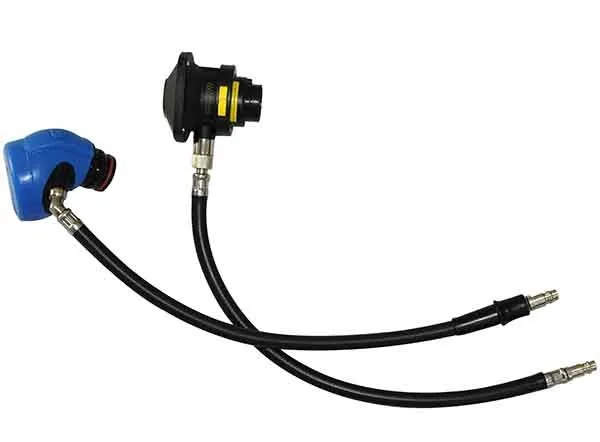

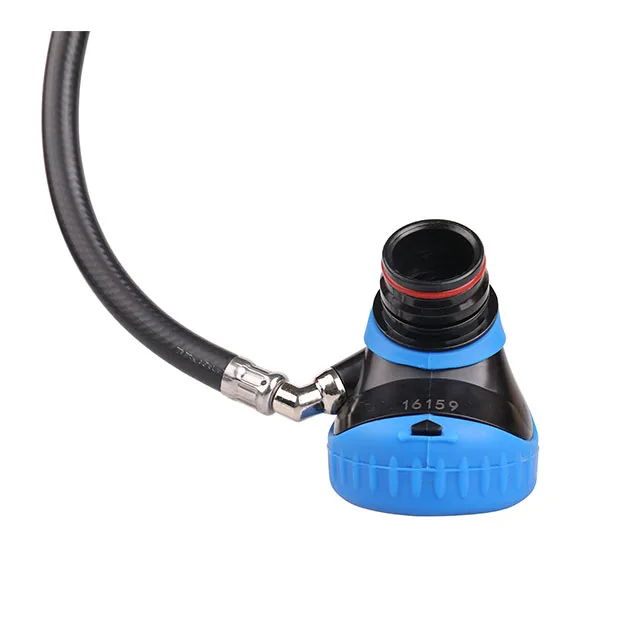

2,Demand Valve

• Maximum supply flow rate is high than 500L/min
• The intake gauze can make breathing safer.

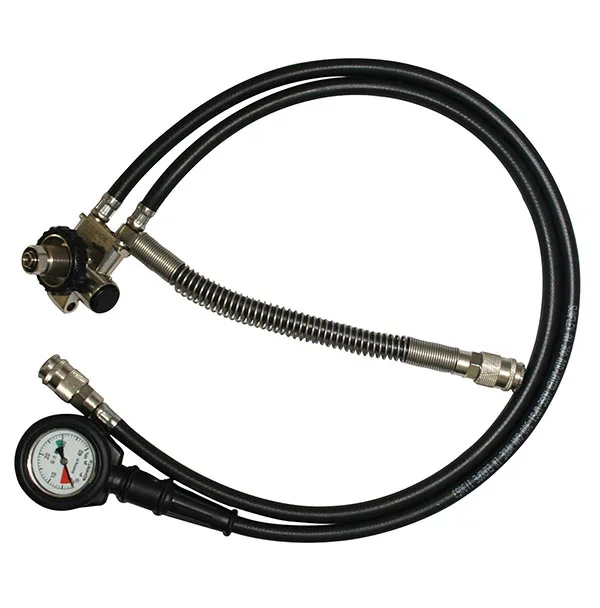

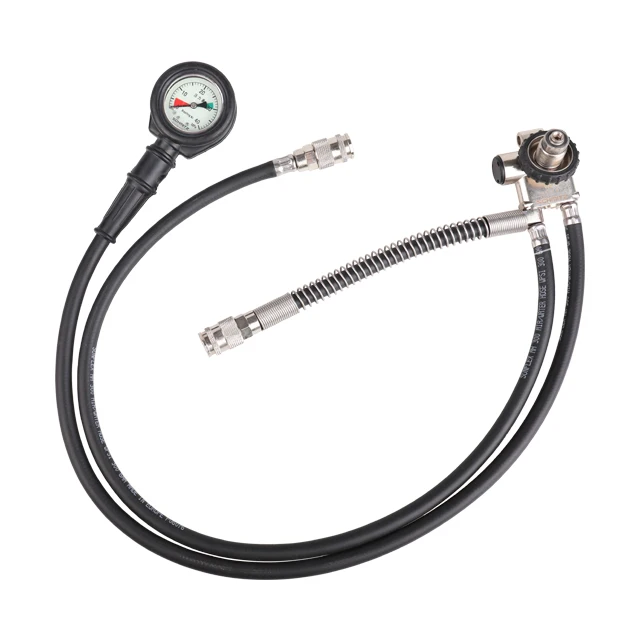

3,Warning whistle and pressure gauge

• The warning whistle is integrated with pressure gauge and located on the chest after donning.
• It will give a continuous 90dB alarm to make sure the user can hear it under noisy environment.
• The pressure gauge is waterproof and shockproof designed, and it can be read in the darkness.

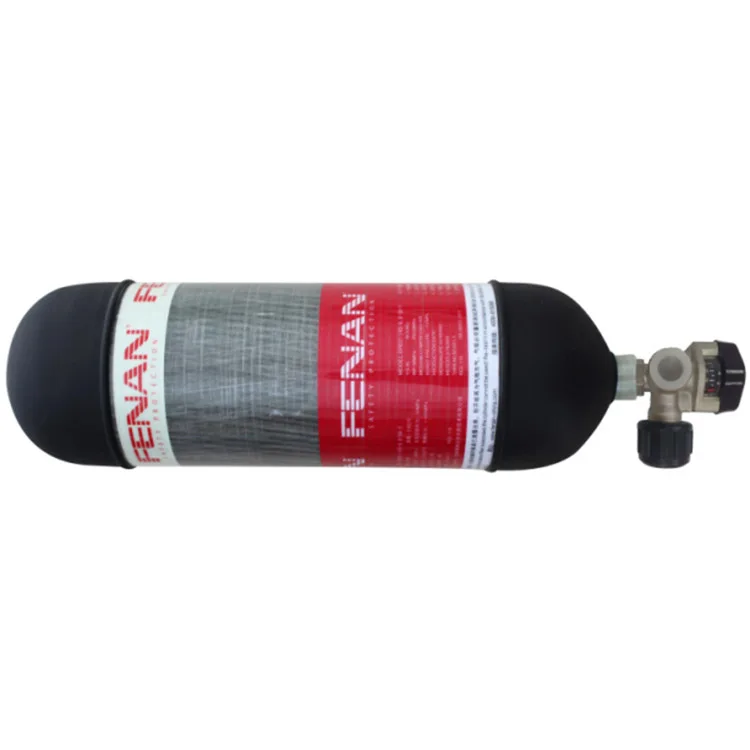

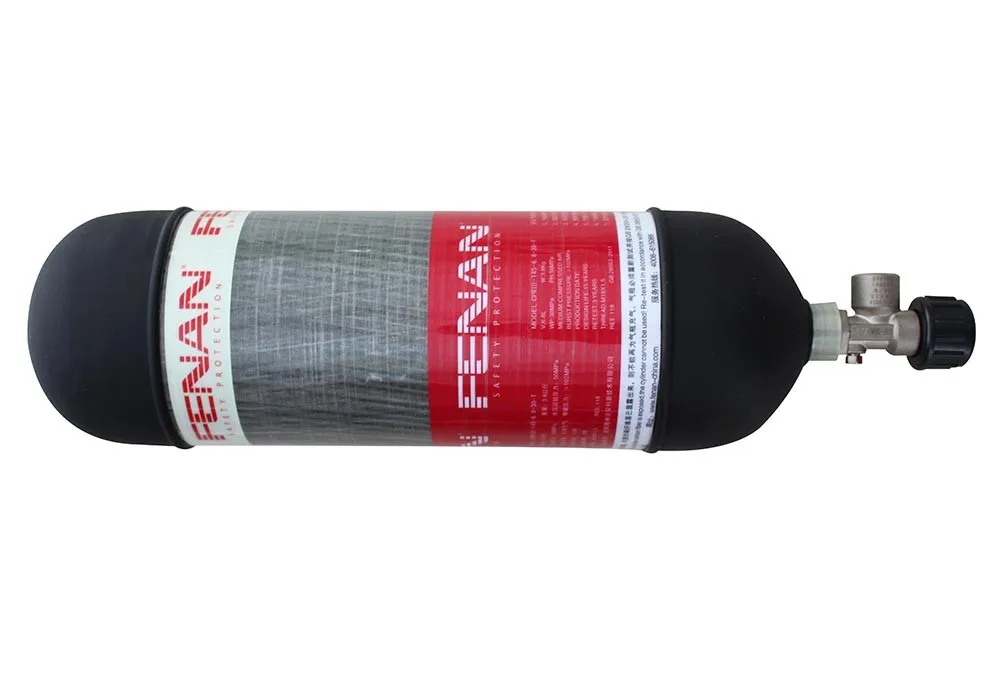

4,Cylinder

• Equipped with self-lock gauge valve,can see the cylinder pressure directly
• Inside with high pressure safety valve
• With cylinder high pressure safety valve
• With cylinder protection pad and fluorescence sticker
• 6.8L,9L,12L carbon fiber cylinder for optional



Product  Photoes

There are many different kinds of Air breathing appratus ( SCBA) waiting for your choose.

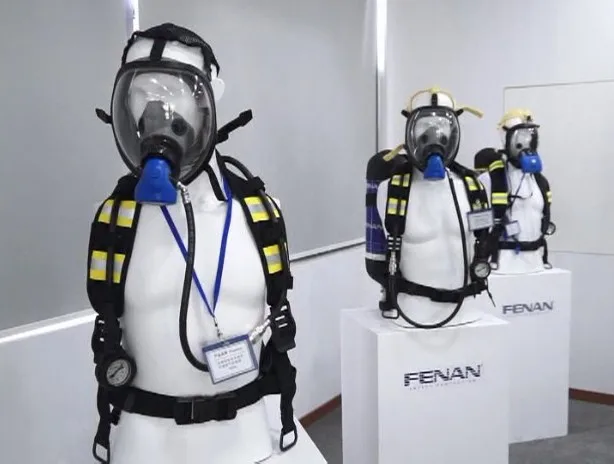

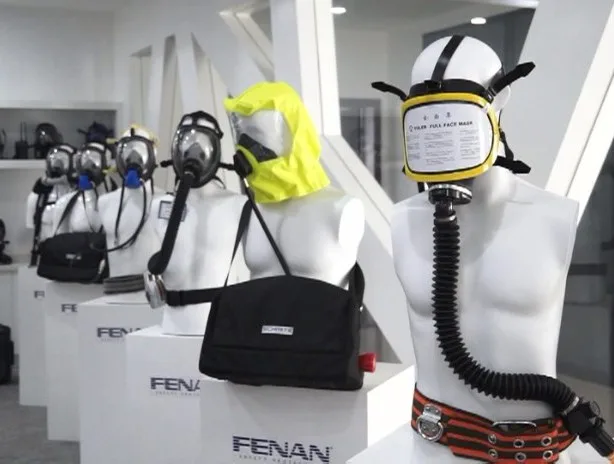

 Below photoes are our  leading products  showing in  the sample Room











Our Team

As an innovative technology company, we have a professional R&D team with a strong sense of responsibility and dedication.  All our engineer  are specialized in safety equipments. This team providing a stable and vigorous development for our company.

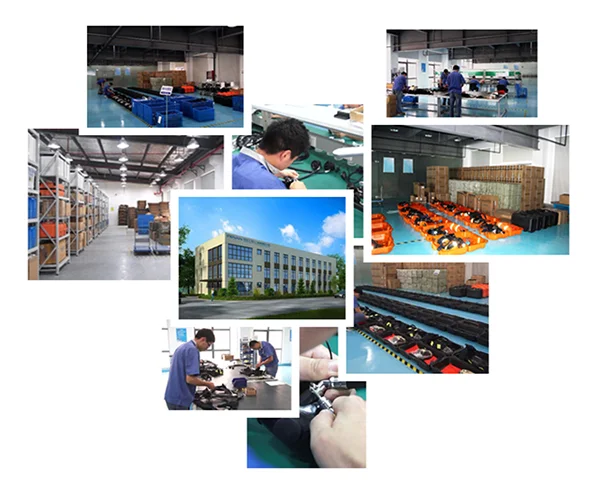

Our workshop

We are real factory, can supply OEM services. Custom-made safety products are available.





Our Products

Our leading products include SCBA, advanced breathing apparatus, oxygen respirator, gas mask, gas mask filter cartridge, fire fighting suit, fire entry suit, fire fighting & industrial equipment.

Our products can be applied in many industries, such as fire, petroleum and petrochemical, mining, military, road construction, metallurgy and chemical industry, etc.



Our Certificate

We have got CE, ISO9001, CCC, LA, CNAS certificated, and also own a number of invention patents and utility model patents.







Our Customers

We have participated in many exhibitions at home and abroad, through which we had established friendly relationship with customers. Welcome to visit our company and factory!





Our Company

Our factory is located in Songjiang intelligent S&T industrial park of Shanghai, China.
30 minutes to Hongqiao Airport,
40 minutes to Pudong International Airport,
60 minutes to Hangzhou City.
