manual Tube Making Machine Line (sunway)

I.Tube body making machine

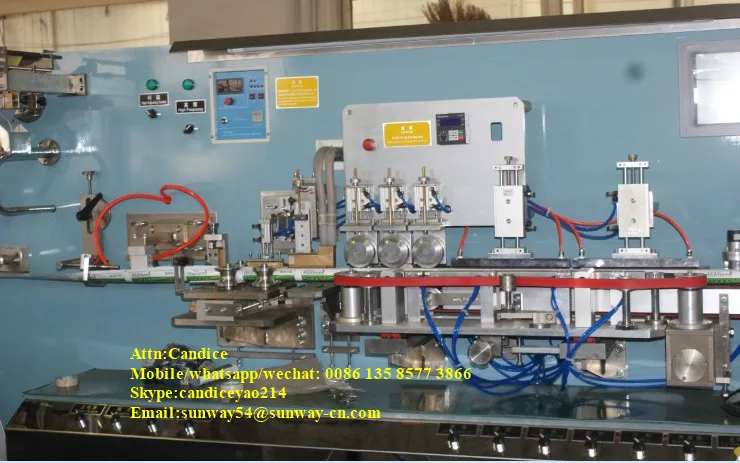

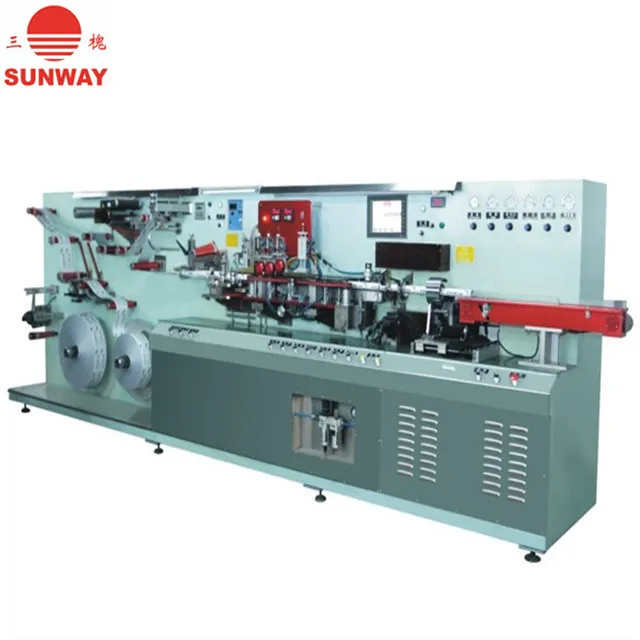

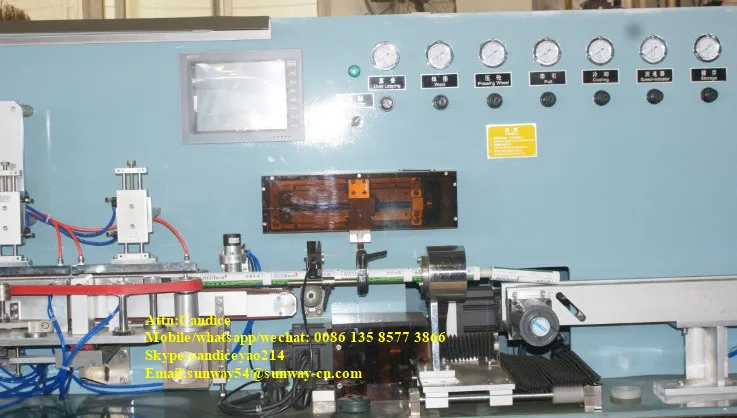

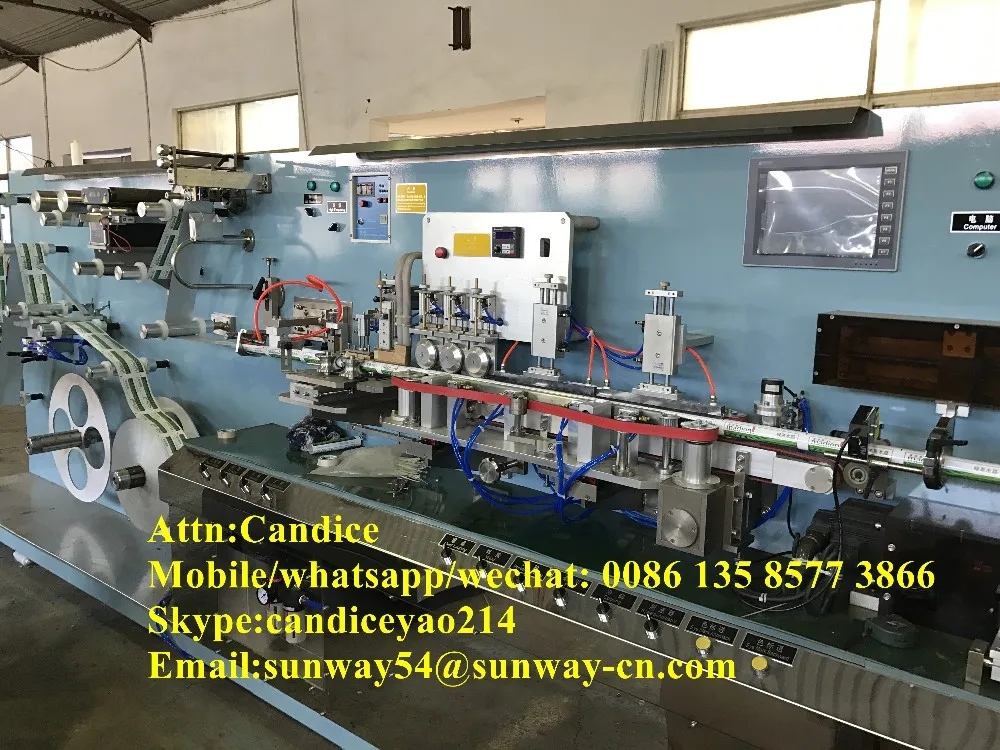

B.GLS-IV Automatic Laminated Tube Making Machine (Suitable for ABL)

Introduction

B·GLS-IV Aluminium-plastic Laminated Tube Machine was made on our first generation tube machine and advanced foreign technologies. It integrates with mechanical, electronic and pneumatic technologies. Compared with the similar one abroad, our machine has the advantages of little investment, high efficiency, low energy consumption, easy operation, stability and convenient maintenance. The machine can produce the aluminium-plastic laminated tubes in various specifications. High frequency welding is applied. The welded seam is firm and smooth.

The machine is composed of an automatic roll-releasing device, connecting platform, an automatic margin-cutting mechanism, an automatic tube forming device, a high frequency welding mechanism, the vertical and horizontal traction devices, an automatic synchronous revolving cutting mechanism and a computer control system.

Main Technical Parameters:

II.shoulder injection machine

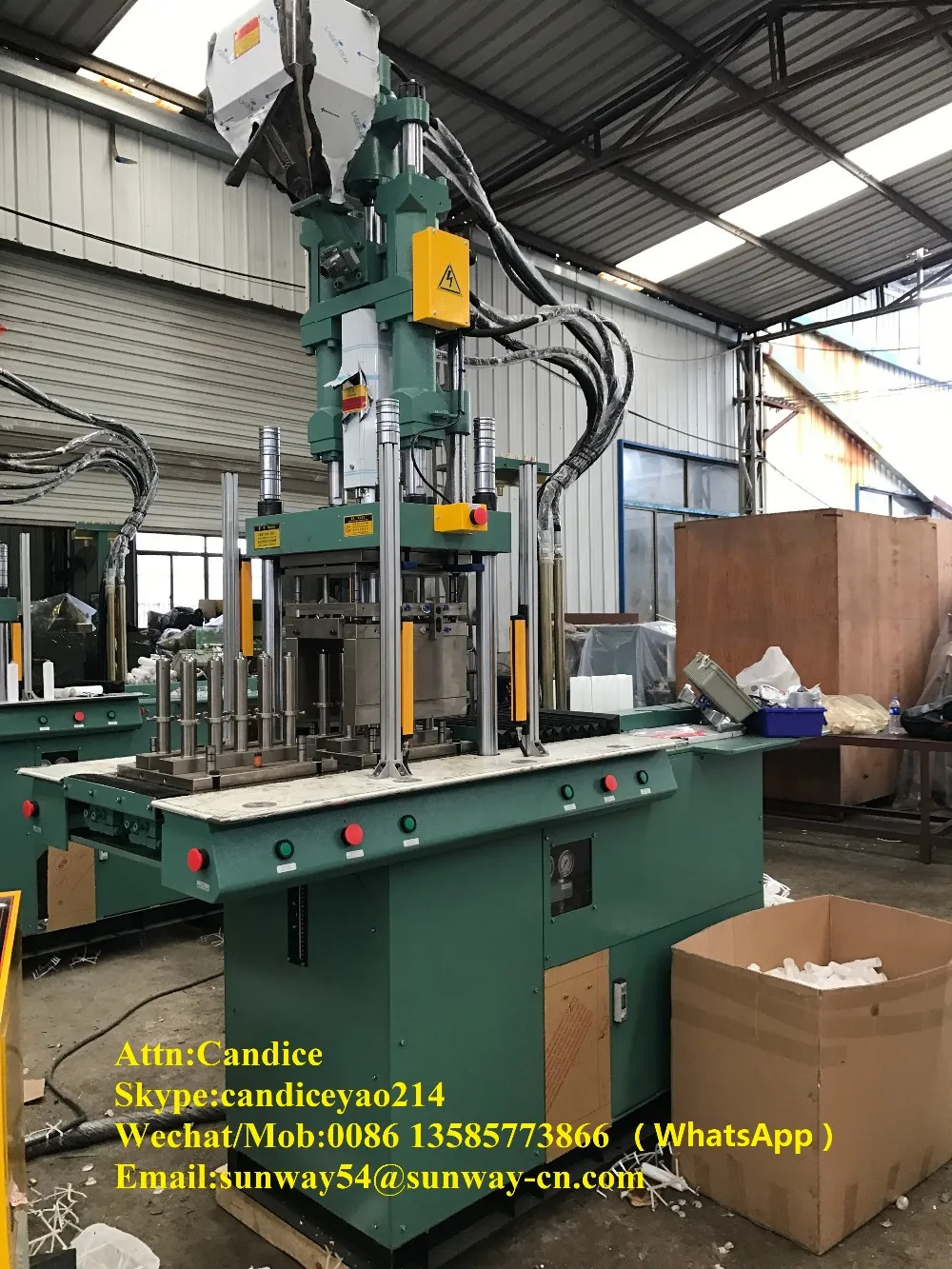

2.1.    B.ZTN-II Shoulder Injection Machine (Semi-automatic)

Mould Size Diameter (mm): 12.7, 16, 19, 22, 25, 28, 30, 32, 35, 38, 50, 60 (Oval& round for choice)

Introduction:

B.ZTN-II Plastic injection & forming machine is developed based on our second generation injection machine and advanced foreign technologies. Its double-mould alternative forming way gives it high work efficiency. When the worker operation the machine, it need two hands press the joint mould at the same time. Avoiding the hands touch the middle of the mould. Secure the safety of the people.

This machine which is safe and reliable has the advantages of pre moulding on screw, material-input in a fixed quantity at a specific position. The chief valves adopt double proportion, stress match with equality, precision in low press ion. The whole process is fluency and excellent. Control temperature and jet press ion in different sectors. Firing rate and step less adjustment. With the function of in or out which it will more convenient of adjust the mould and cleaning the pipe. Large mould-lock power, smooth mould moving, electric and pneumatic interlocking. Small taken installation space, convenient assembling and disassembling of the moulds..

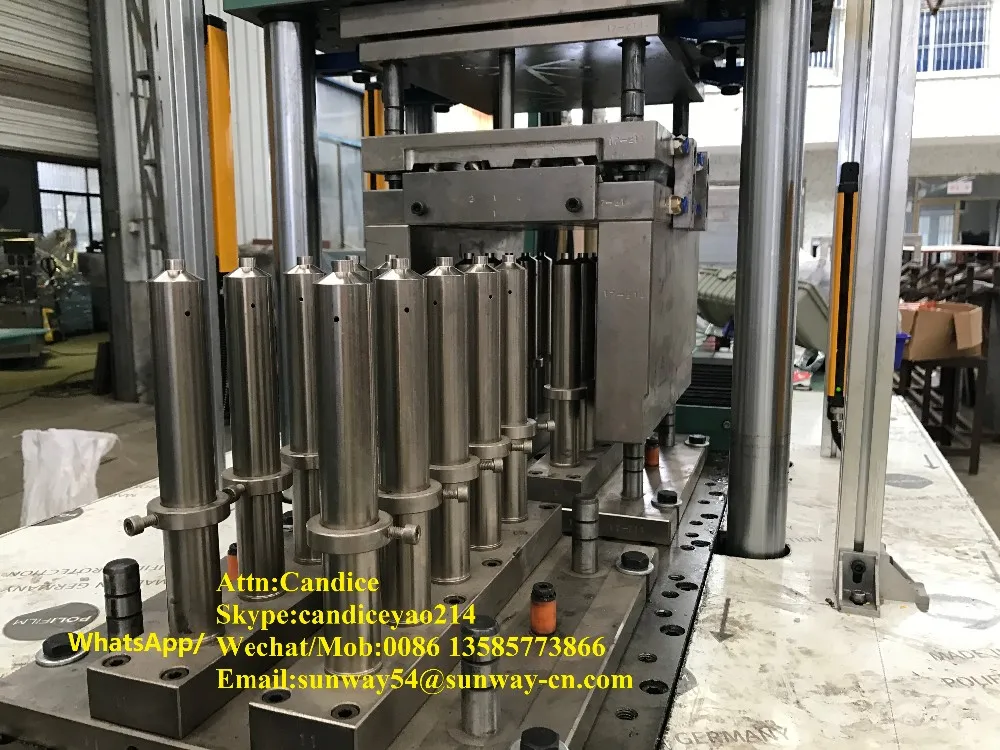

Shoulder-injection mould: the diameter of tube is 12.7mm-60mm.with ellipse and round shape, we can manufacture it according to the customer’s needs and also can make screw shape.

 Main Parameters:

III. Automatic Capping Machine

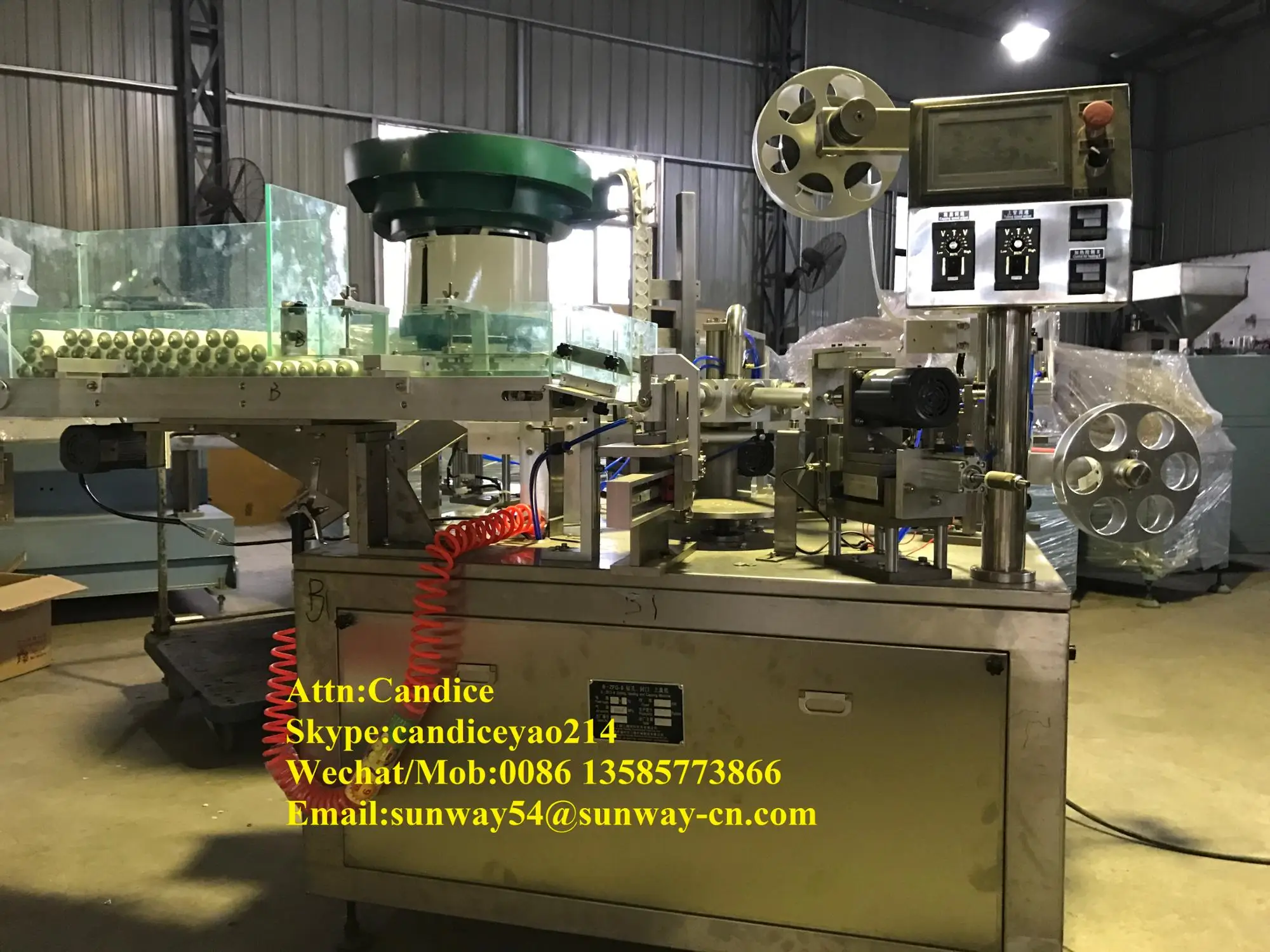

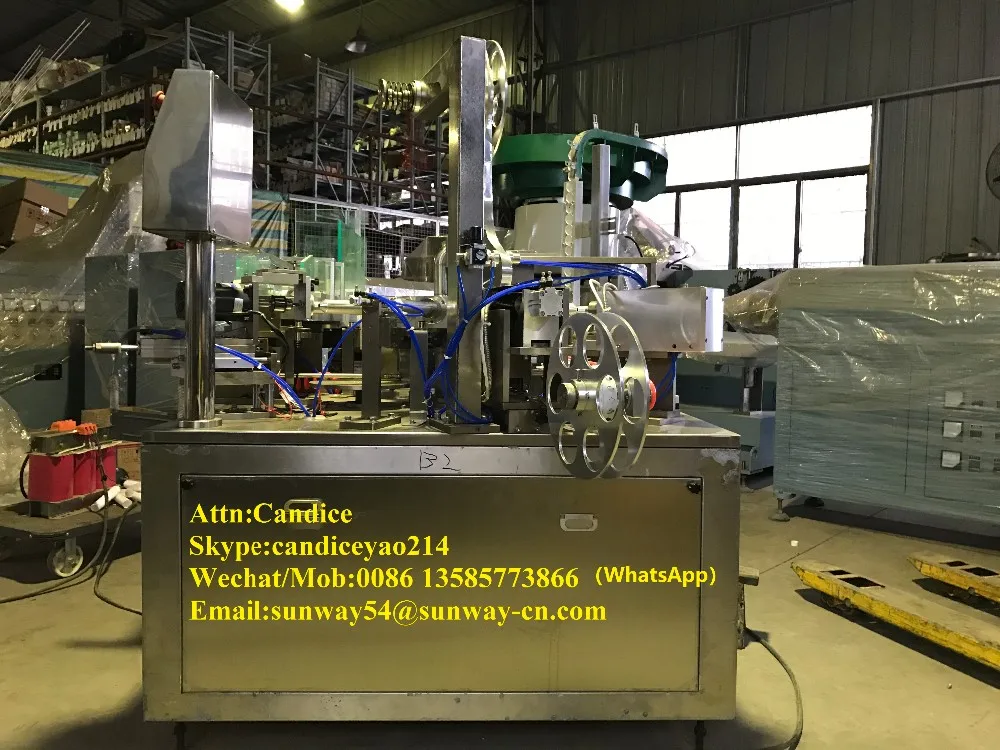

3.1 B.KFX-II Tube Drilling & Foil Sealing & Capping Machine

I. Introduction:

This machine is suitable for opening the hole in the head of plastic or aluminum-plastic laminated tube which is hermetic, and sealing the hole with aluminum foil, then capping the tube finally. It includes three functions together.

This machine is an ideal machine for the tube manufacture plants. It uses the advanced PLC control and screen-touch interface programs, and the servo electric drive can keeps pinpoint. It also enjoys firm structure, widely usage, high speed and stable operation. Accurate holing, attractive sealing and precise capping are all the advantages of the machine.

II. Main Technical Parameters:

Contacter: Candice

Skype:candiceyao214

Mob/ Wechat / Whatsapp :008613585773866

 Engineer avaliable to service outside of China.
