Busbar heat shrink high voltage insulation tube
- Category: >>>
- Supplier: Guangzhou Kehong Electric Co. Ltd.
Share on (60577955687):
Product Overview
Description

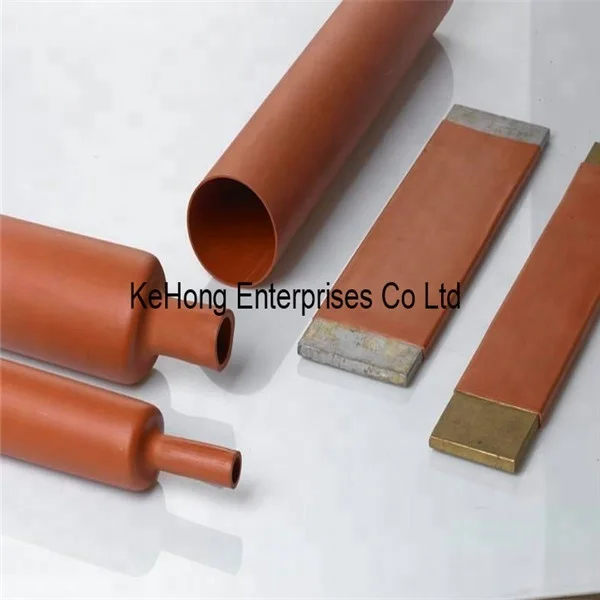

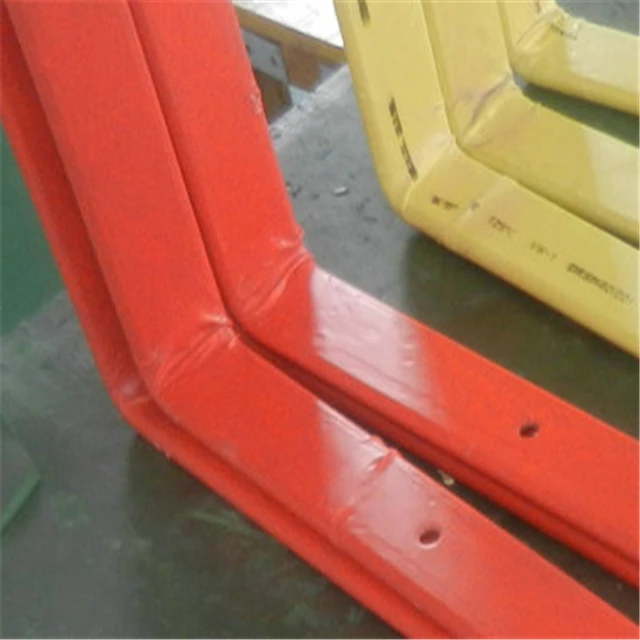

Busbar heat shrink high voltage insulation tube
Model:BBHST
Product Sizes:
Selection Table (35 kV Heat Shrink Busbar Sleeve)
| Tube Size | Applicable Bus Bar | As Supplied(mm) | After Recovered(mm) | Packing | ||
| Rectangular(mm) | ID(Min) | Wall Thickness | ID(Max) | Wall Thickness (±10%) | (m/roll) | |
| 15/8 | 15/12 | 15±1.0 | 1.90±0.50 | ≤8.0 | 4.00±0.30 | 15 |
| 20/10 | 20/15 | 20±1.0 | 1.90±0.50 | ≤10.0 | 4.00±0.30 | 15 |
| 30/15 | 30 | 30±1.0 | 1.90±0.50 | ≤15.0 | 4.00±0.30 | 15 |
| 35/18 | 30/40 | 35±1.0 | 1.90±0.50 | ≤18.0 | 4.00±0.30 | 15 |
| 40/20 | 40 | 40±1.0 | 1.90±0.50 | ≤20.0 | 4.00±0.30 | 15 |
| 50/25 | 50 | 50±2.0 | 1.90±0.50 | ≤25.0 | 4.00±0.30 | 15 |
| 60/30 | 60 | 60±3.0 | 1.90±0.50 | ≤30.0 | 4.00±0.30 | 15 |
| 65/33* | 60/70 | 65±3.0 | 1.90±0.50 | ≤33.0 | 4.00±0.30 | 15 |
| 70/35 | 70 | 70±3.0 | 1.90±0.50 | ≤35.0 | 4.00±0.30 | 15 |
| 75/38* | 70/80 | 75±3.0 | 1.90±0.50 | ≤38.0 | 4.00±0.30 | 15 |
| 80/40 | 80/100 | 80±3.0 | 1.90±0.50 | ≤40.0 | 4.00±0.30 | 15 |
| 100/50 | 100/120 | 100±4.0 | 1.90±0.50 | ≤50.0 | 4.00±0.30 | 15 |
| 120/60 | 150 | 120±4.0 | 1.90±0.50 | ≤60.0 | 4.00±0.30 | 15 |
| 150/75 | 180 | 150±4.0 | 1.90±0.50 | ≤75.0 | 4.00±0.30 | 15 |
| 180/90* | MAX. | 180±5.0 | 1.90±0.50 | ≤90.0 | 4.00±0.30 | 15 |
| 210/105* | MAX. | 210±5.0 | 1.90±0.50 | ≤105 | 4.00±0.30 | 15 |
| 230/115* | MAX. | 230±5.0 | 1.90±0.50 | ≤115 | 4.00±0.30 | 15 |
| 250/125* | MAX. | 250±5.0 | 1.90±0.50 | ≤125 | 4.00±0.30 | 15 |
| 300/150* | MAX. | 300±5.0 | 1.90±0.50 | ≤150 | 4.00±0.30 | 15 |
*Note: Specifications with * numbers are not in stock and special orders are required.
Company Information
KeHong Enterprises Co Ltd is specializes in heat shrinkable technology and manufacture, Headquarter in Hong kong, with factory in GuangZhou and Shenzhen City.
Our factories have obtained the certification of ISO 9001, and main insulation material tubes have UL certification of ISO 9001, and main insulation material tubes have UL cetification, SGS approval, and meet ROHS standard.
KEHONG is one of electrical insulation suppliers, which is able to provide consistent professional, experienced and efficient product service. If you are unable to find a proper tubing or sleeve from our existing products to meet your equirement, please do not hesitate to provide us with your further more detail requirements. Our technical team will do the best to satisfy your requirements with our products.

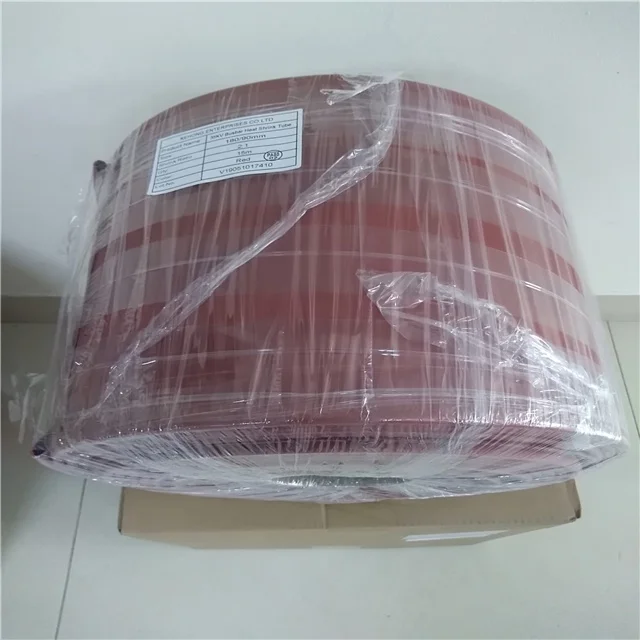

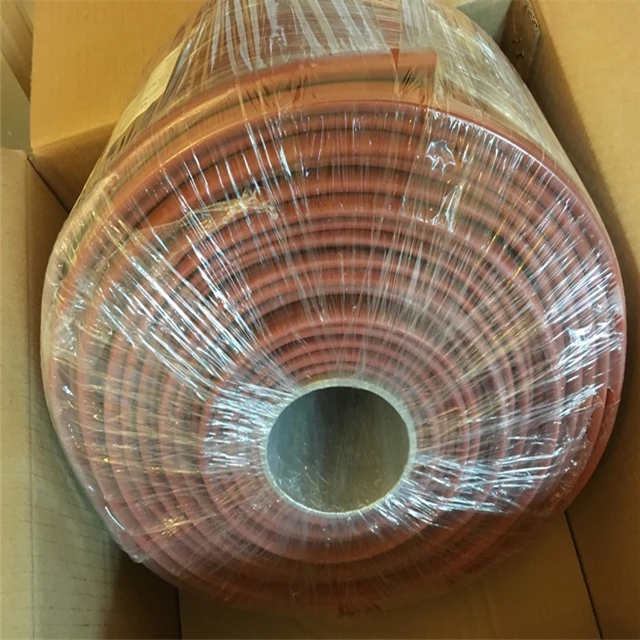

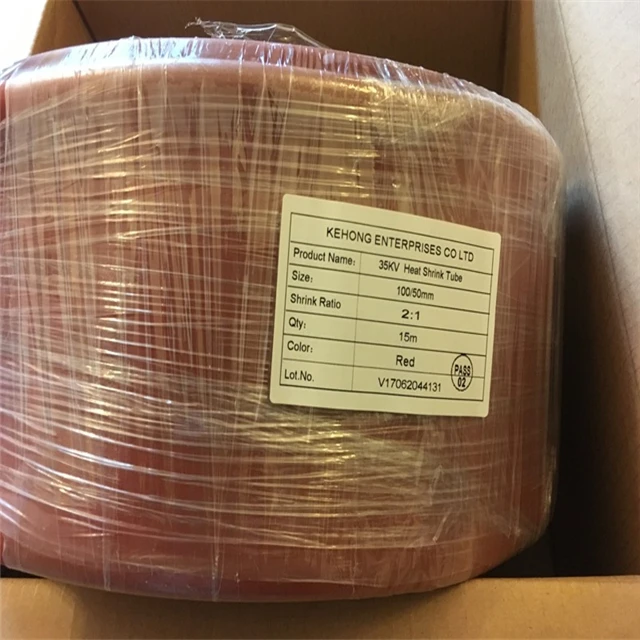

Packaging & Shipping
- For one to two cartons of goods, freight by the agent of DHL,UPS,TNT,Fedex.
- For LCL goods will be freight by sea or air.
- Usually we can find the most competitive freight cost for our clients.
FAQ

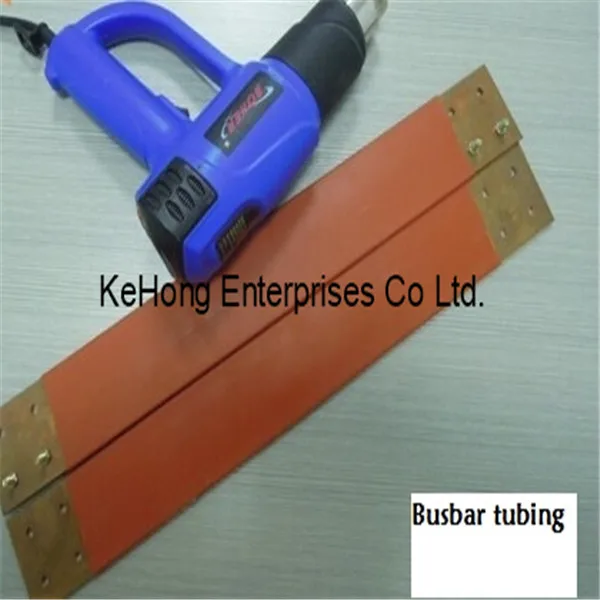

Best way to heat shrink tubing
According to different kind to tubes, usually heat the tube by hair dryer, heat gun, heat oven,etc.
Can i use a lighter for heat shrink tubing
For small ID and thin wall heat shrink tubes, we can use lighter to shrink them.
Can you cut heat shrink tubing
Yes,our machine can cut tubes into your required length,such as 10mm/pcs, 30mm/pcs, or 50mm/pcs,etc.
Can you use a hair dryer for heat shrink tubing
Thin wall tubes can be shrinked by hair dryer, such as our tube model A-2(NH), it can begin shrink at 70℃, but for medium and heavy wall tubes shrinking, it's better to use a heat gun.
Can I print my logo on the products?
Yes, please send us your logo design.
