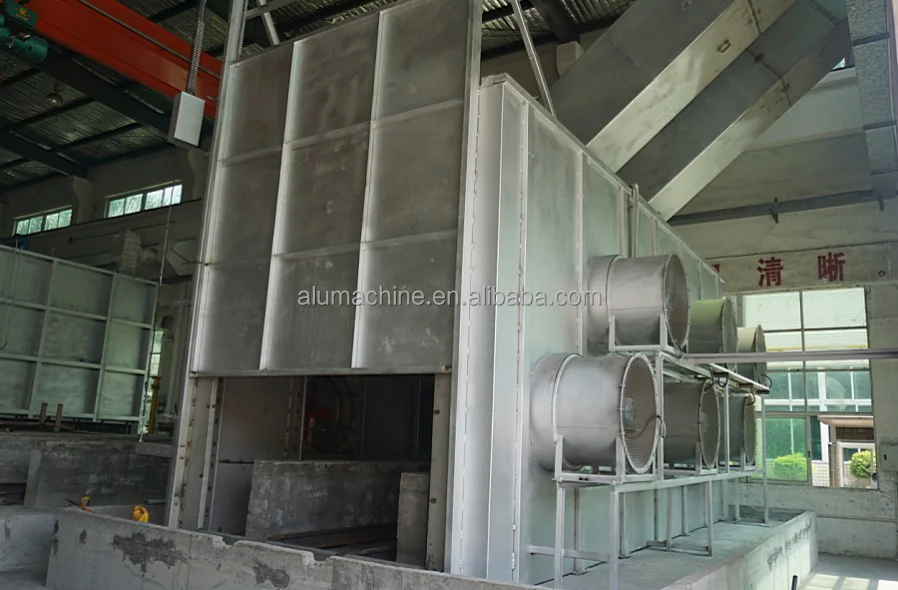

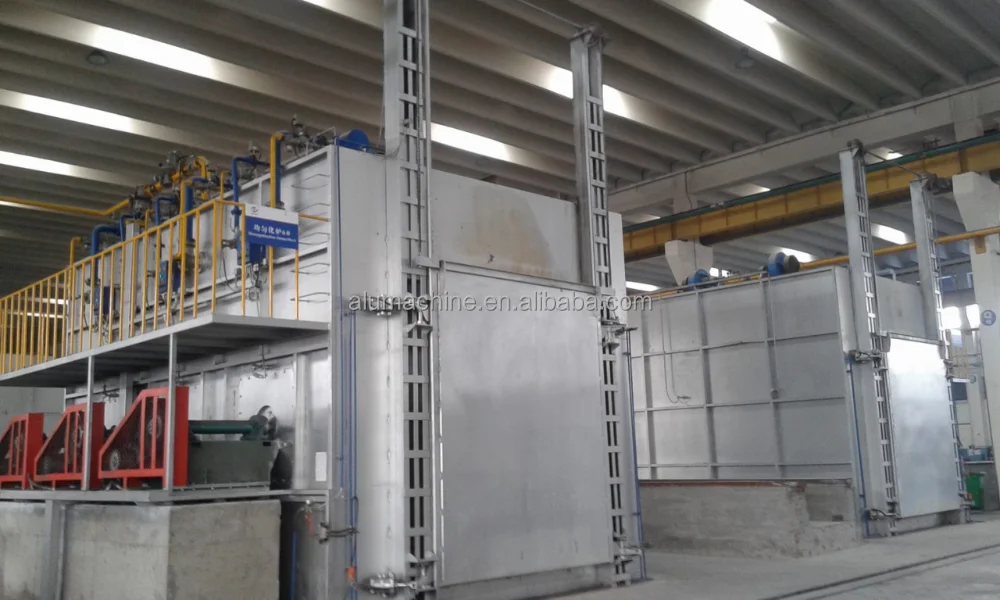

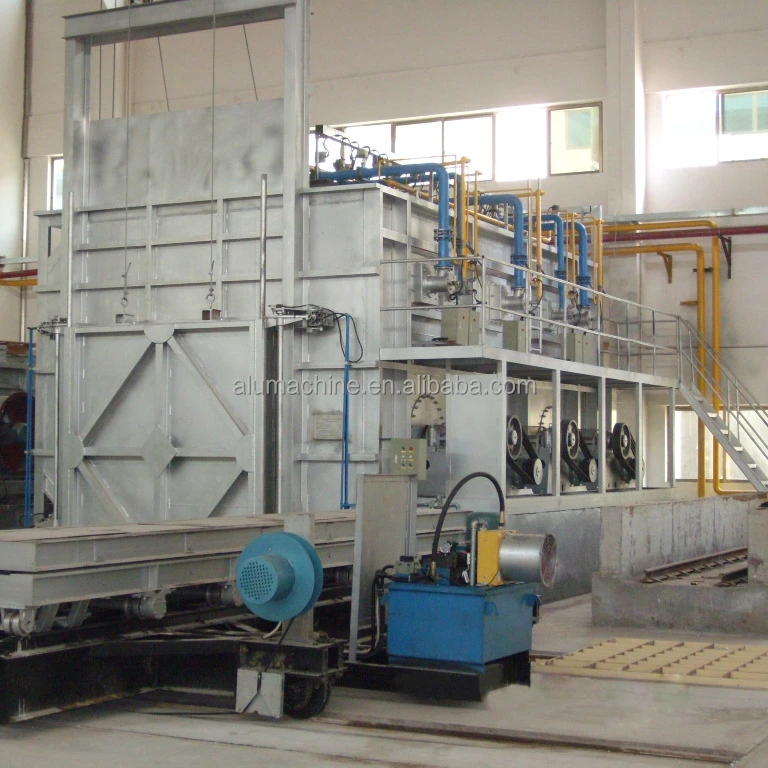

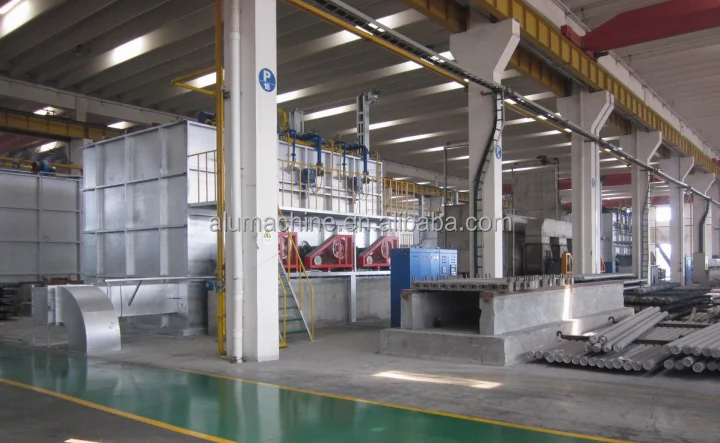

7inch 20T Homogenous Homogenizing Furnace Oven for Aluminum Log

Product Overview

Description



7inch 20T Homogenous Homogenizing Furnace Oven for Aluminum Billet Log:



Homogenous homogenizing furnace oven is used for casting billet treatment oven, able to residual stress and un-even of metal to improve performance of billet, improve efficiency and quality of aluminum profile.



Homogenous homogenizing furnace oven including:

1, homogenizing oven body

2, cooling room

3, three dimensional trolley

4, storage table

5, electrical control system



Homogenizing furnace working principle:

heat billet , then fast cooling billet, make even temperature of billets



Homogenous oven working process:

1, put billet table on storage table, hoist billet on billet table, cone layer by one layer

2, operate three dimensional dis assembly trolley, put billet table on trolley

3, move three dimensional trolley in front of homogenizing oven, automatic do position

4, open furnace door, three dimensional torlley will let billet put inside of oven, trolley will back automatically

5, homogenizing oven temperature heat up around 2~3 hours, keeping temperature for 5~6 hours

6, open furnace door, three dimensional trolley will take out hot billet,move to cooling room, position automatically

7,open door of cooling room, trolley will put hot billet inside of cooling room, trolley retreat close cooling room door, open cooling fan and spraying water for fast cooling.



Three dimensional trolley parameters:

billet dia.	billet weight	billet length	loading width	loading height	total weight	loadign quantity
7inch	403	6m	2200	1450	22165	11pcs*5pcs
