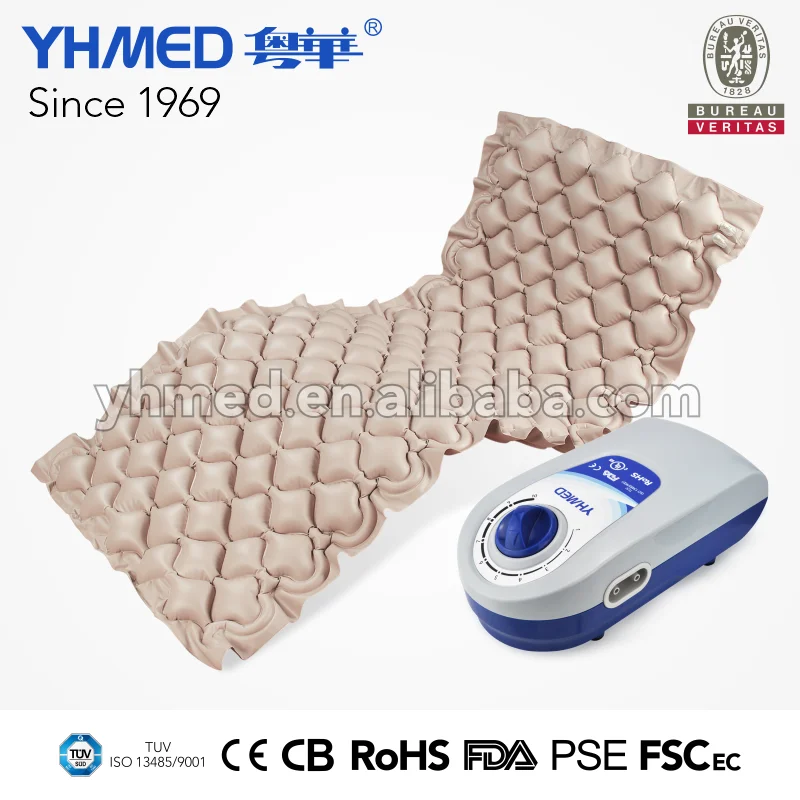

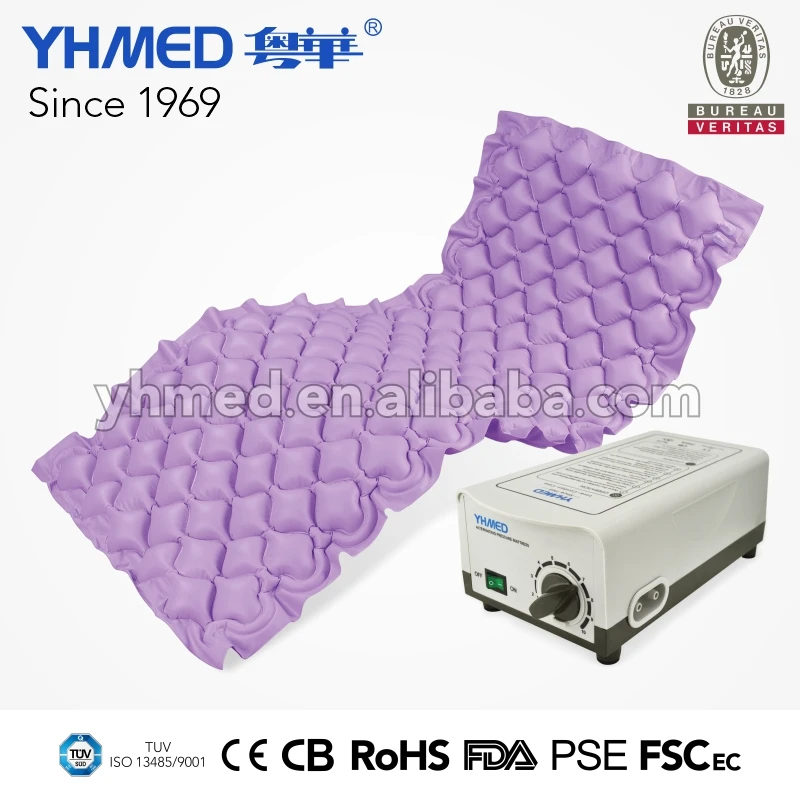

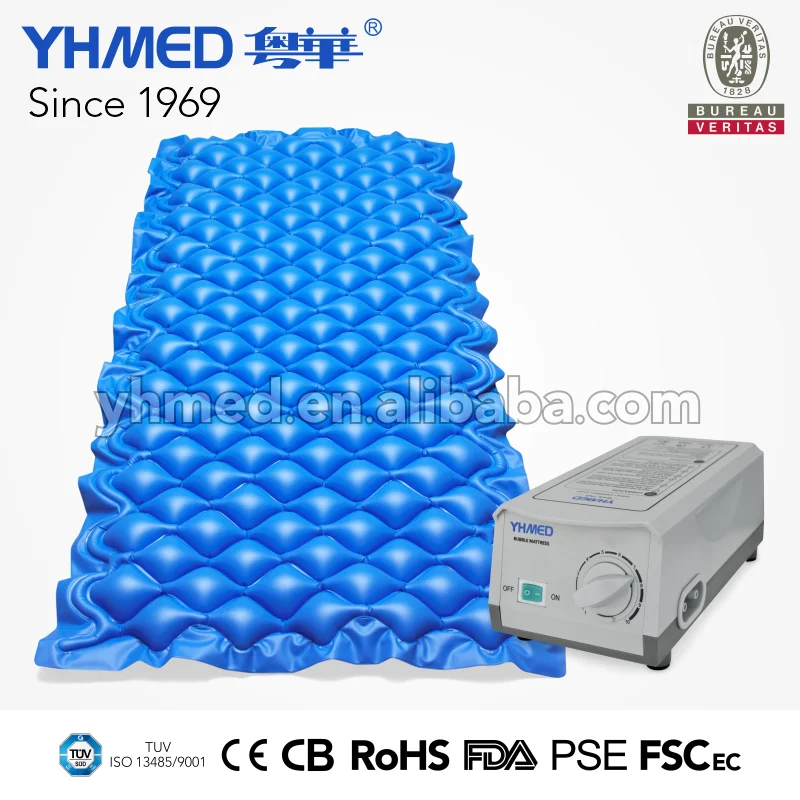

Home use medical care globose air inflatable nursing PVC pad
QDC-303 is designed for the treatment and prevention of pressure sore stage in short-term and domiciliary therapies. The mattress in PVC is composed of 130 7-cm-high bubble flaps on both top and bottom side.Very easy to install, maintain and use thanks to the possibility of adjust comfort range. The pump can be hung to the end of the bed by means of two hooks.
Mattress material TW Nan Ya EN71 Medical-Grade PVC
Material thickness 0.32mm
Cold-resistamt -30°C
Number of cells 130
Weight support 135kg
HF Welding One -Time - Forming (8 secs)
Certificate Rohs / CA-117 / EN-71
Warranty 12 Months
Technical Parameters Of The Pump
P1000 P2000IIE P4000IIE
Electrical
AC 110V/220V 50Hz/60Hz
Pressure range
40-100 mmHg
Air output
7-8L/min 6-7L/min 6-7L/min
Dimensions(L*W*H)
26.5*13.5*10 cm 27*13*10.5 cm 25*12*10 cm
Plastic Casing
Taiwan Chimei ABS
Test Duration
24 Hours
Certificate
German TUV-CE IEC/EN60601-1&60601-1-2
Synchronous Motor
TW Ann Yih Brand (Alternating Control System)
Alternating
1-in-2
Warranty
24 Months 12 Months 12 Months
Our 6Advantages
China Leading & Greatest Manufacturer for Alternating Pressure Mattress
Color Box Package Optional
OEM MOQ: 500 Sets
Company Information
Guangdong Yuehua Medical Instrument Factory Co., Ltd. (YHMED) was established in 1969. During the forty years, we have been working on the development, production and sale of home care products and x-ray imaging accessorial products. Nowadays, YHMED has become the Vice-Chairman Unit in Guangdong Province Medical Instrument Industry, the High-New Technology Enterprise in Guangdong Province, the Private Technology Enterprise in Guangdong Province, and the Enterprise of Observing Contract and Valuing Credit for 30 years.
At present, YHMED has established a relatively perfect network at home and abroad. The products are not only sold in all 34 provinces and municipalities in China, but also in more than 60 counties and areas all over the world. They are very popular among customers. In the coming future, all personnel in YHMED will provide higher quality products and services with full hope and passion.
