In Stock 92.8mm Billet Stroker Cranks for VW golf 3 2.0L 16v abf Crankshafts

Product Overview

Description

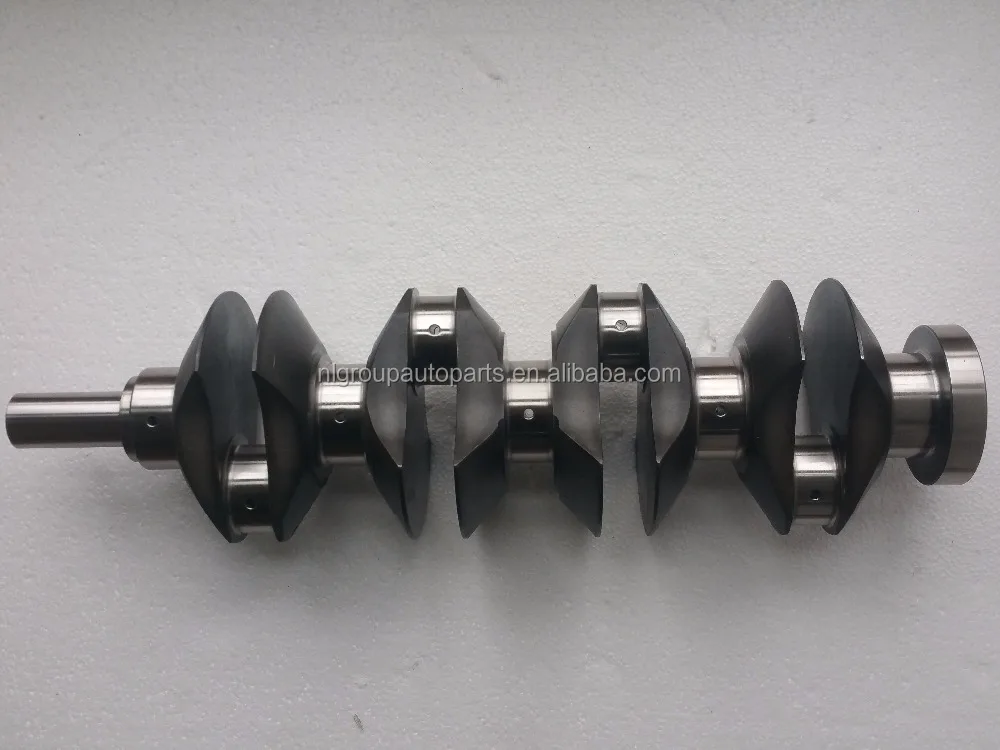

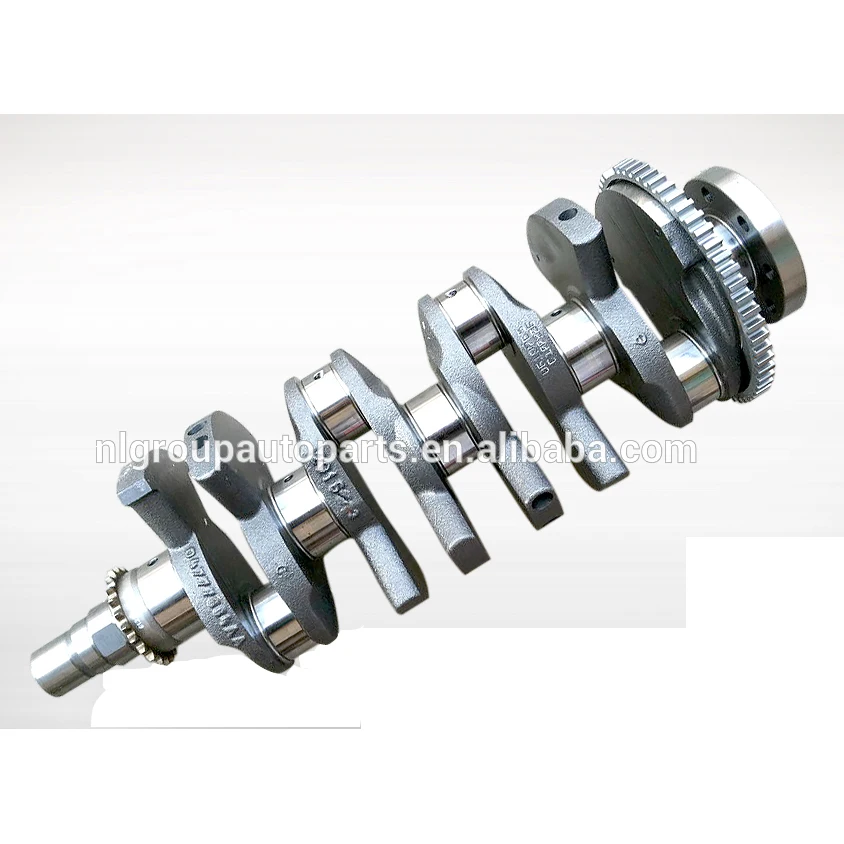

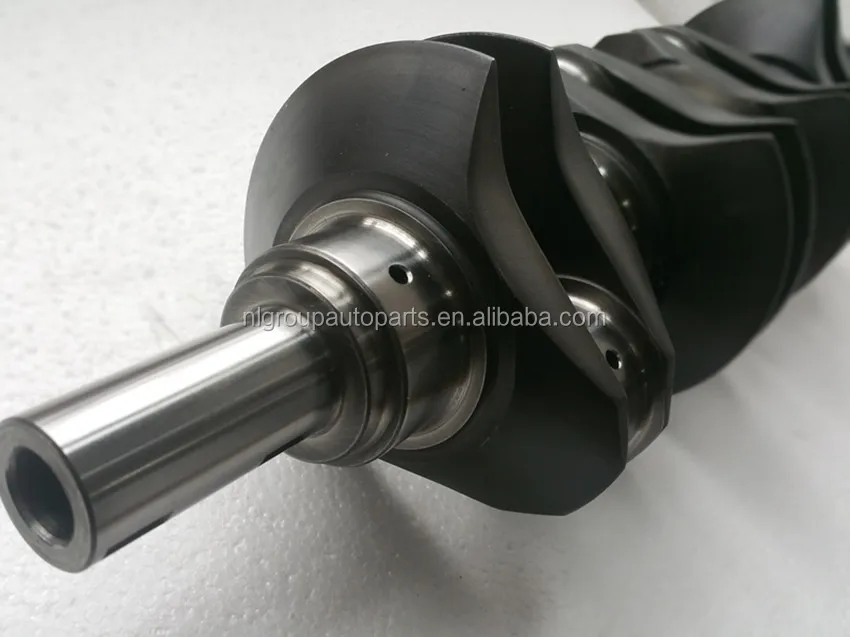

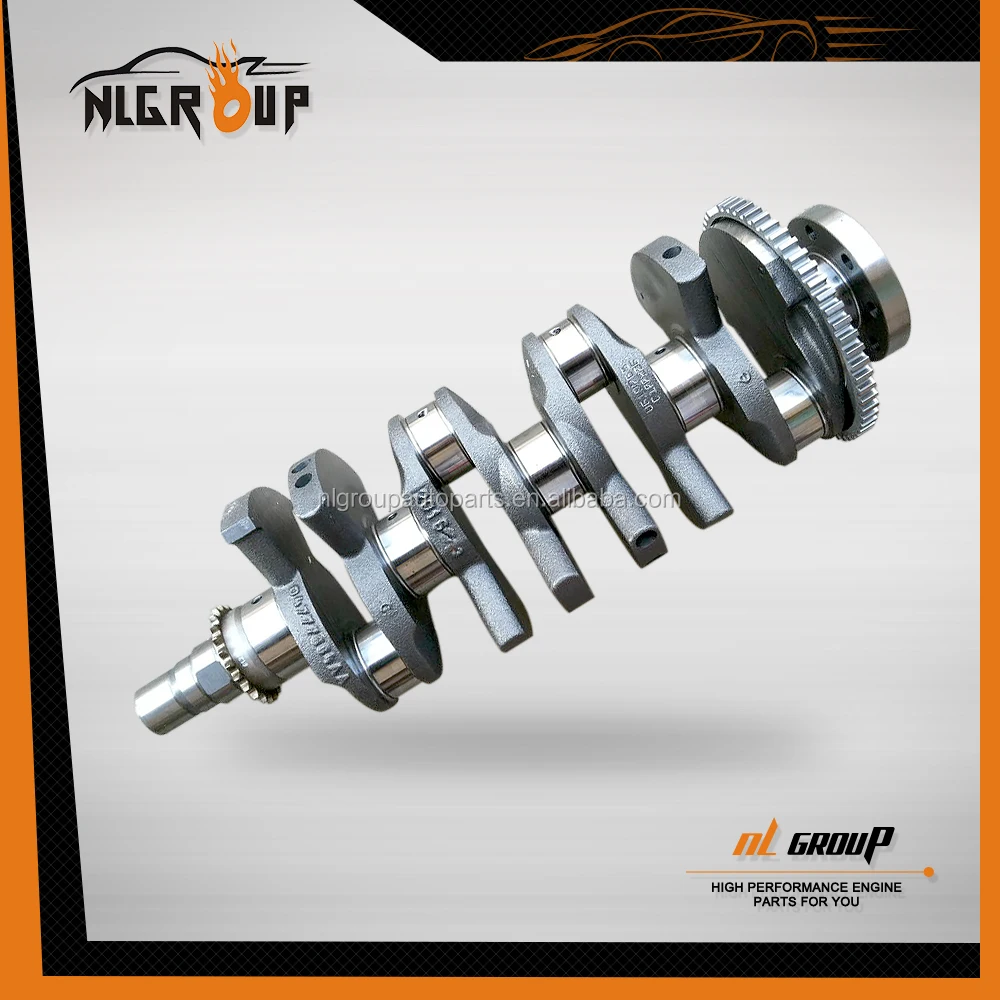

92.8mm Billet Stroker Crank shaft for VW golf 3 2.0L 16v abf Crankshaft





 Quick Detail





Material	Full CNC 4340 Billet Steel
Date of Delivery	1-3 days if in stock,60-70days if out of stock
Application	for VW golf 3 2.0L 16v abf Crankshaft





     Dimension





Main Journal Diameter	***mm
Rod Journal	***mm
Stroke	92.8mm
Net Weight	***kg







NLGROUP  DESIGN





customized design counterweight                        Pendulum Undercut Counterweight

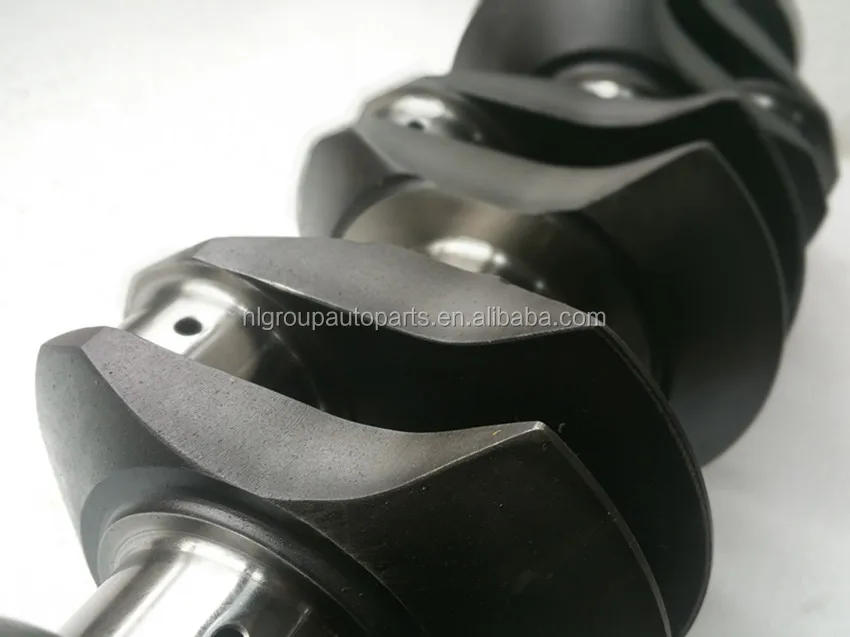

Knife Edge Counterweights                                      Oil Groove Counterweights







Knife Edge Counterweights                                   Tapered Counterweights







Lighten Holes at Rod Journals









Technical Features



• Materials:40CrNiMoA  Heating treatment:HRC34-38

• Crankshaft will get thermal refining after normalizing,HRC34-38.The difference will be within 4HRC on same one cranks



• No over burning,carbon-free surface layer is within 0.3mm



• Folding,oilet,cracks, oxidation and other things is not permitted for Cranks macrostructure.

• Balance weight value need keep 0-20g.cm on counterweight of big end and small end



• Peening treatment will be done after balance weight

• Nitrogen treatment will be done after precision grind,compound layer depth is 0.008mm after polishing.diffusion layer is over 0.3mm,hardness on surface is not less than 500HV.

• No damage,scallops and other visible disadvantage on surface.



• Crankshaft will be cleaned up to make sure there is no filings in oil hole.



• magnetic flaw detecting will be done according to standard JB/76729-93



• Other size tolerance :standdars GB1804-79  IT14,No marked place  roughness:Ra6.3
