York VRF ductless systems air conditioner

Share on:

Price:RUB 38,337.65 - RUB 138,015.54
Price in USD:Details


Product Overview


Product Description

York VRF (Variable Refrigerant Flow) System

Commercial VRF HVAC Systems for New Construction and Renovation Projects

Building climate control is about comfort and efficiency – delivering just the right heating and cooling to every space using no more energy than necessary. YORK variable refrigerant flow (VRF) technology lets you do that for customers in innovative ways that present new growth opportunities for your business.

YORK's Ductless and VRF HVAC solutions are built on highly efficient systems that use the latest technologies to deliver the right heating and cooling to every space in your building.


♦  Long refrigerant piping lengths up to 3,281 feet total pipe run.
♦  Advanced defrost cycle operation in the heating mode.
♦  Able to operate up to 64 indoor units on a single piping network.
♦  Power-saving demand control for reduced peak load and energy savings.
♦  Automatic judgement system for refrigerant amount to verify that refrigerant charge is correct.
♦  Diagnostics and malfunction codes available at push of a control panel button.

Outdoor Units

Heat pump, heat recovery available for York VRF air conditioner

YORK VRF outdoor units, in capacities from 3.0 to 30 tons with modular system combinations, include heat pump and heat recovery units.

VRF outdoor unit heat recovery  VRF outdoor unit heat recovery   VRF outdoor unit heat pump   VRF outdoor unit heat pump

Heat pump units:

can either heat or cool spaces. YORK VRF heat pump units offer an outdoor ambient temperature as low as 14°F (-10°C) in the cooling mode and as low as -4°F (-20°C) in the heating mode.

Heat recovery units:

can heat and cool spaces simultaneously. YORK VRF heat recovery units offer an outdoor ambient temperature as low as 14°F (-10°C) in the cooling mode and as low as -4°F (-20°C) in the heating mode.
YORK Mini VRF Heat Pump units:

offer an outdoor ambient temperature as low as 23°F (-5°C) in the cooling mode and as low as -4°F (-20°C) in the heating mode.

Indoor Units

YORK VRF indoor units operate quietly and are easy to install, service and maintain.

A wide variety of non-ducted and ducted indoor units are available in styles and capacities to fit multiple applications:

1-Way Cassette

2-Way Cassette

4-Way Cassette

Mini Cassette Ceiling Suspended

Wall Mount
Floor Exposed Floor Concealed
Ducted High Static

Ducted Medium Static Ducted Slim

VRF 1-way cassette indoor unit  VRF 4-way cassette indoor unit          VRF Mini-cassette    VRF ceiling suspended indoor unit

VRF wall mount indoor unit   VRF floor exposed indoor unit    VRF floor concealed indoor unit  VRF ducted high static indoor

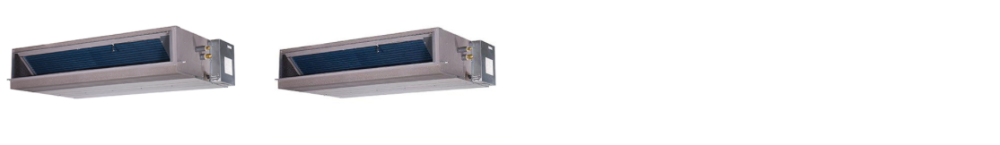

VRF ducted medium static indoor  VRF ducted slim indoor unit


YORK VRF Controllers

VRF wired zone controller           VRF simplified wired zone           VRF computerized central        VRF central station controller

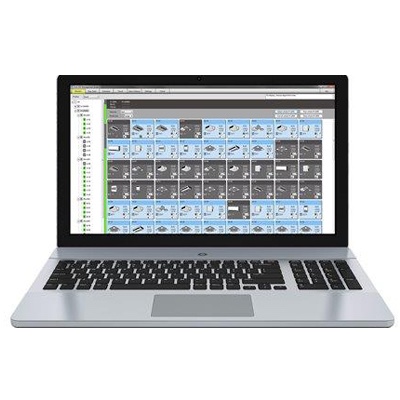

VRF central controller software


YORK VRF Advanced controls for every application.

     VRF change over box                 VRF wireless zone controller              VRF BACnet adapter


How VRF works

A VRF system typically consists of one or more outdoor units from which refrigerant is piped to a series of indoor fan coil units serving individual zones within building spaces. The system conditions the spaces by delivering to the indoor fan coil units only the volume of refrigerant required to meet the heating or cooling needs of each zone.

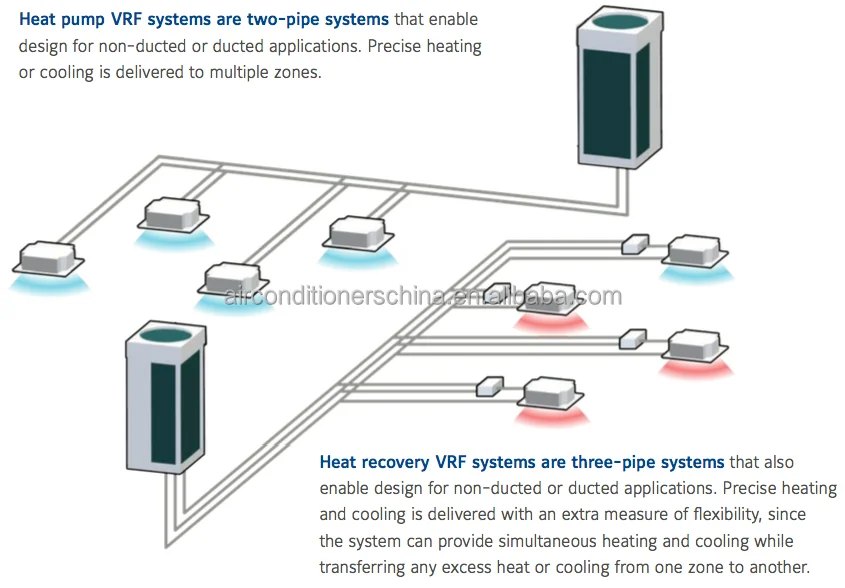

There are two basic types of YORK VRF systems, ranging in capacity from 3-30 tons:
• Heat pump VRF systems are two-pipe systems
• Heat recovery VRF systems are three-pipe systems

Get expert advice at every step: select, design, specify, install

Salespeople submit competitive bids and close deals.

Designers select and configure the right equipment easily and accurately.
Installers learn the proper procedures and complete jobs accurately, on time and on budget.
Service technicians maintain, troubleshoot and repair systems efficiently.
