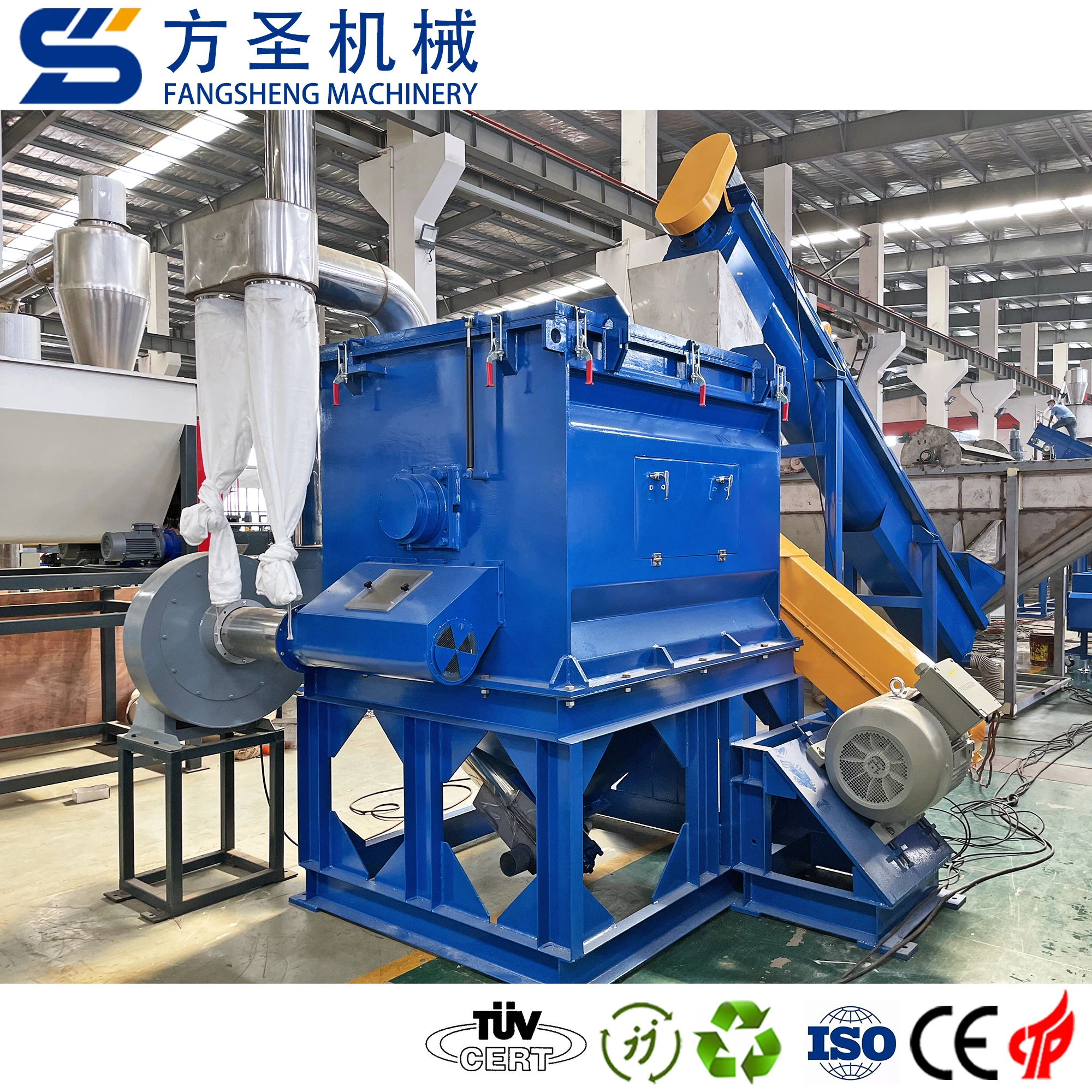

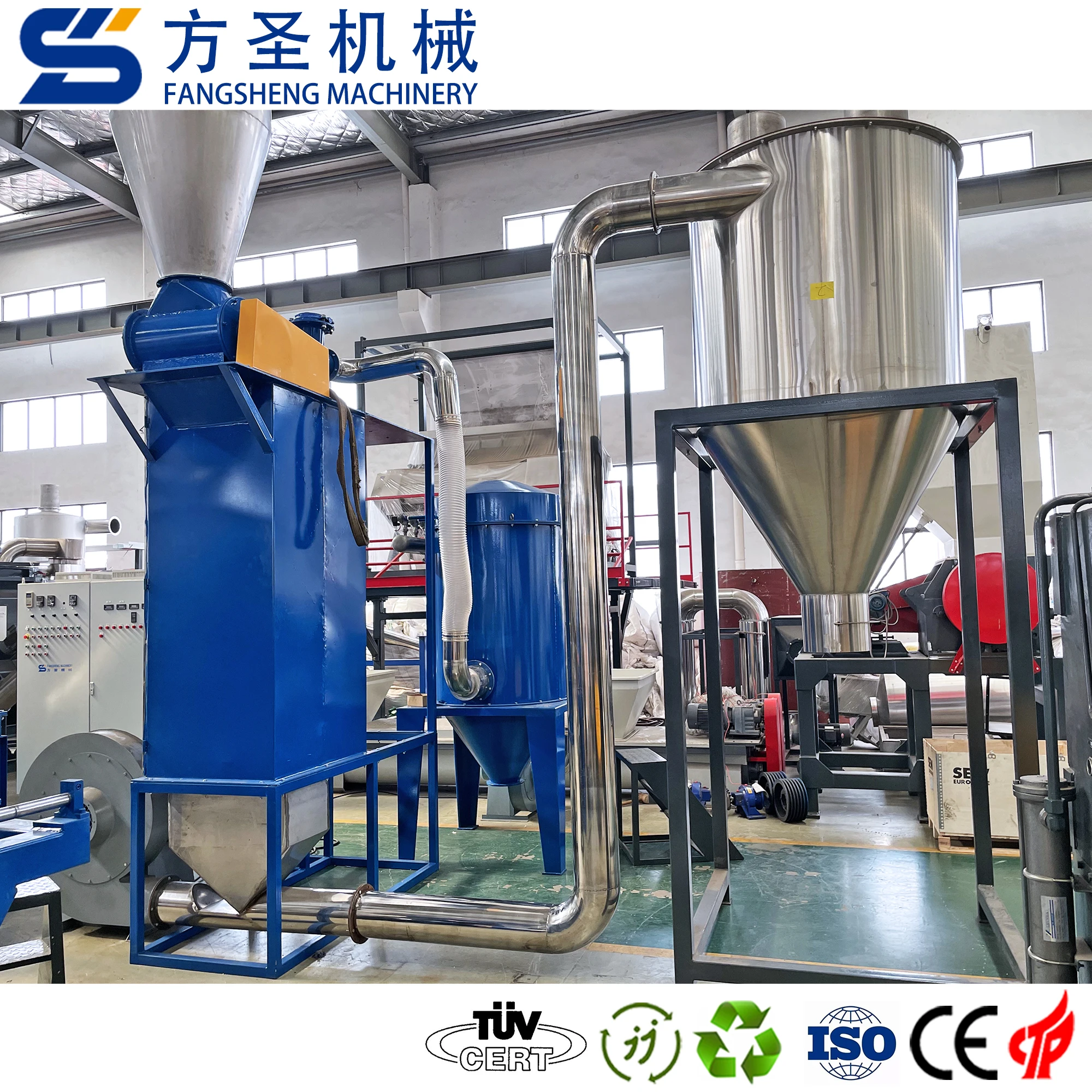

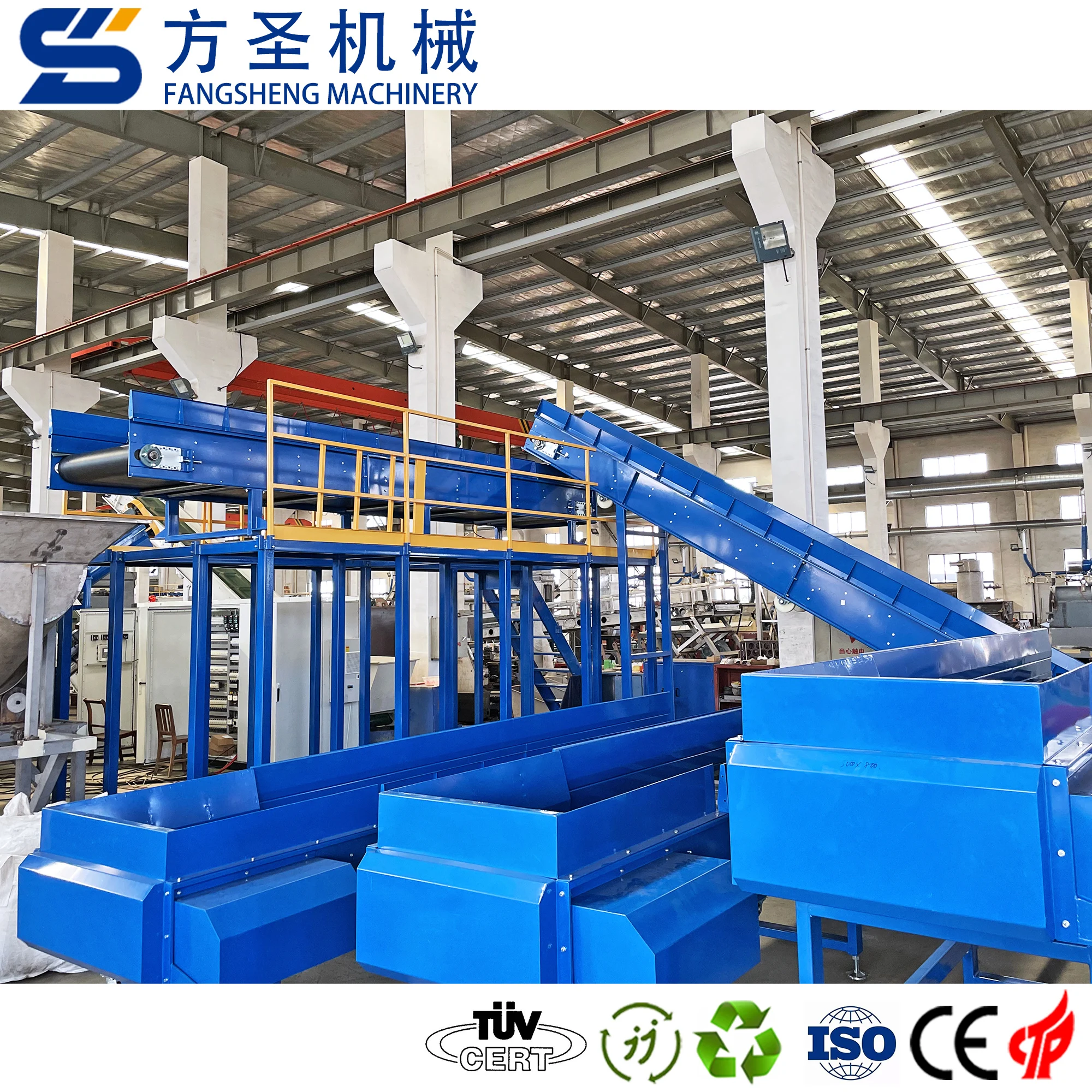

Cost of Plastic Recycling Washing Machine Line for PET Bottle and Hdpe Bottles

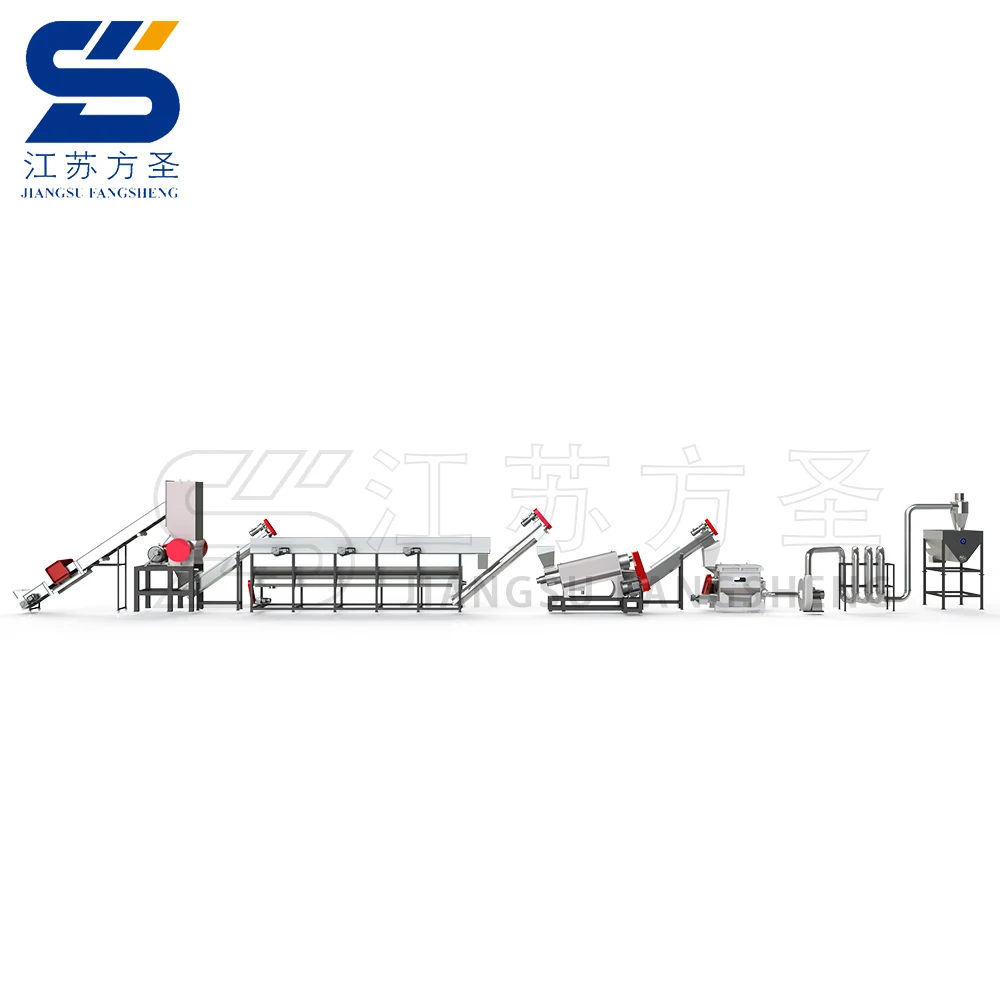

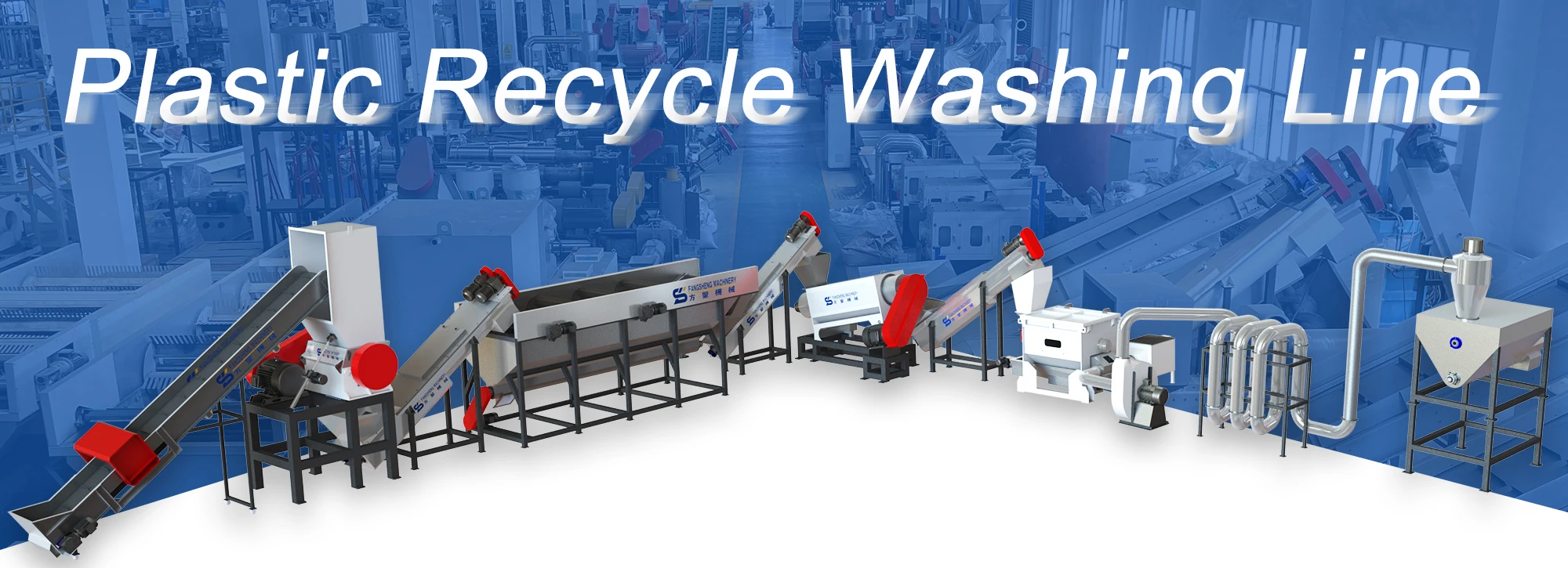

Plastic Washing Line has smart modular design aiming at agricultural film, industrial packaging film, bag waste recycling. It is including sorting, size reduction, metal removing, cold and hot washing, high efficiency friction washing and drying modular. Which can remove most of contaminants such as ferrous and nonferrous metals contaminants efficiently. Moreover, the solution can be provided with all water treatment, processing of sludge, paper stick, labels and etc.
Detail Specification

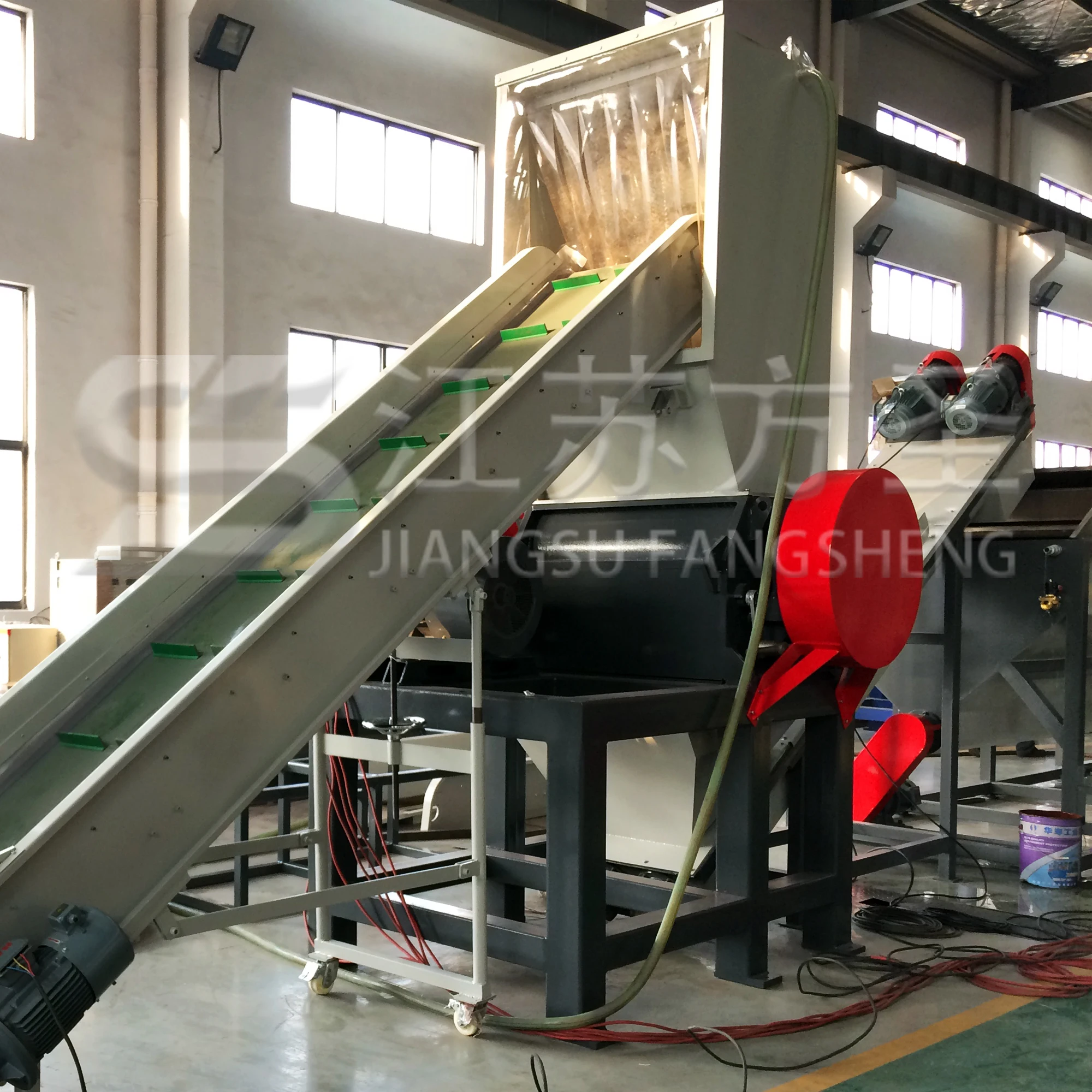

Crusher
●rotor with balance treatment for stability and low noise
●rotor with heat treatment for long lifespan
●rotor with heat treatment for long lifespan
●wet crushing with water, which can cool the blades and wash the plastic in advance
●can also choose shredder before the crusher
●special rotor structure design for different plastics like bottles or film
●blades made of special material, with high hardness
●easy operation to change blades or screen mesh
●high capacity with stability

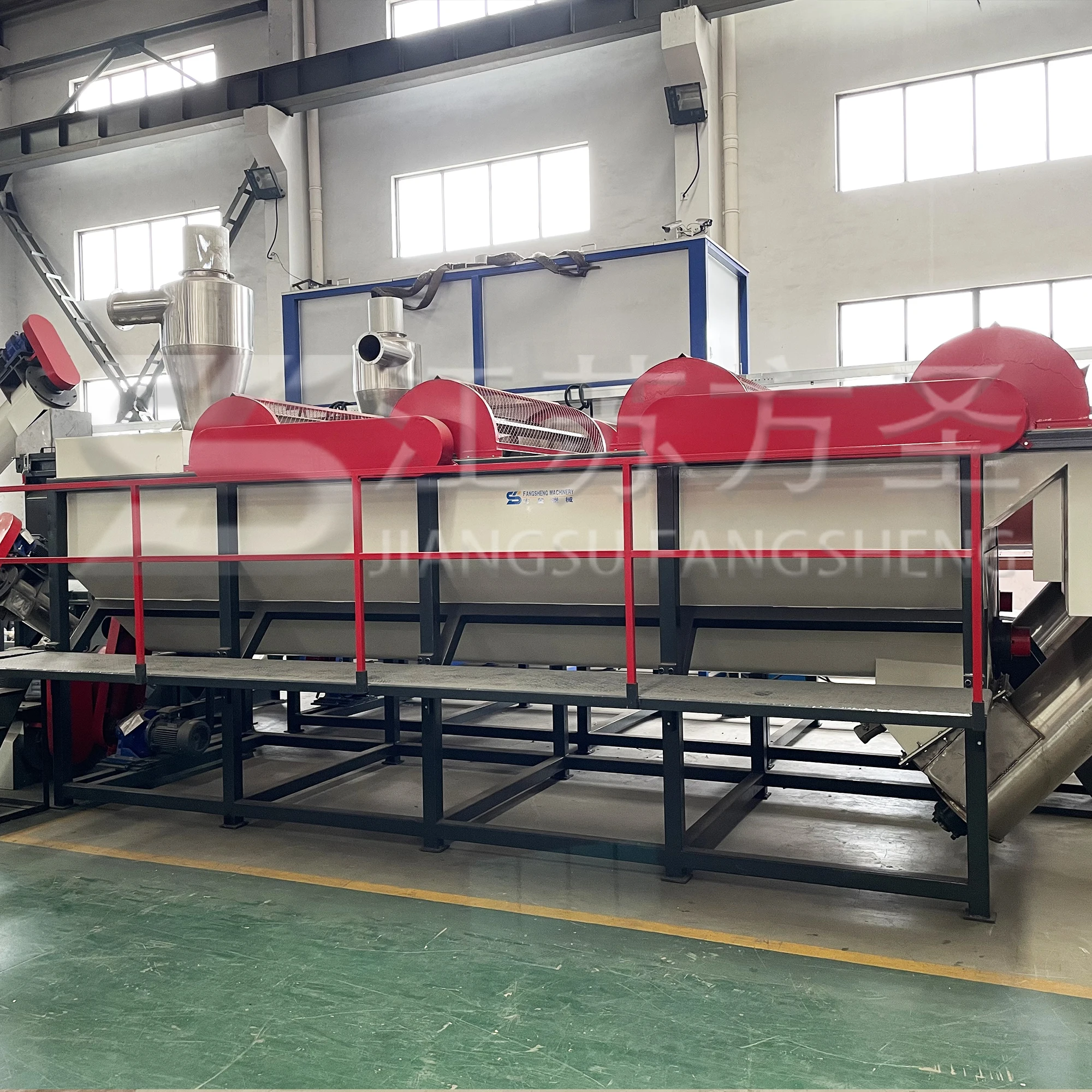

Floating washer
●rinse the pieces of flakes or scraps in water
●can use hot type washer to add chemical for washing
●upper roller be inverter controlled
●all tank made of SUS304 or even 316L if needed
●bottom screw can process sludge

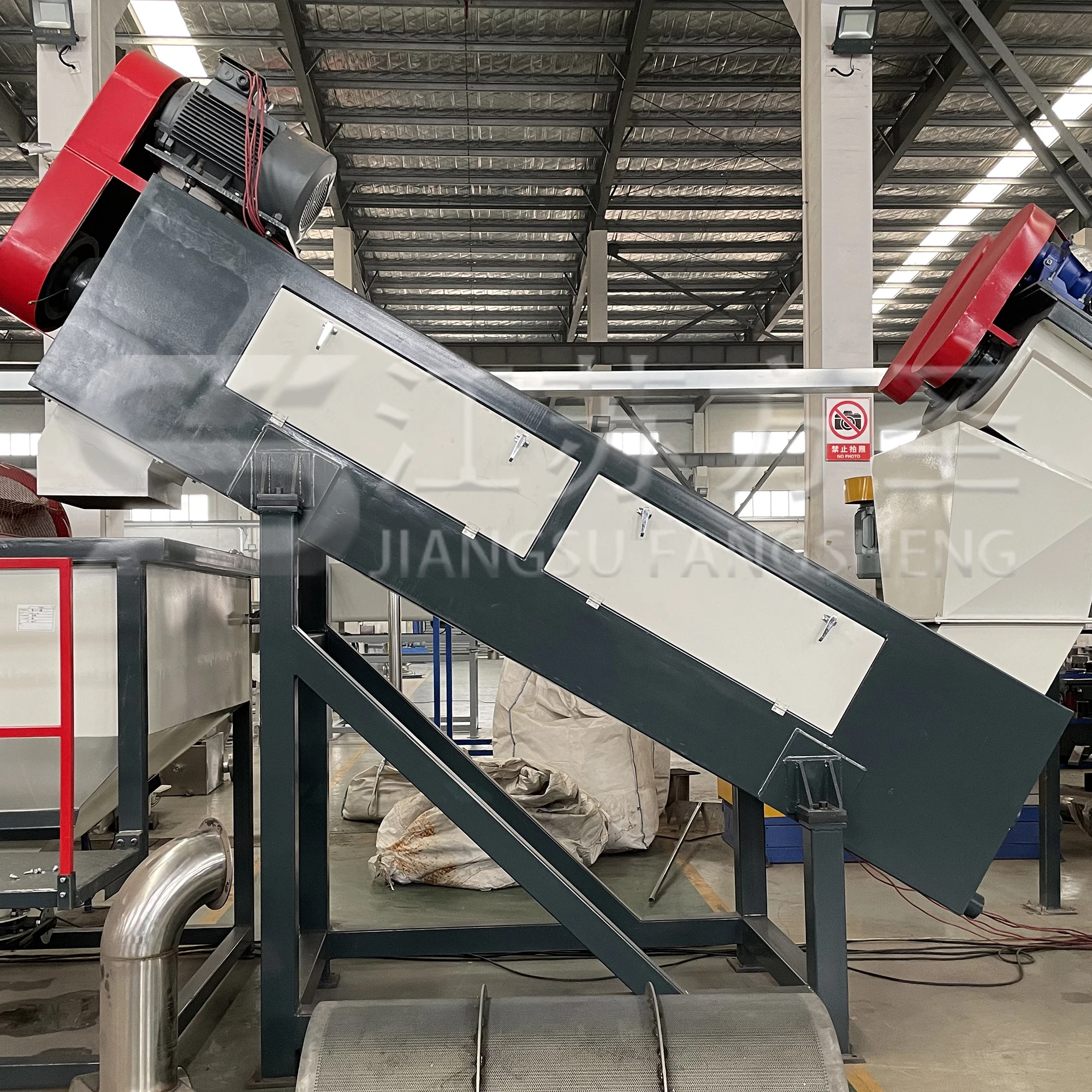

Screw conveyor
●Conveying plastic materials
●Made of SUS 304
●With water input to rub and wash the plastic scraps
●with 6mm vane thickness
●made by two layers, dewatering screw type
●hard tooth gear box which ensures long lifespan
●special bearing structure to protect bearing from possible water leakage
Friction Washing
●Friction to clean the materials mechanically
●rotor made of strong&thick material, surface treatment with alloy
●rotor with balance treatment for stability
●rotor with heat treatment for long lifespan
●The bearing is externally connected with water cooling sleeve, which can effectively cool the bearing.
Dewatering Machine
●Drying materials by centrifugal force
●rotor made of strong&thick material, surface treatment with alloy
●rotor with balance treatment for stability
●rotor with heat treatment for long lifespan
●The bearing is externally connected with water cooling sleeve, which can effectively cool the bearing.
●rotor with heat treatment for long lifespan
●The bearing is externally connected with water cooling sleeve, which can effectively cool the bearing.

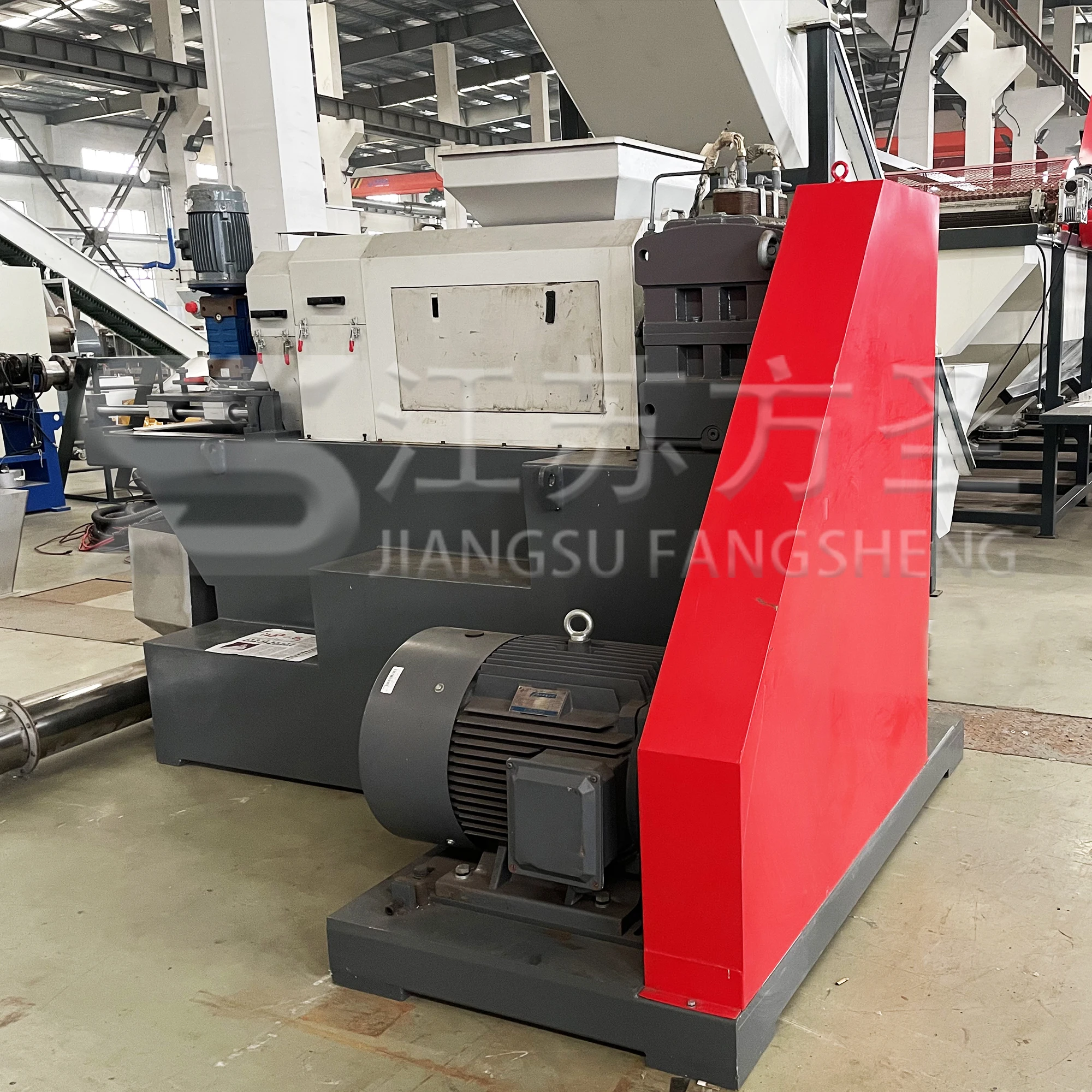

Squeezer& Squeezing granulation machine
●Drying materials by squeezing
●Made of 38CrMoAlA with high hardness
●guarantee final low moisture
●guarantee final low moisture
Technology Parameter
Name | Motor power (kw) | Water consumption (T/H) | Stainless steel standard (mm) |
Belt conveyer | 2.2 | - | - |
Label Scraping Machine | 11 | 0.6-1.0 | 3-5 |
Manual separating Machine | 2.2 | - | - |
Metal detectory | 0.4 | - | 3-5 |
Crusher | 37 | 0.6-1.0 | - |
Screw conveyer | 3 | - | 3-5 |
High speed friction washer | 30 | 1-2 | 3-5 |
floating washer | 3*2 | 0.5-1.5 | 3-5 |
Steam Washer | 7.5 | 0.5-1.5 | 3-5 |
Floating washer | 3*2 | 0.5-1.5 | 3-5 |
dewatering machine | 5.5 | - | 5 |
drying system | 11 | - | 3-5 |
Label separater | 4 | - | - |
storage hopper | - | - | - |
electric elements | - |
Main Parameters
Successful Project
We provide excellent after-sales service
● When all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory.
● After the commissioning, we will package the equipment by the standard export package for shipment.
● After appointment with the customer, our engineers will go to the customers' factory for installation and training.
● Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.
● After the commissioning, we will package the equipment by the standard export package for shipment.
● After appointment with the customer, our engineers will go to the customers' factory for installation and training.
● Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.

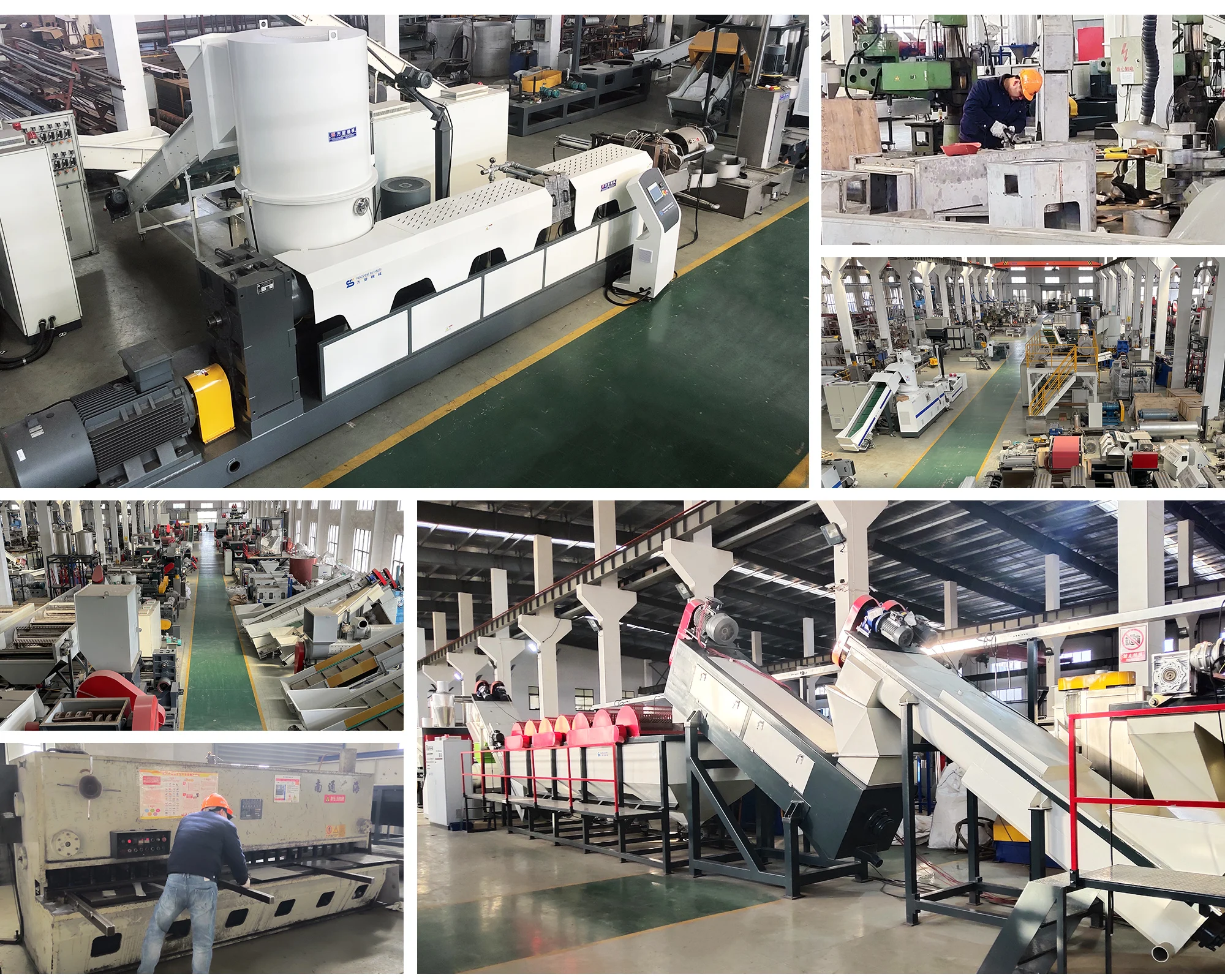

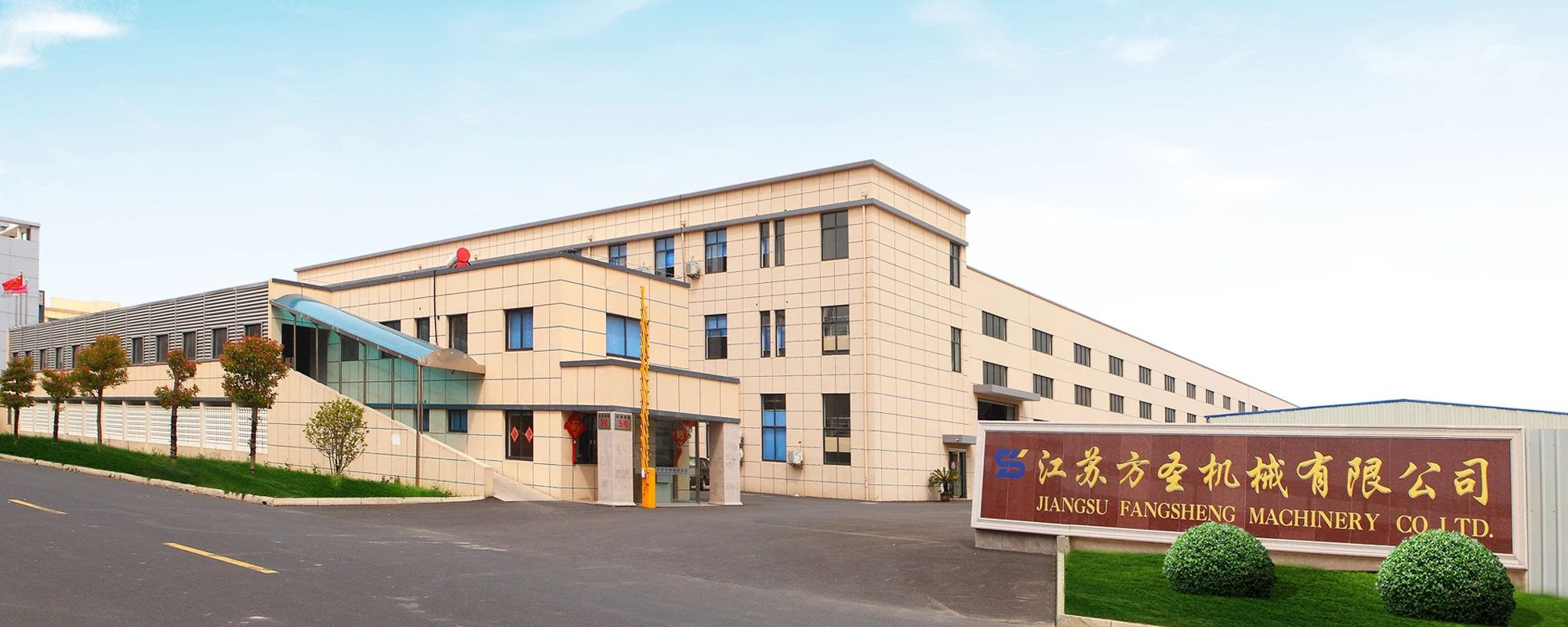

OUR COMPANY
FAQ
1.Your company is a transactional company or an industrial manufacture factory?
● Fangsheng Machinery is an industrial manufacture factory which locates in Zhangjiagang city.
● If you interested in our products and we can fulfill your request , you may pay a visit to our company.
2.All of your products are made by your self or compacted via purchasing the others?
● We have independent technical team who focus on making machines, all the products are made by our technical team.
● All the machines are manufactured with high quality, we choose our material very strict,all the material come to our factory must pass the test substandard goods are returned to the supplier.
3.Do you have any other services about your products?
● We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
4.How do you make the quotation for clients?
● The price depends on quality and performance, but the clients should be satisfied first.
5:Do you have any after sales service?
● When all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory.
● After the commissioning, we will package the equipment by the standard export package for shipment.
● After appointment with the customer, our engineers will go to the customers' factory for installation and training.
● Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.
● Fangsheng Machinery is an industrial manufacture factory which locates in Zhangjiagang city.
● If you interested in our products and we can fulfill your request , you may pay a visit to our company.
2.All of your products are made by your self or compacted via purchasing the others?
● We have independent technical team who focus on making machines, all the products are made by our technical team.
● All the machines are manufactured with high quality, we choose our material very strict,all the material come to our factory must pass the test substandard goods are returned to the supplier.
3.Do you have any other services about your products?
● We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
4.How do you make the quotation for clients?
● The price depends on quality and performance, but the clients should be satisfied first.
5:Do you have any after sales service?
● When all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory.
● After the commissioning, we will package the equipment by the standard export package for shipment.
● After appointment with the customer, our engineers will go to the customers' factory for installation and training.
● Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.
