Круглый люк высокого давления из нержавеющей стали SS304, крышка люка с смотровым стеклом, фланец из стекла
- Category: Other Fabrication Services >>>
- Supplier: Quzhou KingGo Machinery Co. Ltd.
Share on (60578520451):
Product Overview
Description
Specifications
Product name: | Stainless steel Tank SS304 High Pressure Round Manhole Cover With Sight Glass |
Material: | AISI304(1.4301)/316L(1.4404) |
Handle wheel: | Plastic handle or stainless steel handle |
Cover: | Outward/Inward opening manhole cover |
With sight glass: | Flange type or union type |
Internal surface: | Ra≤0.8um-0.5um |
Outside surface: | Mirror polishing,satin polishing,sub-blasting polishing |
Max.pressure | 5.0bar |
Gasket: | EPDM,SILICONE,NBR,FPM in according with FDA177.1600 |
Height: | 75,100,160or by customer's requirement |
Thickness: | 6mm,4mm or customer;s requirement |
Application: | Install on the dairy beer,beverage tank equipment |

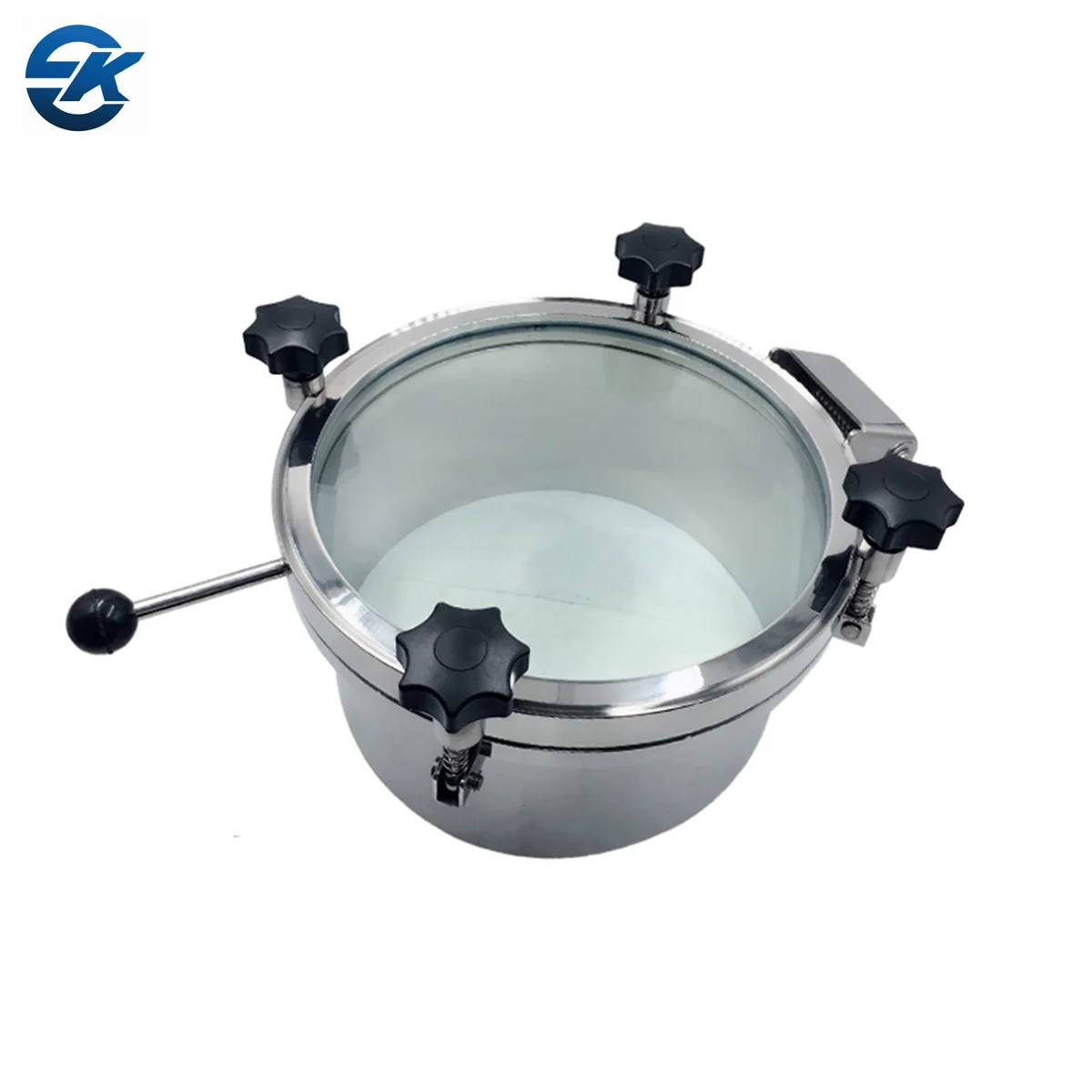

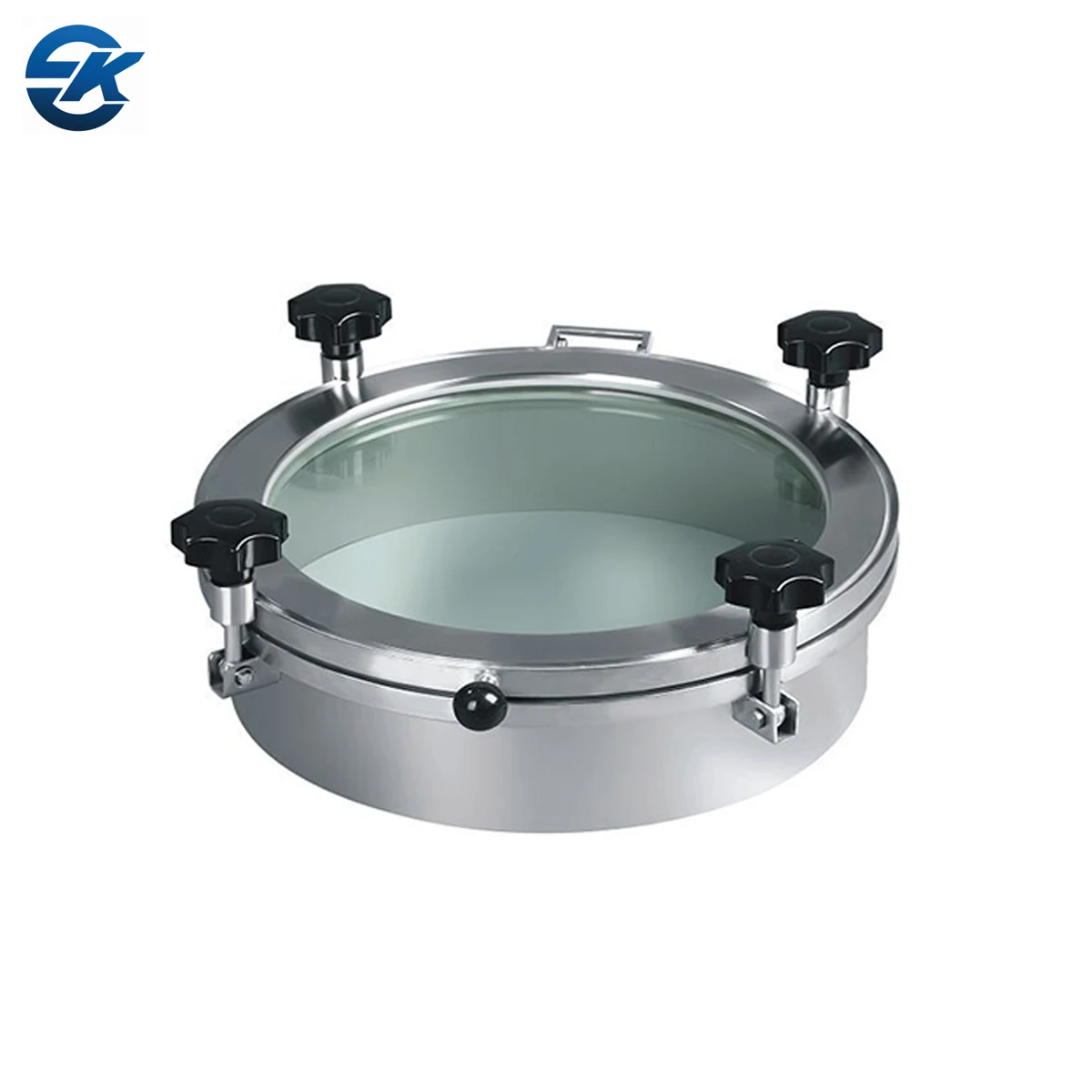

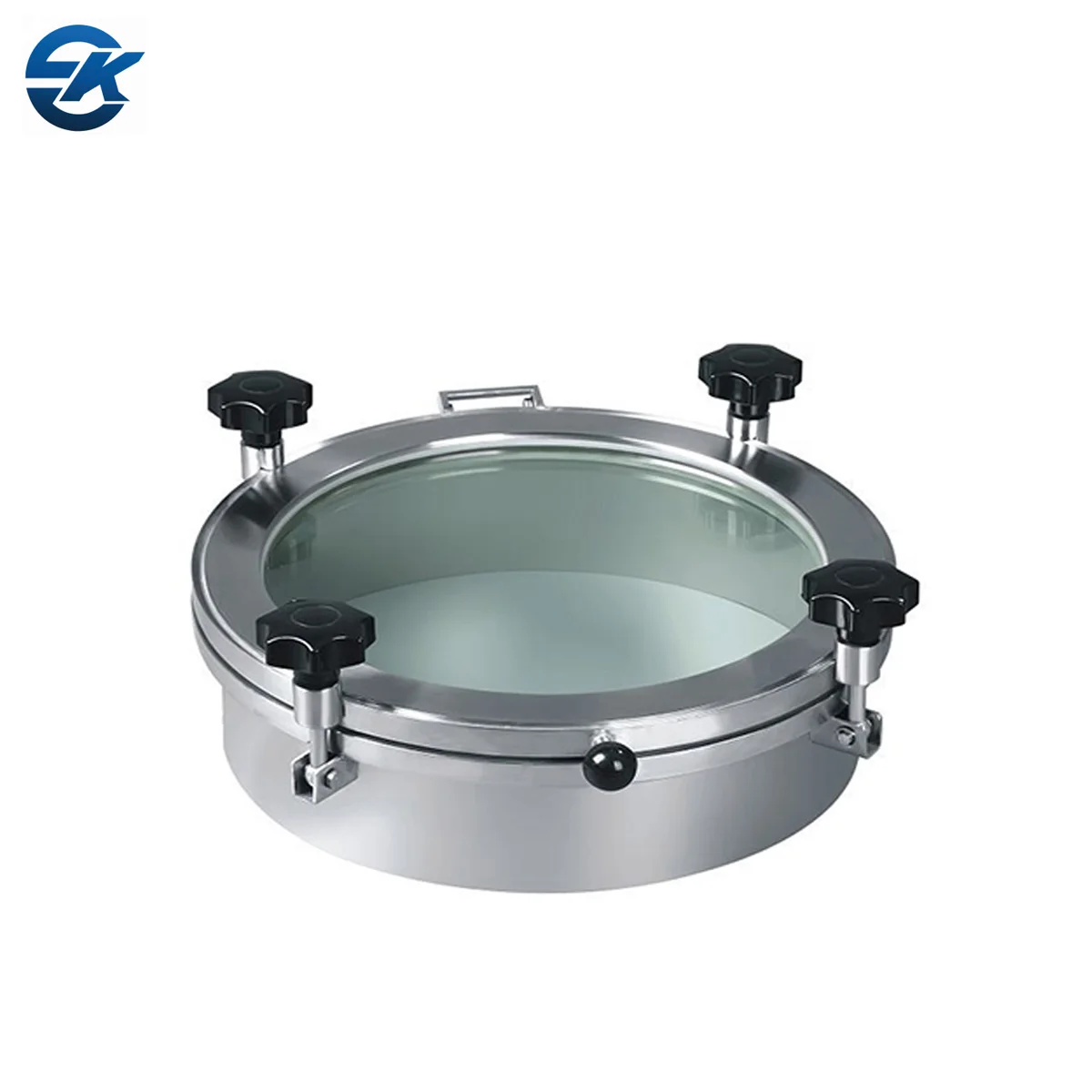

Product shows

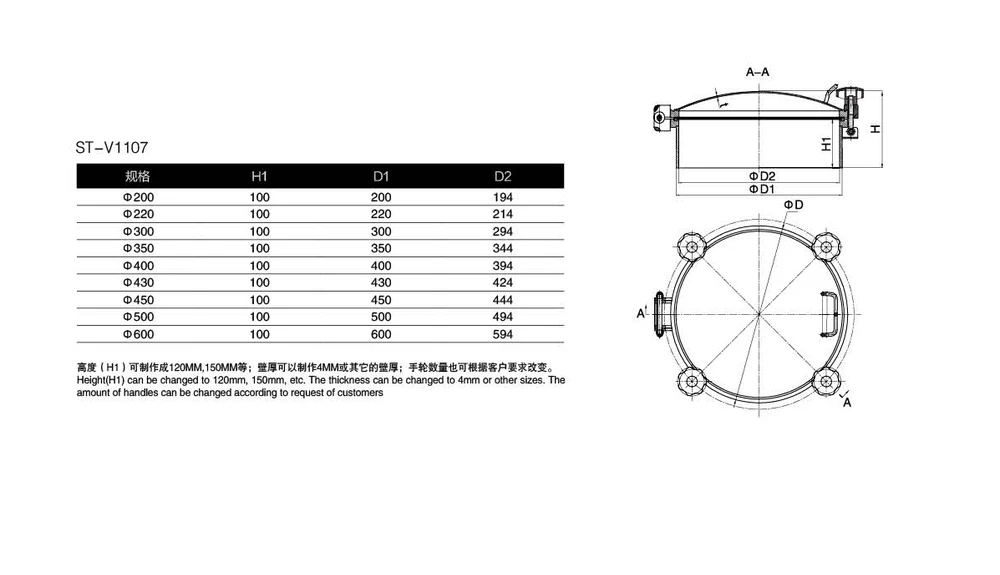

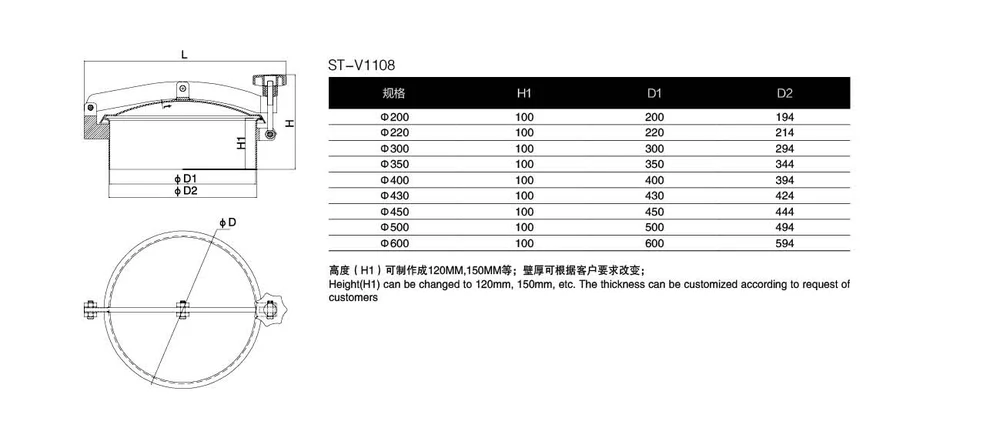

Drawing
Company Information
FAQ
1,How about the surface finishing ?
KingGo valves and pipe fittings have CNC machine finished,matt and mirror polished,it will be
confirmed by customer’s requirement.
2,If free sample available before place order ?
Yes,we are glad to send you free sample to check quality,the shipment freight will be collected by customers.
3,Is there any MOQ provide ?
Our standard products MOQ will be ok to be 10pcs each size,for special custom by customer it will be check detail.
4,Our business payment terms ?
We will accept: T/T,L/C,Paypal,Alipay,West Union and so on.
5,Our standard export packing ?
For small order: plastic package each pc to carton and then into weaving bag.
Large order: plactic package into cartons,then cartons into plywood case.
6,Shipment way choose ?
Small orders will be choose by express,by airline.
Large orders will be choose by sea.
It will according to customer’s request.
