GROW R301T Factory Capacitive Fingerprint Module Scanner With 1700 capacity
- Category: >>>
- Supplier: Hangzhou Grow Technology Co. Ltd.
Share on (60578689054):
Product Overview
Description
Product Description
Description
R301T which added fingerprint touch function.
1. Integrated image collecting and algorithm chip together, ALL-in-One
2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate
3. The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box
Specifications
SPECIFICATION | |
Model | R301T |
Type | Capacitive Fingerprint Module |
Interface | USB,UART(RS232 TTL) |
Resolution | 508 DPI |
Voltage | DC 4.2-6V |
Fingerprint Capacity | 3000 |
Sensing array | 192*192 pixel |

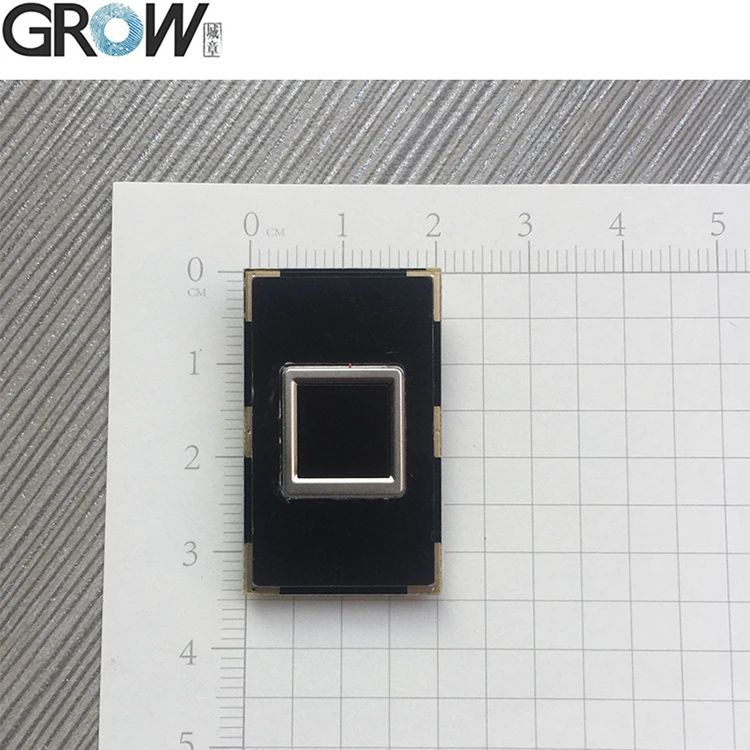

Fingerprint module size | 33.4*20.4*1.0(mm) |
Effective collection area | 10 * 10 (mm) |
Scanning Speed | < 0.2 second |
Verification Speed | < 0.3 second |
Matching Method | 1:1; 1:N |
FRR | ≤0.1% |
FAR | ≤0.001% |
Work environment | -20C ---50C |
Work Humidity | 10-85% |
Anti-static capacity | 15KV |
Abrasive resistance intensity | 1 million times |
Communications baud rate (UART): | (9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps) |
Files
·All fingerprint module support with Arduino, Android, Windows, Linux, .Net and so on.
·Provide Free SDK Files
·Provide User Manual
You can download the R301T user manual from this website link:
Images

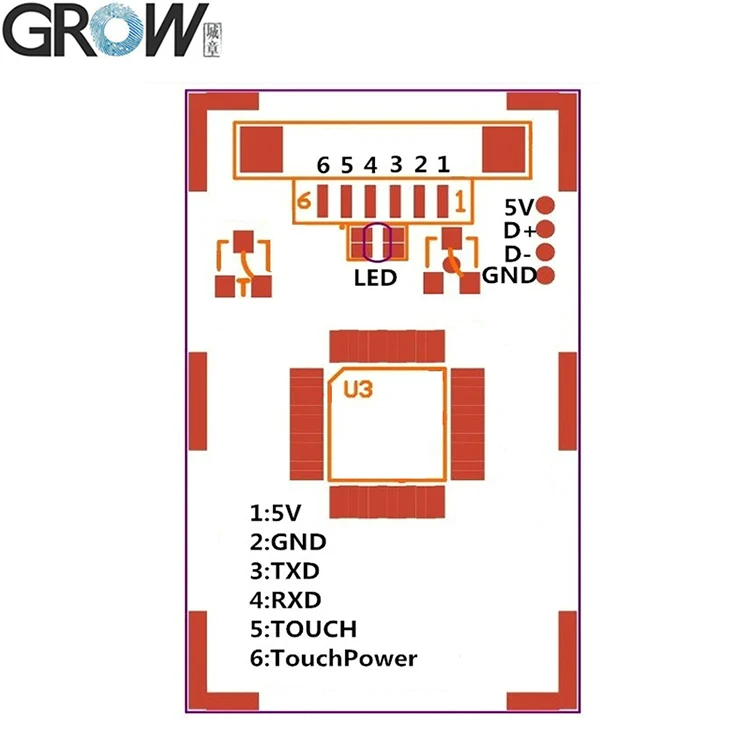

R301T fingerprint module circuit board diagram
3.3VDC power may be selected to supply when connecting the pin 2 and pin 3.
Caution: Operating carefully, and R301 will be damaged when wong connection.
Package Listing
If need to install the bracket, please click here:
If need to install the enclosure, please click here:
