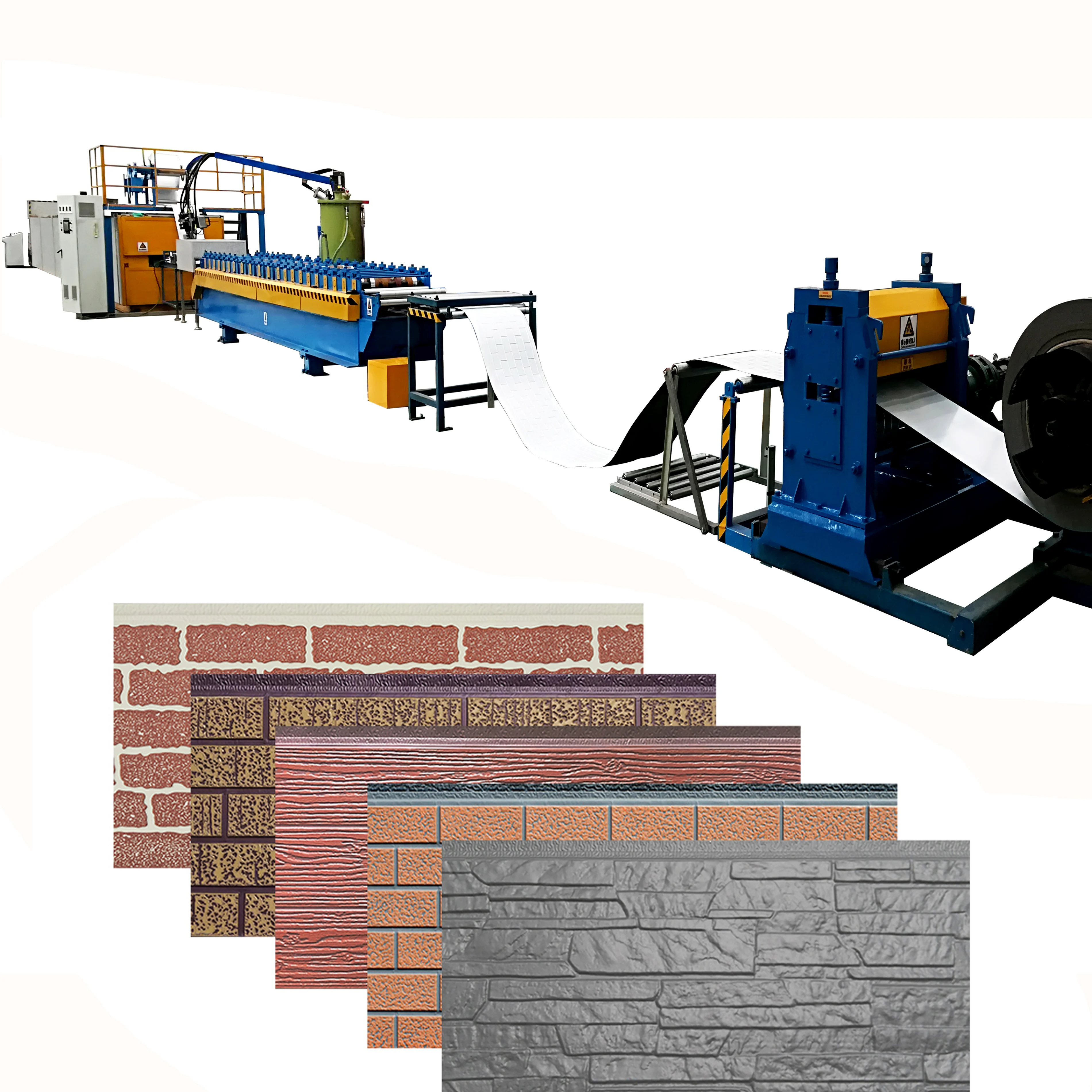

High Efficient  Continuous PU Sandwich Panel Making Machine/PU Sandwich Panel Production Line



Specification of the panel

1. Panel width; 380mm

2. Panel thickness: 16-40mm

3. Panel length: 3800mm or by custom request

4. Production speed: 3-8m/min

5. Length of belt laminator: 18-24m

6. Max temperatione of hot-air circulation: 65-70℃

7. Dimensions of the line: 52000x2000x3000mm(LxWxH)

8. Total power: 80Kw



The production process:

1. Uncoller machine

2. Embossing machine

3. Level machine

4. Roll forming machine

5. Pre-heat room

6. Soft substrate uncolling system

7. PU foaming machine

8. Double-belt conveyor

9. Saw cutting

10. Auto stacher

11. Wrapping machine

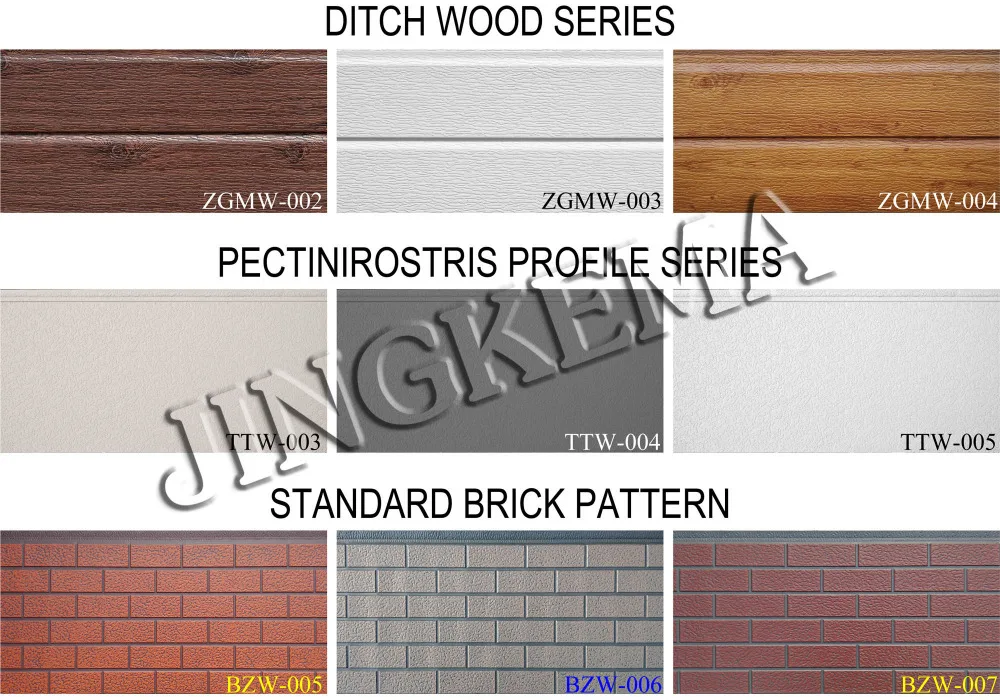

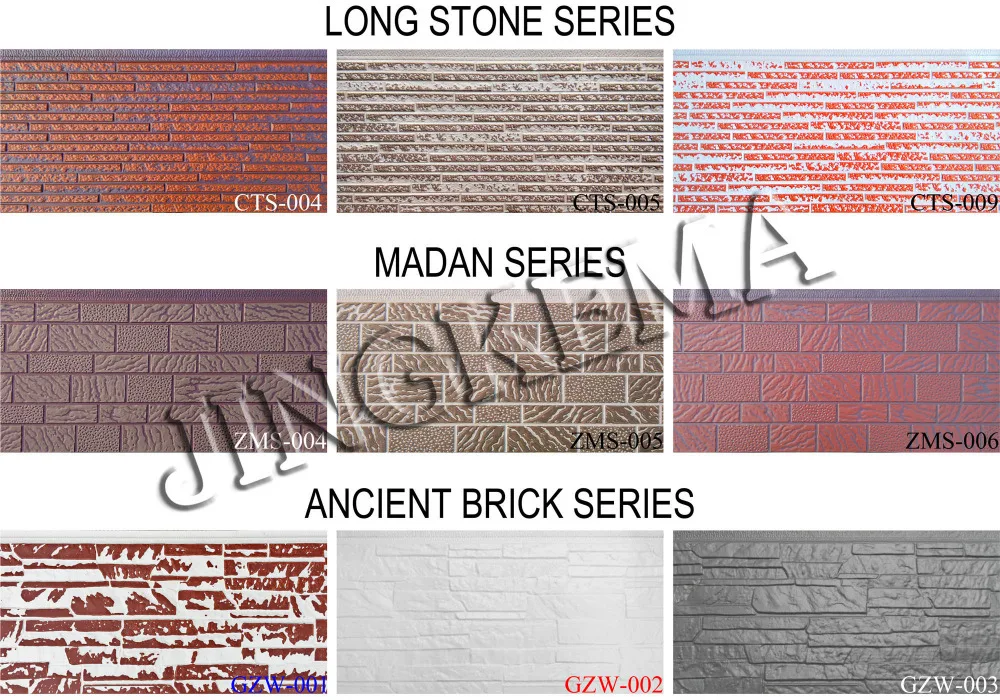

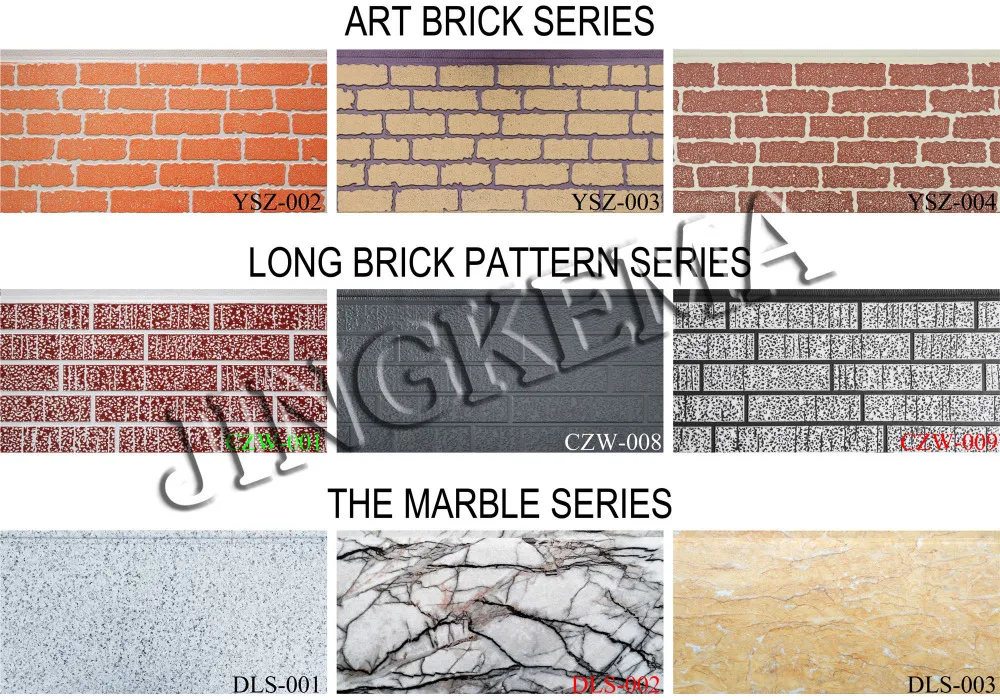

Wall panel model

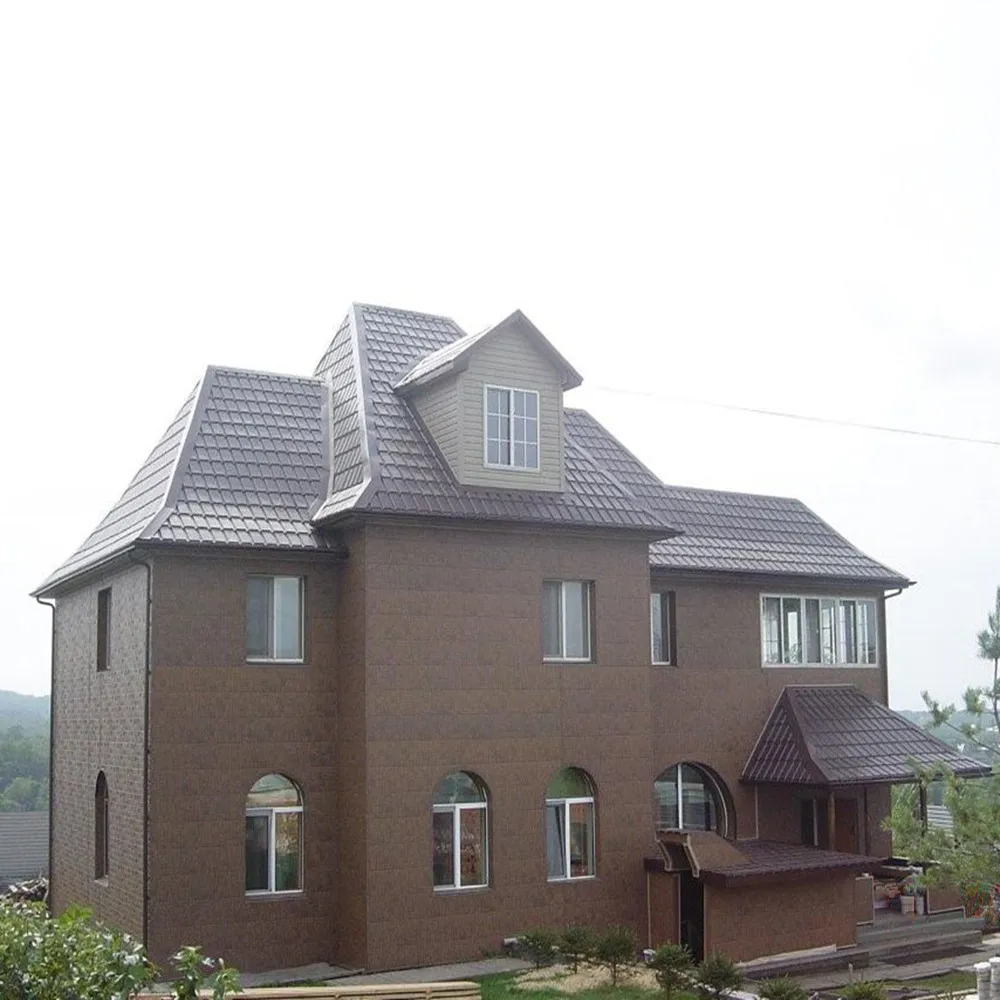

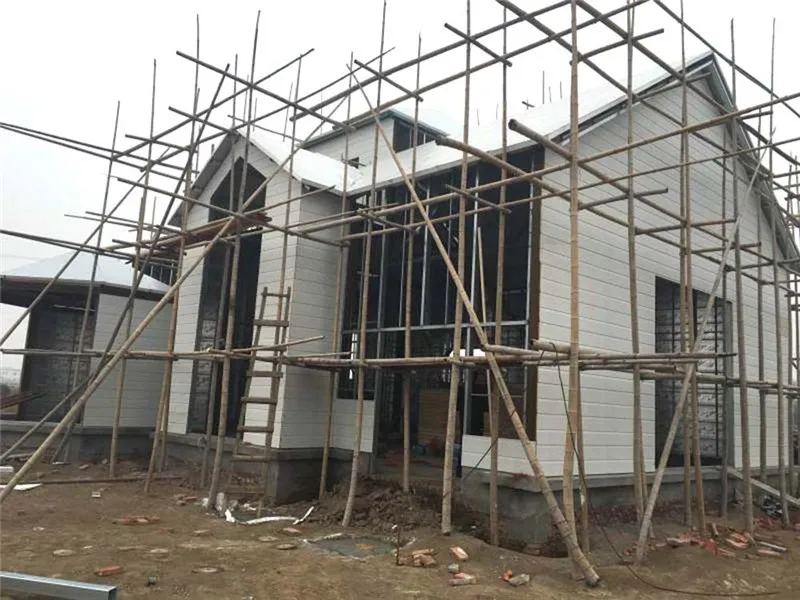

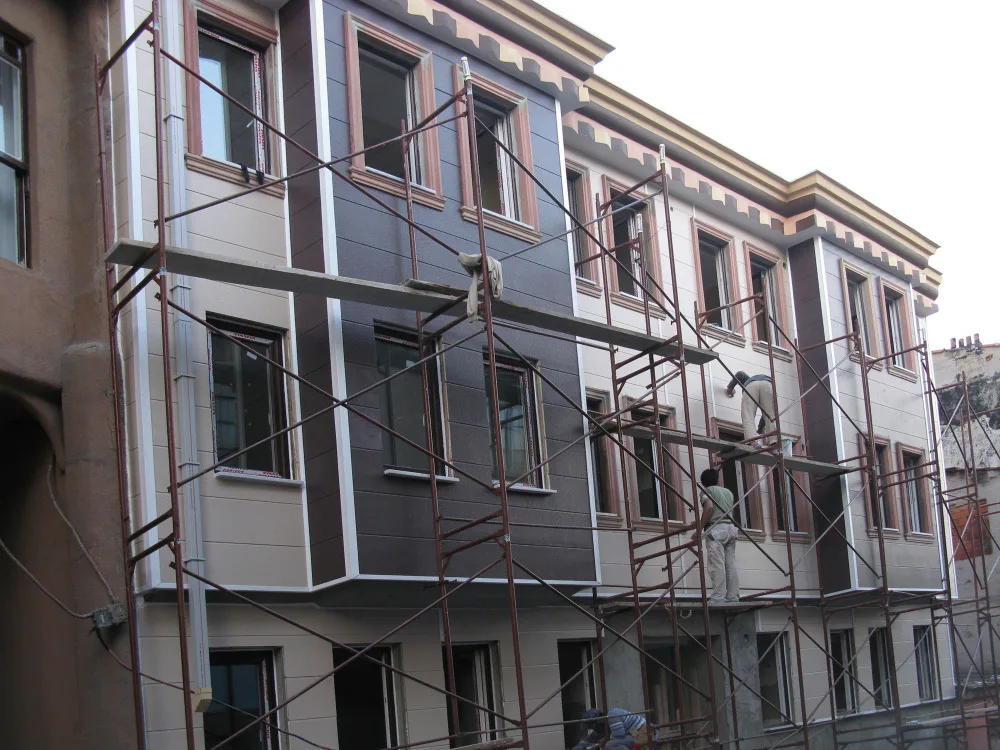

Install the effect
