SECOP hermetic compressor Kitchen refrigerator air cooled refrigeration condensing unit

Product Overview

Description

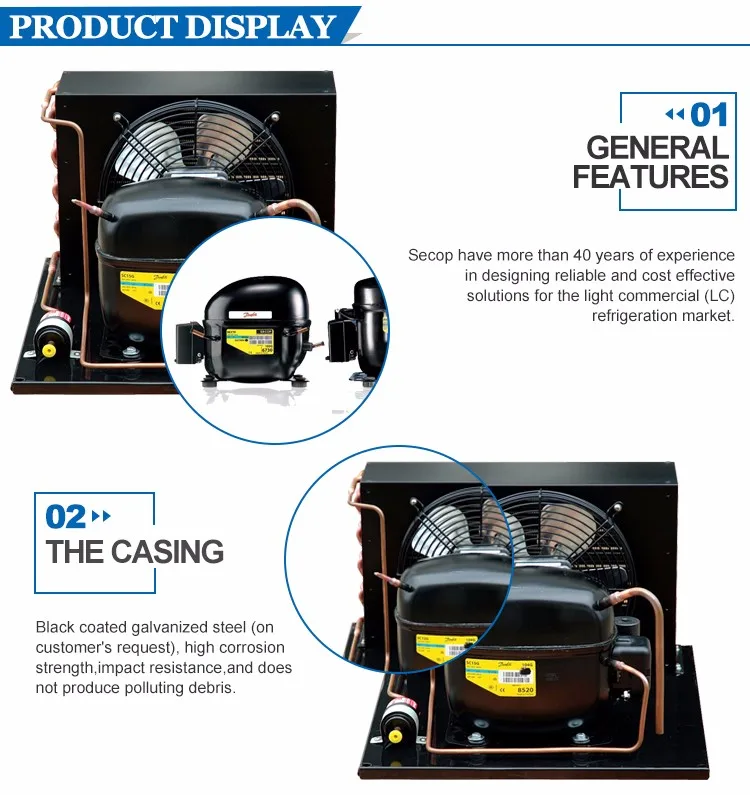

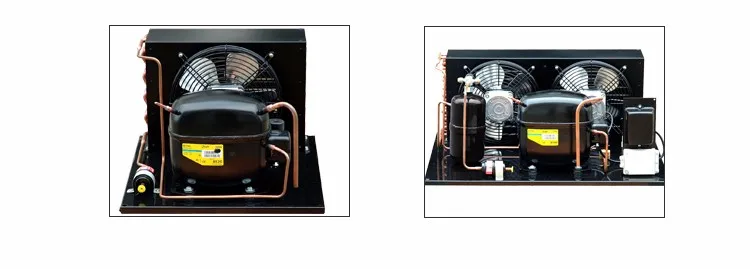

220V/1PH/50HZ SECOP hermetic compressor condensing unit

Low temperature                                    R404A

Nominal data

LBP	HP	Compressor	Voltage	Condenser surface	Fan		Cooling capacity(W)					Suction	Discharge	Size
							ASHRAE
							Evaporating temperature(°C)							L	W	H
Model			V-PH-HZ	M2	No x Φ	type	-30	-25	-23.3	-20	-15			MM
LKPG020	1/5	FR8.5CL	220-1-50	2.4	1 x 200	square shade pole fan	259	338	369	434	546	8.2mm	6.2mm	300	460	275
LKPG028	1/4	NL7CLX	220-1-50	2.3	1 x 250	square shade pole fan	305	395	429	500	623	8.2mm	6.2mm	330	460	320
LKPG033	1/3	SC10CL	220-1-50	4.1	1 x 250	square shade pole fan	300	424	470	569	737	8.2mm	6.2mm	360	460	320
LKPG038	3/8	SC12CL	220-1-50	4.1	1 x 250	square shade pole fan	410	568	629	754	971	8.2mm	6.2mm	360	460	320
LKPG048	1/2	SC15CL	220-1-50	4.6	1 x 300	axial fan motor	525	714	782	920	1149	8.2mm	6.2mm	440	460	395
LKPG068	3/4	SC18CL	220-1-50	6.1	1 x 300	axial fan motor	628	830	907	1067	1342	10.2mm	6.2mm	440	460	395
LKPG100	1	SC21CL	220-1-50	8.6	1 x 300	axial fan motor	719	947	1033	1215	1524	10.2mm	6.2mm	520	460	450
TEST CONDITION: Condensing Temperature: 45°C



220V/1PH/50HZ Secop hermetic compressor condensing unit

Medium temperature                           R134A

Nominal data

MBP	HP	Compressor	Voltage	Condenser surface	Fan		Cooling capacity(W)					Suction	Discharge	Size
							ASHRAE
							Evaporating temperature(°C)							L	W	H
Model			V-PH-HZ	M2	No x Φ	type	-5	0	5	7.2	10			MM
LKPG020	1/5	FR7.5G	220-1-50	1.8	1 x 200	square shade pole fan	402	506	627	687	768	8.2mm	6.2mm	300	460	275
LKPG028	1/4	FR8.5G	220-1-50	2.4	1 x 200	square shade pole fan	471	592	734	803	898	8.2mm	6.2mm	300	460	275
LKPG033	1/3	SC10G	220-1-50	2.3	1 x 250	square shade pole fan	600	764	946	1032	1147	8.2mm	6.2mm	330	460	320
LKPG038	3/8	SC12G	220-1-50	2.3	1 x 250	square shade pole fan	746	951	1191	1308	1469	8.2mm	6.2mm	330	460	320
LKPG048	1/2	SC15G	220-1-50	4.1	1 x 250	square shade pole fan	901	1124	1377	1499	1665	8.2mm	6.2mm	360	460	320
LKPG068	3/4	SC18G	220-1-50	4.6	1 x 300	axial fan motor	1074	1343	1655	1807	2014	8.2mm	6.2mm	440	460	395
LKPG100	1	SC21G	220-1-50	6.1	1 x 300	axial fan motor	1250	1568	1931	2106	2343	10.2mm	6.2mm	440	460	395
TEST CONDITION: Condensing Temperature: 55°C



220V/1PH/50HZ Secop hermetic compressor condensing unit

Medium temperature                           R404A

Nominal data

MBP	HP	Compressor	Voltage	Condenser surface	Fan		Cooling capacity(W)					Suction	Discharge	Size
							EN12900
							Evaporating temperature(°C)							L	W	H
Model			V-PH-HZ	M2	No x Φ	type	-15	-10	-6.7	-5	0			MM
LKPG028	1/4	NF7MLX	220-1-50	2.3	1 x 250	square shade pole fan	511	635	726	777	940	8.2mm	6.2mm	330	460	320
LKPG033	1/3	SC10MLX	220-1-50	4.1	1 x 250	square shade pole fan	687	855	981	1051	1278	8.2mm	6.2mm	360	460	320
LKPG038	3/8	SC12MLX	220-1-50	4.1	1 x 250	square shade pole fan	838	1038	1188	1272	1542	8.2mm	6.2mm	360	460	320
LKPG048	1/2	SC15MLX	220-1-50	4.6	1 x 300	axial fan motor	1038	1285	1471	1574	1909	8.2mm	6.2mm	440	460	395
LKPG068	3/4	SC18MLX	220-1-50	6.1	1 x 300	axial fan motor	1210	1497	1712	1832	2220	10.2mm	6.2mm	440	460	395
TEST CONDITION: Condensing Temperature: 45°C
