China good price spray booth paint booth bake oven
- Category: Spray Booths >>>
- Supplier: Jinan,Aos,International,Co.,Ltd.
Share on:
Product Overview
Description

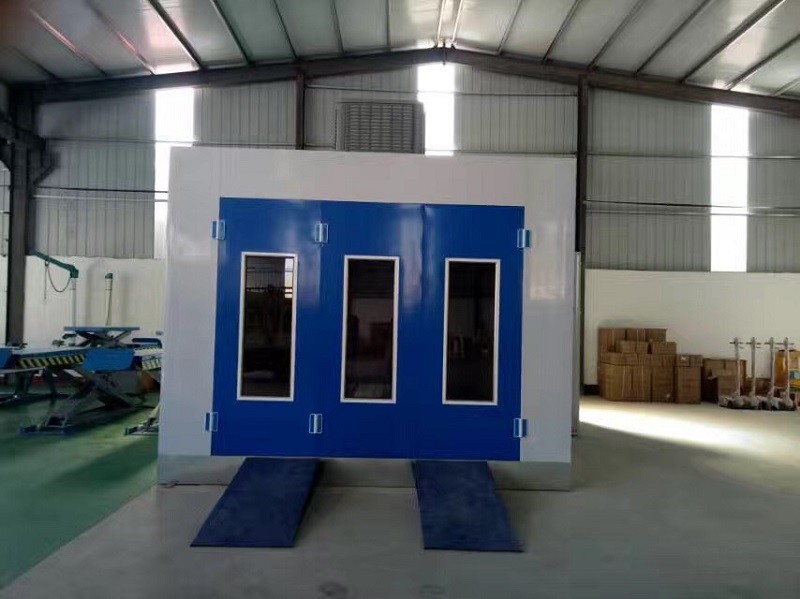

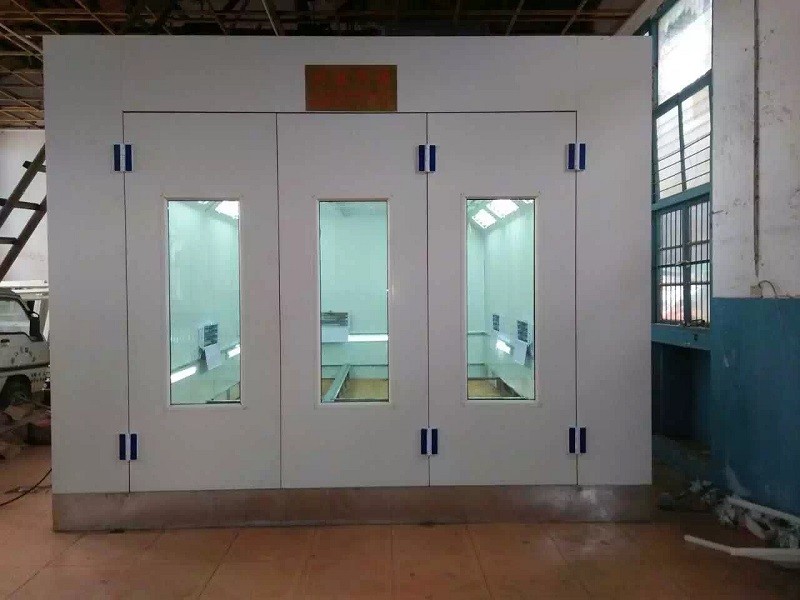

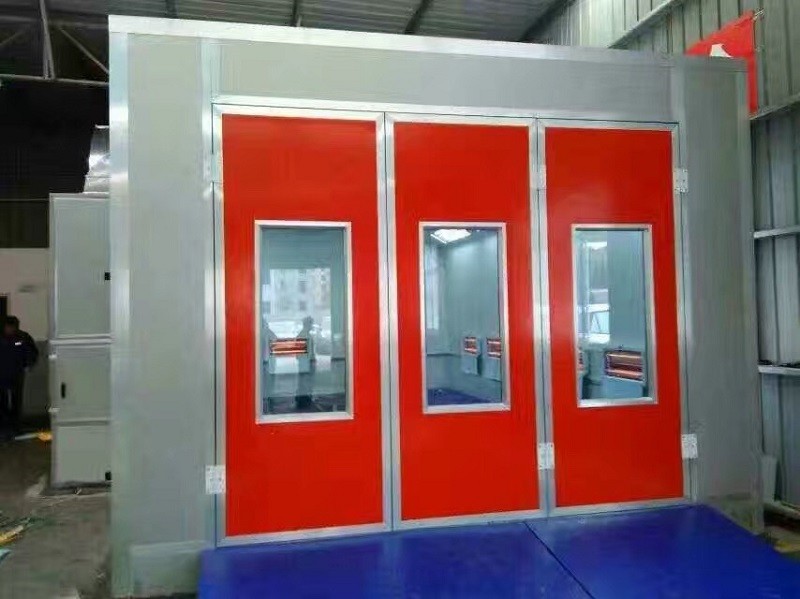

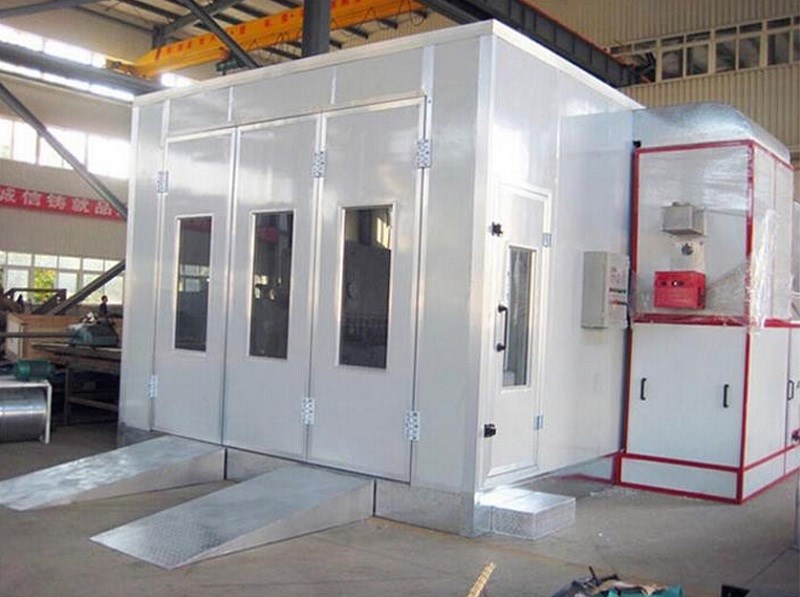

High Quality Car Paint Oven Cabin
We can design and produce kinds of spray booth paint booth bake ovenes according to client requiremnts, so please tell me your requirements if you have different need.
The following is one of the normal model of our spray booth paint booth bake oven:
| Inside Dimension | 6900×3900×2700(mm)L×W×H |
| Outside Dimension | 7000×5350×3400(mm)L×W×H |
| Main Door | 3-folds, 2800×2500(mm)W×H |
| Personal Door | 1 fold, 600×1800(mm)W×H |
| Wall Panels | EPS (epispastics polystyrene) colorful steel skin board, wall panel: 50 mm thick, 0.4 mm steel, tongue & groove style compound construction, Aluminum-alloy frame, anti-flame and heat-insulation, galvanized steel roof panel |
| Basement and Floor | Galvanized steel assemble, height is 300mm, complete grilles, 2 pcs of ramps, 1060×1750mm (W×L) |
| Lighting | Ceiling lights:8 units×3pcs×36w; Side lights: 8 units×2pcs×36w |
| Generator Setting Type | Side upper intake air, aluminium alloy frame, coated steel. |
| Intake Air Fan | 2×4KW double-intake centrifugal fans, air capacity:24000m3/h |
| Extract Air Fan | 1×5.5kw double-intake centrifugal fans, air capacity:18000m3/h |
| Heating System | RIELLO G20 oil burner, heating productivity: 200000 Kcal/h, stainless steel heat exchanger, with anti-explosion hole for protection, working temperature is 80ºC, electric damper from spraying to baking cycle. |
| Purification System | Dual filtering structure, the primary filter can capture granules larger than 10μm. Ceiling filter can capture granules bigger than 4μm. Its filtering rate reaches 98%. Air pressure balance gauge, TSP≤1.4mg/m3 |
| Control System | Lighting switch, spraying, heat spraying, baking, temperature controller, time setting, emergency stop, temperature limit controller. |
| Environmental System | Fiberglass floor filter |
| Total Power | 15KW |
