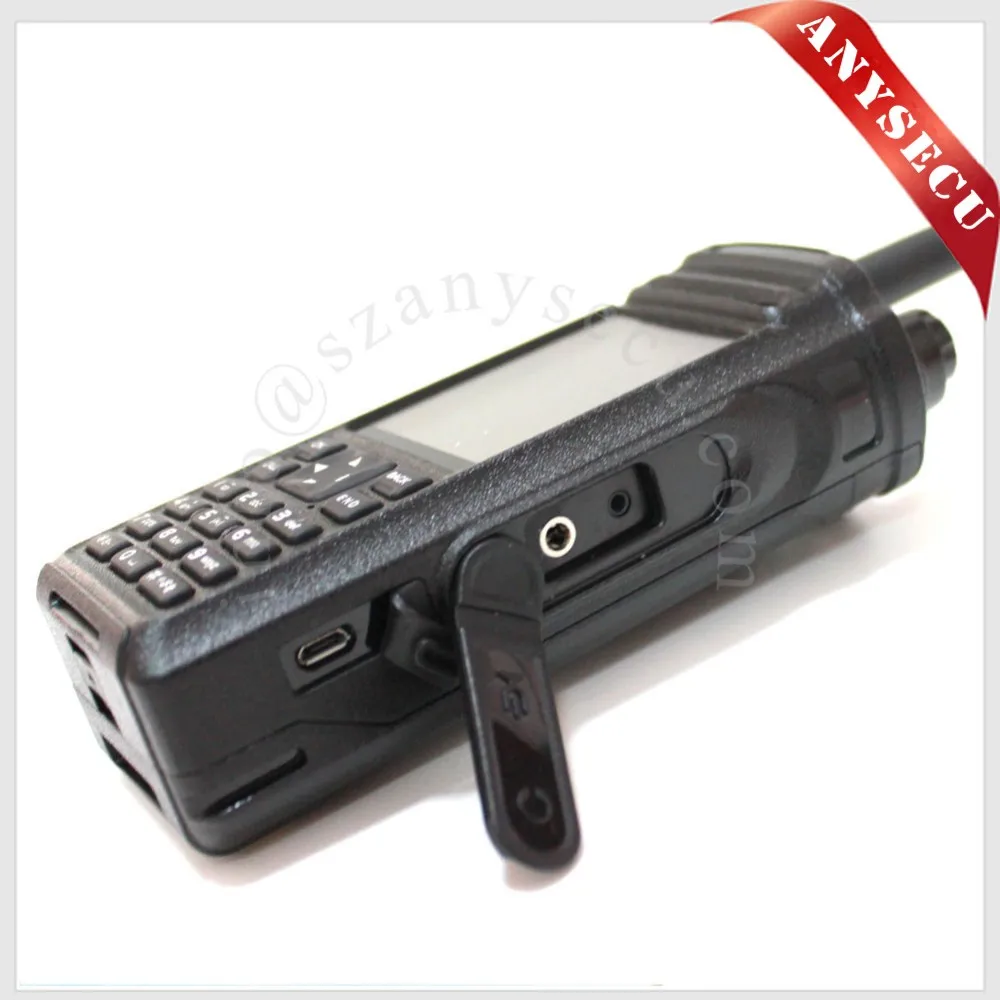

intrinsically safe radio WCDMA 3G WiFi Radio 3G HD6800 with GPS SIM Card dual sim FM Transceiver

How 3G Radio Works?

1.3G radios work with GSM850/1900/UTMS2100MHz or GSM900/1800/UTMS2100MHz(depond on your country). SIM Card  required to offer Data talke worldwide, no Distance limit.

2.3G Radio cost data flow, Usually 2.88M/H for continnue talk and 0.06M/day standby mode for reference.

3.you can use Wifi connect network then no data flow cost.

4.there are Register User ID US$21.8 and Yearly US$10.00/year ID manage cost

Type

Parameter Item

Specification

RF Parameter

WCDMA

Band 1:2100M  Band 8:900M

GSM

GSM/GPRS : 850 /900 /1800 /1900MHz;

Maximum RF power

WCDMA  900 /2100MHz: Power Class 3   (+24dBm +2.5dBm /-1.5dBm);

GSM/GPRS 850 /900 MHz :Power Class 4 (+33dBm +2.5 dBm /-0.5 dBm);

GSM/GPRS 1800 /1900 MHz :Power Class 1 (+30dBm +2.5 dBm /-0.5 dBm);

Receiving Sensitivity

WCDMA 900:≤-108 dBm;

WCDMA 2100:≤-109 dBm;

GSM850 /900 /1800 /1900: ≤-106 dBm;

GPS

GPS

GPS Positioning, Support A-GPS function, 1.57542GHz;

Sensitivity

Catch -144dBm,Track -159dBm;

Technology Standard

Data Speed Rate

GSM CS:UL 9.6kpbs / DL 9.6kpbs

GPRS:Multi-slot Class 10

EDGE: Multi-slot Class 12

WCDMA CS: UL 64kpbs / DL 64kpbs

WCDMA PS: UL 384kpbs / DL 384kpbs

Protocol

HSDPA/WCDMA/EDGE/GPRS/GSM

WIFI

WIFI

IEEE 802.11 b/g/n ,2.4G;

Maximum RF power

≤20dBm;

Receiving Sensitivity

IEEE 802.11 g: ≤-65dBm;

Blueteeth

Blueteeth

Support V4.0,V3.0,V2.1 ;

Maximum RF power

Class 1 ≤10dBm;

Receiving Sensitivity

GFSK: ≤-95dBm,DQPSK: ≤-94dBm , DPSK: ≤-88dBm;

Basic Parameter

Working Voltage

3.3V ~ 4.2V (Standard 3.8V)

Working Current

250mA · UTMS 2100/900

220mA · GSM 900

Peak Current

0.8A

Working temperature

-20~50℃

Volume:

Volume:150*64*45mm

Weight:

Weight:220g
