Synthetic Fiber F5 F6 F7 F8 Roll Pad , Paint Arrestor Filter Media
- Category: >>>
- Supplier: Dongguan Senbao Purifying Equipment Co. Ltd.
Share on (60578774551):
Product Overview
Description

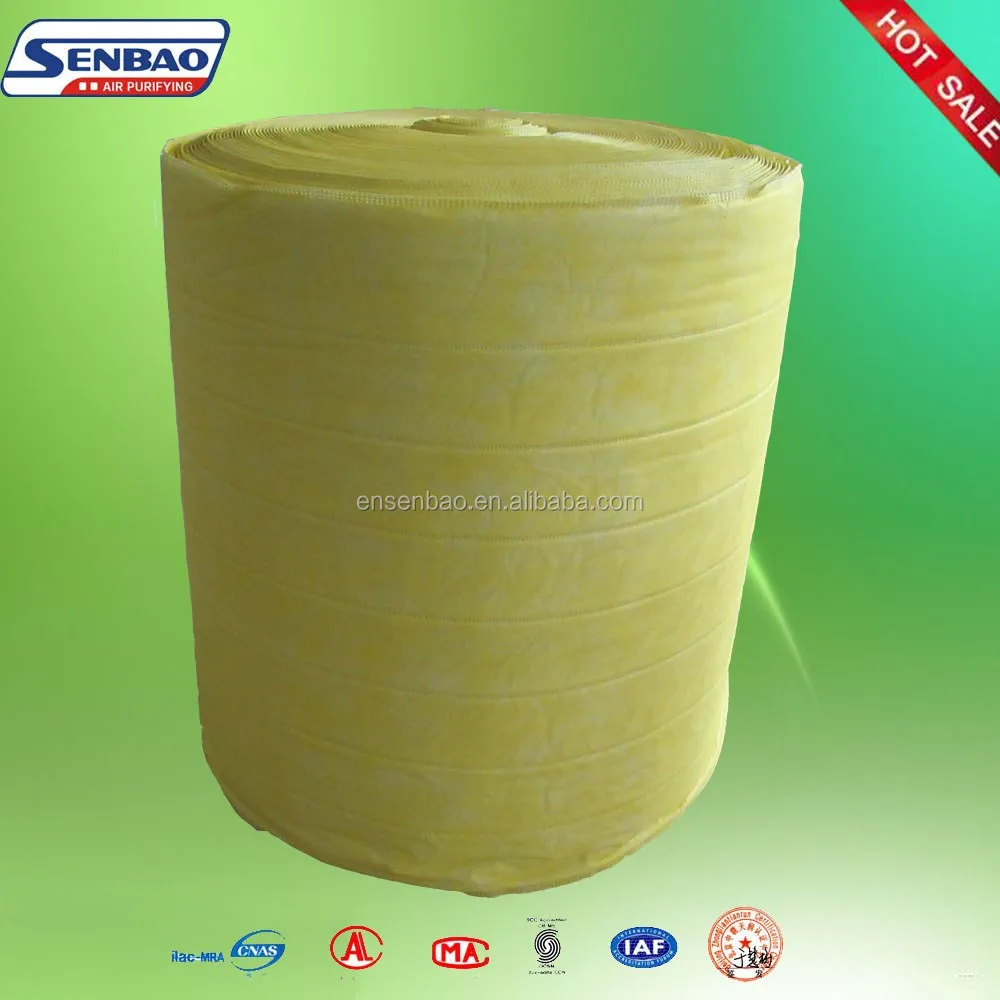

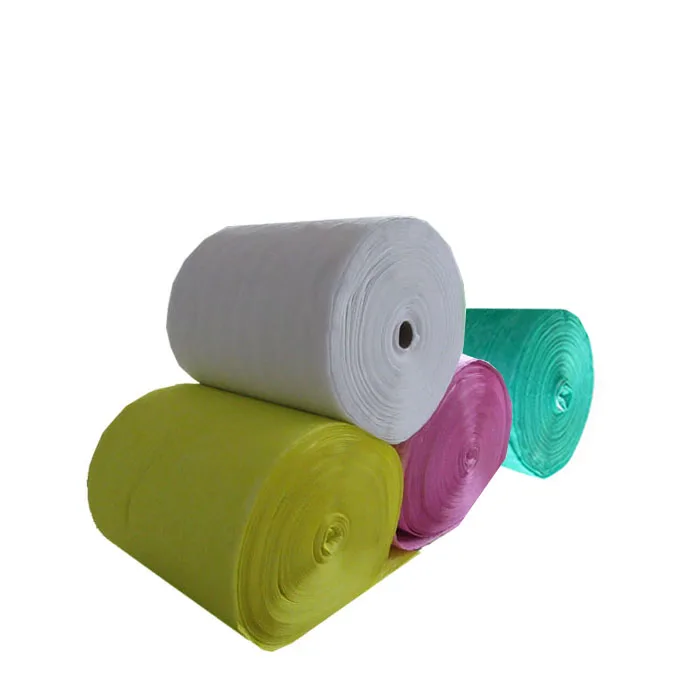

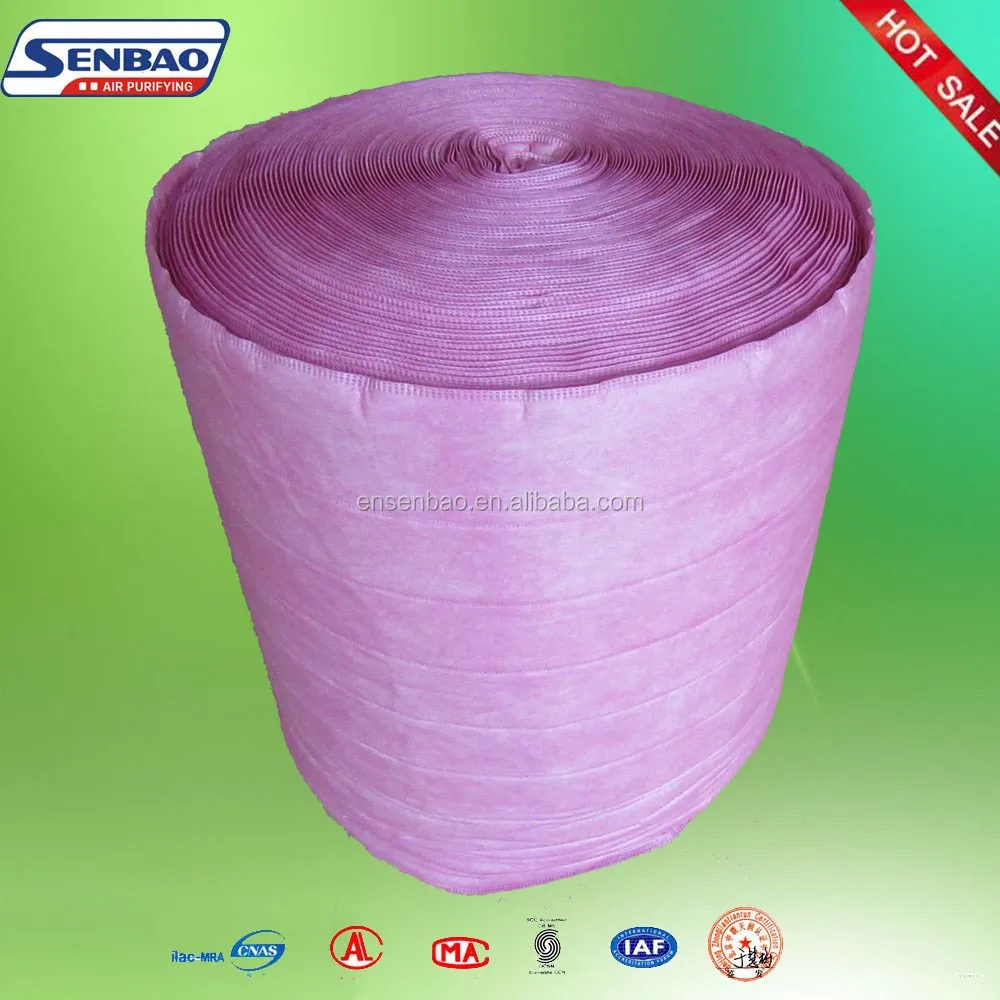

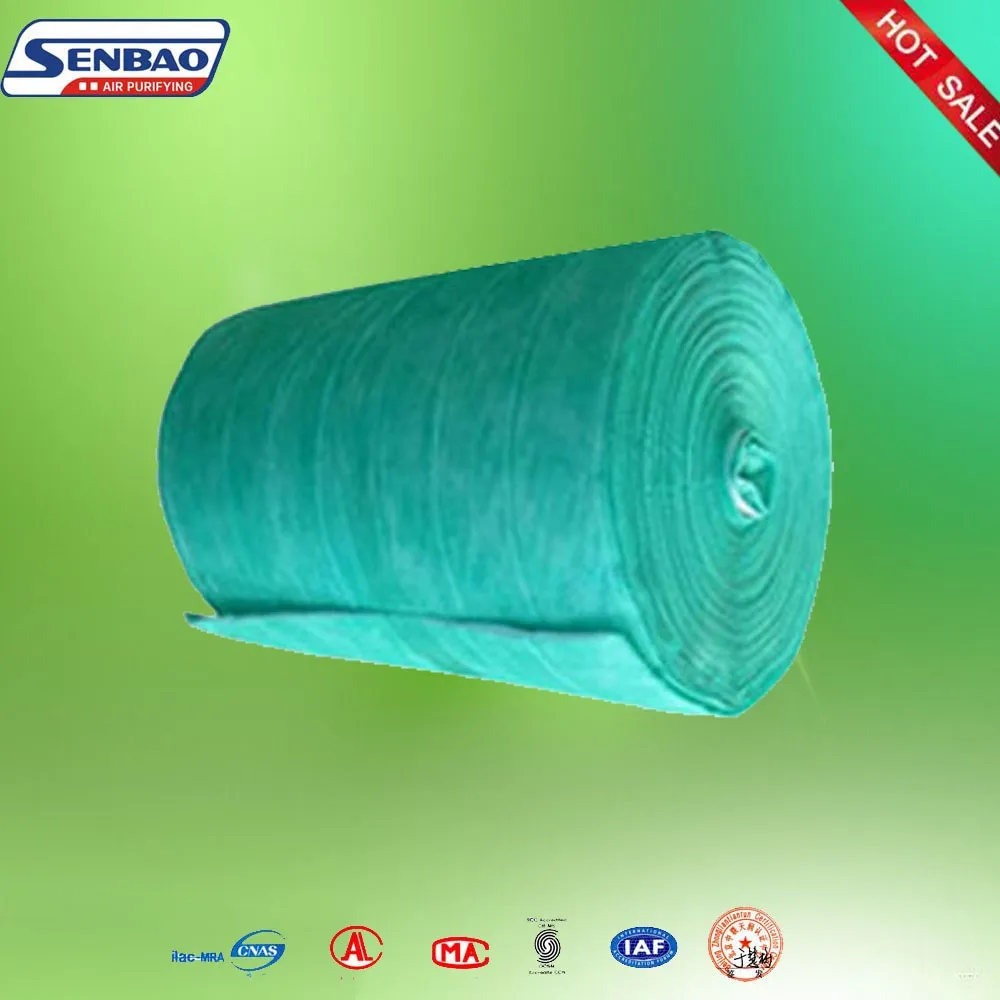

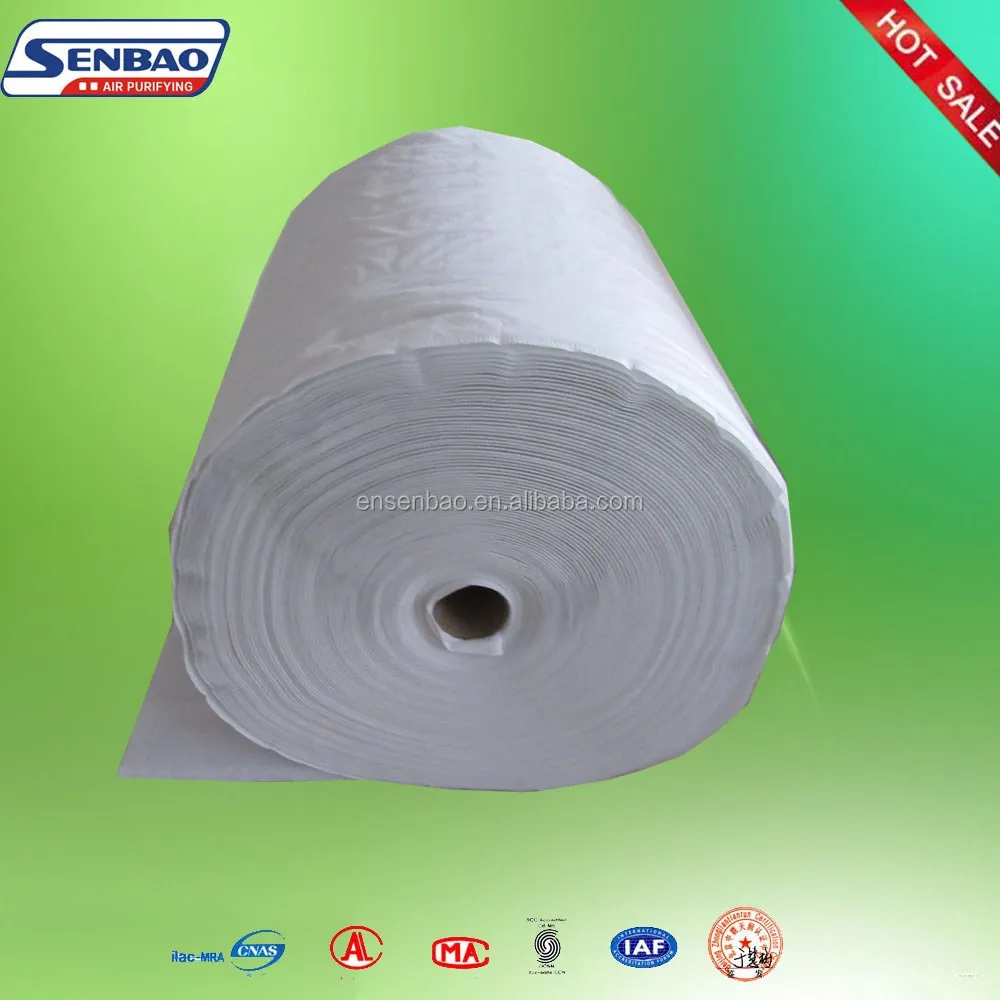

Synthetic Fiber F5 F6 F7 F8 Roll Pad , Paint Arrestor Filter Media
Product Description
Materials:
Bag filter media is made of multi-material. Three layers of filter media is hot melted by imported automatic welder. The first layer is coarse fiber filter cotton to arrest the major dust in air, thinner layer is the fiber filter paper to arrest the smaller dust, the outside layer as the strengthen protection layer.The material adapts to demands of multilayers of filter material and gradient filtration and prolongs the life-span of the product. The product can be widely used in initial and medium bag filters.
Quick Detail:
1.Air filter foam.
2.High air flow rate.
3.Low inital pressure drop.
4.High dust holding capacity.
5.Long operating life.
Feature:
1.fine synthetic fiber.
2.color:White,Green,Pink,Yellow.
3.large dust holding capacity, long working life.
4.efficiency:F5-6-7-8EN77.
5.air blow temperature is above 85°C. Width is 0.6-0.75 m.
6.bag length is requested by customers.
7.after cleaning can be used again.
Application:
Widely used in ventilation and air conditioning system, precision instrument factory, enterprise, spray-paint room of the place such as air purification. With small resistance, air volume and let the characteristics of large amount of dust.
Technology parameters:
No. | Rated air velocity(m/s) | Count efficiency | Resistance(Pa) | Dust holding(g/m2) | Color(EN) | Thickness (mm) | ||
0.5μm | 1μm | 2μm | ||||||
F5 | 0.4 |
| 60 | 75 | 40 | 170 | Withe | 3±1 |
F6 | 0.3 | 35 | 80 | 90 | 50 | 250 | Green | 3±1 |
F7 | 0.15 | 70 | 85 | 95 | 55 | 130 | Pink | 4±1 |
F8 | 0.1 | 80 | 95 | 100 | 65 | 115 | Yellow | 4±1 |
