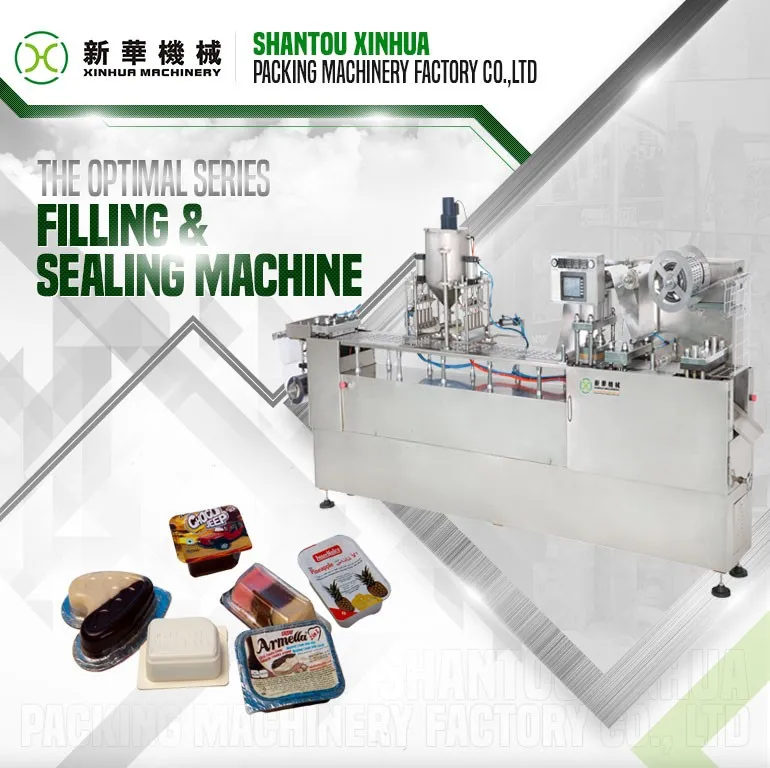

QGF Z Automatic dark nutella chocolate mould forming filling sealing machine

Share on (60578798939):


Price:RUB 1,516,360.00 - RUB 1,895,450.00

Quantity:


Product Overview

Description

Top


Product Application

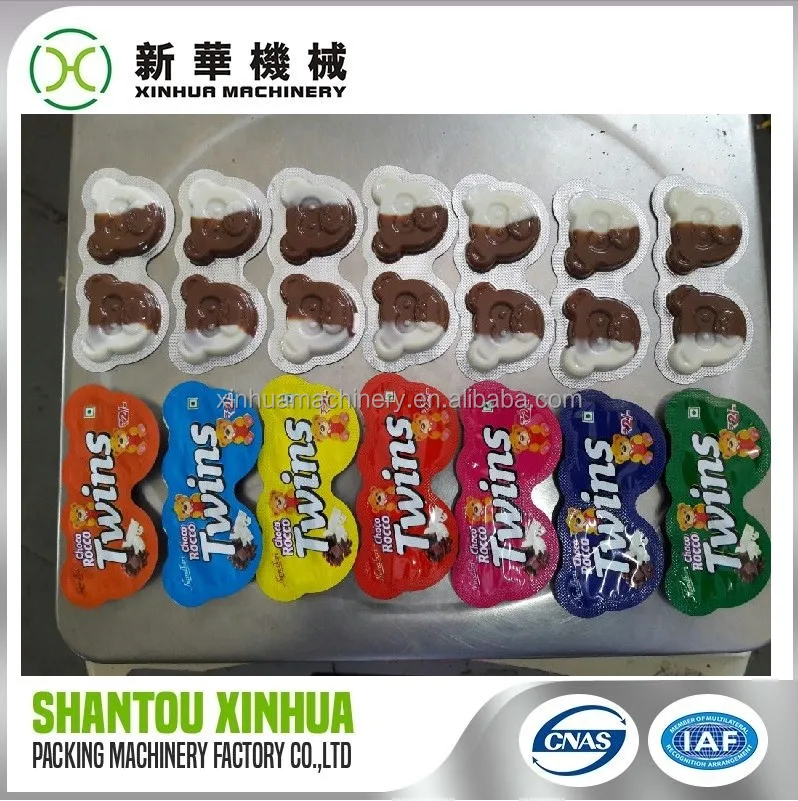

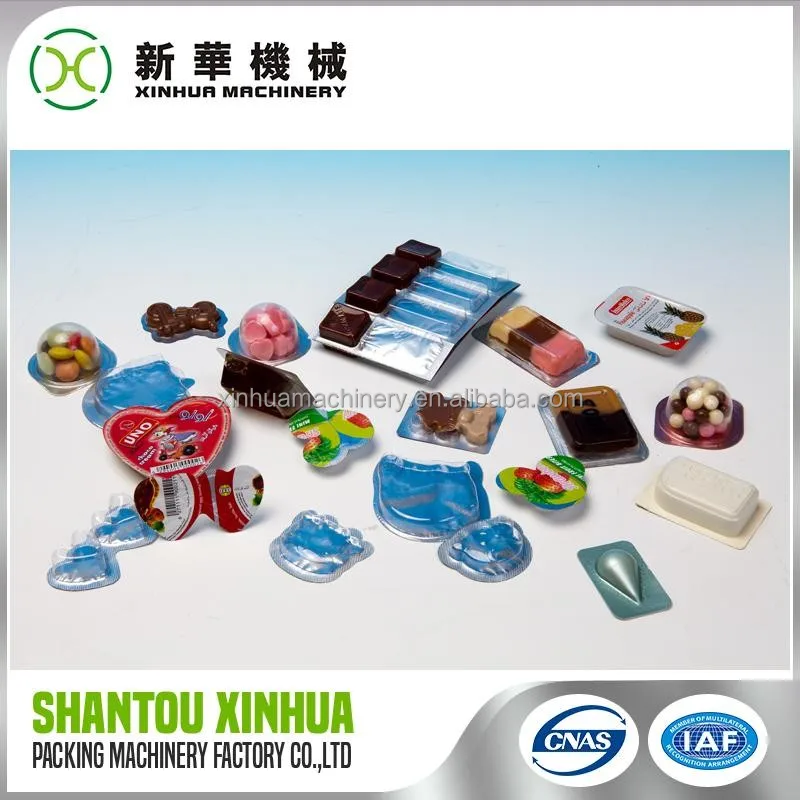

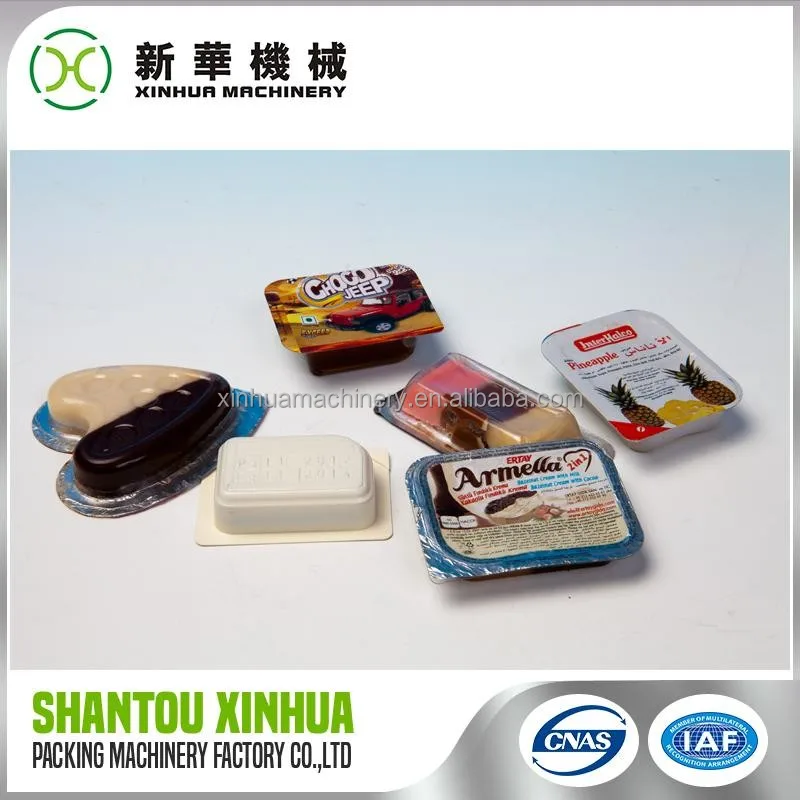

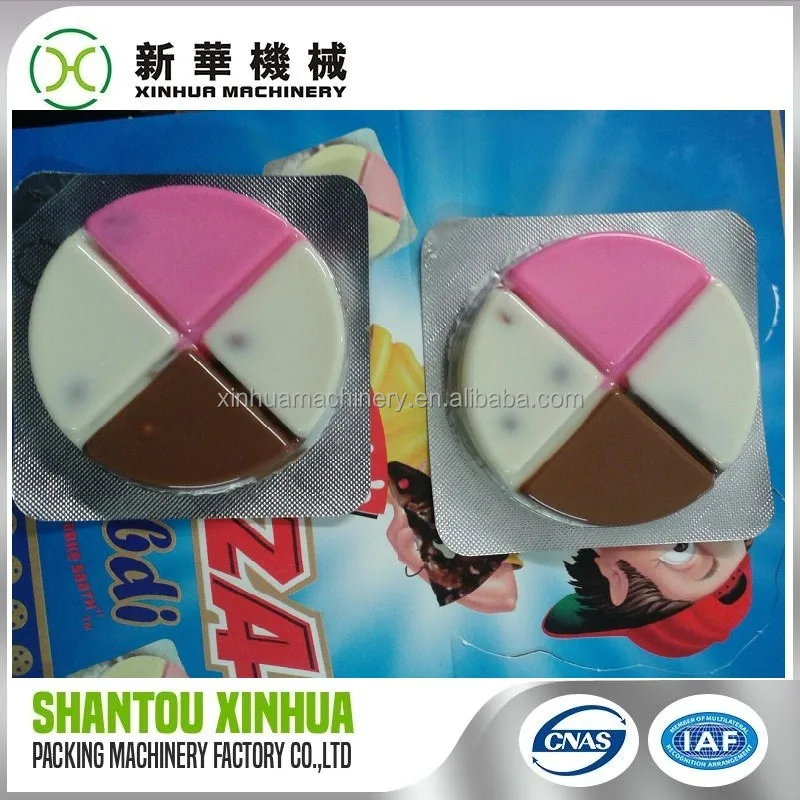

QGF-Z Automatic dark nutella chocolate mould forming filling sealing machine is innovated by our technicians for filling all kinds of free flowing liquid, such as fruit jam, chocolate jam, butter, ketchup, etc. as well as biscuit, candy, troche, capsule and so on.


It adopts with the PLC controlling system: forming---filling---sealing---date printing---cutting---end-products coming out


QGF-Z Automatic dark nutella chocolate mould forming filling sealing machine is with the photoelectric eye device to ensure neat sealing and cutting.
Sheet material: PVC, PS, PE



Product Details

What is the Technical Parameter Details of this machine?

Model

QGF-Z250

QGF-Z320

Description

QGF-Z Automatic dark nutella chocolate mould forming filling sealing machine

QGF-Z Automatic dark nutella chocolate mould forming filling sealing machine

Power:

380V/3 PHASE/50Hz

380V/3 PHASE/50Hz

Cutting frequency

about 20times/min

about 20times/min

Motor power:

1.5Kw

1.5Kw

Air pressure:

0.4-0.6Mpa

0.4-0.6Mpa

Air consumption:

About 0.75³/min

About 0.75³/min

Mould cooling:

tap water or recycling water

tap water or recycling water

Max shaping areas depth:

160x250x24mm

160x320x24mm

Applied forming materials:

PVC, PET or PS

PVC, PET or PS

Applied plastic sheet roll max diameter:

380mm

380mm

Applied plastic sheet thickness:

0.2-0.5mm

0.2-0.5mm

Filling type:

Piston rationed cup filling

Piston rationed cup filling

Filling error:

≤±0.5 g

≤±0.5 g

Dimension of the machine

(L x W x H):

4000mm x 750mm x 1750mm

4000mm x 780mm x 1750mm





What is the main parts of this machine?



1. Plastic Sheet Sending Device

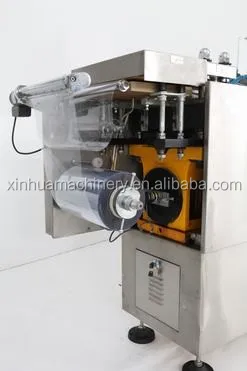

1. Plastic sheet loading device



2. Forming Device

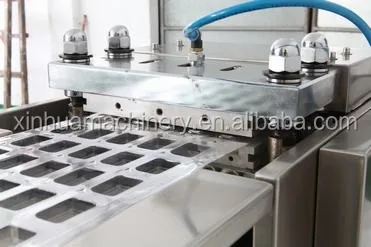

2. Forming device



3. Liquid or Paste Filling Device

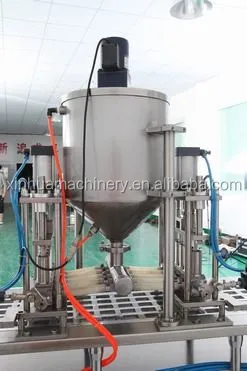

3.Filling Device



4. Heat Sealing Device

5.Sealing device



5. Automatic Cutting Device

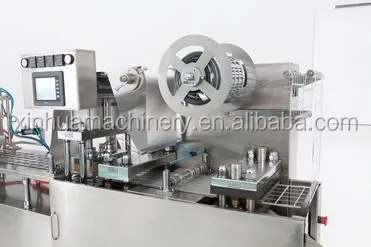

7.Scrap film collrecting device and cutting device



6. Control Panel

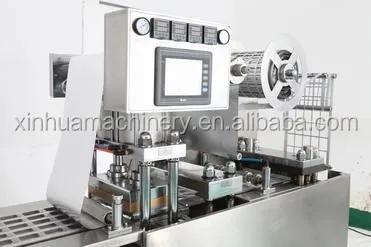

4. Control Panel





How this machine make products?

Plastic sheet heating---Cups/boxes/characters Forming---Automatic Filling---Automatic Sealing---Automatic Cutting---En-products



Welcome to enquire QGF-Z Automatic dark nutella chocolate mould forming filling sealing machine, thank you!



Please click "Chat Now" at right column to send enquiry





FAQ

FAQ:


Q1: With this machine, what materials we need to prepare so can start production?
A: 1. Plastic sheet roll (PVC, PS or PET);
    2. Sealing foil;
    3. Materials you would like to be packed
We can recommend our partners who can supply packing materials to you,
or we can coordinate good with your packing materials suppliers.

Q2: For running this machine, what other necessary equipment we need to prepare?
A: Air compressor(for supply air to machine) and tap water(for cooling mould)

Q3: What materials is suitable to be packed by this machine?
A: Any liqud, semi liquid, powder, granular or tablet can be packed by this machine, like jam, chocolate paste, chocolate bean, honey, butter, biscuit... Filling temperature not over than 50 degree.

Q4: What is the warranty, how you offer after service?
A: Machine warranty is 1 year.
In one year, any parts on machine have problem not due to wrong operating we can
send new parts to you by courier.
For installation or maitenance of machine, we send our engineer to your factory.

Q5: How to design machine products?
A: If you have products samples, pls send photos or samples to us, we make mould
drawing according to the sample and send you for confirmation.
If you only have idea, please share your idea with us, we make mould design according
to your idea, after discussion and correction, we can finalize the mould design.
All the mould will make according to your confirmed mould design.

Q6: In one machine we can make only one product or we can make different products?
A: In one machine, Sure you can make different products by change mould and filling device.
In this way you can make different new products according to market by low investment and risk.



For more questions please click "Chat Now" at right column



WHY CHOOSE US

WHY CHOOSE US



Shantou Xinhua Packing Machinery Factory Co., Ltd was established on 1989, only by offered high quality machine and excellent after service made the company existed more than 25 years.



Purchasing machine is an investment,

Purchase machine from old factory will be a low-risk investment.



Punctual delivery time:

- We put your order into our tight production schedule, ensure your punctual delivery time.

Production or inspection report before your order packed.

Shipping notice/ insurance to you as soon as your order is shipped.



After sales service:

We respect your feed back after receive the goods.

We provide 12 months warranty after goods arrive.

We promise all spare parts available in lifetime use.

We have experienced engineer team and always ready to help you solve the problem in your factory.



Professional sales:

- We value every inquiry sent to us, ensure quick competitive offer.

- We not only can offer information of our machines but also can offer another information, such as: production line, packing materials, corollary equipment and ect.,

- We cooperate with customer to bid tenders. Provide all necessary documents.

- We are a sales team, with all technical support from engineer team.

- Customer is always welcome to visit our factory, we can picked you up from anywhere in our city
