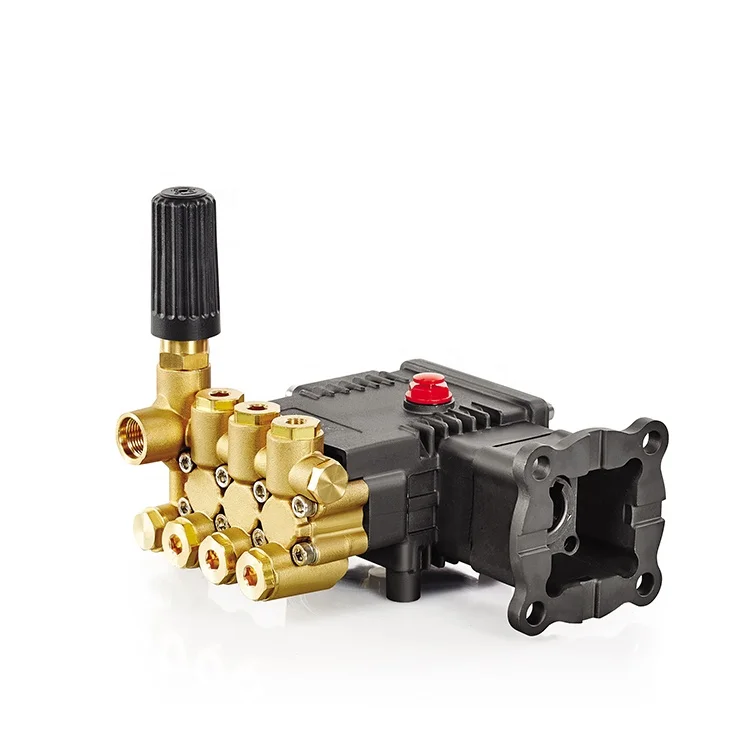

100bar Economical High Pressure Ceramic Piston Hollow Shaft Pump
- Category: >>>
- Supplier: Zhejiang Botuolini Machinery Co. Ltd.
Share on (60578929624):
Product Overview
Description
Product Details
Descriptions Of high pressure plunger pump LM Series
High pressure reciprocating plunger pump Model LM is generally very efficient and suitable for high heads at low flows.
Triplex plunger pumps are self priming as it can draw liquid from a level below the suction flange even if the suction pipe is not evacuated. Plunger pumps are not tolerant to solid particles. Here, pistons are reciprocated using crankshaft, not cam type mechanism. Pressure Jet industrial high pressure triplex plunger pumps are positive displacement Triplex plunger pumps. In a reciprocating pump, a volume of liquid is drawn into the cylinder through the suction valve on the intake stroke and is discharged under positive pressure through the outlet valves on the discharge stroke. Flow rate of pump is directly proportional to its SPM (Strokes per minute). Pressure Jet Triplex plunger pumps have three synchronized plungers that discharge liquids at high pressure with minimum pulsation. Our high pressure triplex plunger pumps include both industrial triplex piston and triplex plunger pump designs.

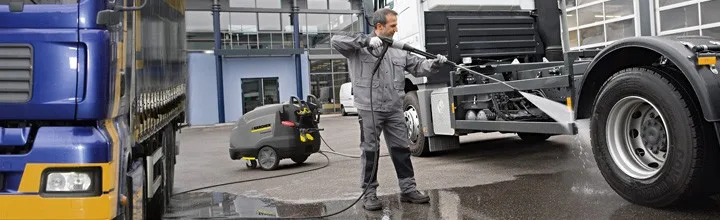

Application Case
Product Introduction
PUMPS Type Parking Equipment
....................................
Product Parameters
Model | Flow | Pressure | Power | Speed | Net Weight | Dimensions | ||||||
LMV | l/min | gpm | bar | psi | hp | kw | rpm | kg | mm | |||
LMV2.10 | 2.31 | 0.61 | 100 | 1450 | 0.75 | 0.55 | 1450 | 15 | 3 | |||
LMV4.10 | 3.84 | 1.01 | 100 | 1450 | 1 | 0.75 | 1450 | 15 | 5 | |||
LMV6.10 | 6 | 1.42 | 100 | 1450 | 1.5 | 1.1 | 1450 | 15 | 7 | |||
LMV10.10 | 10 | 2.78 | 100 | 1450 | 3 | 2.2 | 2800 | 15 | 7 | |||
LMV12.10 | 12 | 3.33 | 100 | 3400 | 3 | 2.2 | 3400 | 15 | 7 | |||

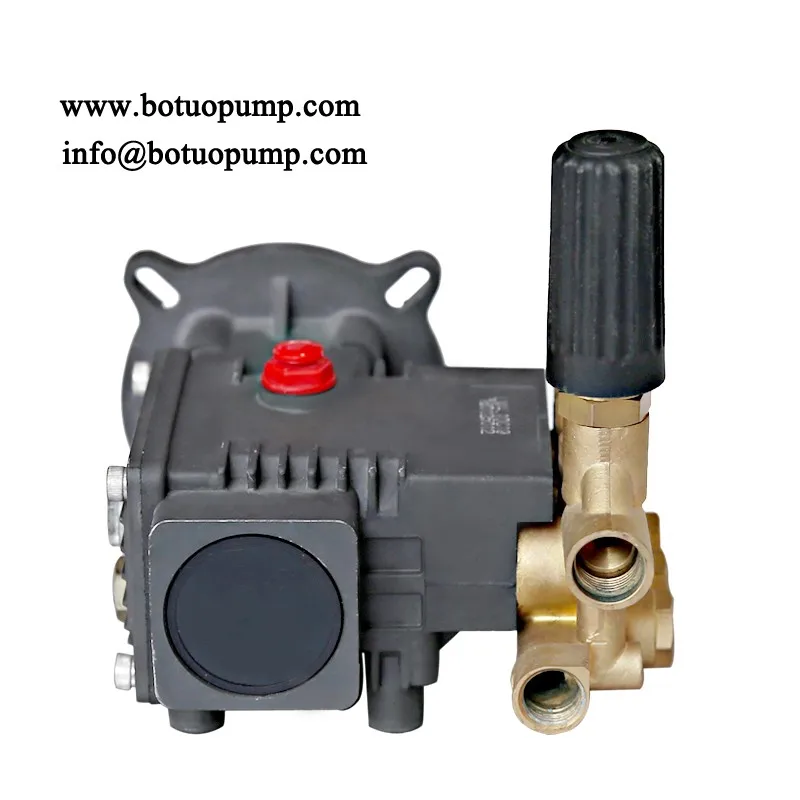

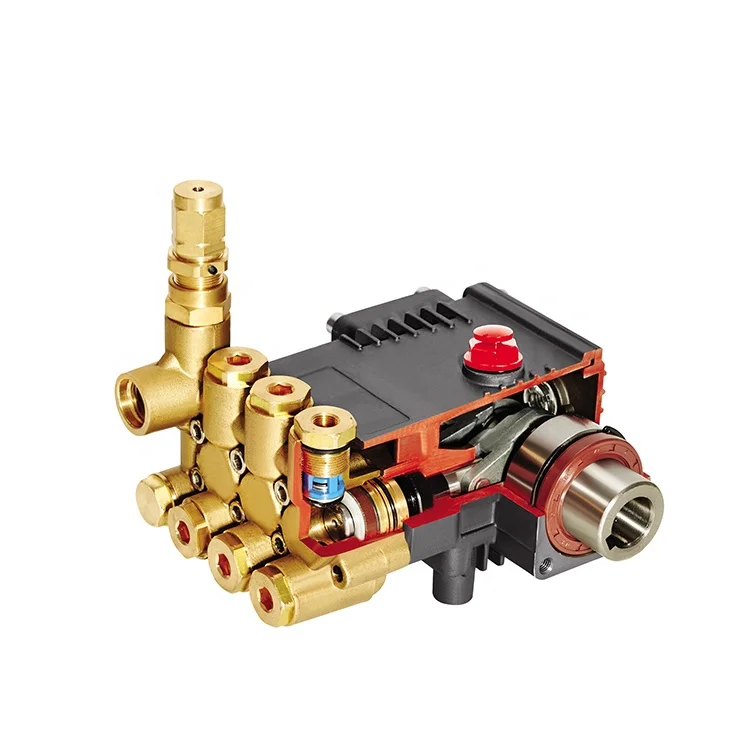

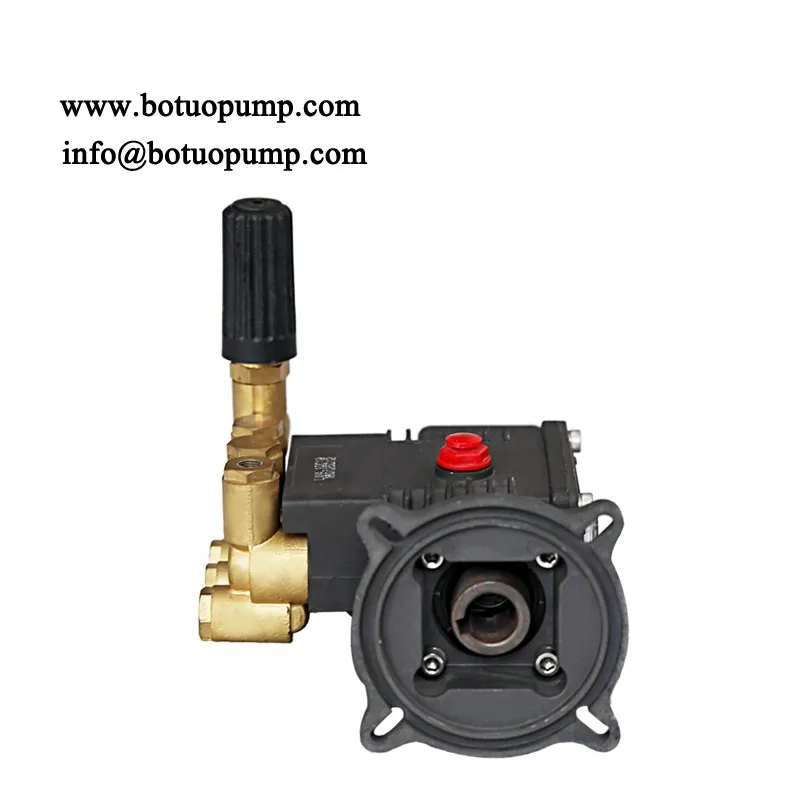

Product Details Show

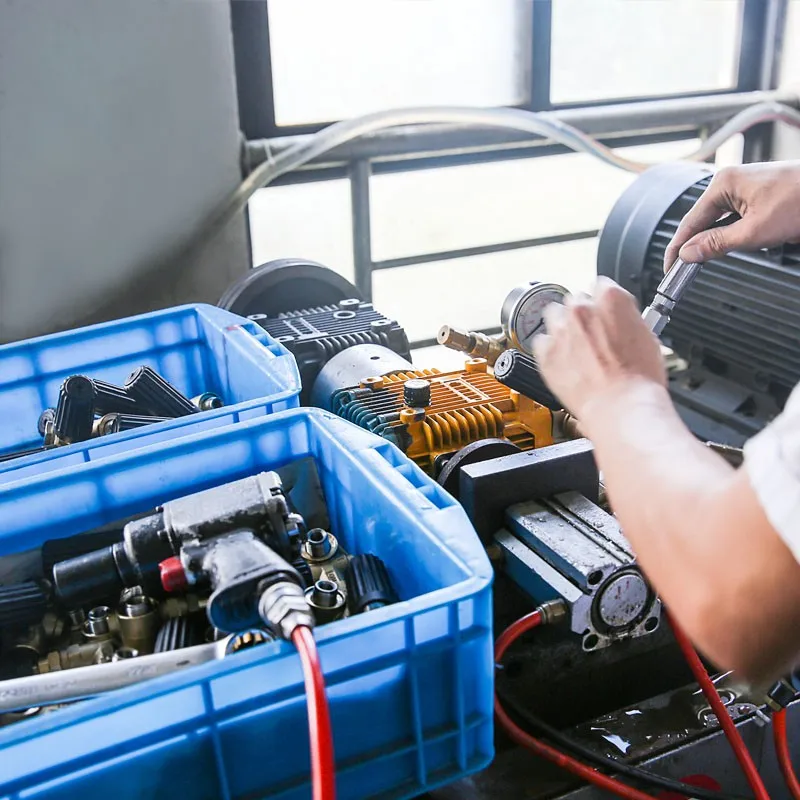

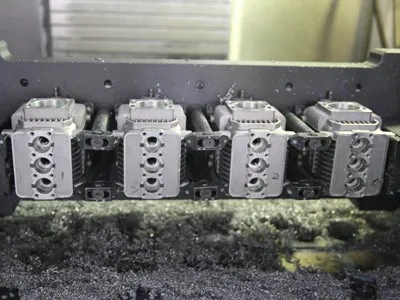

Product Processing
Why Choose Us
About us
1, rigorous work attitudestable,More than 20 years of manufacturing experience

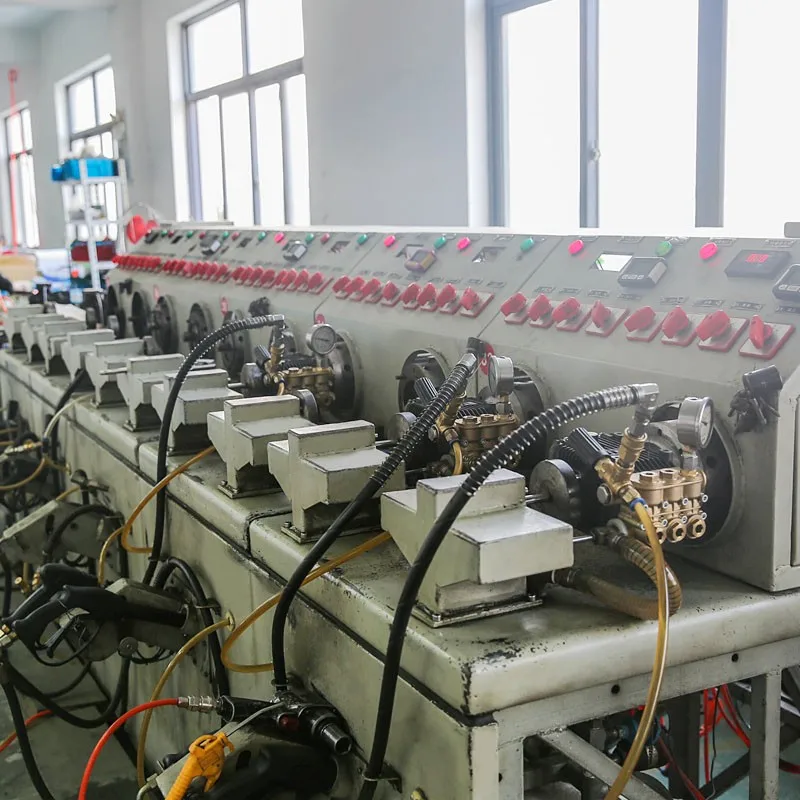

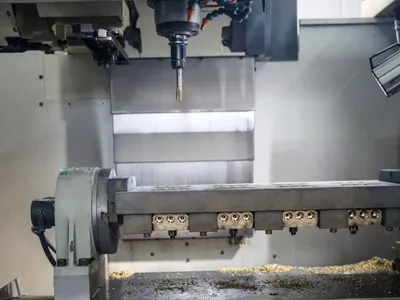

Equipment & technology
2, Only sophisticated manufacturing equipment can produce high quality Pump
Service
3, product quality , supply, the good faith management
Product Packing
