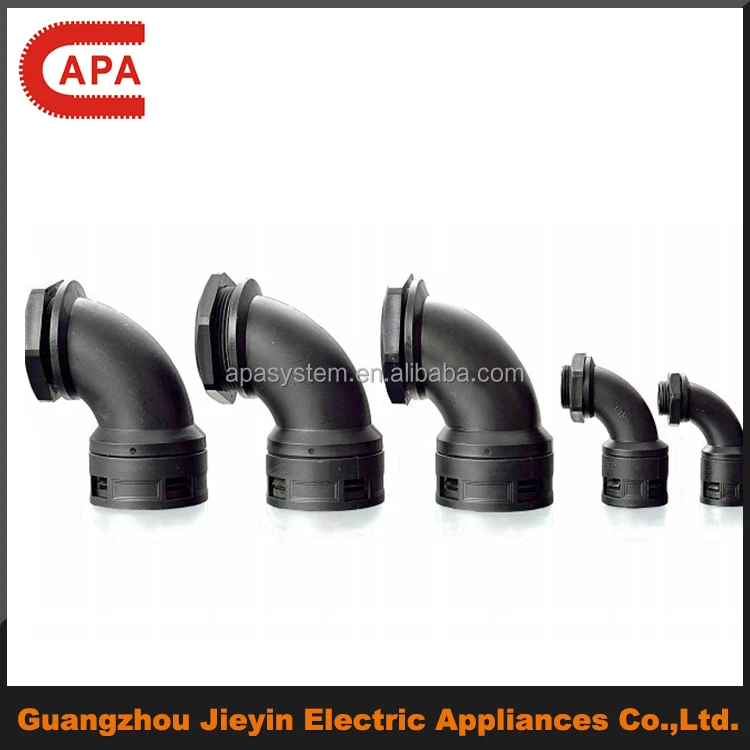

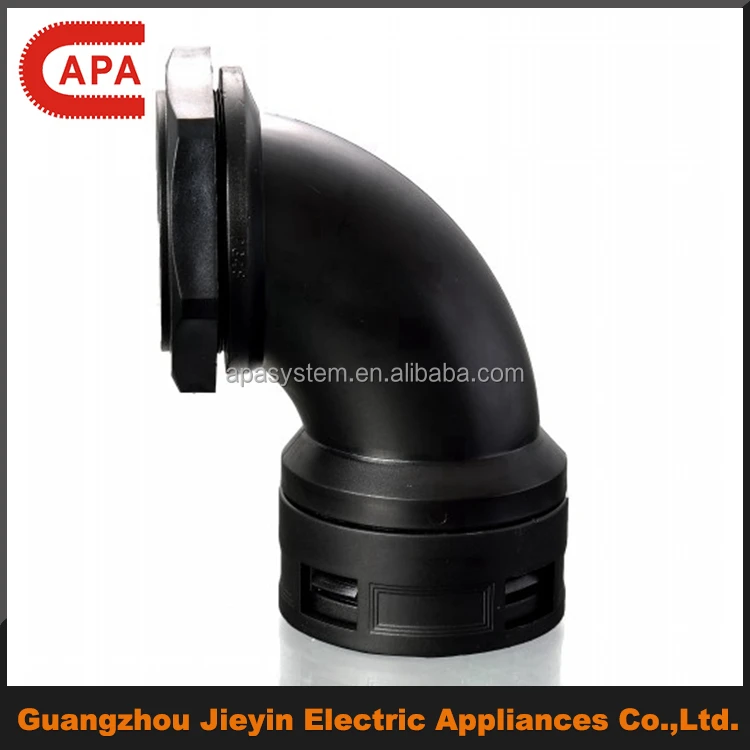

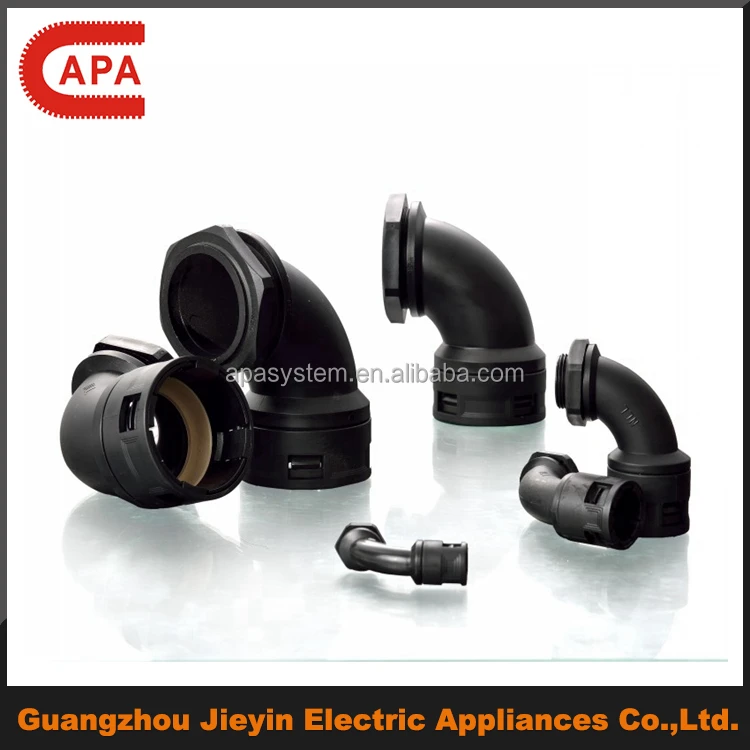

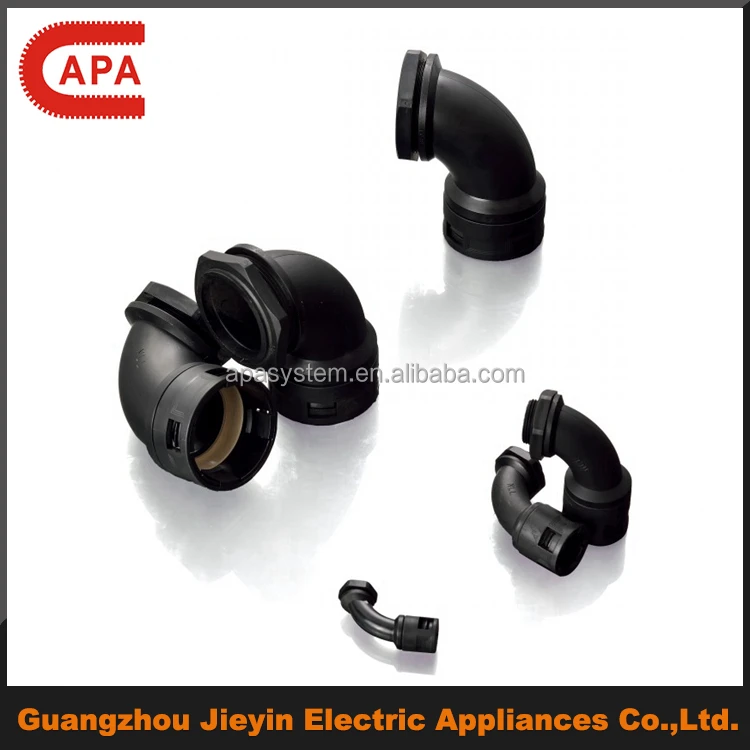

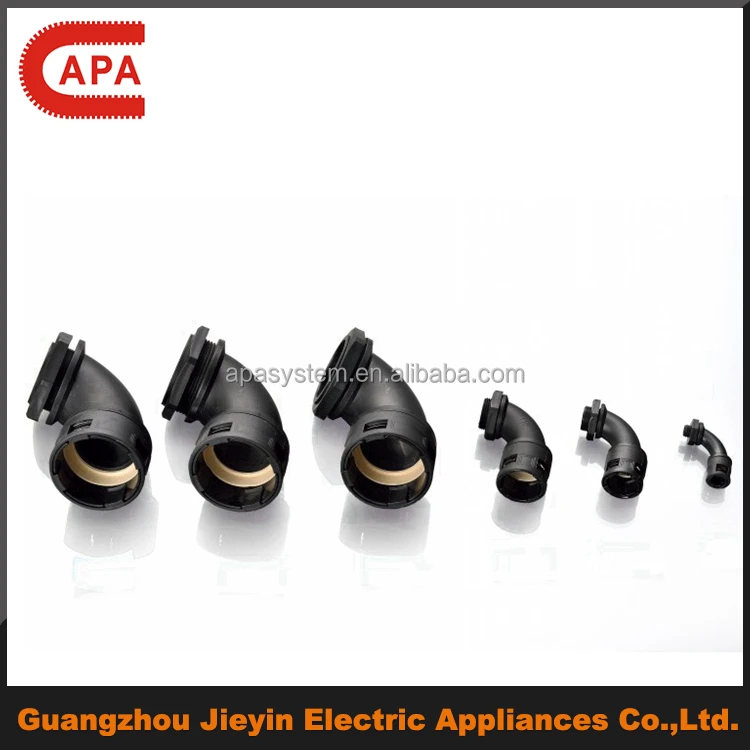

90 angle elbow PA6 plastic connector for electrical hose pipe
- Category: >>>
- Supplier: Guangzhou Jieyin Electric Appliances Co. Ltd. [Guangdong China]Guangzhou
Share on (60578947814):
Product Overview
Description
Welcome to Guangzhou Jieyin.
8 years experience in the production of electrical appliances.
90 angle elbow PA6 plastic connector for electrical hose pipe
Material:PA6
Temperaturer range: -40 to +120 C
Protection degree:IP66 V0(UL94)
Thread:Metric PG PF
Flame-retardant:V0(UL94),free of halogen phosphor and cadmium.
PG Thread
| Thread | Packing | |||||||

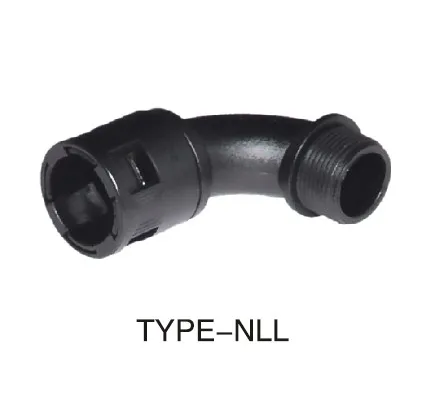

| Item No. | Fits to tubing Size | I.D. | A | B | C | E | pcs/bag | |
| NLL-PG7 | 1/4'' | 7.0 | 17.5 | 46.0 | 8.0 | 12.5 | PG7 | 50 |
| NLL-PG9 | 5/16'' | 10.5 | 20.6 | 56.0 | 10.0 | 15.2 | PG9 | 50 |
| NLL-PG11 | 3/8'' | 12.5 | 23.0 | 60.0 | 10.0 | 18.6 | PG11 | 50 |
| NLL-PG16 | 1/2'' | 16.0 | 29.5 | 72.0 | 12.0 | 22.5 | PG16 | 50 |
| NLL-PG21 | 3/4'' | 21.8 | 37.0 | 82.0 | 12.0 | 28.3 | PG21 | 50 |
| NLL-PG29 | 1'' | 28.0 | 44.0 | 96.0 | 12.0 | 37.0 | PG29 | 30 |
| NLL-PG36 | 1-1/4'' | 36.5 | 54.0 | 108.0 | 12.0 | 47.0 | PG36 | 20 |
| NLL-PG48 | 2'' | 48.0 | 67.0 | 126.0 | 14.5 | 59.3 | PG48 | 10 |
M.Thread
| Thread | Packing | |||||||
| Item No. | Fits to tubing Size | I.D. | A | B | C | E | pcs/bag | |
| NLL-M10*1.5 | 1/4'' | 7.0 | 17.5 | 46.0 | 10.0 | 10.0 | M10*1.5 | 50 |
| NLL-M12*1.5 | 5/16'' | 10.5 | 20.6 | 56.0 | 13.0 | 12.0 | M12*1.5 | 50 |
| NLL-M16*1.5 | 3/8'' | 12.5 | 23.0 | 60.0 | 13.0 | 16.0 | M16*1.5 | 50 |
| NLL-M20*1.5 | 1/2'' | 16.0 | 29.5 | 72.0 | 13.0 | 20.5 | M20*1.5 | 50 |
| NLL-M25*1.5 | 3/4'' | 21.8 | 37.0 | 82.0 | 15.0 | 25.0 | M25*1.5 | 50 |
| NLL-M32*1.5 | 1'' | 28.0 | 44.0 | 96.0 | 15.0 | 32.0 | M32*1.5 | 30 |
| NLL-M40*1.5 | 1-1/4'' | 36.5 | 54.0 | 108.0 | 17.0 | 40.0 | M40*1.5 | 20 |
| NLL-M50*1.5 | 2'' | 48.0 | 67.0 | 126.0 | 17.0 | 50.0 | M50*1.5 | 10 |
UN Thread
| Dimension(mm) | Thread | Packing | ||||||
| Item No. | Fits to tubing Size | I.D. | A | B | C | E | pcs/bag | |
| NLL-PF3/8" | 1/4" | 7.0 | 17.5 | 46.0 | 10.0 | 16.3 | PF3/8" | 50 |
| NLL-PF3/8" | 5/16" | 10.5 | 20.6 | 56.0 | 13.0 | 16.3 | PF3/8" | 50 |
| NLL-PF1/2" | 3/8" | 12.5 | 23.0 | 60.0 | 13.0 | 20.9 | PF1/2" | 50 |
| NLL-PF1/2" | 1/2" | 17.0 | 29.5 | 72.5 | 13.0 | 20.9 | PF1/2" | 50 |
| NLL-PF3/4" | 3/4" | 23.3 | 37.0 | 82.0 | 15.0 | 26.4 | PF3/4" | 50 |
| NLL-PF1" | 1" | 30.0 | 44.0 | 96.0 | 16.0 | 33.2 | PF1" | 30 |
| NLL-PF1-1/4" | 1-1/4" | 36.5 | 54.0 | 108.0 | 18.0 | 41.9 | PF1-1/4" | 20 |
| NLL-PF2" | 2" | 48.0 | 67.0 | 126.0 | 22.0 | 59.6 | PF2" | 10 |
For more size please Contact us.
Usage:1.Assembly :A tube directly inserts into the adpater.
2.Dismantle:Press the joint button,and pulling a tube toward outside.

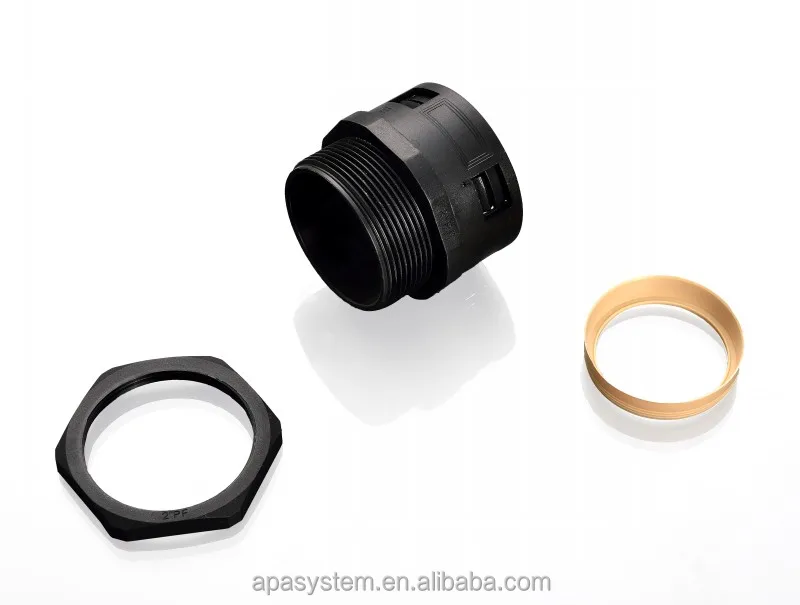

![_SHM6403 [ 1024 768]](http://sc02.alicdn.com/kf/HTB1hvJyGXXXXXX0XpXXq6xXFXXX2/200035892/HTB1hvJyGXXXXXX0XpXXq6xXFXXX2.jpg)

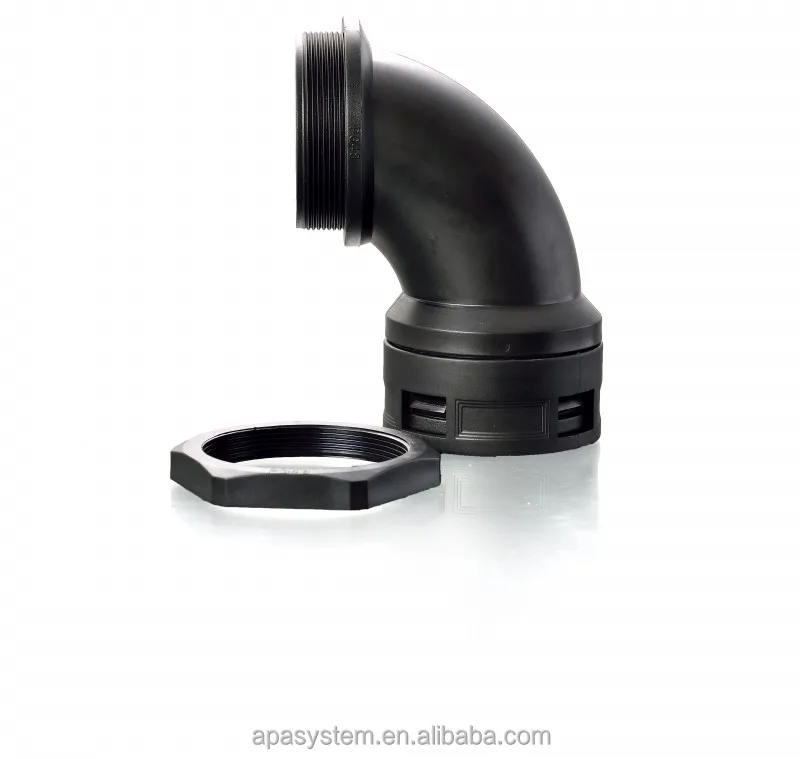

![_SHM6491 [ 1024 768]](http://sc02.alicdn.com/kf/HTB1kkVnGXXXXXakXFXXq6xXFXXXi/200035892/HTB1kkVnGXXXXXakXFXXq6xXFXXXi.jpg)

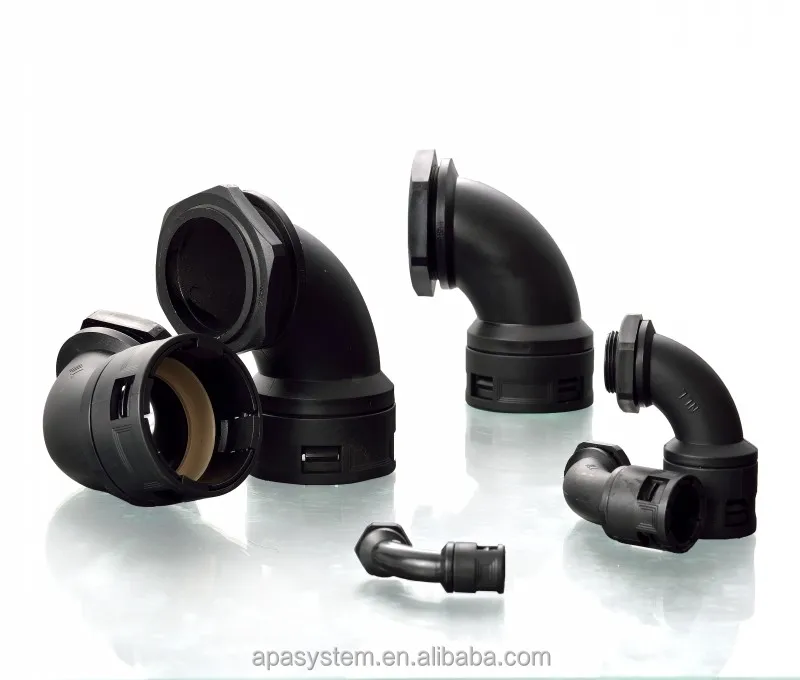

![_SHM6495 [ 1024 768]](http://sc01.alicdn.com/kf/HTB1HS4sGXXXXXXyXpXXq6xXFXXXm/200035892/HTB1HS4sGXXXXXXyXpXXq6xXFXXXm.jpg)
Application

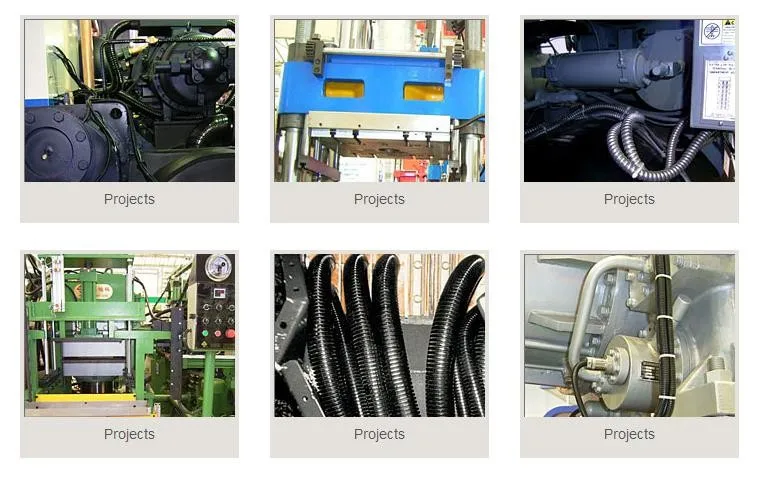

Projects:
