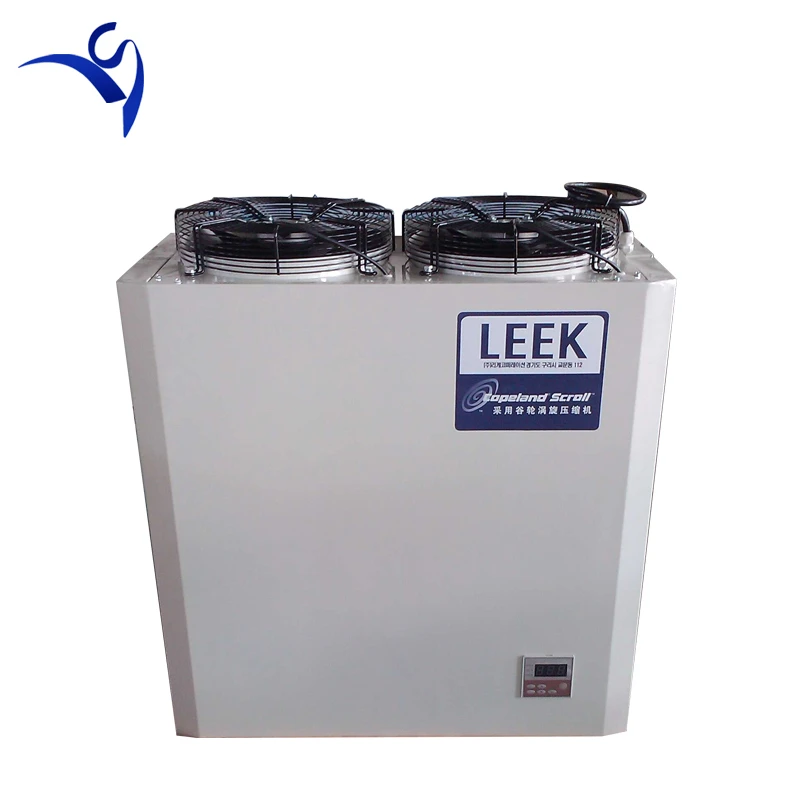

Tecumseh compressor monoblock refrigeration condensing unit

Product Overview

Description

Features

* Compact and sophisticated outlook

* Fully assembled and ready to be installed to save on assembly and applied cost

* Wide operating range

   - LT and MT from -15℃ to -25℃ cold room temperature

  - Same unit for either MT or LT cold room application

  - Reduce inventory for distributors and contractors

*  Monoblock design for easy installation,easy service,cost saves.

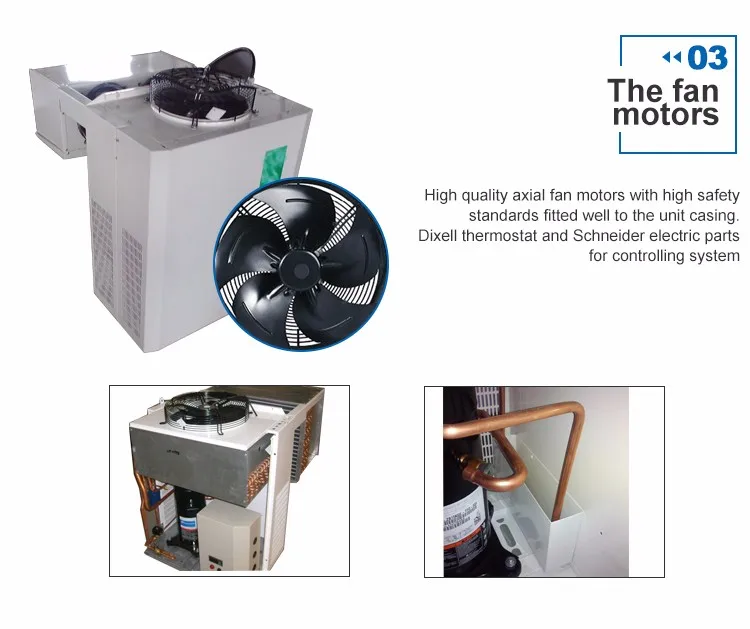

*  Built-in Dixell thermostat and Schneider electric controlling system

*  Suit for R404a and R407F refrigerant.

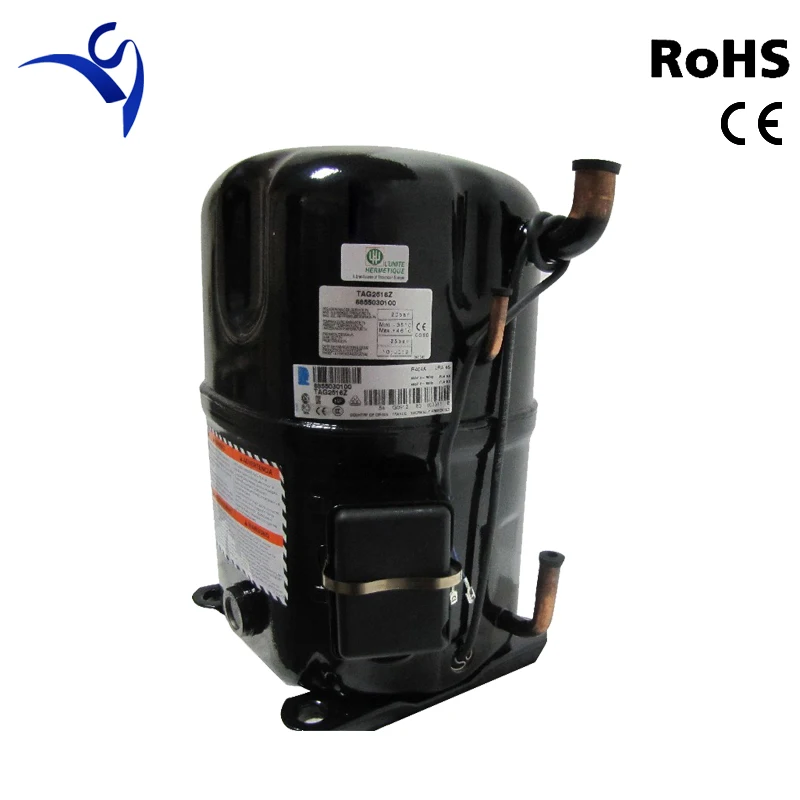

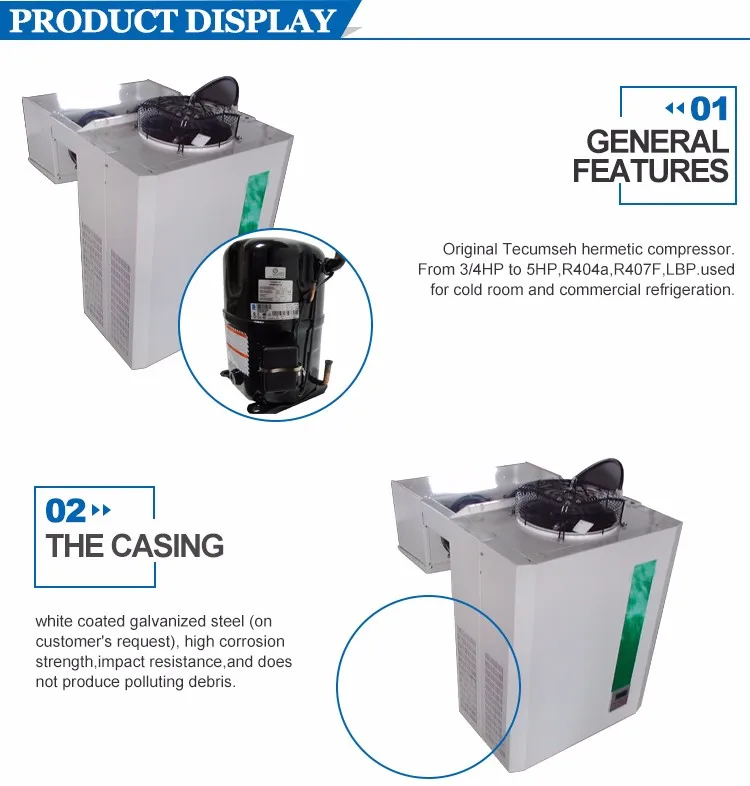

tecumseh hermetic compressor Monobloc condensing unit

LBP                    R404a,R407F

Nominal data

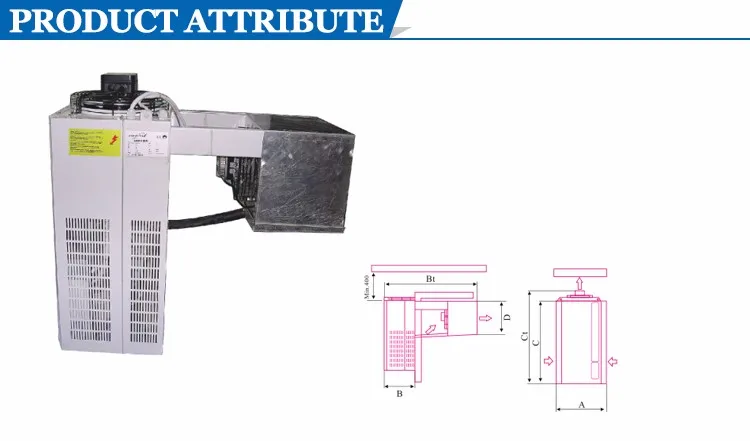

Model	Voltage	Compressor		Condenser		Evaporator		Shot	Weight	Dimensions
	V-Ph-Hz	HP	KW	N°X diameter	m3/h	N°X diameter	m3/h	m	kg	L	W	H
LKPG068L	230-1-50/400-3-50	3/4	0.55	1 X 254	965	1 X 200	870	5	62	796	400	714
LKPG100L	230-1-50/400-3-50	1	0.74	1 X 254	965	1 X 200	870	5	65	796	400	714
LKPG150L	230-1-50/400-3-50	1.5	1.1	1 X 300	1810	2 X 200	1740	5	80	887	650	814
LKPG200L	230-1-50/400-3-50	2	1.47	1 X 350	2100	1 X 350	2100	8	106	1184	690	887
LKPG300L	230-1-50/400-3-50	3	2.2	1 X 350	2100	1 X 350	2100	8	111	1184	690	887
LKPG400L	400-3-50	4	2.9	1 X 450	3500	1 X 400	3000	9	125	1200	800	900
LKPG500L	400-3-50	5	4.1	2 X 350	4200	2 X 300	3500	9	145	1200	900	900



Cooling capacity

Model	HP	Compressor	Voltage	Cooling capacity(W)
				Evaporating temperature(°C)
			(V-Ph-Hz)	-35	-30	-23.3	-15	-10
LKPG068L	3/4	CAJ2432Z	230-1-50/400-3-50	270	430	670	1060	1320
LKPG100L	1	CAJ2446Z	230-1-50/400-3-50	460	670	1010	1570	1940
LKPG150L	1.5	CAJ2464Z	230-1-50/400-3-50	610	910	1360	1610	2560
LKPG200L	2	(T)FH2480Z	230-1-50/400-3-50	620	1120	1850	2950	3750
LKPG300L	3	(T)FH2511Z	230-1-50/400-3-50	1170	1710	2660	4190	5280
LKPG400L	4	TAG2516Z	400-3-50	1480	2290	3700	5980	7680
LKPG500L	5	TAG2522Z	400-3-50	2020	3010	4690	7400	9400
Condensing temperature: 54.5℃
