HDMI video Game Capture Card 1080P full HD with Remote Control stand alone PC free ezcap284

Share on (60578975215):


Price:$42.00 - $76.65

Quantity:


Product Overview

Description

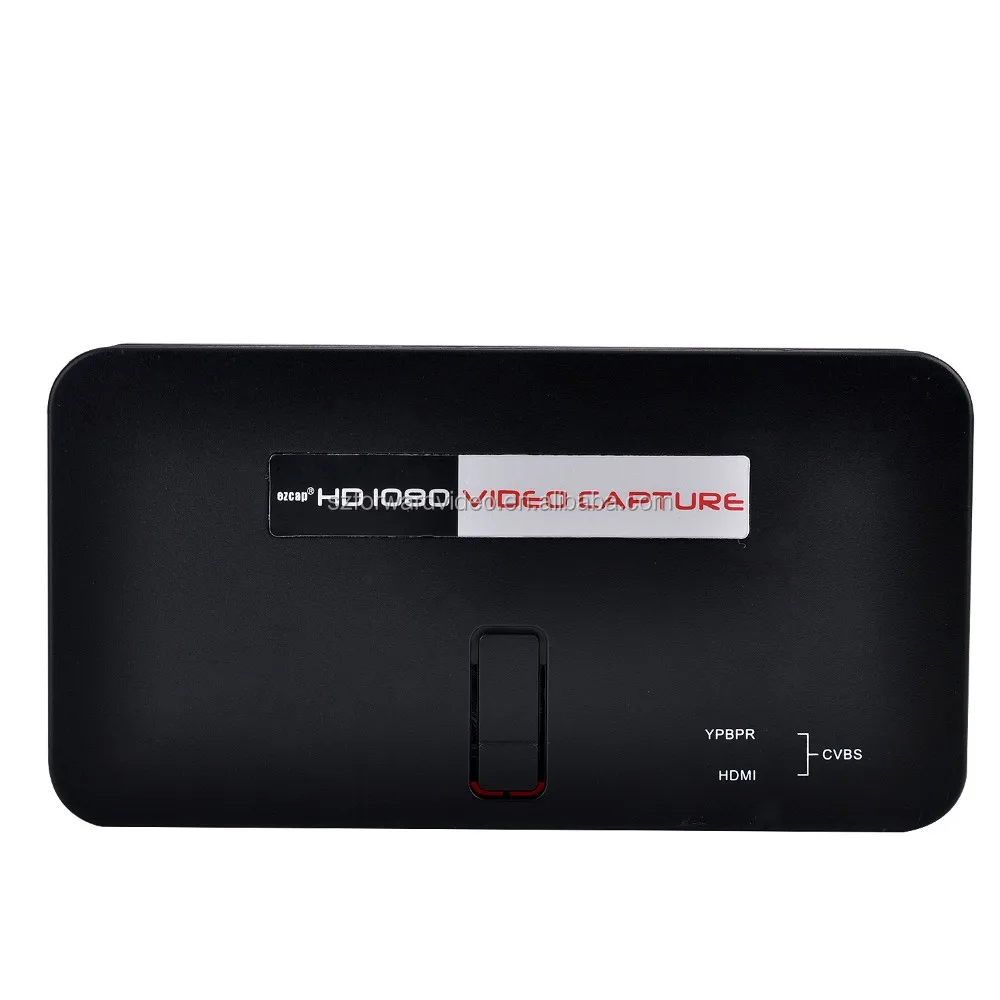

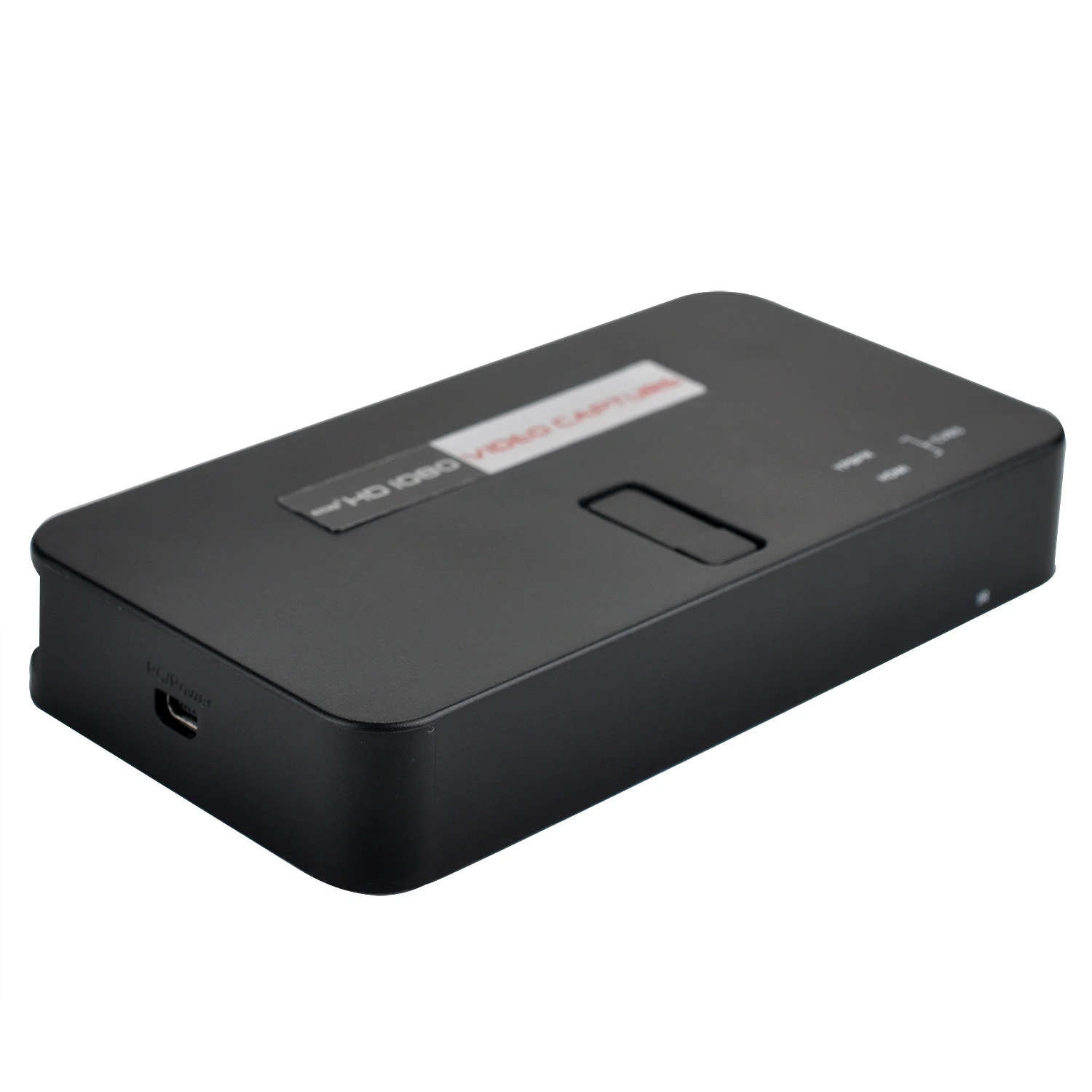

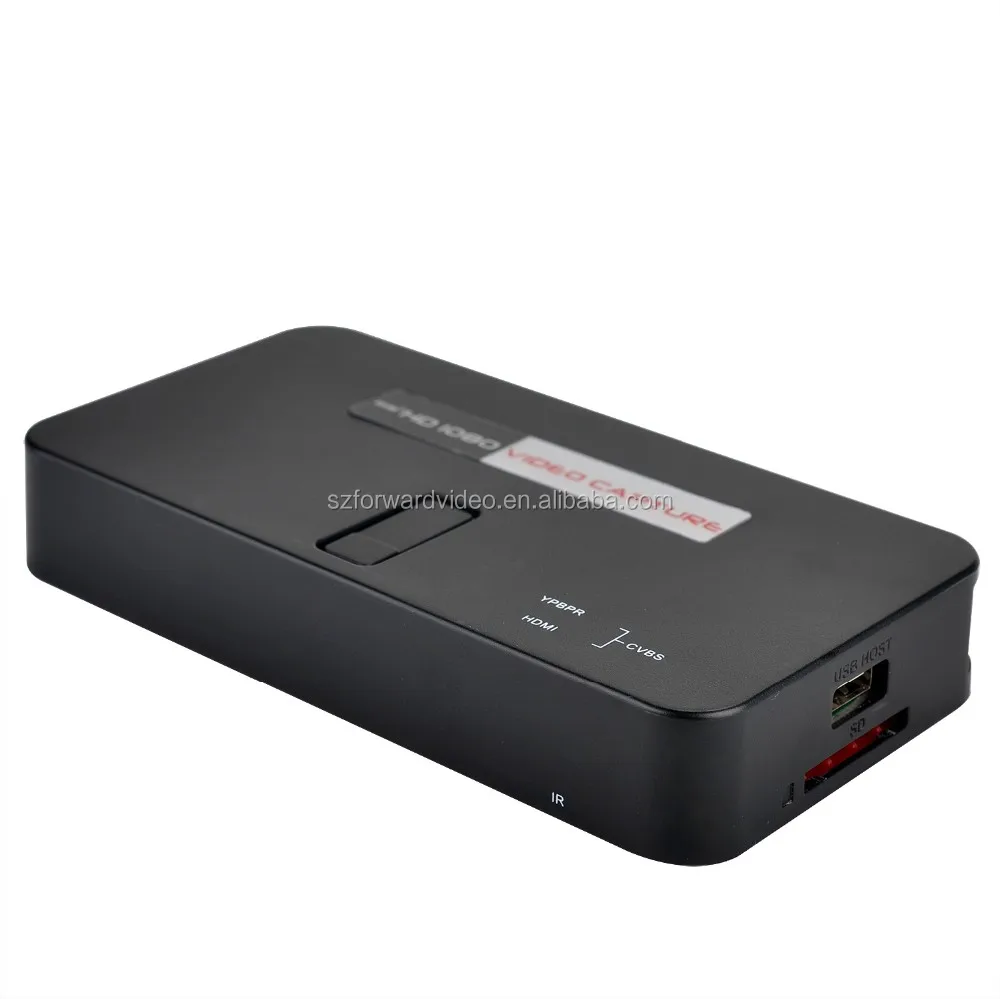

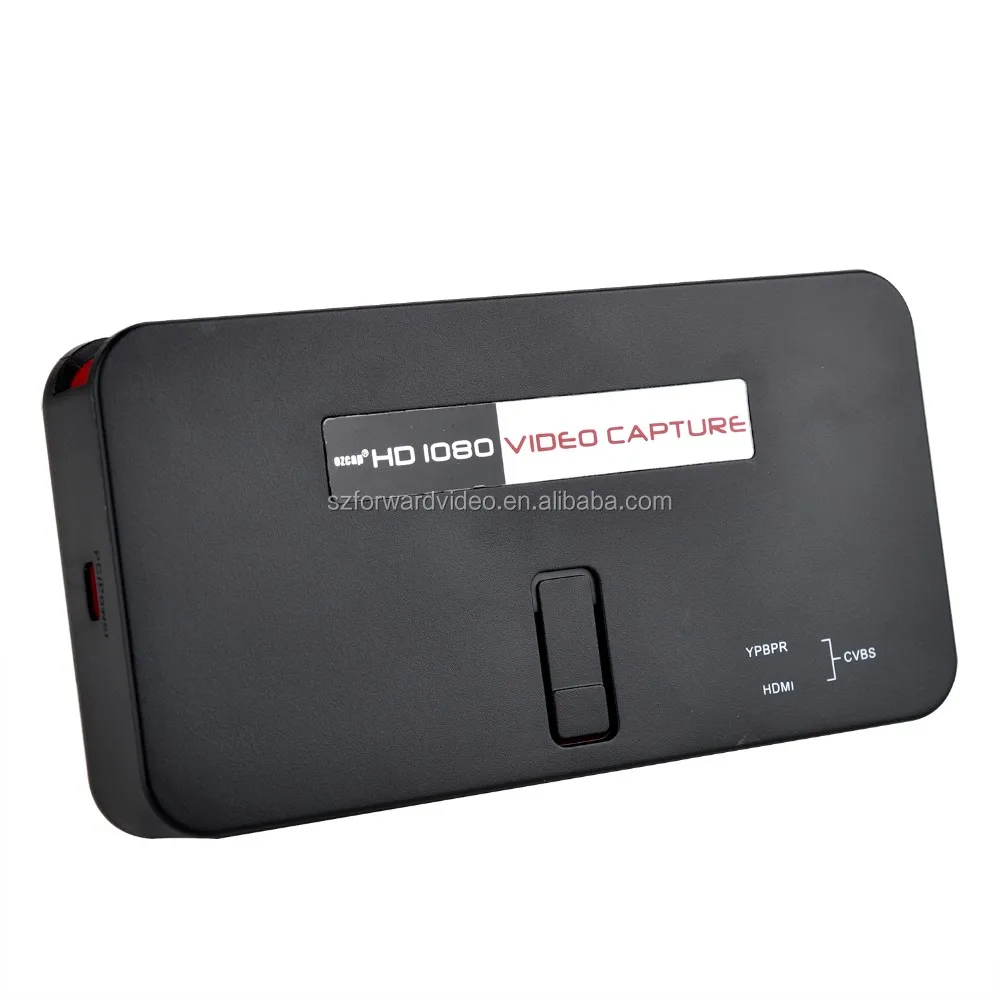

HDMI video Game Capture Card 1080P full HD with Remote Control  stand alone PC free  ezcap284



PATENT:


ezcap284 (1).jpgezcap284 (2).jpgezcap284 (3).jpgezcap284 (4).jpgezcap284 (5).jpgezcap284 (6).jpgezcap284 (7).jpg





ezcap284-SD





ezcap giftbox











Overview:




The ezcap284 HDMI/YPbPr Recorder is a box that records and streams your gameplay up to 1080p. Designed specifically for game lovers, this size capture device comes with on-board H.264 hardware encoder, which guarantees lower CPU usage and smaller file size even for full HD footages, not to mention the file format is extremely easy to work with for post-editing and uploading. The HDMI pass-through function guarantees smooth HD gaming experience even while recording. On top of that, it can be directly connected to streaming platforms; you can even add live commentary when streaming up. From now on, sharing your legendary matches is no longer a dream.








ezcap284 HDMI/YPbPr Recorder provides the flexible connectivity with HDMI & Component inputs, which makes it applicable to all the mainstream gaming platforms, including X box 360 & One, Play Station 3 & 4 W ii U. Even better.










 Capture 1080P video through HDMI or YPBPR from game consoler ,STB,DVD or other video source, stand along, no PC required, Simply press the recorder button, save to USB flash drive or USB hard disk.

Features:







-One button record

- Stand along, no PC required

- Interface: USB host for USB Flash disk or USB hard disk,
- Recording Format: H.264
- With both HDMI and YPBPR input

   Input: HDMI, or Component Video and Audio L/R, up to 1080P. Extral 3.5mm audio.
- Output: HDMI and USB host SDcard .

- With HDMI output pass-through for monitoring
- Power Supply: DC 5V/2A
- Dimension: 110 * 75 * 27 mm
- Weight: 135g

Specifications:



1, Interface: USB 2.0 Host
2, Video Input: Digital: HDMI
                        Analog: Component Video
3, Audio Input: Digital: HDMI
                       Analog: RCA L/R, 3.5mm microphone
4, Video Output: HDMI (Pass-through from Component and HDMI Input)
5, Audio Output: Digital: HDMI (Pass-through from HDMI Input)
                           Analog: 3.5mm Stereo (Pass-through from HDMI and 3.5mm Audio Input)


6, Applicable Connections with Mainstream Game Consoles:
    HDMI: WiiU, Xbox 360, Xbox One, PS4
    Component :WiiU, Xbox 360, PS3


7, Resolution:
    Input/ Pass-through:
    720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p
    (60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p),
    1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x
    1080 (60p)


   Capture:
   720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p
   (60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p),
   1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x
   1080 (30p)

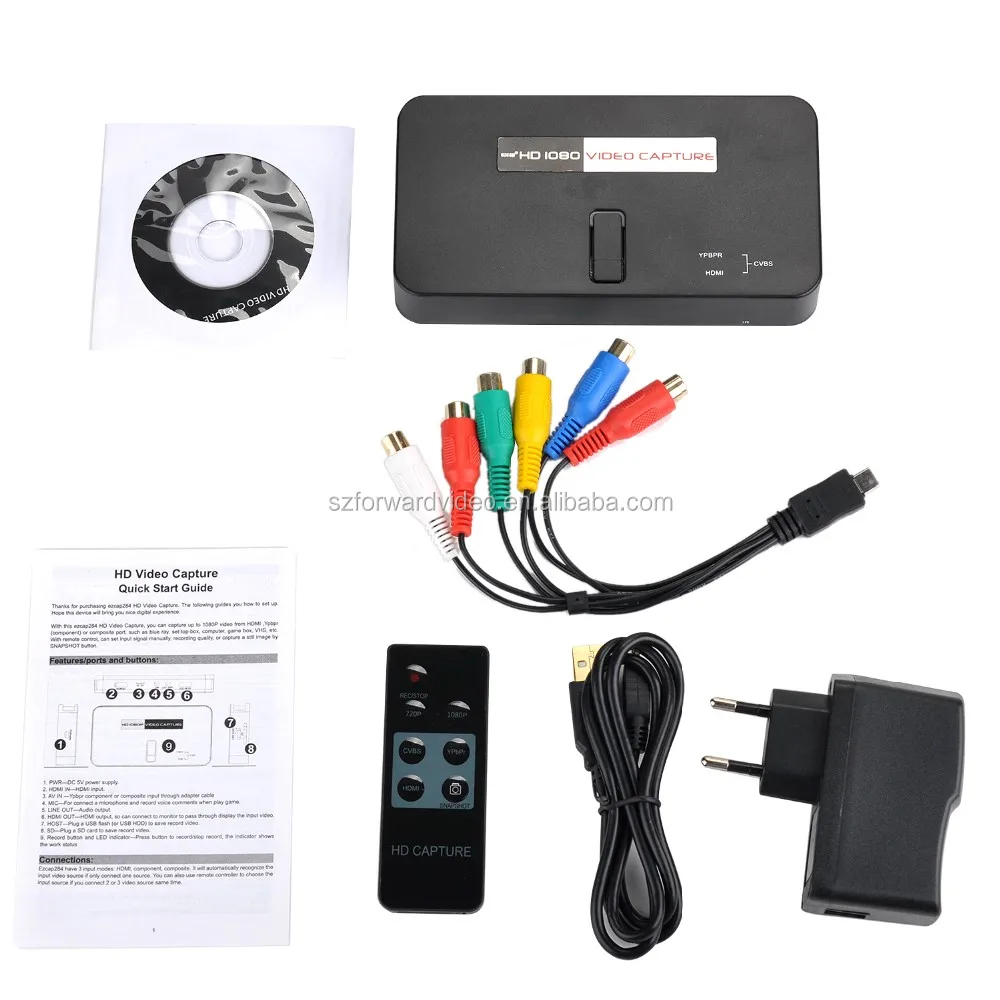

Package Contents:


- ezcap284 1080P HDMI/YPbPr Recorder
- Component video and L/R audio Cable
- Power supply
- Manual
- Video editing software CD(Option)












Specifications:

































































































































































































































Connections







Interface



USB 2.0 Host, SD Card







Video Input



Digital: HDMI







Analog: Component Video, Composite Video







Audio Input



Digital: HDMI







Analog: RCA L/R, 3.5mm Micro Phone In







Note: Microphone without pass through for HDMI input







Video Output



Digital: HDMI (Pass-through from HDMI, component or composite)







Audio Output



Digital: HDMI (Pass-through from HDMI, L/R)







Analog: 3.5mm Stereo (Pass-through from HDMI or Audio RCA L/R Input)










Package Contents







Device



HD Video Capture







Others



AV adapter cable, USB DC adapter, USB Cable for connecting to USB DC adapter or PC, Remote control, Software CD, User Manual







Hardware Extra







Codec



Hardware H.264 encoder







User Interface



On-board Hot Button for one-click recording







LED indicator for working status







Dimensions



140(L) × 70(W) × 23(H) mm







Weight



115g








Standards







Storage Media



USB Flash Disk, Portable Hard Disk, SD Card







Note: The exFAT format is not supported.







Resolution



Input / Pass-through:                                                                                             720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)







Capture:                                                                                                               720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p)







Note: Upscaling is not supported.







Record Format



Video: MP4, Audio: AAC Stereo







Record Quality



Max: 18Mbps@1080P 30fps







Record File



Max: 2GB / Per File







Record Place



Max: 140MB / Minute, 8.4GB / Hour







Power Supply



DC 5V / 2A with Mini USB port












Applications







Software



Arcsoft Showbiz







Video Editing



Timeline / Storyboard edit, Split / Divide Scenes, Multi Trim Scenes …







Video Export



Upload to YouTube







Portable Device: iPod, iPhone, iPod Touch, Apple TV, PSP, PS3, Xbox







File: MPEG 1 / 2 / 4, WMV HD, QuickTime (MOV) …







Operating System



Windows 8 (32 / 64 bit), Windows 7 (32 / 64 bit), Windows Vista (32 / 64 bit)







CPU



Intel Core 2 Duo 2.8GHz, AMD Athlon 64X2 Dual Core 3.0GHz







Memory



4 GB RAM







Graphics Card



VGA card with support for DirectX 10.0c or above
