EWP RO water plant price for 10000gpd
- Category: >>>
- Supplier: Environmental World Products (China) Inc.
Share on (60579017663):
Product Overview
Description
EWP ro water plant price for 10000gpd
Products information

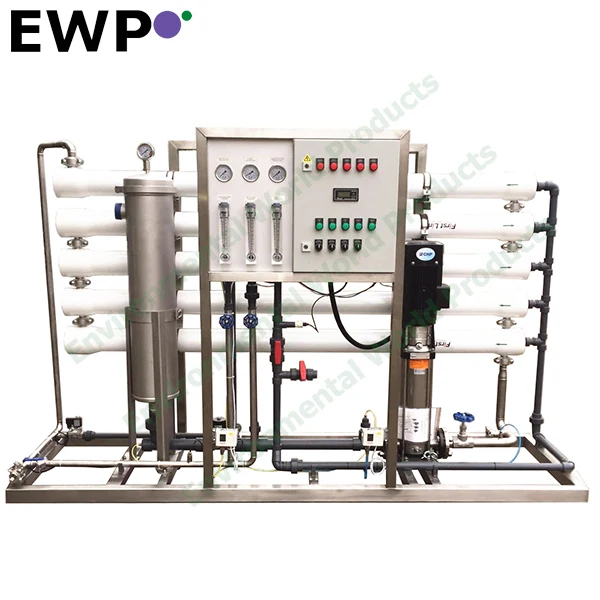

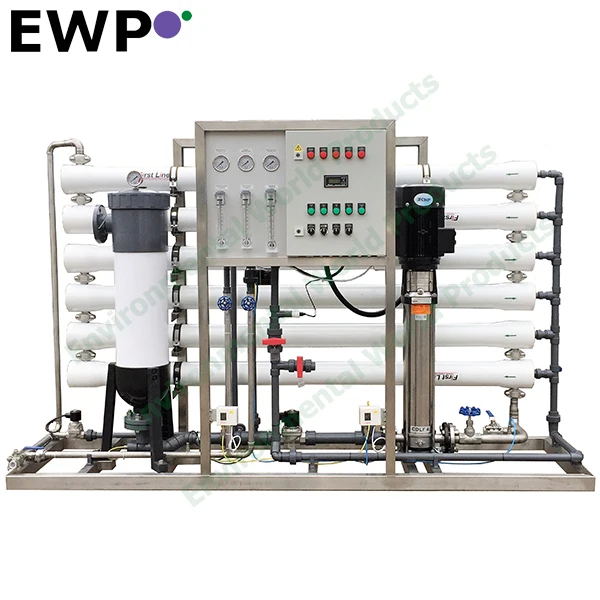

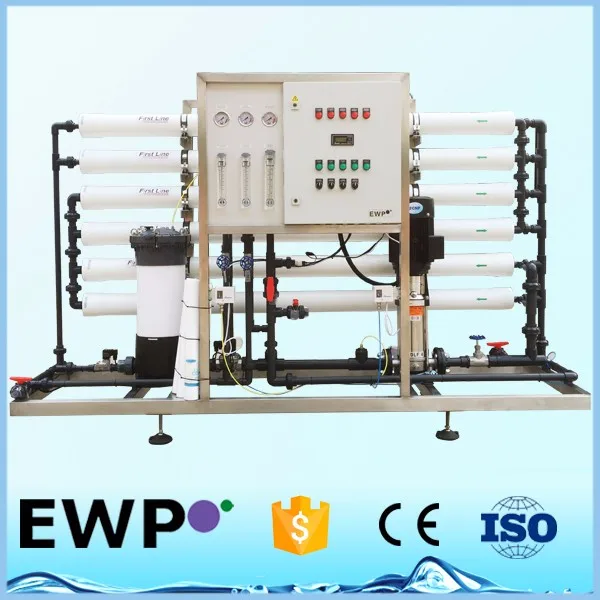

The smart, clean utilitarian industrial design of the EWP LPRO/BWRO/PTROM/PTROL Series allows for convenient installation, user-friendly operation, and ease of maintenance. These skid-mounted, packaged systems are pre-plumbed and pre-wired complete on a steel frame with panel-mounted pressure and flow instrumentation allowing for straight forward system monitoring and control. EWP offers an assortment of both basic and premium designs of pure water systems that can be private labeled or customized.
Benifits
| Fully equipped and customizable | Individually tested and preserved |
| Expandable and skid mounted | Low operation and maintenance costs |
| Components easily accessible | Easy maintenance and servicing |
| Pre-plumbed, wired and assembled | 1-year limited warranty |
Operating condition
Maximum Recovery: 65% - 75%
Nominal Rejection: 95-99%
| Maximum Feed Temperature | °C (°F) | 35 (95) | SDI | <5 | |
| Minimum Feed Temperature | °C (°F) | 5 (41) | Free Chlorine | undetectable | |
| Maximum Feed Pressure | bar (psi) | 5 (72) | Iron | ppm | <0.1 |
| Minimum Feed Pressure | bar (psi) | 2 (29) | Manganese | ppm | <0.05 |
| pH (Continuous) | 4 ~ 9 | Organic matter | ppm | <1 | |
Specifications
| Small size RO system with 4" membranes | |||||
| LPRO-B/P16 series | Capacity | Power rate (50HZ) | RO membrane | width*depth*height | |
| feed water TDS<1500ppm | (1-6 pcs) | mm | |||
| LPRO-16-1500 | 1500gpd | 0.25m3/h | 1.5kw | 4040 | 700*650*1650 |
| LPRO-16-3000 | 3000gpd | 0.50m3/h | 1.5kw | 4040 | 700*650*1650 |
| LPRO-16-4500 | 4500gpd | 0.75m3/h | 1.5kw | 4040 | 700*650*1650 |
| LPRO-16-6000 | 6000gpd | 1.00m3/h | 1.5kw | 4040 | 700*650*1650 |
| LPRO-16-9000 | 9000gpd | 1.50m3/h | 2.2kw | 4040 | 700*650*1650 |
| LPRO-B/P412 series | Capacity | Power rate (50HZ) | RO membrane | width*depth*height | |
| feed water TDS<1500ppm | (1-6 pcs) | mm | |||
| LPRO-412-6000 | 6000gpd | 1.00m3/h | 1.5kw | 4040 | 700*1650*1350 |
| LPRO-412-9000 | 9000gpd | 1.50m3/h | 2.2kw | 4040 | 700*1650*1350 |
| LPRO-412-12000 | 12000gpd | 2.00m3/h | 3.0kw | 4040 | 850*2350*1350 |
| LPRO-412-15000 | 15000gpd | 2.50m3/h | 3.0kw | 4040 | 850*2350*1350 |
| LPRO-412-18000 | 18000gpd | 3.00m3/h | 3.0kw | 4040 | 850*2350*1350 |
| Small size RO system with 4" membranes | |||||
| BWRO-B14 series | Capacity | Power rate (50HZ) | RO membrane | width*depth*height | |
| feed water TDS<3000ppm | (1-6 pcs) | mm | |||
| BWRO-14-1500 | 1500gpd | 0.25m3/h | 2.2kw | 4040 | 700*650*1650 |
| BWRO-14-3000 | 3000gpd | 0.50m3/h | 2.2kw | 4040 | 700*650*1650 |
| BWRO-14-4500 | 4500gpd | 0.75m3/h | 2.2kw | 4040 | 700*650*1650 |
| BWRO-14-6000 | 6000gpd | 1.00m3/h | 2.2kw | 4040 | 700*800*1650 |
| BWRO-B412 series | Capacity | Power rate (50HZ) | RO membrane | width*depth*height | |
| feed water TDS<3000ppm | (1-6 pcs) | mm | |||
| BWRO-412-6000 | 6000gpd | 1.00m3/h | 3.0kw | 4040 | 700*1650*1350 |
| BWRO-412-9000 | 9000gpd | 1.50m3/h | 3.0kw | 4040 | 700*1650*1350 |
| BWRO-412-12000 | 12000gpd | 2.00m3/h | 4.0kw | 4040 | 850*2350*1350 |
| BWRO-412-15000 | 15000gpd | 2.50m3/h | 4.0kw | 4040 | 850*2350*1350 |
| BWRO-412-18000 | 18000gpd | 3.00m3/h | 4.0kw | 4040 | 850*2350*1350 |
Basic RO Process diagram
Raw water----Raw water feed pump---Sand filter---Activated carbon filter---Softener (optional)---Cartridge PP filter----High pressure pump---RO system---Pure water tank----UV sterilizer----Fine filter(optional)
CIP system and Antiscalant dosing system are optional.
Related Products
LPRO-B16 Seires RO system
BWRO-B16 Series RO system with PTSC Pretreatment system
LPRO-P16 Seires RO system (with PLC controller)
BWRO-B412 Seires RO system (1-element long)
LPRO-B412 Seires RO system (1-element)
LPRO-B412 Seires RO system (2-element long)
PTROM Series RO system
PTROL Series RO system
Our service
(1) 100% factory tested before shipment
(2) 1-year quality warranty
(3) 2-year trouble free service offered
(4) Solve problems within 24 hours
FAQ
Q: Why us?
A: Decades of international bussiness experience + Expertized engineering design team + Scientific and precise management + Meticulous and thoughtful service
Q: Does the machine/equipment difficult to install?
A: No. The machines are pre-plumble, wired and assembled.
Q: What is the package of this machine? Will it damage during shipment?
A: Machines will be packed in plywood case. It is safe.
Q: How to ensure product water quality?
A: All the machines will receive factory test before delivery.
Q: What is the production lead time?
A: 2-4 wks is the standard lead time, according to different configurations. If 60HZ is required, 1 more week is needed.
Q: What and when consumables should be placed?
| No. | Consumables | Life Span |
| 1 | Quartz Sand | 3 years |
| 2 | Activated Carbon | 3 years |
| 3 | Water Softening Resin | 1 year |
| 4 | PP Filter | 3~6 months |
| 5 | RO Membrane | 24~36 months |
| 6 | UV Lamp | 1 year |
Company information
We are your Water Partner Shanghai /Fujian/ United States / Taiwan / South Africa / Nigeria
Founded in 2004, EWP is an international group with diversified cultures. We have members in United States, South Africa, Nigeria, Taiwan and China. We are able to provide a variety of water treatment systems such as RO system, UF system, EDI system, seawater desalination system, MBR system and containerized water treatment system from residential, commercial and industrial applications. And we offer all sorts of water treatment components as well.
Contact us
Tel: 86-21-59153063-212
Skype: sherry.lei6
sherry.lei(at)ewp-china.com
www.ewp-china.com
