PP/PE film blowing machine
- Category: >>>
- Supplier: Shandong Tongjia Machinery Co. Ltd.
Share on (60579041535):
Product Overview
Description

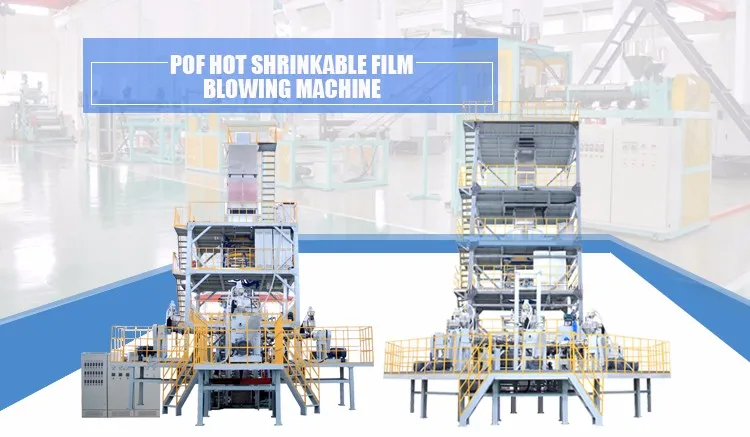

PP/PE hot shrinkable film blowing machine
Product Introduction
Product Models
There are six different models with different production capacity of 3 layers POF Blowing Machines.
Model Number | JG-RSM3B1300 | JG-RSM3B1800 | JG-RSM3B2200 | JG-RSM3B2700 | JG-RSM3B3200 | JG-RSM3B3700 |
Max. folding dia. of film | 1200mm | 1600mm | 2000mm | 2500mm | 3000mm | 3500mm |
Film thickness | 0.015-0.025mm | 0.015-0.025mm | 0.0125-0.025mm | 0.0125-0.025mm | 0.0125-0.025mm | 0.0125-0.025mm |
Max. extrusion capacity | 80-120kg/h | 100-150kg/h | 120-200kg/h | 350kg/h | 430kg/h | 500kg/h |
L/D ratio of screw | 30:1 | |||||
power of die heating | 30kw | 35kw | 38kw | 30kw | 38kw | 45kw |
Installed capacity (approx) KW | 160kw | 190kw | 290kw | 480kw | 586kw | 640kw |
Average consumption (approx)KW | 90kw | 100kw | 160kw | 300kw | 350kw | 370kw |
Dimension(L×W×H) (approx) | 10×6×11m | 12×7×14m | 13×8.5×16m | 15×10×17.5m | 17.5×11×19m | 20×12×21m |
Total weight(approx) | 20T | 28T | 55T | 62T | 68T | 73T |
And another Six Models of 5 layers POF Blowing Machines.
Model Number | JG-RSM3B1300 | JG-RSM3B1800 | JG-RSM3B2200 | JG-RSM3B2700 | JG-RSM3B3200 | JG-RSM3B3700 |
Max. folding dia. of film | 1200mm | 1600mm | 2000mm | 2500mm | 3000mm | 3500mm |
Film thickness | 0.015-0.025mm | 0.015-0.025mm | 0.0125-0.025mm | 0.0125-0.025mm | 0.0125-0.025mm | 0.0125-0.025mm |
Max. extrusion capacity | 80-120kg/h | 100-150kg/h | 120-200kg/h | 350kg/h | 430kg/h | 500kg/h |
L/D ratio of screw | 30:1 | |||||
power of die heating | 30kw | 35kw | 38kw | 30kw | 38kw | 45kw |
Installed capacity (approx) KW | 160kw | 190kw | 290kw | 480kw | 586kw | 640kw |
Average consumption (approx)KW | 90kw | 100kw | 160kw | 300kw | 350kw | 370kw |
Dimension(L×W×H) (approx) | 10×6×11m | 12×7×14m | 13×8.5×16m | 15×10×17.5m | 17.5×11×19m | 20×12×21m |
Total weight(approx) | 20T | 28T | 55T | 62T | 68T | 73T |
Product Features
1. POF Hot shrinkable film blowing machine is designed and produced by our company.
2. The efficiency is improved significantly.
3. Save 30%-80% energy and bring you prominent economic.
Product Application
The POF film is mainly used in packing export product, like foods, beverage or drinks, medicine, healthcare product, stationary cosmetics, handicraft articles, newspaper and books, video products, electric spare parts of attachments and toys.
Packing & Delivery
We have the ability experience to pack all the machines suitable for shipment.
About Company
Our factory was founded in 1953 and we are market-leader in this line in china.
1.Any inquires will be replied in the first time.
2.High quality products, competitive price, fast lead time.
3.Our sales staff will be have a good communication with you ,let you fully understand the situation of our enterprises and products.
4.We will provide high quality overseas service ,our technical staff will be able to provide you with technical support ,for you personally to overseas assembly and test equipment.
5.Our customer service staff will put your feedback to the technical staff in the first time, timely solve your problem.
