API Type B Manual Tongs/Chain pipe tong/Chain pipe wrench

Product Overview

Description

1, Manual Tongs are necessary tools applied to make up and break out pipes.Changing lug jaws and latch steps can adjust different handling sizes of the tongs.They are designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment.

2,The main technical parameters:

No.of Latch Lug jaw	No.of Hinge Pin Hole	Latch step	Size Range(mm(in))		Rated Torque kN·m
			in	mm
1	Ⅰ	1	4-5.1/2	101.6-139.7	135
		2	5.1/2-5.3/4	139.7-146
	Ⅱ	1	5.1/2-6.5/8	139.7-168.3
		2	6.1/2-7.1/4	165.1-184.2
	Ⅲ	1	6.5/8-7.5/8	168.3-193.7
		2	7.3/4-8.1/2	196.9-215.9
2	Ⅰ	1	8.1/2-9	215.9-228.6
	Ⅱ	2	9.1/2-10.3/4	241.3-273
		2	10.3/4-12	273-304.8
3	Ⅰ	1	12-12.3/4	304.8-323.8	100
	Ⅱ	1	13.3/8-14	339.7-355.6
		2	15	381
4	Ⅱ	1	15.3/4	400	135
5	Ⅱ	1	16	406.4	80
		2	17	431.8

3,Company information:

Dongying Xincheng Petroleum Technology Co., Ltd. was established in 2003 and located at the second oilfield

of China —Shengli Oilfield. We have the specialized technicians, senior engineers and peofessional marking team. The company is  committed to develop, manufacture and supply a variety array of  oilfield equipments, the main products include : Petroleum  equipments & tools such as drilling equipments, production equipment,tubular goods, Wellhead quipments, downhole equipments, well control equipments, cementing tools etc.;Petrochemicals.

We have established a complete quality control system,  all products& equipments manufactured as  per international standard and API standard.

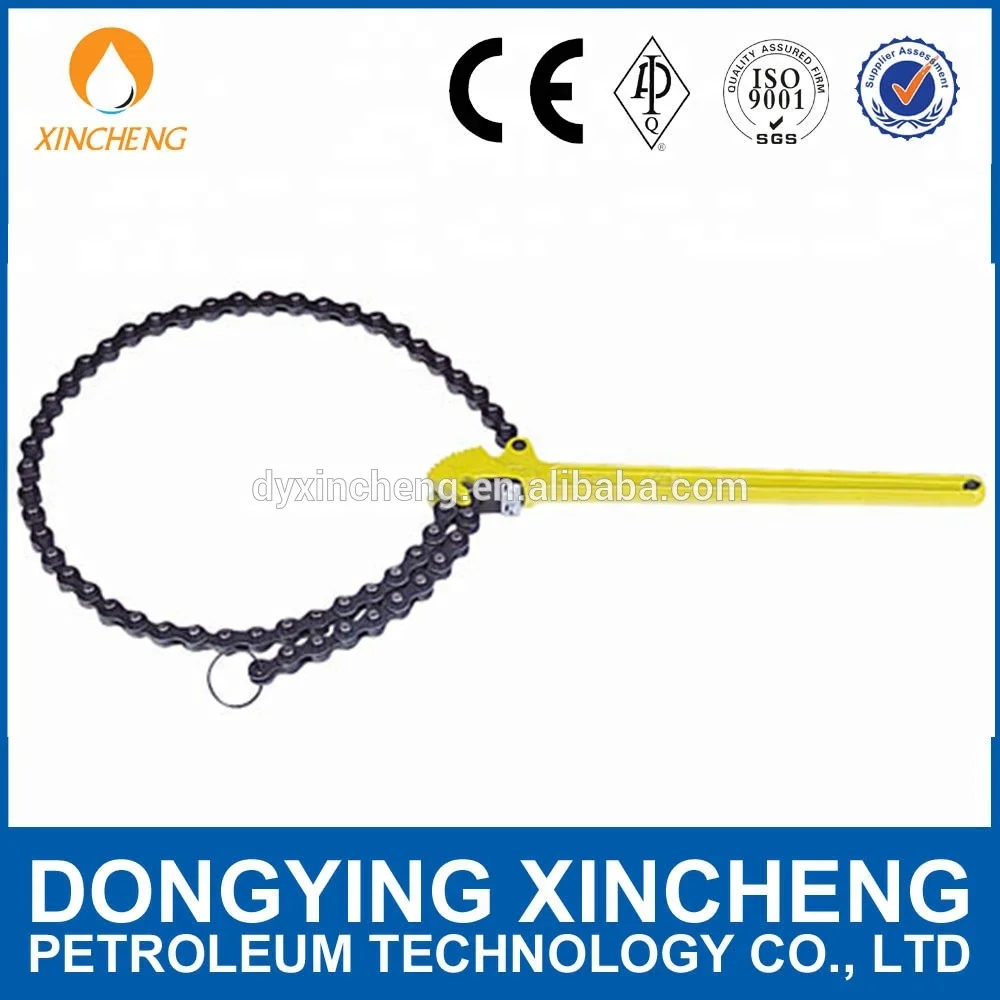

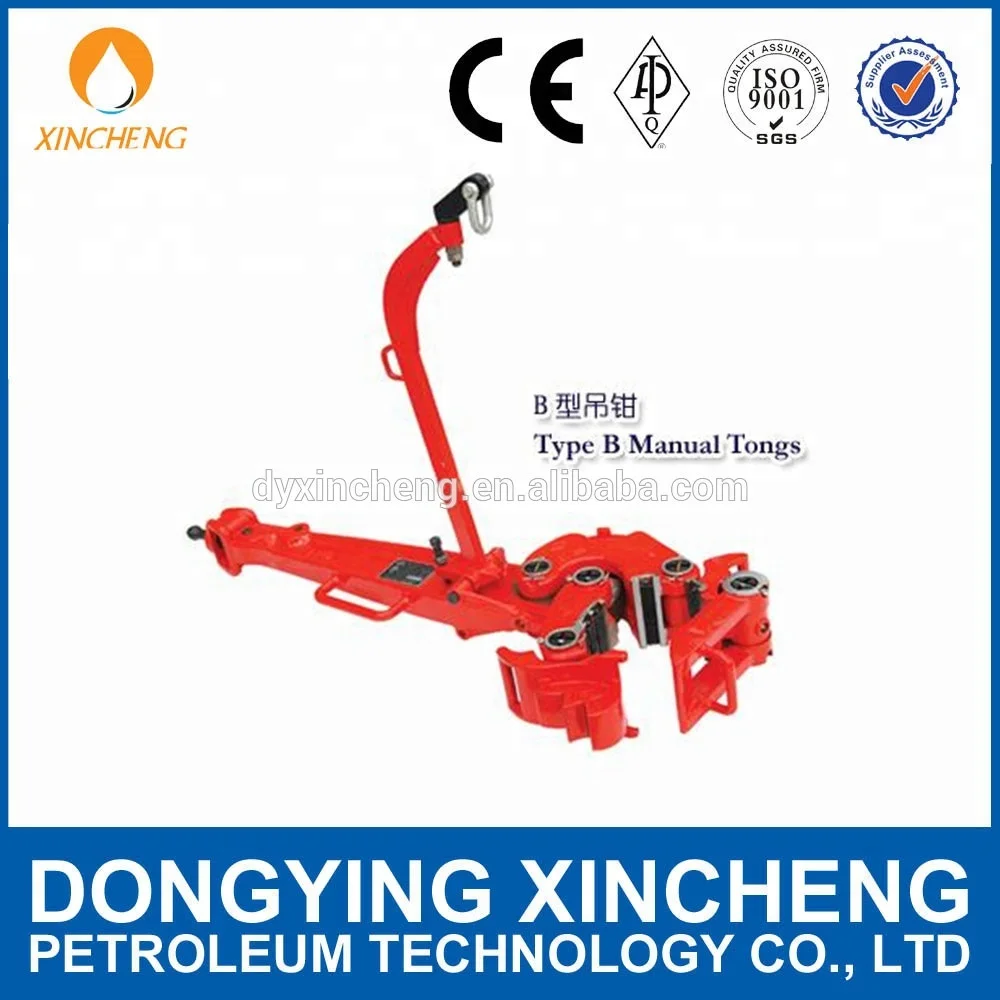

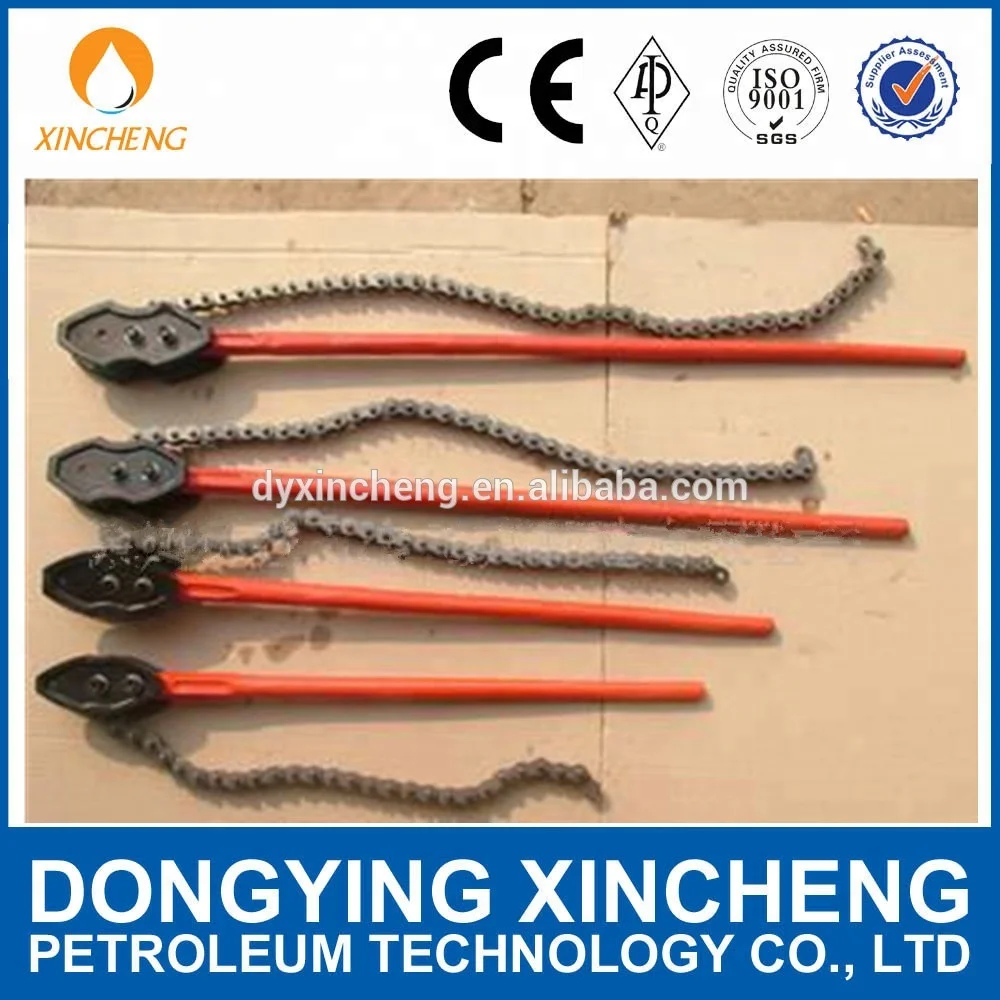

4,Pictures:
